  1. ZYZZYVA:SPECULATIVE BYZANTINEFAULT TOLERANCE R.Kotla, L. Alvisi, M. Dahlin, A. Clement and E. WongU. T. Austin Best Paper Award at SOSP 2007

  2. Motivation • Why implement Byzantine Fault-Tolerant replication? • Increasing value of data and decreasing cost of hardware • More non-stop-fail behaviors than believed • BFT is becoming cheaper • Cost of 3-way non-BFT replication close to cost of BFT replication

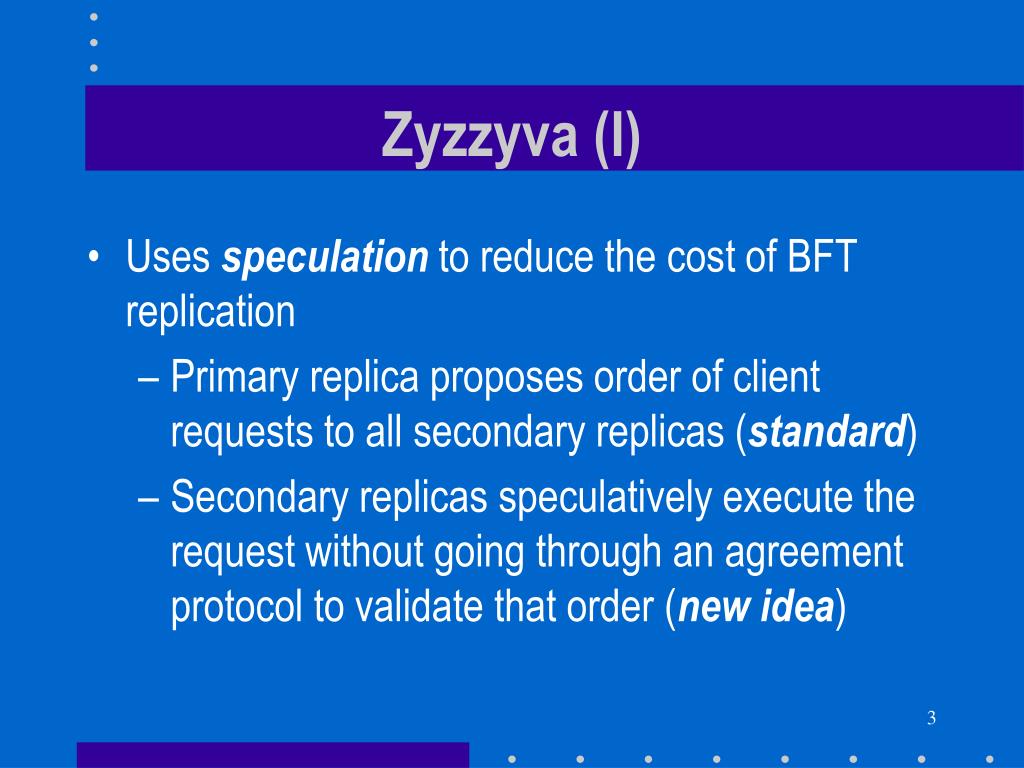

  3. Zyzzyva (I) • Uses speculation to reduce the cost of BFT replication • Primary replica proposes order of client requests to all secondary replicas (standard) • Secondary replicas speculatively execute the request without going through an agreement protocol to validate that order (new idea)

  4. Zyzzyva (II) • As a result • States of correct replicas may diverge • Replicas may send diverging replies to client • Zyzzyva’s solution • Clients detect inconsistencies • Help convergence of correct replicas to a single total ordering of requests • Reject inconsistent replies

  5. How? • Clients observe a replicated state machine • Replies contain enough information to let clients ascertain if the replies and the history are stable and guaranteed to be eventually committed • Replicas have checkpoints

  6. Byzantine agreement (I) • No solution for less than four entities

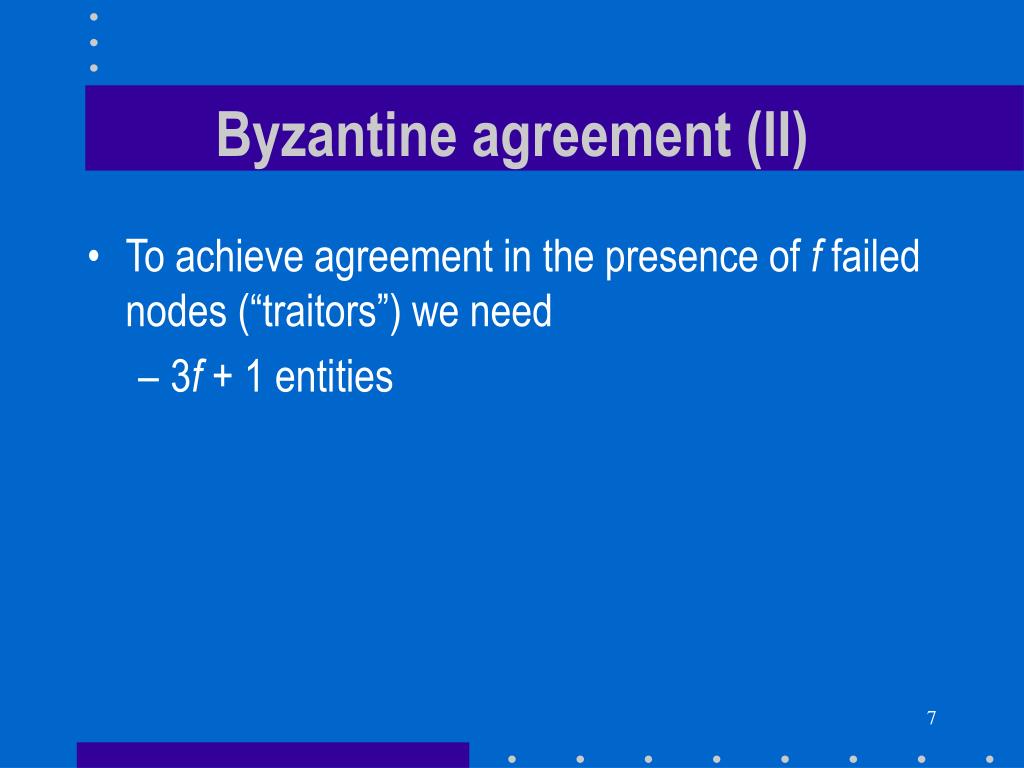

  7. Byzantine agreement (II) • To achieve agreement in the presence of f failed nodes (“traitors”) we need • 3f + 1 entities

  8. Practical BFT (I) • Practical Byzantine Fault-Tolerant protocol (PBFT) [Castro and Liskov 1999]

  9. Practical BFT (II) Replicas decide on correct ordering

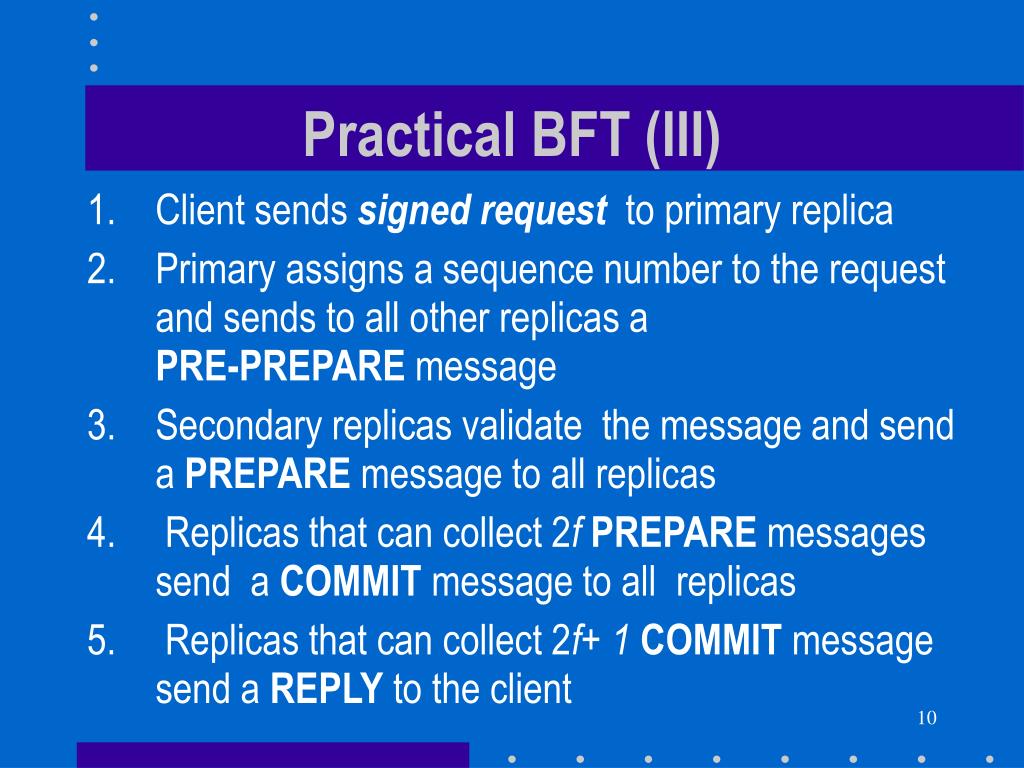

  10. Practical BFT (III) • Client sends signed request to primary replica • Primary assigns a sequence number to the request and sends to all other replicas aPRE-PREPARE message • Secondary replicas validate the message and send a PREPARE message to all replicas • Replicas that can collect 2fPREPARE messages send a COMMIT message to all replicas • Replicas that can collect 2f+ 1COMMIT message send a REPLY to the client

  11. A shortened version Faster agreement is achieved thanks toa more complex view change protocol

  12. The explanation (I) • "No replicated service that uses the traditional view change protocol can be live without an agreement protocol that includes both the prepare and commit full exchanges" • "The traditional view change protocol lets correct replicas commit to a view change and become silent in a view without any guarantee that their action will lead to the view change."

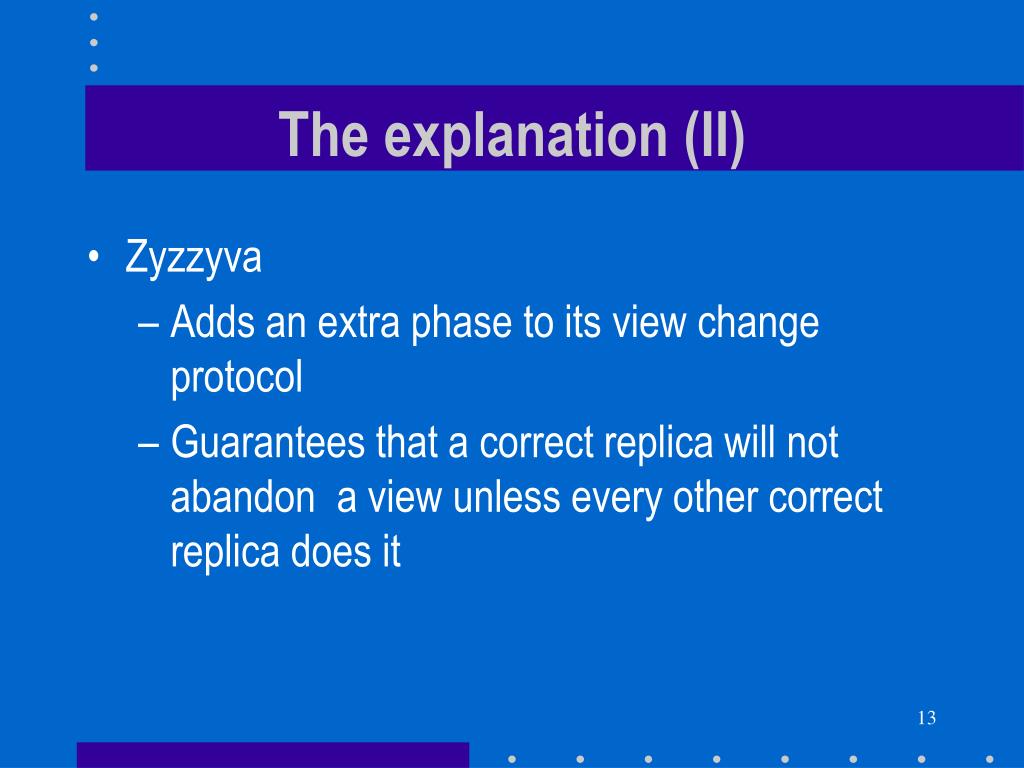

  13. The explanation (II) • Zyzzyva • Adds an extra phase to its view change protocol • Guarantees that a correct replica will not abandon a view unless every other correct replica does it

  14. Zyzzyva Agreement (I) • Common case: no faulty replicas

  15. Explanations • Secondary replicas assume that • Primary replica gave the right ordering • All secondary replicas will participate in transaction • Initiate speculative execution • Client receives 3f + 1mutually consistent responses

  16. Zyzzyva Agreement (II) • With a faulty replica

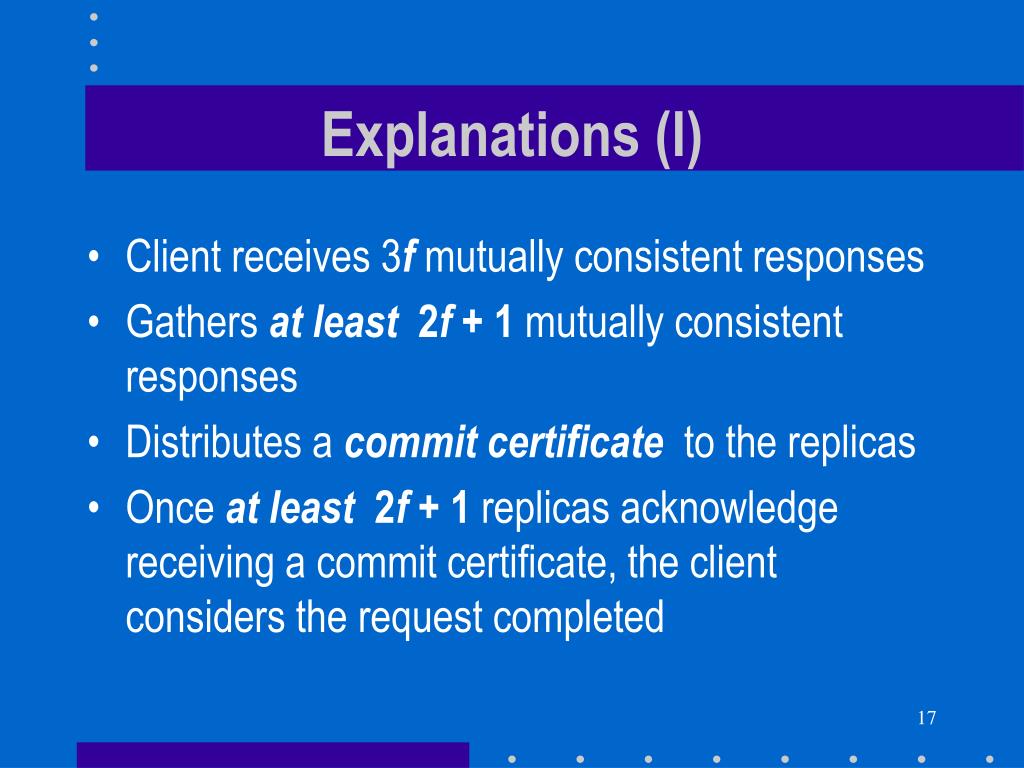

  17. Explanations (I) • Client receives 3f mutually consistent responses • Gathers at least 2f + 1 mutually consistent responses • Distributes a commit certificate to the replicas • Once at least 2f + 1 replicas acknowledge receiving a commit certificate, the client considers the request completed

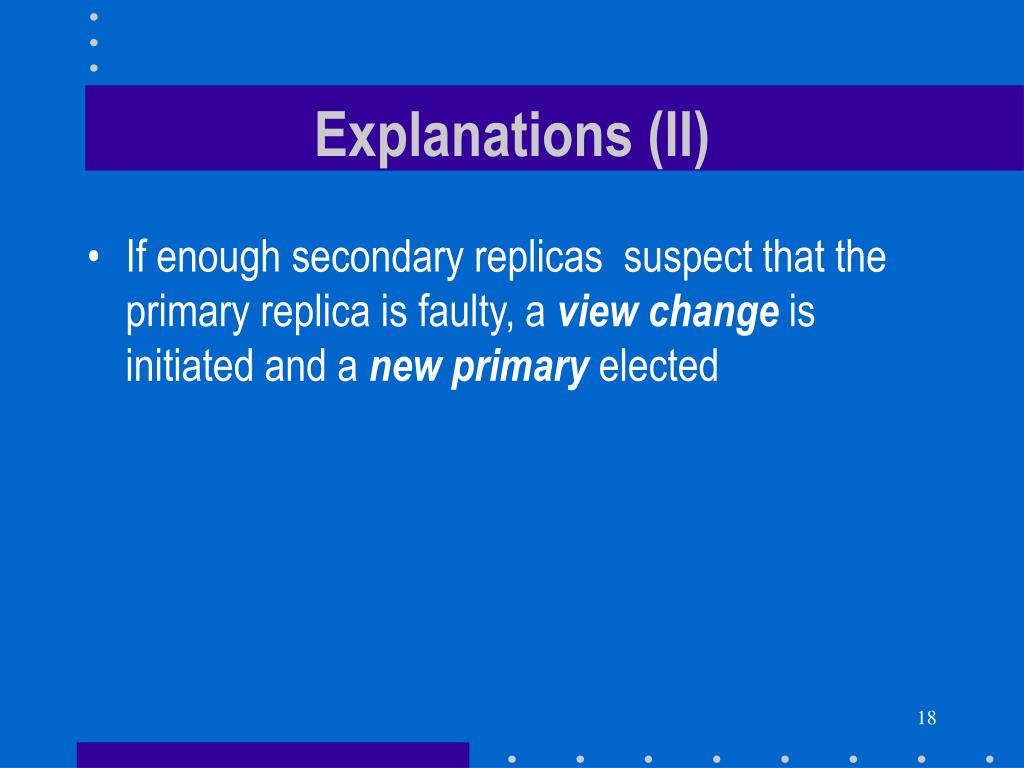

  18. Explanations (II) • If enough secondary replicas suspect that the primary replica is faulty, a view change is initiated and anew primaryelected

  19. Comparison with traditional solutions

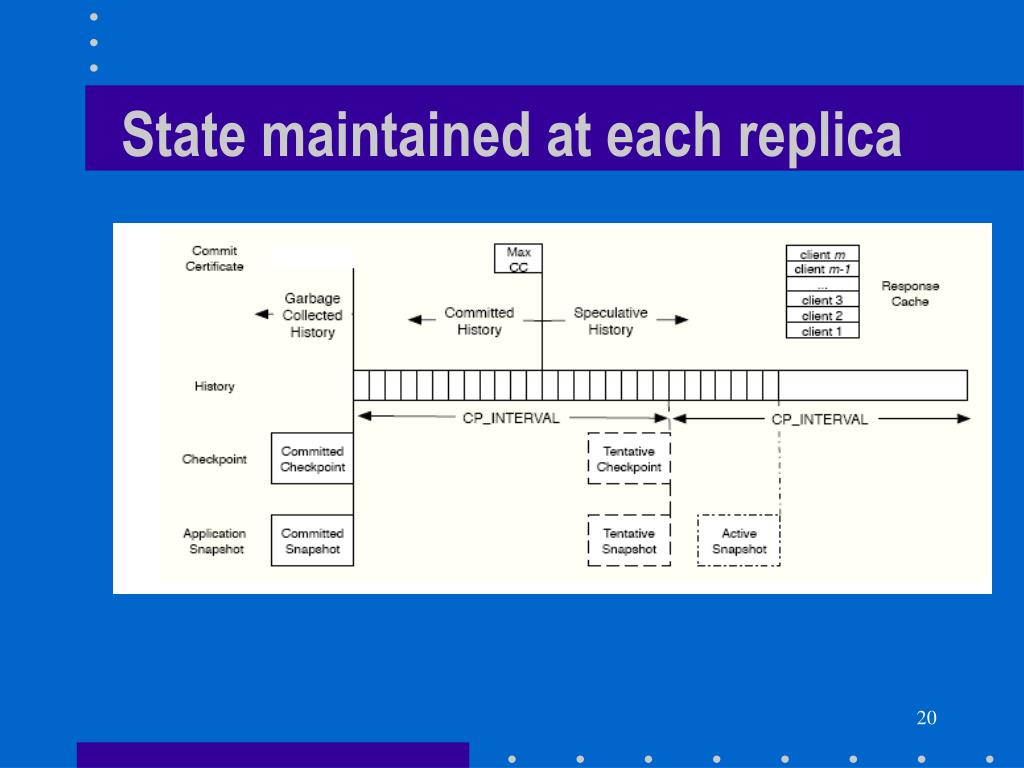

  20. State maintained at each replica

  21. Explanations (I) • Each replica maintains • A history of the requests it has executed • A copy of the max commit certificate it has received • Let it distinguish between committed history and speculative history

  22. Explanations (II) • Each replica constructs a checkpoint every CP_INTERVAL requests • It maintains one stable checkpoint with a corresponding stable application state snapshot • It might also have up to one speculative checkpoint with its corresponding speculative application state snapshot

  23. Explanations (III) • Checkpoints and application state become committed through a process similar to that of earlier BFT agreement protocols • Replicas send signed checkpoint messages to all replicas when they generate a tentative checkpoint • Commit checkpoint after they collect f + 1 signed matching checkpoint messages

  24. View change sub-protocol (I)

  25. Explanations • Two-phase protocol • Elects a new primary • Guarantees that it will not introduce any changes in a history that has already completed at a correct client

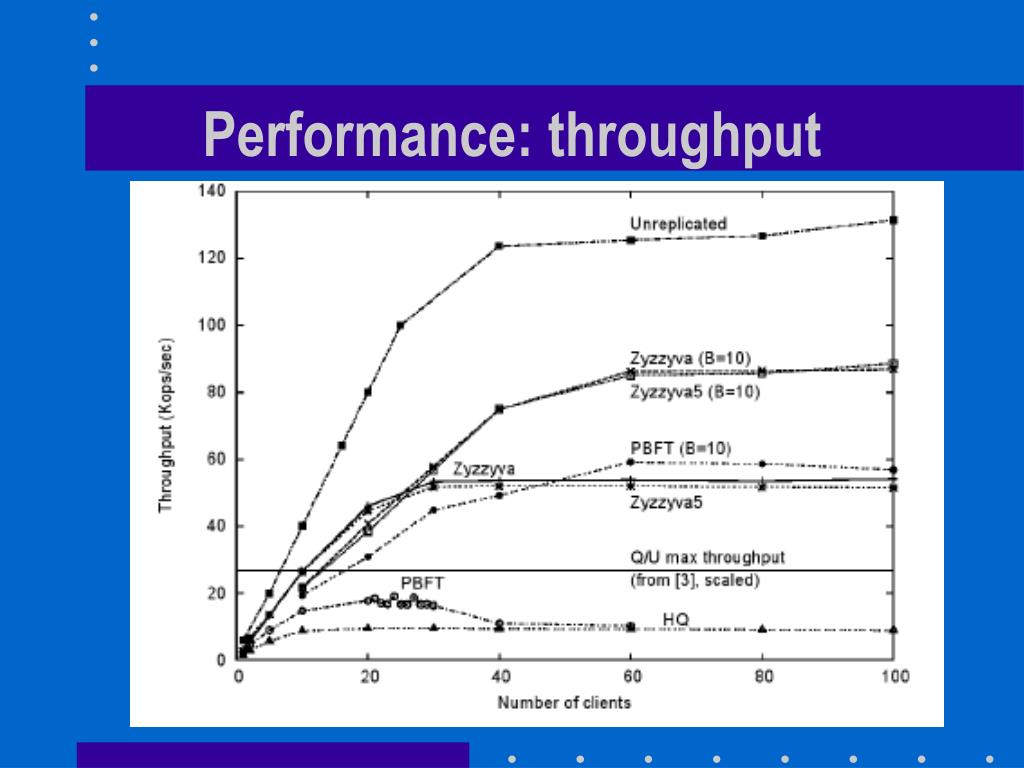

  26. Performance: throughput

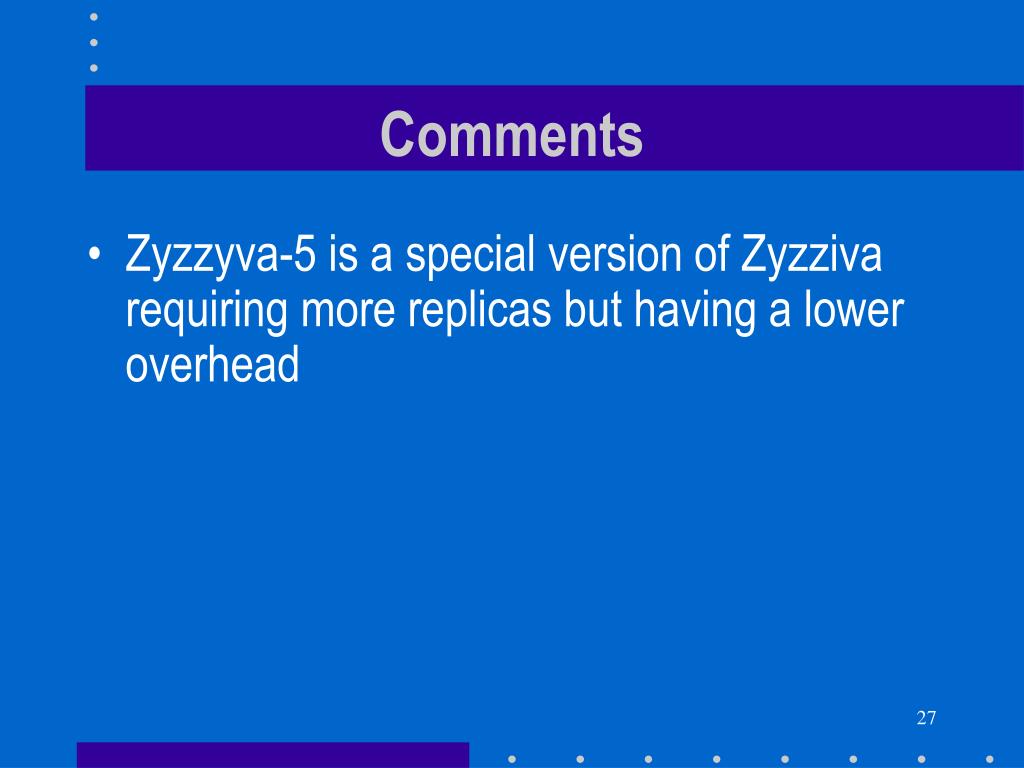

  27. Comments • Zyzzyva-5 is a special version of Zyzziva requiring more replicas but having a lower overhead

  28. Performance: latency

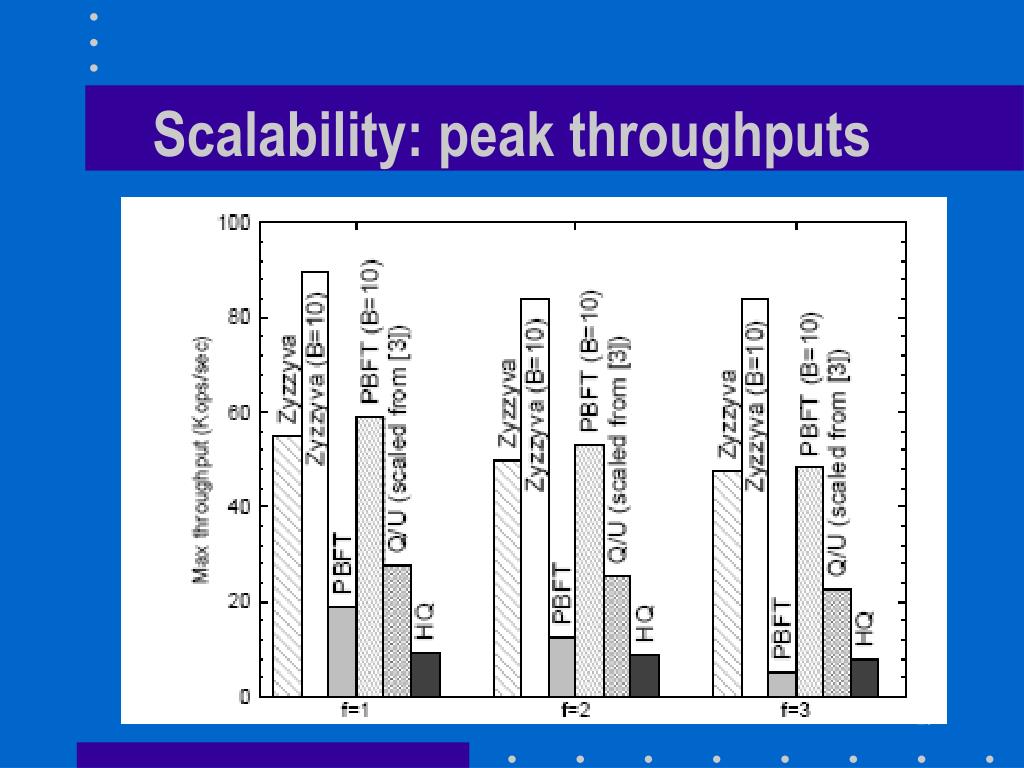

  29. Scalability: peak throughputs

  30. CONCLUSIONS • Systematically exploiting speculative execution results in a protocol much faster than conventional BFT agreement protocols. • Observe that Zyzzyva is optimized for the most frequent case but provides the correct result in all cases • A good rule to follow
