HDD Viewer

The HDD Viewer is a tool that lets you playback and archive the video data on the hard disk from DVR ( Digital Video Recorder ). By using HDD viewer, you can easily search the video for a critical moment and export the images or video to standard Jpeg / AVI format as important evidence .

abia
Télécharger la présentation

HDD Viewer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

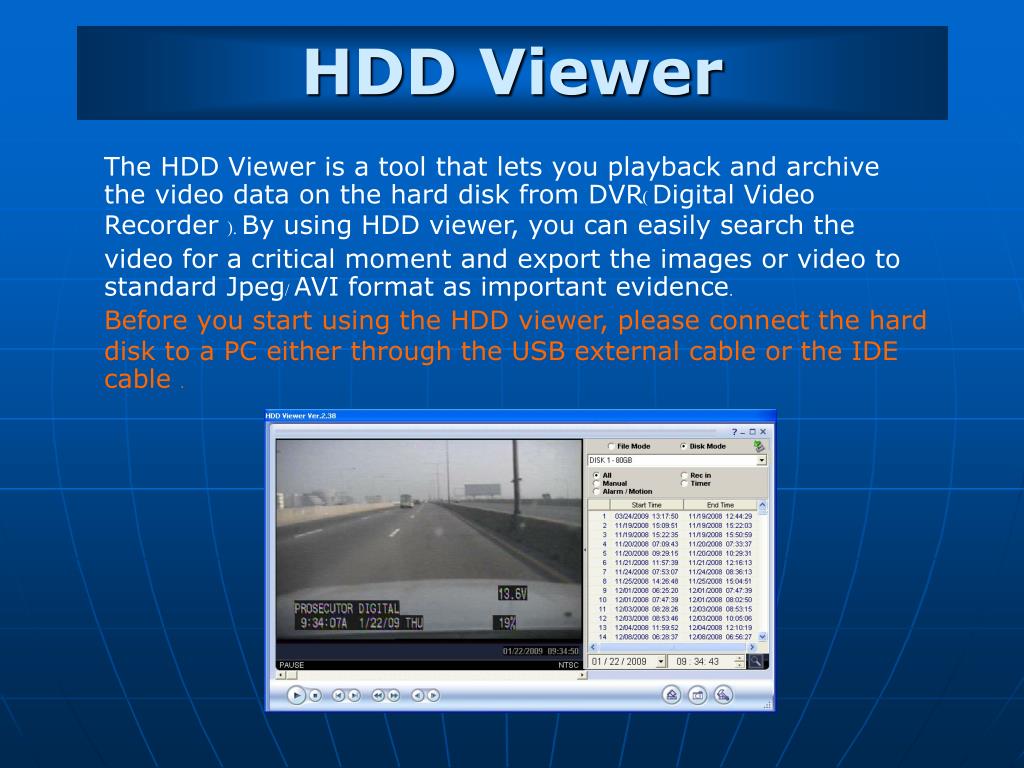

  1. The HDD Viewer is a tool that lets you playback and archive the video data on the hard disk from DVR( Digital Video Recorder ). By using HDD viewer, you can easily search the video for a critical moment and export the images or video to standard Jpeg/ AVI format as important evidence. Before you start using the HDD viewer, please connect the hard disk to a PC either through the USB external cable or the IDE cable . HDD Viewer

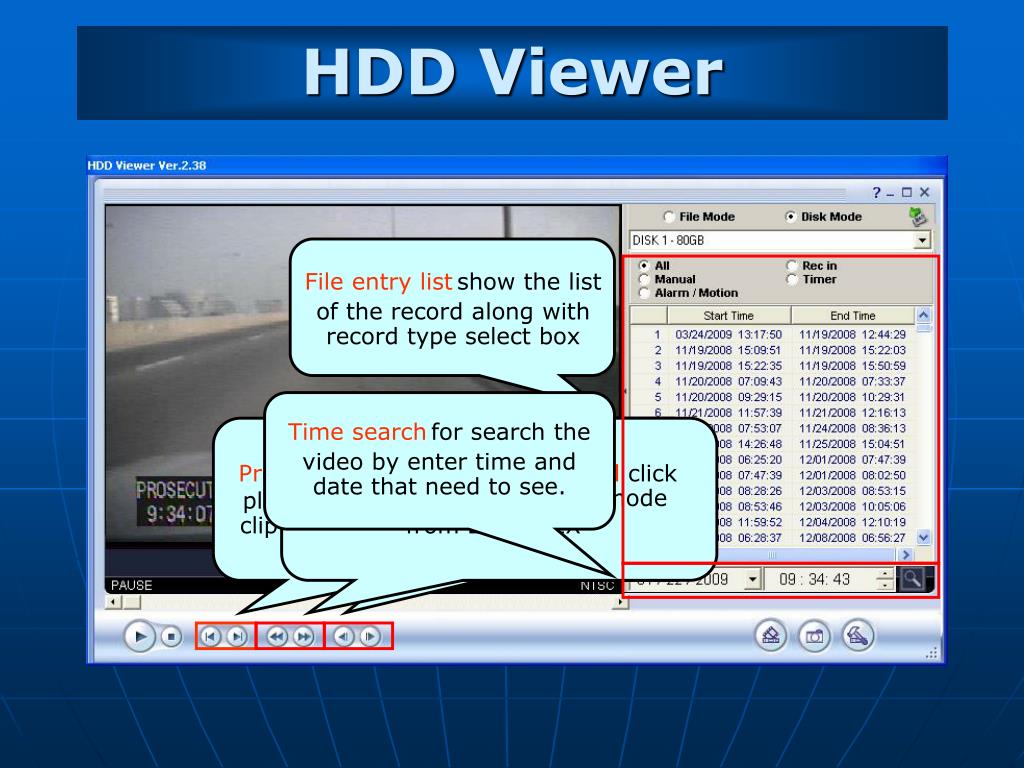

  2. Step forward and backwardclick for playback the next or previous image Time searchfor search the video by enter time and date that need to see. Previous and Next entryclick for playback previous or next video clip (the next entry is in the list) Fast forward and backward click for playthe video in fast mode from 2X to 32X File entry listshow the list of the record along with record type select box HDD Viewer

  3. HDD Viewer

  4. Open the vault door by the key. HDD Viewer

  5. Turn off the HDD mobile rack key and pull out the HDD rack . HDD Viewer

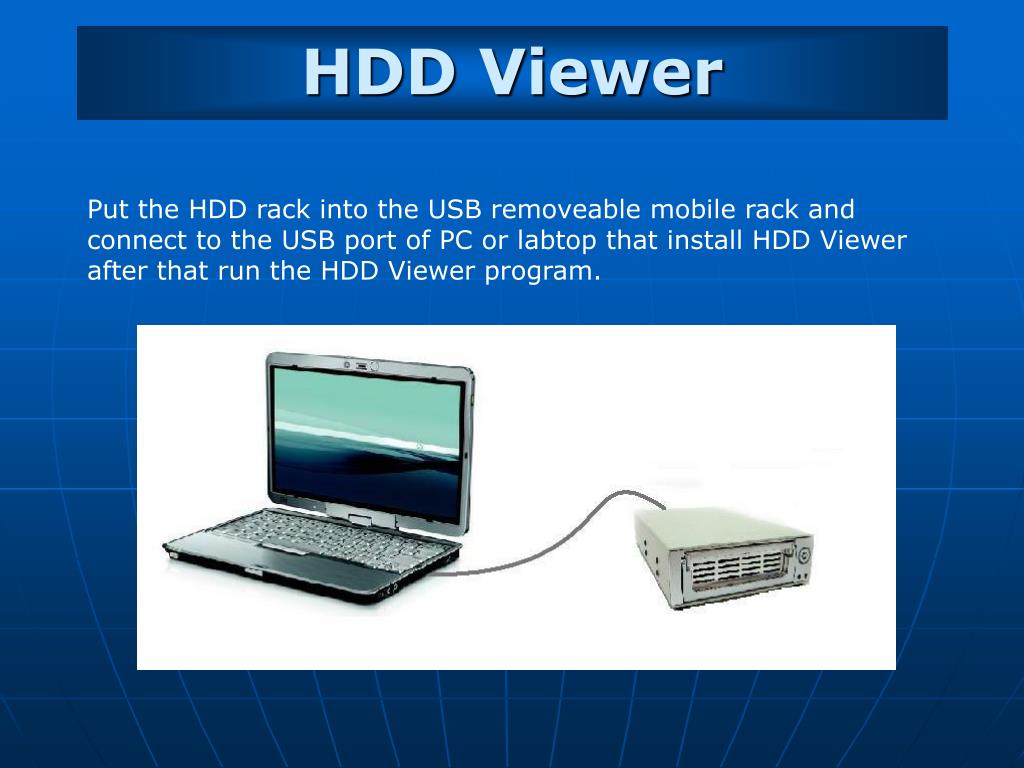

  6. Put the HDD rack into the USB removeable mobile rack and connect to the USB port of PC or labtop that install HDD Viewer after that run the HDD Viewer program. HDD Viewer
