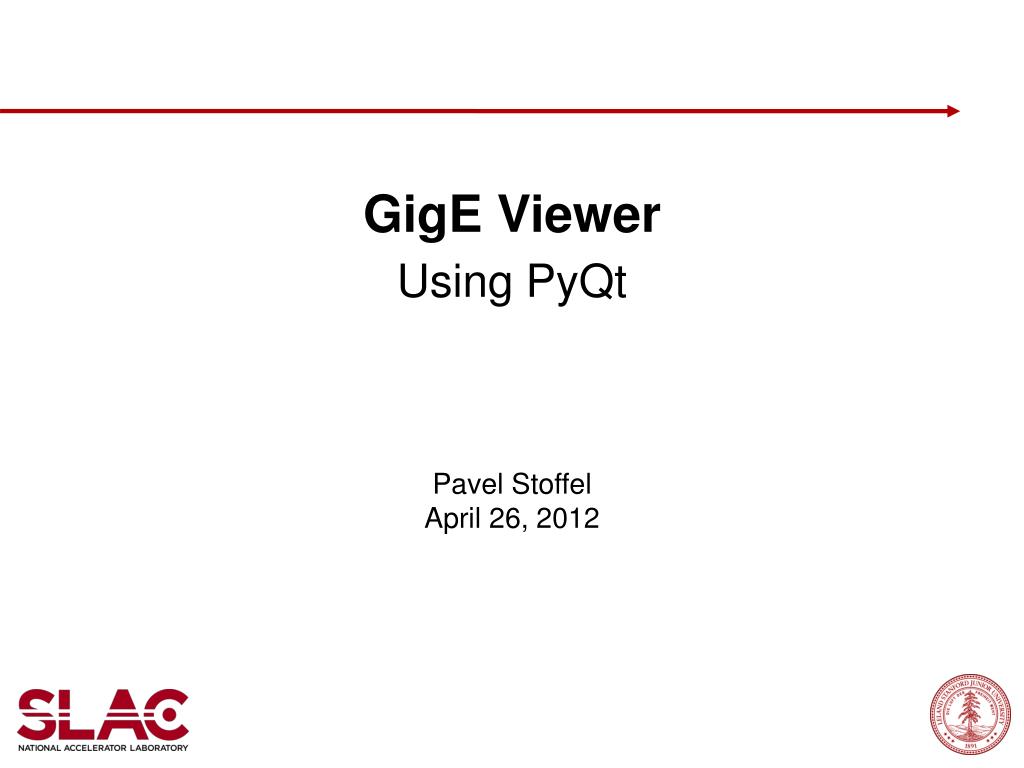

  1. GigE Viewer Using PyQt Pavel StoffelApril 26, 2012

  2. Prosilica G1350C Camera PythonQt Viewer for GigE Cameras Page 2

  3. GigE Cameras • AVT Prosilica, Manta • 580x780 1360x1024 1388x1038 • B/W Color • Up to 20, 30 fps (depending on model) • Free running, periodic, external trigger • C-mount lenses • 1500 to 8228 packet size PythonQt Viewer for GigE Cameras Page 3

  4. Exposure Settings PythonQt Viewer for GigE Cameras Page 4

  5. Region of Interest PythonQt Viewer for GigE Cameras Page 5

  6. Binning PythonQt Viewer for GigE Cameras Page 6

  7. Image and Trigger Modes PythonQt Viewer for GigE Cameras Page 7

  8. Crosses PythonQt Viewer for GigE Cameras Page 8

  9. File Saving PythonQt Viewer for GigE Cameras Page 9

  10. Viewer Module Dependencies

  11. Widget Class Diagram PythonQt Viewer for GigE Cameras Page 11

  12. Flow Diagram PythonQt Viewer for GigE Cameras Page 12

  13. Performance • Viewer • IOC • Data Transfer – IOC to Viewer • Data Transfer – Camera to IOC PythonQt Viewer for GigE Cameras Page 13

  14. Performance PythonQt Viewer for GigE Cameras Page 14

  15. Pyca event processor PythonQt Viewer for GigE Cameras Page 15

  16. Inline code for the event callback PythonQt Viewer for GigE Cameras Page 16

  17. Performance • Viewer: Intel(R) Xeon(R) @ 2.27GHz • IOC: Intel(R) Atom(TM) D510 @ 1.66GHz PythonQt Viewer for GigE Cameras Page 17

  18. CPU Utilization for the Viewer PythonQt Viewer for GigE Cameras Page 18

  19. CPU Utilization for the IOC PythonQt Viewer for GigE Cameras Page 19

  20. To Do • Click for crosses • Rubber-band for ROI • Evaluate ctypes for wrapping DLL's PythonQt Viewer for GigE Cameras Page 20

  21. References • GigE Cameras – Allied Vision Technology • Area Detector – Mark Rivers • Pyca – Amedeo Perazzo PythonQt Viewer for GigE Cameras Page 21
