  1. Dual-Polarization Operations Assessment Status Update on Development Process Progress on RDA work Progress on RPG work Where we are with Beta and Deployment

  2. RDA Work • Data Quality Team • Many, many, many problems identified, researched and fixed • Training, engineering and research experts who meet regularly • Beta test will be key… • Currently Scheduled for Dec 2010 – March 2011

  3. What Dual-Pol Does Not Change • Basic WSR-88D characteristics • Frequency, beamwidth, data resolution • VCP sampling • Elevations, update time, number of pulses per radial • All Pre-Dual-Pol products and algorithms You control how and when you integrate Dual-Pol information into your methodology

  4. Dual-Pol and CMD • CMD will not be operational with initial deployment • Manual clutter management returns! • Bypass Maps for normal clutter • All Bins for AP clutter • CMD will return with the first full build after Dual-Pol • Build 13…scheduled Jan/Feb 2012 • Development work underway…

  5. Dual-Pol and Sensitivity • Sensitivity: ability to detect weak returns • Measured as ___ dBZ @ ___ range for returned signal = noise • Affected by transmitted power and system noise • If returned signal is above the noise, life is good!

  6. Dual-Pol Sensitivity Loss • Dual-Pol radars transmit and receive both horizontally (H) and vertically (V) • For same range, same target, WSR-88D Dual-Pol has less returned power than before

  7. Dual-Pol and Sensitivity • Dual-Pol sensitivity loss means more gates that are “Off” than before • Returned signal not processed into base data Detectable Not Detectable

  8. Dual-Pol Sensitivity Loss • A bit more loss from hardware that does the splitting • Cabling, built-in test equipment, etc. • Per site expected sensitivity loss due to Dual-Pol conversion 3.5 – 4 dB • Impact on operations?!!?

  9. Dual-Pol Sensitivity LossImpact on Operations? • SME panel assembled to evaluate impact of 4 dB loss • ROC engineering, NWS SSDs, NSSL, and WDTB • Spectrum of weather events evaluated • 4 dB loss simulated (Don’t try this at home)

  10. Dual-Pol Sensitivity LossImpact on Operations • Events evaluated • Dryline – KS (KDDC) • Freezing drizzle – KS (KICT) • Marginal lake effect snow – NY (KBUF) • Tornadicsupercell along boundary – CO (KFTG) • Outflow boundaries from convection – OK (KTLX) • Short range smoke plumes – OK (KTLX) • Multiple outflow boundaries/popcorn showers – FL (KEVX) • California wildfires – CA (KSOX) • Hurricane Ike landfall – TX (KHGX) • Nor’easter snowstorm (snowmaggedon) – VA (KLWX) • Go Paul!!

  11. Now For Calibration of Z • Calibration is about the magnitude of Z values KOUN 0.5˚ KCRI 0.5˚

  12. Calibration of Z • Given appropriate Z calibration and same scatterers in a volume • 40 dBZ is 40 dBZ, 30 dBZ is 30 dBZ, etc. • Assuming Rayleigh scattering… • Work is ongoing • Z calibration • ZDR calibration

  13. Sensitivity and CalibrationSummary • Sensitivity: more Off gates with Dual-Pol • Per site expected sensitivity loss due to Dual-Pol conversion 3.5 – 4 dB • Less return from very weak signal areas • Z Calibration: magnitude that is assigned • Dual Pol calibration much more complex • Be kind to your techs! • 8 hour check no longer transparent

  14. Now For Attenuation • Impact on base moments does not change • Impact on Dual-Pol products is more significant KOUN: Dual-Pol KCRI: Single Pol

  15. Attenuation and Dual Pol Products • What has happened to ZDR? • What are the consequences?

  16. Attenuation and Dual Pol Products • What has happened to CC? • What are the consequences?

  17. RPG Work • Dual-Pol algorithms: lots of room to grow* • Knowledge base (research) central Oklahoma • Base data from RDA only recently mature enough for RPG testing • Greatest emphasis now is QPE MLDA HCA *Been there, done that: WSR-88D original development

  18. Quantitative Precipitation Estimation Algorithm • Benefits of Dual-Pol applied to rainfall estimation • Dual-Pol better at identifying ground clutter, biological scatterers, large hail, etc. • Prevent these returns from being converted to rainfall • Legacy Precipitation Processing System and products do not go away

  19. QPE Basics • QPE is an RPG algorithm • QPE & PPS have similarities & differences • QPE supported by other Dual-Pol algorithms • Hydrometeor Classification Algorithm (HCA) • Melting Layer Detection Algorithm (MLDA)

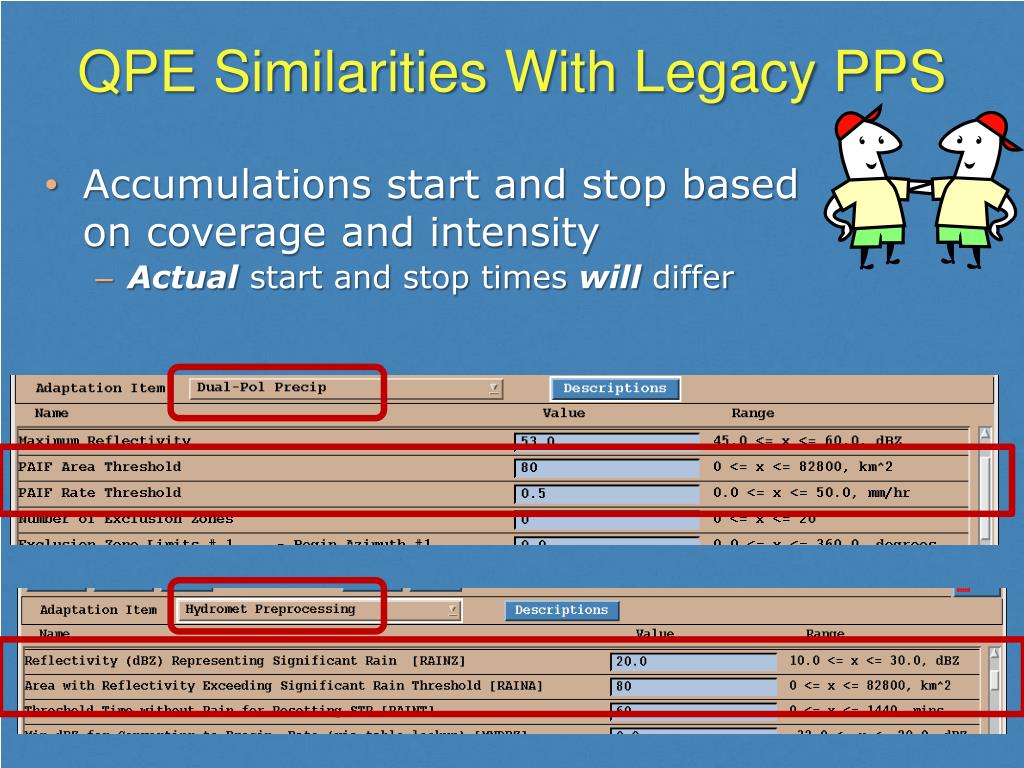

  20. QPE Similarities With Legacy PPS • Accumulations start and stop based on coverage and intensity • Actual start and stop times will differ

  21. QPE Similarities With Legacy PPS • Exclusion zones • Prevent returns (e.g. moving clutter) from being converted to rainfall • Zones defined separately for PPS and QPE • Recommend same zones initially

  22. QPE Similarities With Legacy PPS • Storm total accumulations reset at RPG

  23. QPE Similarities With Legacy PPS • Concept of Hybrid Scan same • Find lowest unblocked elevation of valid precipitable return • Common accumulation periods for PPS and QPE products • One hour, storm total, user defined

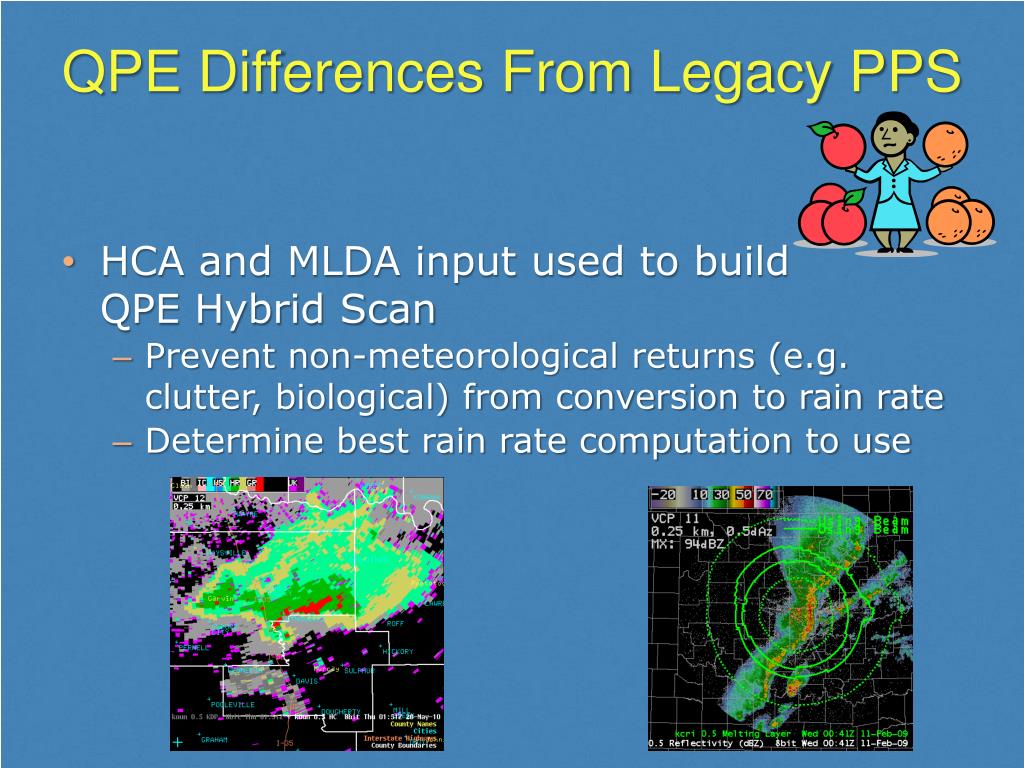

  24. QPE Differences From Legacy PPS • HCA and MLDA input used to build QPE Hybrid Scan • Prevent non-meteorological returns (e.g. clutter, biological) from conversion to rain rate • Determine best rain rate computation to use

  25. How QPE Builds Hybrid Scan Ice Crystals • Each bin gets Hydroclass value from HCA Clutter Graupel Unknown Big Drops Biological Heavy Rain Hail-Rain Dry Snow Rain Wet Snow

  26. How QPE Builds Hybrid Scan • GC (clutter), UK (unkown) • Go up next tilt • BI (biological), no echoes • Don’t search higher and set rain rate to 0.0 • Remaining Hydroclass values are precipitable • Lots of details on this one…some other time!

  27. QPE Differences From Legacy PPS • QPE rain rate product every volume scan Hybrid Scan Reflectivity PPS R(Z) R(Z) Hybrid Scan Hydroclass QPE R(Z,ZDR) R(KDP)

  28. Why is QPE Work Going On NOW? • Base data from RDA only recently (May!) mature enough for RPG testing • But wait! There’s more! LNAs switched out in July • RDA work requires frequent shutdowns • QPE and PPS both require • High quality base data • Appropriate clutter filtering • RDA stable and calibrated

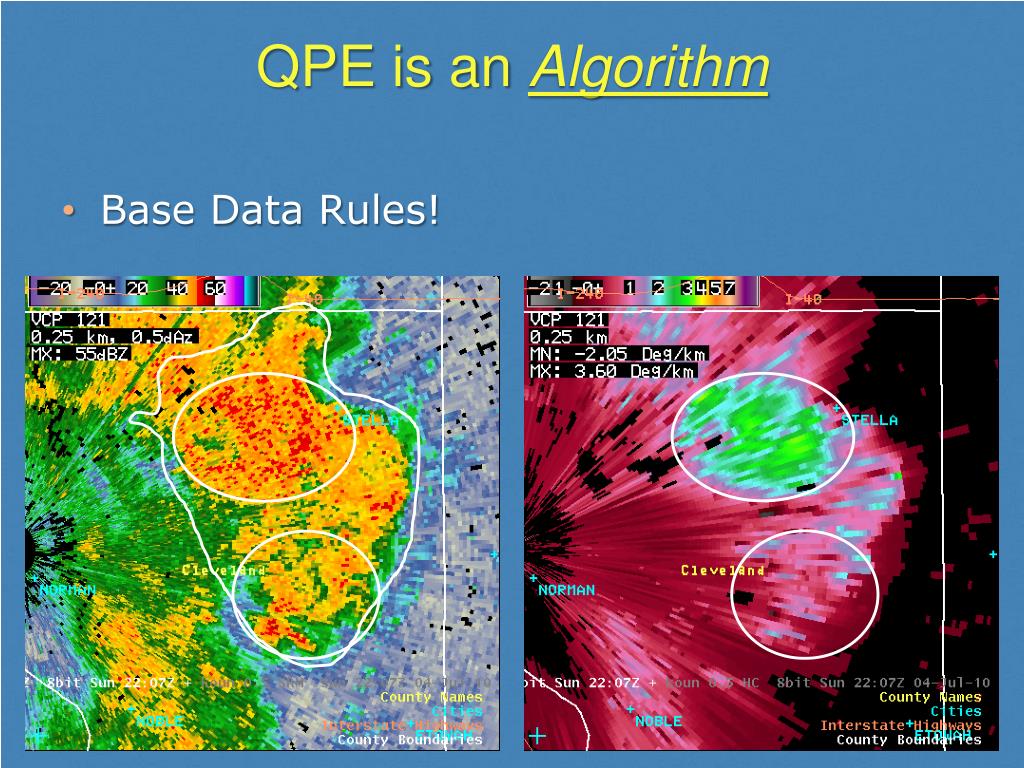

  29. QPE is an Algorithm • Base Data Rules!

  30. QPE Work Currently Underway • Attenuation and QPE • Easy to identify in base data

  31. QPE Work Currently Underway • QPE can show zero rain rates • Attenuation correction for DP variables being worked

  32. QPE Work Currently Underway • R(KDP) performance looks good so far • R(Z,ZDR) performance • Significant underestimation of high efficiency (warm rain) rainfall • Underestimation similar to R(Z) R(Z) Hybrid Scan Hydroclass QPE R(Z,ZDR) R(KDP)

  33. QPE Work Currently Underway • R(Z,ZDR) performance • Warm rain event, flash flooding in OKC • We were lucky to discover this (warm rain in OK and KOUN was running) Gage: 10.21 QPE: 4.40 PPS: 4.81

  34. QPE Work Currently Underway • Current version of R(Z,ZDR) based on large group of central OK rain events • “Individual cases may vary” • Solution requirement: no operator parameter changes

  35. Thank You • You are an important part of this process
