Presentation Transcript

  1. STAR Physics Program Nu Xu Nuclear Science Division Lawrence Berkeley National Laboratory Many thanks to the organizers: Z.T. Liang, Q.H. Xu, P. Zhuang …

  2. STAR Detectors: Full 2π particle identification! EMC+EEMC+FMS (-1 ≤  ≤ 4) TPC TOF DAQ1000 HLT HFT FGT

  3. 1) At 200 GeV top energy - Study medium properties, EoS - pQCD in hot and dense medium 2) RHIC beam energy scan - Search for the QCD critical point - Chiral symmetry restoration STAR Physics Focus Polarized spin program - Study proton intrinsic properties Forward program - Study low-xproperties, search for CGC - Study elastic (inelastic) processes (pp2pp) - Investigate gluonicexchanges

  4. Proton Spin Physics

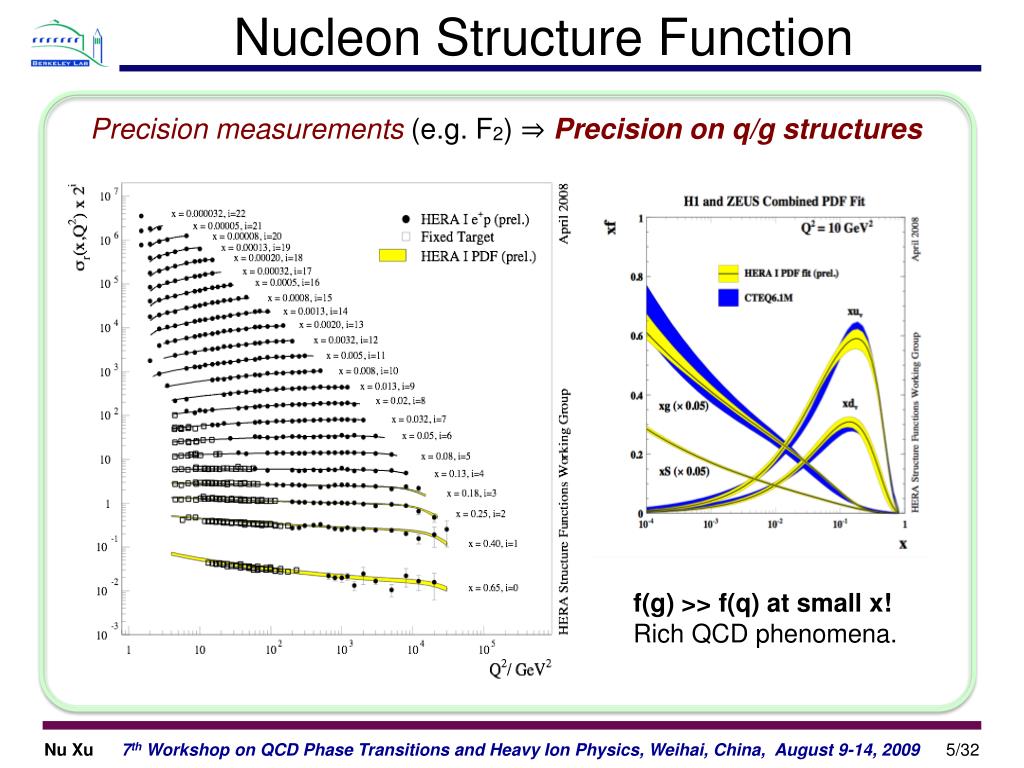

  5. Nucleon Structure Function Precision measurements (e.g. F2) ⇒ Precision on q/g structures f(g) >> f(q) at small x! Rich QCD phenomena.

  6. West STAR: Large acceptance for correlation measurements di-jets/hadron and γ-jet η = 0 η = 1 η = 2 Polarized p+p Program at RHIC η = -1 gg, qg, qq

  7. Partonic Processes Jet parton detector particle π0 π+ g q Δg Measurements at RHIC

  8. Status on ΔgMeasurements at RHIC Run9 plan:STAR bottom line is to collect FoM: 6.5 pb-1 (Run9: 2.3 pb-1) inclusive jet, di-jets, -jet… analysis STAR: internal review of the strategy for spin physics in light of Run9 data. (Sichtermann, Sowinski, Surrow) ALL Run6 Run9 plan XT RHIC Science and Technology Review, BNL, July 7-9, 2008 de Florian et al, arXiv: 0804.0422

  9. STAR: 500GeV Low-x Program 1) High precision at √s = 500 GeV at small x, ~ 300pb-1 2) Inclusive Jets 3) di-jet

  10. STAR: The Sea-Quark Program 500 GeV p+p collisions Forward GEM Tracker: FGT 1) Charge sign identification for high momentum electrons from W± decay (Energy determined with EEMC) 2) Triple-GEM technology, Summer 2011 for Run12 FGT HFT

  11. High-Energy Nuclear Collisions

  12. In 200 GeV Au+Au collisions at RHIC, strongly interacting matter formed: - Jet energy loss: RAA - Strong collectivity: v0, v1, v2 - Hadronization via coalescence: nq-scaling Questions: Is thermalization reached at RHIC? - Systematic analysis with dN/dpT and dv2/dpT results… - Heavy quark and di-lepton measurements When (at which energy) does this transition happen? What does the QCD phase diagram look like? - RHIC beam energy scan sQGPand the QCD Phase Diagram

  13. High-Energy Nuclear Collisions Energy Frontier TC LHC, RHIC Baryon Density 1st order p.b. FAIR, NICA, CSR Density Frontier TE RHIC, FAIR 3 2 1 quark-gluon plasma Early Universe 1 2 3 Tc Critical Point? Temperature hadron gas CSC nuclei Baryon Chemical Potential

  14. QCD Thermodynamics RHICLHC SB Ideal Gas At μB = 0: cross over transition, 150 < Tc < 200 MeV The SB ideal gas limit: T/Tc ~ 107 Tini(LHC) ~ 2-3*Tini(RHIC) Thermodynamic evolutions are similar for RHIC and LHC Zoltan Fodor, Lattice 2007

  15. L or B Search for Local Parity Violation … The separation between the same-charge and opposite-charge correlations. - Strong EM fields - De-confinement and Chiral symmetry restoration • PID LPV analysis with TOF • RHIC BES: disappearance

  16. Partonic Collectivity at RHIC Low pT(≤ 2 GeV/c): hydrodynamic mass ordering High pT (> 2 GeV/c): number of quarks ordering s-quark hadron: smaller interaction strength in hadronic medium light- and s-quark hadrons: similar v2 pattern => Collectivity developed at partonic stage!

  17. Current Measurements with J/Ψ STAR submitted to PRL 0904.0439 (Run7 64M MB events) Run10, √sNN = 200 GeV Au+Au collisions: Measure the v2 of J/Ψ, with the help of HLT Measure the RAA of J/Ψ at high transverse momentum pT > 5 GeV/c

  18. Flavor Dependence in RAA and pQCD pT (GeV/c) p K ,  STAR preliminary STAR submitted to PRL 0904.0439 At pT ≥ 5 GeV/c: RAA) ~ RAA() < RAA(K) <RAA(J/ψ)

  19. First Observation of STAR Preliminary 200 GeV Au+Au collisions at RHIC STAR Preliminary First observation of an anti-hypernucleus Paper draft in STAR review, intended for the Science

  20. High Moment Analysis (BES) STAR Preliminary, QM09 High moments are more sensitive to critical point related fluctuation. The 4th moment, Kurtosis, is directly related to the corresponding thermodynamic quantity: susceptibility for conserved quantum numbers such as Baryon number, charge, strangeness…

  21. STAR Detector MTD EMC barrel MRPC ToF barrel 100% ready for run 10 EMC End Cap FMS BBC FPD TPC FHC PMD Completed DAQ1000 HLT Ongoing R&D HFT FGT

  22. STAR: Physics with ToF Significant improve PID. With TPC, PID will be been extended to pT ~ 15 GeV/c Correlations with PID hadrons; resonances (up to Ω); trigger with high pT hadrons … Beam energy scan program: event-by-event K/π analysis and net-p Kurtosis 2π electron and di-electron analysis; heavy flavor program … STAR TOF STAR TPC+TOF Log10(p)

  23. Reconstruction Efficiency Improvement Y.C. Xu, et al., NIMA596, 186(08) TOF: Increase efficiency for all resonances Extend the pT reach = EOS parameters: temperature and collective velocities

  24. STAR High Level TriggerRun9 p+p 200 GeV, May 19 - 25 J/ψ Fast filtering for quick data analysis. Run10: try J/ψ v2 Online QA

  25. The di-Lepton Program at STAR ρϕ J/ψ (1)σ (2) v2 (3) RAA DY, charm Bk • Chiral • Symmetry • Restoration • Direct • Radiation from • The Hot/Dense • Medium • * ToF Crucial for • the physics. Mass (GeV/c2) pT(GeV/c)

  26. Di-leptons allow us to measure the direct radiation from the matter with partonic degrees of freedom, no hadronization! • Low mass region: • , , e-e+ • minve-e+ • medium effect • Chiral symmetry • - High mass region: • J/e-e+ • minve-e+ • Direct radiation Expanding partonic matter at RHIC and LHC! Direct Radiation

  27. STAR: Muon Telescope Detector beam pipe TPC TOF EMC magnet MTD Muon Telescope Detector at STAR: MRPC technology; με ~ 45%; cover ~60% azimuthally and |y| < 0.25 TPC+TOF+MTD: muon/hadron enhancement factor ~ 102-3 For trigger and heavy quarkonium measurements China-STAR collaboration: a proposal will be ready in mid-Sept.

  28. STAR Heavy Flavor Tracker • HFT: 2012-2014 • 1) 2-layer thin CMOS pixels; • 1-layer strips; SSD • 2) First layer at 2.5 cm close to • the beam pipe, 2pi coverage • Measure down to low pT ~ 0.5 GeV/c for open charm hadrons

  29. HFT: Charm Hadron v2 and RAA • 200 GeV Au+Aum.b. • collisions (500M events). • - Charm hadron collectivity  • drag/diffusion constants  • Medium properties! • 200 GeV Au+Aum.b. • collisions (|y|<0.5 500M events) • Charm hadron RAA • - Energy loss mechanism! • - QCD in dense medium!

  30. STAR QCD physics program for next decade: Spin Physics: - 200 GeV: Δginclusive and di-jets, γ-jet - 500 GeV: sea quark helicity distributions - 200/500 GeV: transverse spin phenomena Heavy Ion Physics: - Thermalization at 200 GeV - QCD phase boundary and critical point - In medium properties Low-x Physics: - Study gluon-rich phenomena at RHIC - Color glass condensate Summary

  31. Timeline of QCD and Heavy Ion Facilities Spin STAR FGT BES STAR HFT RHIC-II EIC (meRHIC, eRHIC) Others RHIC US LRP LHC FAIR CBM K300 NICA J-PARC (50 GeV p+A) Spin Heavy Ion R&D Future programs Nu Xu, August 2009Talk/08CCAST/01nxuTalk/
