Multiple Criteria Decision Making based Clustering Technique for WSNs

1. Multiple Criteria Decision Making based Clustering Technique for WSNs By: Mansoor Mustafa Reg. No. FA11-REE-044 Supervisor Dr. SafdarH. Bouk Co-supervisor Dr. NadeemJavaid

2. Outline • Introduction to WSNs • Compression with traditional Networks • WSN Challenges • Introduction to Clustering • Previous Work • Problem Statement • Proposed Scheme • Research Methodology • Simulation and Results • Conclusion

3. Wireless Sensor Networks • Composed of a large number of sensor nodes. • Are densely deployed either inside the phenomenon or very close to it. • Random deployment

4. Comparison of WSNs with traditional Networks

5. WSN Challenges • Energy • Security • Self-Management • Wireless Networks • Design Constrains • Energy is the major challenge in WSNs • Different MAC and Routing protocols are designed to minimize energy consumption • Clustering is most energy efficient routing technique in WSNS

6. Introduction to Clustering • Important method for prolonging network lifetime in WSNs • Divides WSN into groups, called Clusters,and in each Cluster a Head/Leader/Manager node, called Cluster Head (CH), is assigned by Sink/selected by consensus from Group. • CHs collect data from respective cluster members and forward aggregated data to the Sink/Base Station (BS).

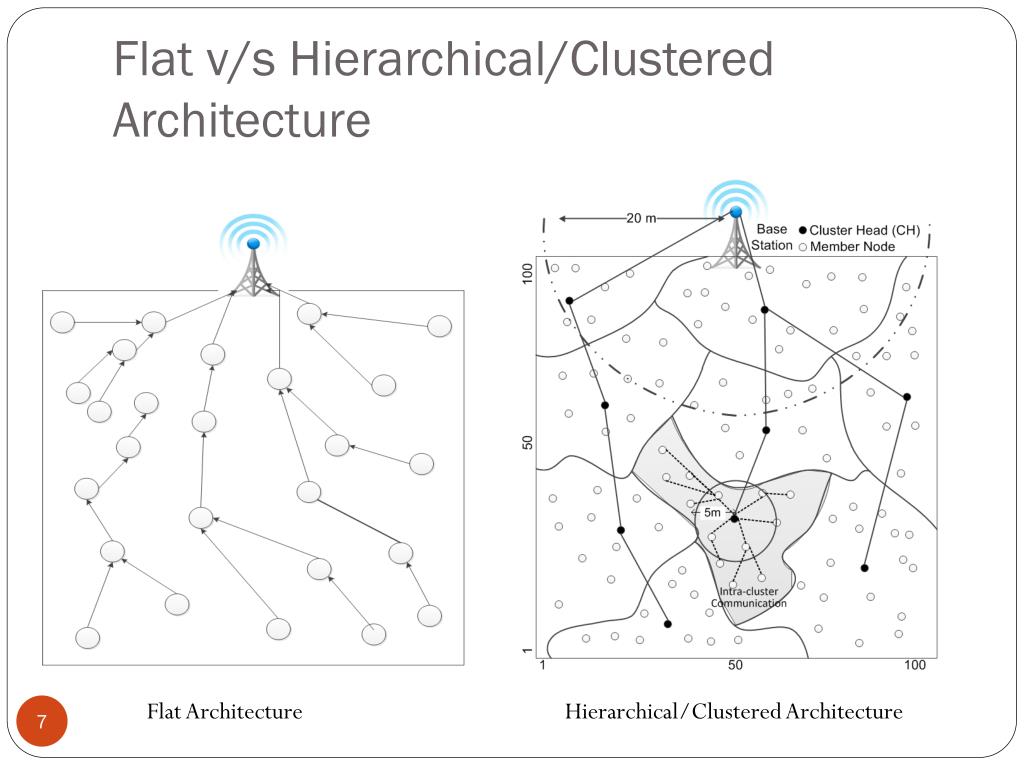

7. Flat v/s Hierarchical/Clustered Architecture Flat Architecture Hierarchical/Clustered Architecture

8. Previous Work • LEACH: which was the very first clustering protocol for WSN. • In LEACH, homogeneous sensor nodes (i.e. having same initial energy) are considered • In each round, CH responsibility is rotated among high energy nodes in order to balance the communication load among all nodes • LEACH operates in two phases: • Advertising phase • Data transmission phase

9. Previous Work ….. • Stable Election Protocol (SEP) protocol assumes that in real environment nodes have different energy. • SEP divides heterogeneous nodes energy environment in two types of nodes, i.e., advance nodes and normal nodes • Advance nodes have some amount of more energy than normal nodes • SEP assign a weighted probability to each node based on its energy • SEP improves the cluster formation of LEACH by decreasing the CH epoch interval of advance nodes, i.e., advance nodes get more chances of becoming CH.

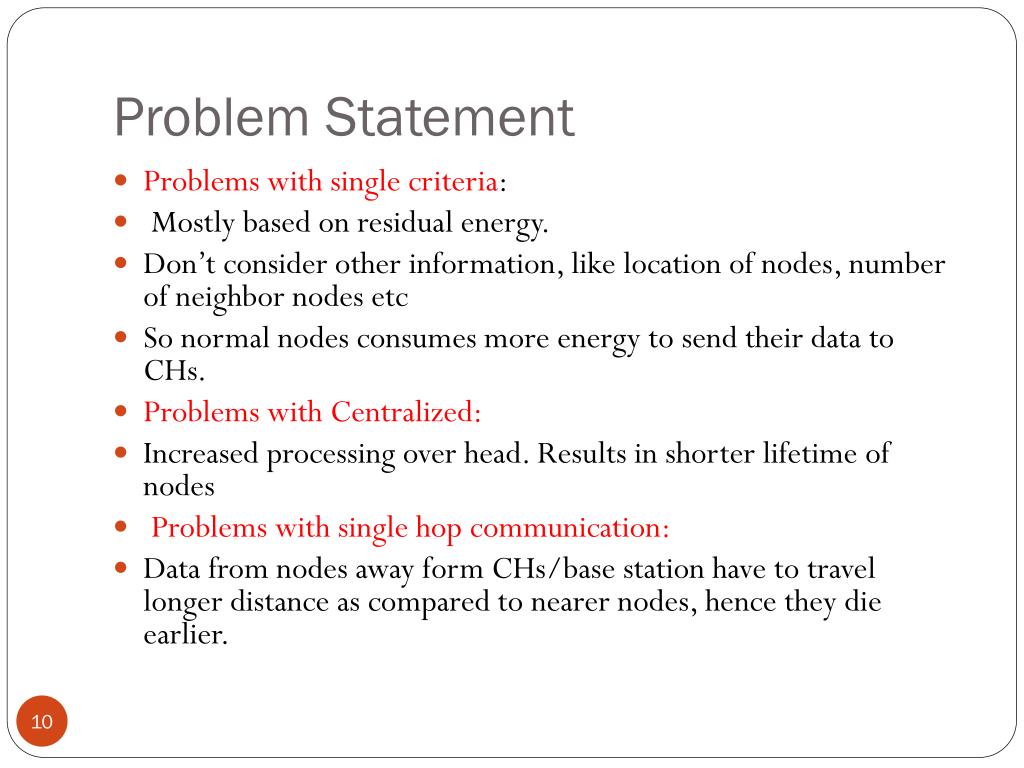

10. Problem Statement • Problems with single criteria: • Mostly based on residual energy. • Don’t consider other information, like location of nodes, number of neighbor nodes etc • So normal nodes consumes more energy to send their data to CHs. • Problems with Centralized: • Increased processing over head. Results in shorter lifetime of nodes • Problems with single hop communication: • Data from nodes away form CHs/base station have to travel longer distance as compared to nearer nodes, hence they die earlier.

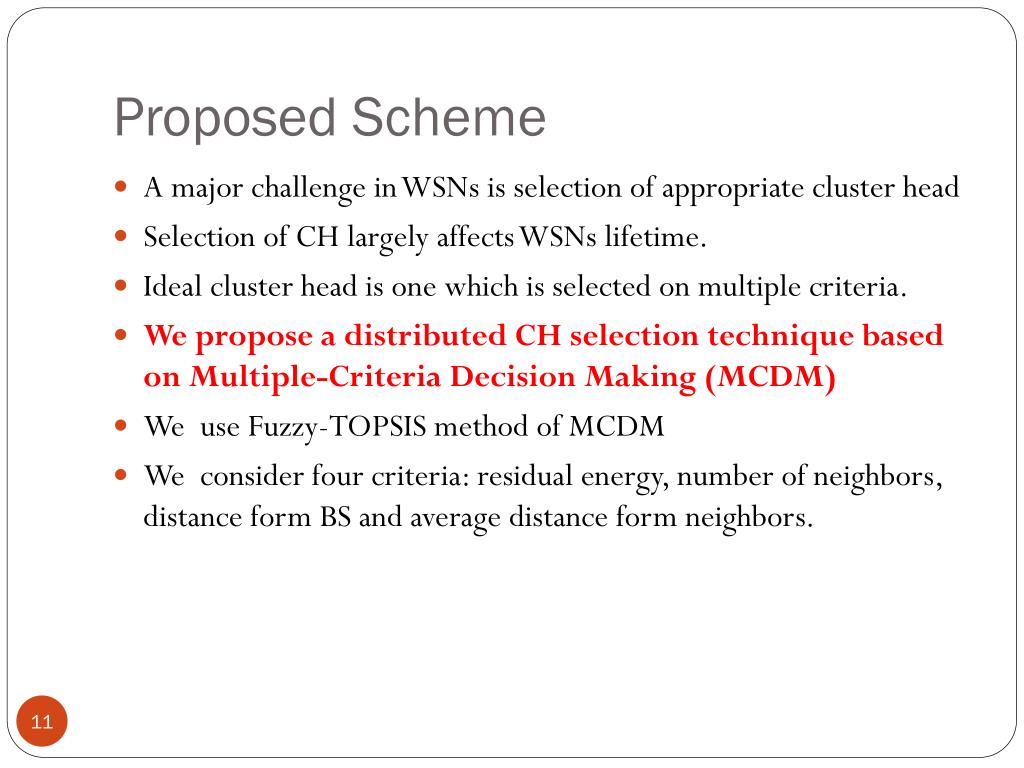

11. Proposed Scheme • A major challenge in WSNs is selection of appropriate cluster head • Selection of CH largely affects WSNs lifetime. • Ideal cluster head is one which is selected on multiple criteria. • We propose a distributed CH selection technique based on Multiple-Criteria Decision Making (MCDM) • We use Fuzzy-TOPSIS method of MCDM • We consider four criteria: residual energy, number of neighbors, distance form BS and average distance form neighbors.

12. MCDM and Fuzzy-TOPSIS • MCDM methods are used to solve the decision making problems in field of engineering and sciences, with multiple attributes. • They compare and rank multiple alternatives based on degree of desirability of their respective attributes. • Technique for Preference by similarity to Ideal Solution (Fuzzy-TOPSIS) consists of decision matrix with’m’ number of a alternatives and ’n’ number of attributes for each alternative. • It uses relative importance of attributes instead of using precise values.

13. Research Methodology…. • Proposed Scheme is based on four phases • Phase1: Network Deployment: • Nodes are deployed randomly and uniformly • Nodes are fixed • Homogenous • Base Station is capable of receiving, aggregating, and then forwarding the data from the cluster heads to the desired destinations.

14. Network Deployment

15. Research Methodology….. • Phase 2: Neighbor Discovery: • Initially, all nodes broadcast a Hello packet, which contains node’s ID, location information and four criteria values. • Residual Energy, C1, Node Density C2, Distance to the BS, C3, Average Distance between this node and its neighbors, C4. • Initially, C2 and C4 fields in the Hello packet will be empty • After sharing Node ID and location information with its neighbors, each node can easily compute C2 and C4. • Exchange it in the next Hello packet

16. Research Methodology…. • All the other nodes in the transmission range Tr of that node, receive Hello packet. • After receiving hello packet from all neighbors, a node updates its neighborhood table (T) with neighboring node’s ID, C1, C2, C3, C4 as well as its own information • For n neighbors of node k, then Tk will be:

17. Research Methodology….. • Phase 3: CH selection and Cluster Formation: • CH selection based on MCDM • Criteria must be normalized to the similar range [0 − 1] to fairly select a CH • C1 and C2 are Positive Ideal Solutions (PIS) • C3 and C4 are Negative Ideal Solutions (NIS) • PIS • NIS

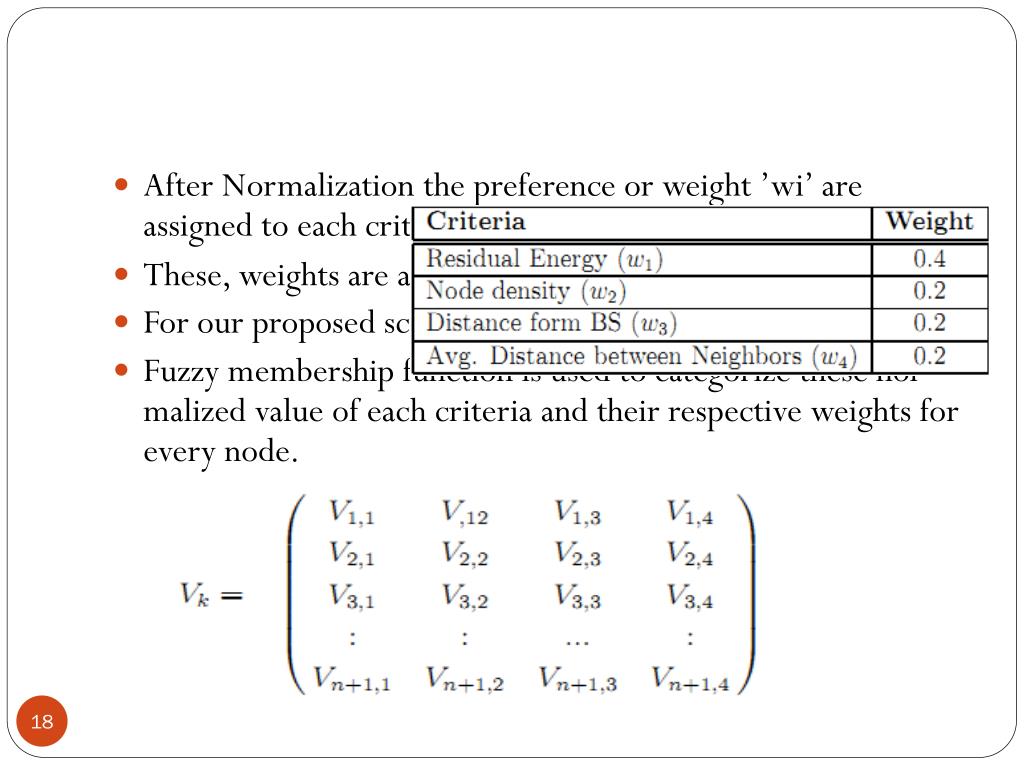

18. After Normalization the preference or weight ’wi’ are assigned to each criterion. • These, weights are application specific. • For our proposed scheme: • Fuzzy membership function is used to categorize these nor-malized value of each criteria and their respective weights for every node.

19. After that, PIS and NIS are determined from Vk matrix • Determine separation measure:

20. Finally calculate Rank Index (R.I) • The node with highest value in this rank index of all nodes within its transmission range (neighbors) announces itself as CH in that region. • Other nodes in that region, send join request to associate with the CH and act as member nodes • The CH acknowledges to all of its members

21. Procedure for CH change

22. Phase 4: Communication • The multi-hoping communication model is considered • In intra-cluster, nodes within five meters range of CH, send their data directly to CH • Other nodes perform multi-hoping with other nodes coming in their way to communicate with the CH. • In inter-cluster, the CHs within twenty meters range of BS, communicates directly to BS remaining CHs perform multi-hoping via other CHs.

23. Research Methodology

25. Simulation and Results • Simulation Parameters:

26. Results: Network Stability

27. Results: Network Lifetime

28. Results: Network Energy Consumption

29. Results: CH Stability Ratio

30. Results: Network Control Overhead

31. Results: Network Throughput

32. Conclusion Simulation results show that multiple normalized criteria for CH selection improves throughput, consumes less energy, minimum variations in CH re-elections (cluster stability), network lifetime, and very less control overhead, compared to the previous clustering schemes.
