  1. Sensing and Actuation for Polar Mobile Robot Eric L. Akers, Hans P. Harmon, Richard S. Stansbury (Presenter), and Arvin Agah ITTC, University of Kansas September 20, 2004

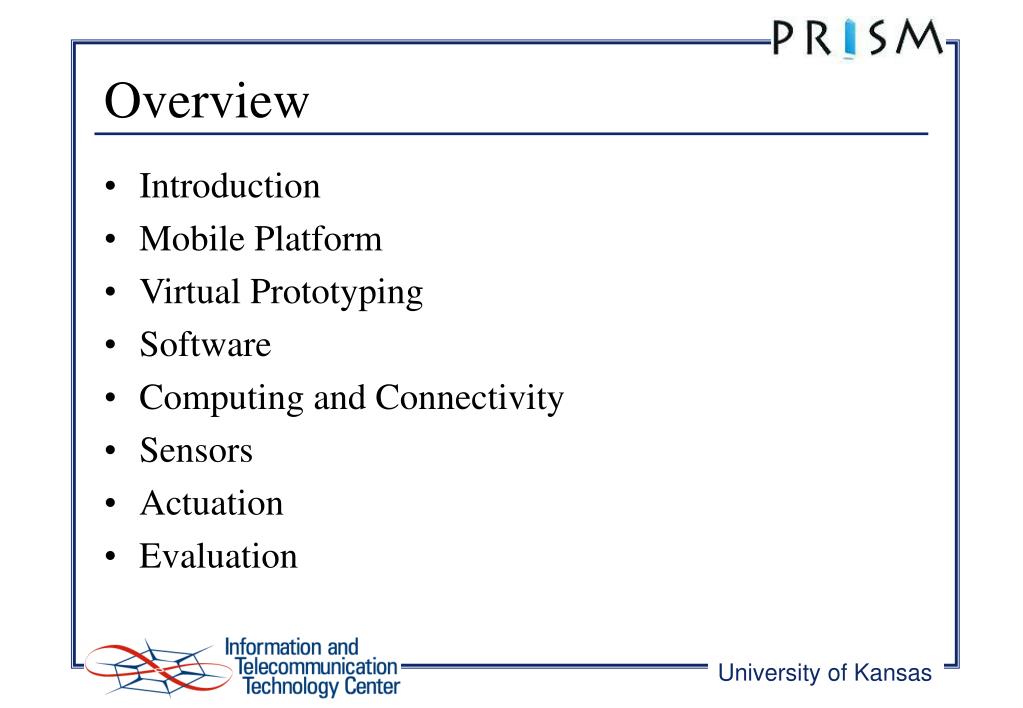

  2. Overview • Introduction • Mobile Platform • Virtual Prototyping • Software • Computing and Connectivity • Sensors • Actuation • Evaluation

  3. Introduction • Polar Radar for Ice Sheet Measurement (PRISM) • Measurement of ice sheet properties in polar environments • Mobile robot to aid data collection • Transports radar equipment • Tows antenna array • Precise movement for data collection • Environmental challenges: • cold temperatures, harsh winds, blowing snow.

  4. Mobile Platform • Requirements: • Operation at -30 degrees C to 40 degrees C. • Operate at altitudes from 0m to 3000m above sea level. • Transport 300kg of equipment. • Support 40U’s of rack-mount space. • Max ATV Buffalo • Six-wheeled ATV with optional tracks • Amphibious (sealed) • Protective enclosure designed and constructed • Tank-like skid steering.

  5. Mobile Platform – Max ATV Buffalo

  6. Virtual Prototyping • MSC.visualNastran • 3D simulation package. • Evaluation of design parameters and rover performance: • Payload placement • Wheels vs. Tracks • Turning radius. • Maximum climbable slope.

  7. Virtual Prototyping Virtual Prototype of PRISM Rover

  8. Software: • JAVA: • Portability. • Object oriented design. • PRISM Robot API • Interfaces for robot components. • Events and Event Listeners • Forward data updates. • Propagate error notification • Sensor and actuator drivers: • Instantiate API defined components. • Utilizes manufacturers’ proprietary communication languages.

  9. Computing and Connectivity • RS-232 to USB Hub • Supports up to 16 sensors and Actuators • 16-Port Switch • Connects onboard computers • GoBook Max Ruggedized Laptop • Pentium III 750 MHz running Windows XP • Operates at -30 degrees C. • Shock-mounted hard drives. • Waterproof

  10. Sensors Requirements • Task: • Centimeter-level position accuracy. • Video for remote operation and outreach. • Environmental: • Survive in polar environment. • Determine weather conditions • Detect and avoid human-made and naturally-occurring obstacles • Proprioception • Current state: heading, position, orientation. • Internal temperature • Fuel level

  11. Sensor Suite • Global Positioning: • Topcon’s Legacy-E RTK GPS System • Obstacle Detection: • SICK LMS221 Laser Range Finder • Tilt and Temperature: • PNI Corp. TCM2-50

  12. Sensor Suite • Heading: • BEI Systron-Donner MotionPak II Gyroscope • Weather: • Rainwise WS-2000 Weather Station • Vision: • Pelco Esprit pan/tilt/zoom camera

  13. Sensors – Hardware Integration External Sensors

  14. Sensors - Hardware Integration Internal Sensors

  15. Actuation: • Three components to control: • Left and right brake. • Throttle • Linear actuators: • Electromagnetic motors. • No gears. • 20 μm resolution • Controlled by microcontroller with RS-232 interface

  16. Evaluation: • Field experimentation: • Greenland 2003 – North GRIP Camp • Individual sensor tests and data collection • Greenland 2004 – Summit Camp • Integrated tests with radar system. • Climate Survivability: • Sensors operated in polar environment. • Rover would become stuck occasionally when turning in soft snow. • Batteries drained quickly and were replaced with power supplies.

  17. Evaluation • GPS Relative Accuracy: • Measured distance between two points vs. known distance • Relative Accuracy: x = 0.006 ± 0.004 meters y = 0.010 ± 0.007 meters z = 0.022 ± 0.016 meters

  18. Evaluation • GPS Visibility: • Measured number of GPS and GLONASS satellites available at the North Grip camp for a 24-hour period.

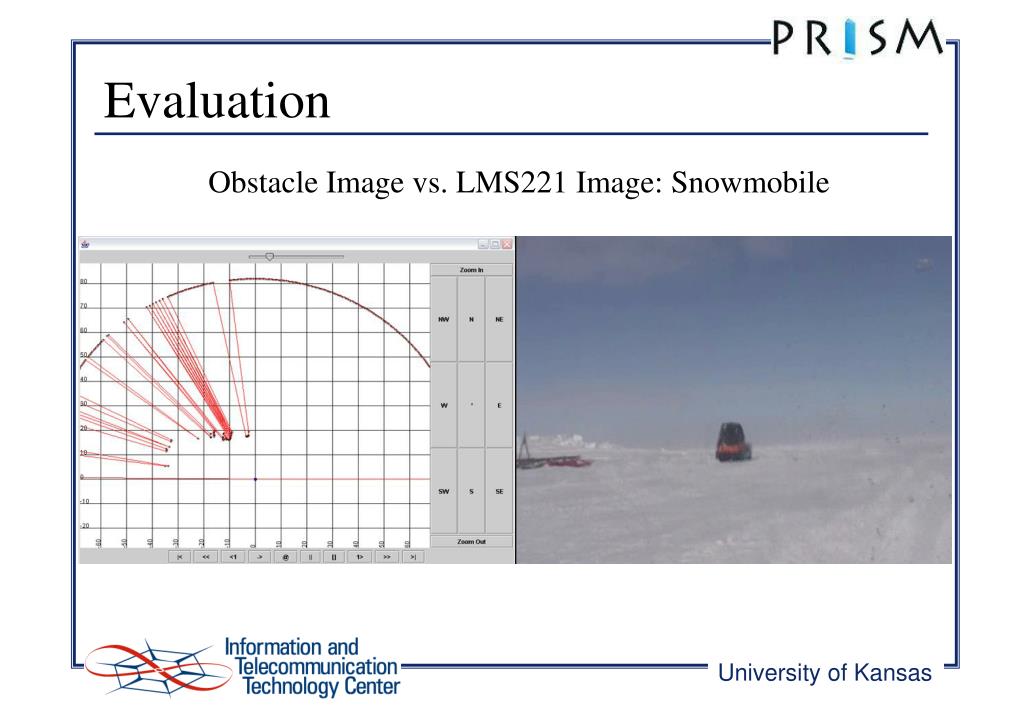

  19. Evaluation Obstacle Image vs. LMS221 Image: Snowmobile

  20. Evaluation Obstacle Image vs. LMS221 Image: Sastrugi

  21. Evaluation • Waypoint Navigation • Demonstrates the integration of sensors, actuation, and platform. • Waypoints assigned in a pattern similar to its data collection pattern on the ice. • Thresholds • Waypoint arrival: 1 meter • Heading on target: 10 degrees

  22. Evaluation

  23. Future Work: • Additional fault tolerance. • Tighten waypoint path for greater accuracy. • Reduce rover payload to improve performance in soft snow. • Additional field experiments in Greenland and Antarctica.

  24. Conclusion • Mobile robot constructed for collection of radar data in polar regions. • Robust suite of sensors was selected. • Vehicle automation has been developed and verified using waypoint navigation.

  25. Acknowledgements • This work was supported by the National Science Foundation (grant #OPP-0122520), the National Aeronautics and Space Administration (grants #NAG5-12659 and NAG5-12980), the Kansas Technology Enterprise Corporation, and the University of Kansas.
