  1. SOFC PFD

  2. Fuel Preparation

  3. Desulfurizer (DS-101) • 2 ppm H2S in natural gas feed • H2S removed in DS-101 with disposable carbon filters • 10% of CH4 fed to combustor • 90% of CH4 fed fuel humidifier

  4. Fuel Humidifier (FH-102) • 1.25 Kmol H20 per Kmol CH4 fed to FH-102 • Heat provided from combustor exhaust

  5. Fuel Preheater (HX-103) • Heat provided from fuel cell exhaust

  6. Reformer (R-104) • Equilibrium determined to be: • 85% CH4 → CO • 15% CH4 → CO2 • CH4 + H2O → CO + 3H2 • CH4 + 2H2O → CO2 + 4H2 • Heat provided from reaction in combustor

  7. Combustor (COMB -105) • Extent of reaction for combustion assumed to be 100% • CH4 + 2O2 → CO2 + 2H2O • Necessary O2 provided from fuel cell air exhaust

  8. Air Handling and WGS 226

  9. Cathode Recuperator (HX-221) • Heat provided by combustor exhaust

  10. Water Gas Shift (WGS-222) • CO + H2O → CO2 + H2 • Equilibrium determined to be:

  11. Air Preheater (HX-223) • Heat provided by water gas shift exhaust

  12. Air Compressor (COMP-224) • Air intake for the system • 6.65 standard cubic meters per minute flow

  13. Solid Oxide Fuel Cell

  14. Solid Oxide Fuel Cell (FC-331)

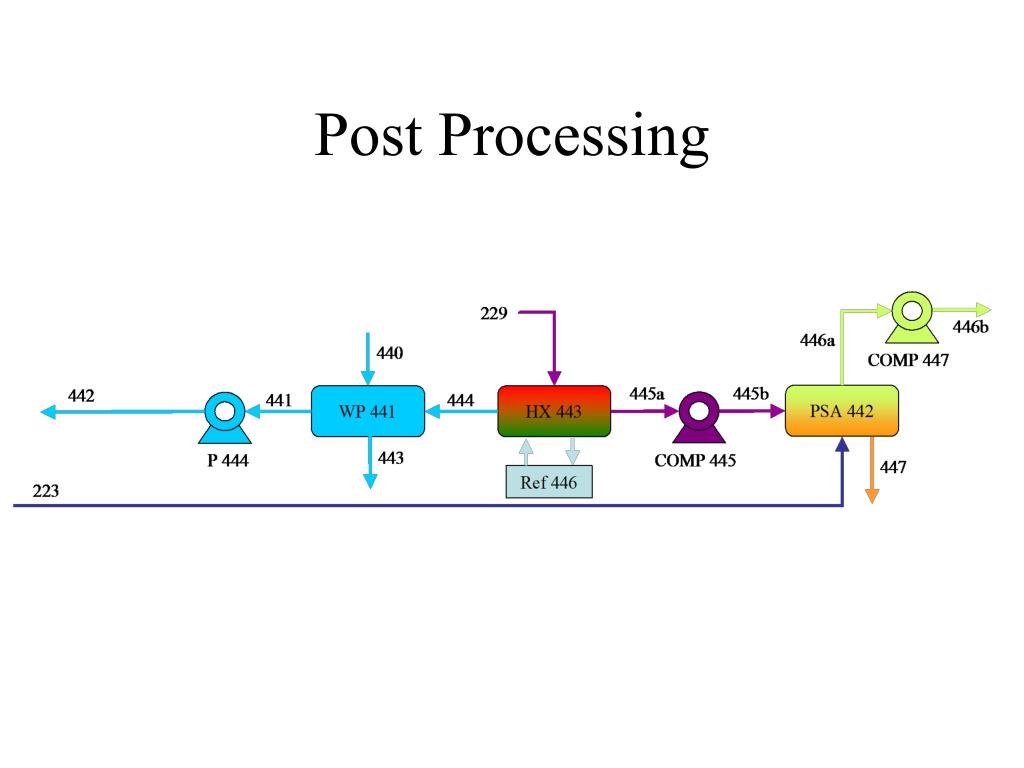

  15. Post Processing

  16. Water Purifier (WP-441)

  17. Pressure Swing Absorber (PSA-442)

  18. Anode Condenser (HX-443)

  19. Water Pump (P-444)

  20. PSA Compressor (COMP-445)

  21. Chiller (Ref -446)

  22. Hydrogen Compressor (COMP-447)
