Computer Architecture Introduction to MIMD architectures

1. Computer ArchitectureIntroduction to MIMD architectures Ola Flygt Växjö University http://w3.msi.vxu.se/users/ofl/ Ola.Flygt@msi.vxu.se +46 470 70 86 49

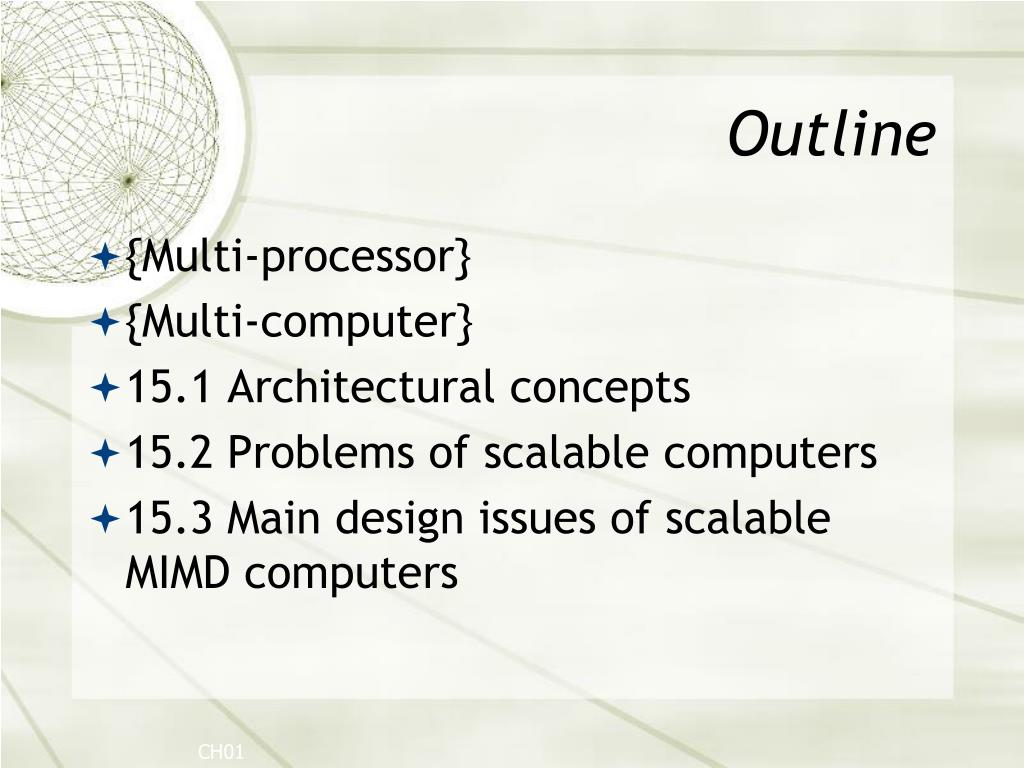

2. Outline • {Multi-processor} • {Multi-computer} • 15.1 Architectural concepts • 15.2 Problems of scalable computers • 15.3 Main design issues of scalable MIMD computers CH01

3. Multi-computer:Structure of Distributed Memory MIMD Architectures

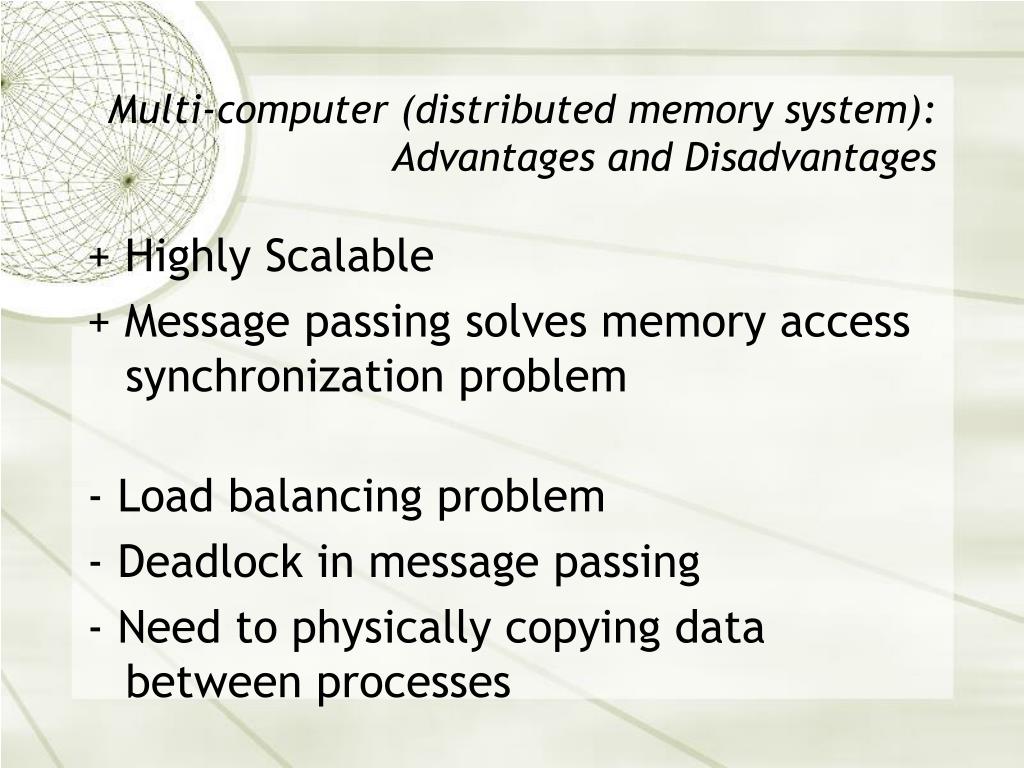

4. Multi-computer (distributed memory system):Advantages and Disadvantages + Highly Scalable + Message passing solves memory access synchronization problem - Load balancing problem - Deadlock in message passing - Need to physically copying data between processes

5. Multi-processor:Structure of Shared Memory MIMD Architectures

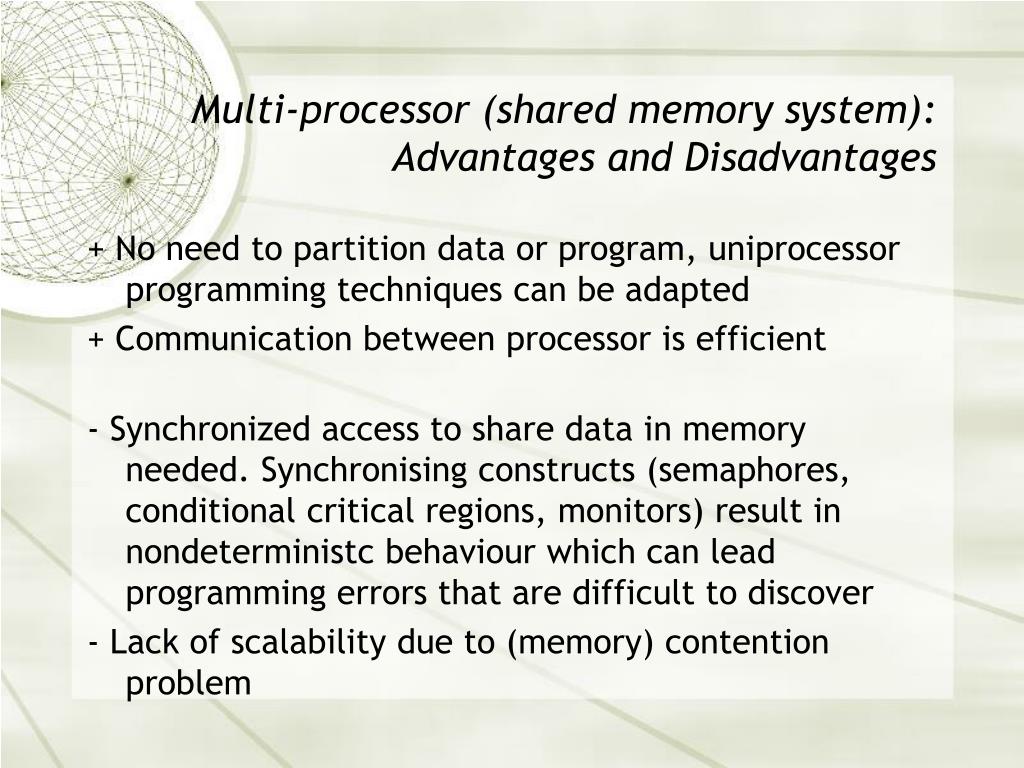

6. Multi-processor (shared memory system):Advantages and Disadvantages + No need to partition data or program, uniprocessor programming techniques can be adapted + Communication between processor is efficient - Synchronized access to share data in memory needed. Synchronising constructs (semaphores, conditional critical regions, monitors) result in nondeterministc behaviour which can lead programming errors that are difficult to discover - Lack of scalability due to (memory) contention problem

7. Best of Both Worlds: Multicomputer using virtual shared memory • Also called distributed shared memory architecture • The local memories of multi-computer are components of global address space: • any processor can access the local memory of any other processor • Three approaches: • Non-uniform memory access (NUMA) machines • Cache-only memory access (COMA) machines • Cache-coherent non-uniform memory access (CC-NUMA) machines

8. Structure of NUMA Architectures

9. NUMA • Logically shared memory is physically distributed • Different access of local and remote memory blocks. Remote access takes much more time – latency • Sensitive to data and program distribution • Close to distributed memory systems, yet the programming paradigm is different • Example: Cray T3D

10. NUMA: remote load

11. Structure of COMA Architectures

12. COMA • Each block of the shared memory works as local cache of a processor • Continuous, dynamic migration of data • Hit-rate decreases the traffic on the Interconnection Network • Solutions for data-consistency increase the same traffic (see cache coherency problem later) • Examples: KSR-1, DDM

13. Structure of CC-NUMA Architectures

14. CC-NUMA • A combination of NUMA and COMA • Initially static data distribution, then dynamic data migration • Cache coherency problem is to be solved  • COMA and CC-NUMA are used in newer generation of parallel computers • Examples: Convex SPP1000, Stanford DASH, MIT Alewife

15. Classification of MIMD computers
