Presentation Transcript

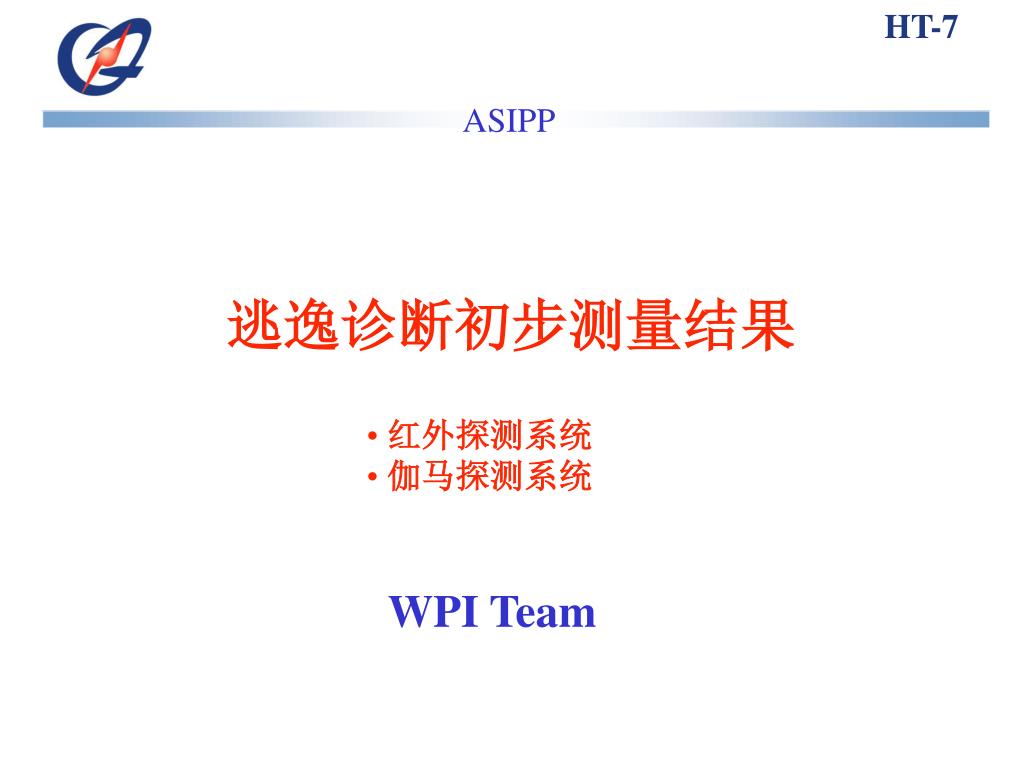

  1. ASIPP 逃逸诊断初步测量结果 • 红外探测系统 • 伽马探测系统 WPI Team

  2. IR探测器对比

  3. 光电探测器工作特性

  4. 台面实验结果 热源：电烙铁 调制频率：600Hz IR探测器（HgCdTe），液氮制冷 波长：8～12μm 时间分辨率 1.67ms

  5. 伽马诊断 • 探测器 • NaI，BGO，CdTe • 信号：RA 1～6 • 能量范围：0.3～20MeV • 测量覆盖：切向，反切向，垂直 • 新建一套切向扫描系统，扫描角度180度

  6. 放电结束后的伽马辐射

  7. Thanks！
