  1. Design, performance and capacity - Factors of successful intranet and internet SharePoint sites Sanjay Narang, AnandanKumaran, SingaramMurigappan

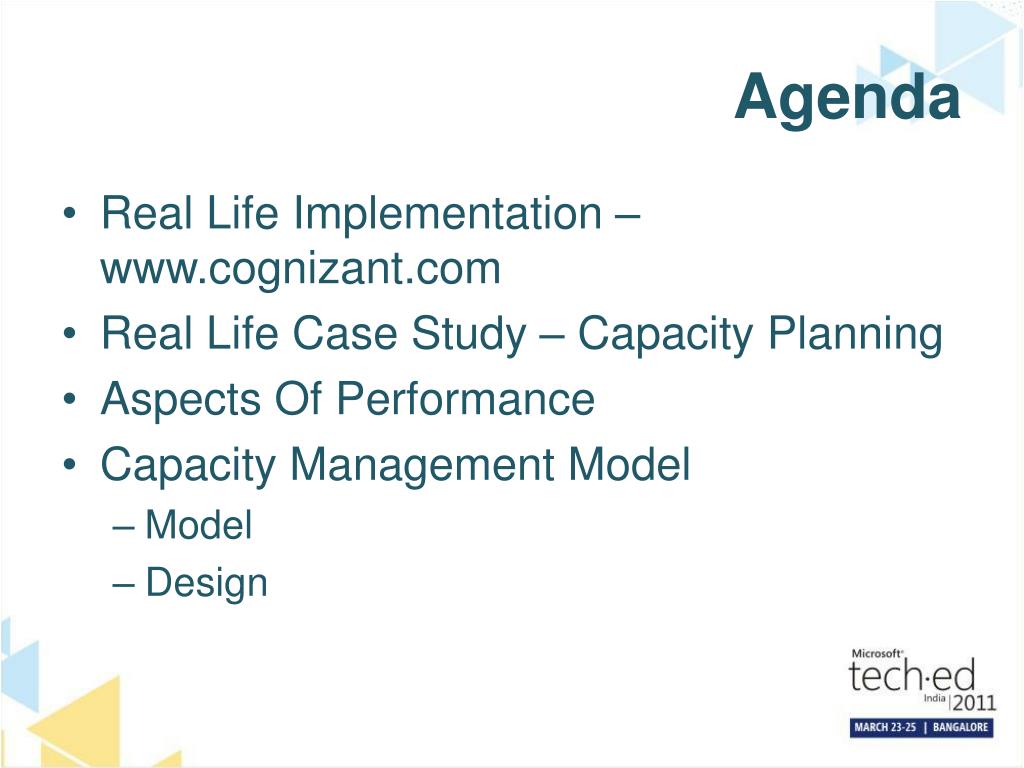

  2. Agenda • Real Life Implementation – www.cognizant.com • Real Life Case Study – Capacity Planning • Aspects Of Performance • Capacity Management Model • Model • Design

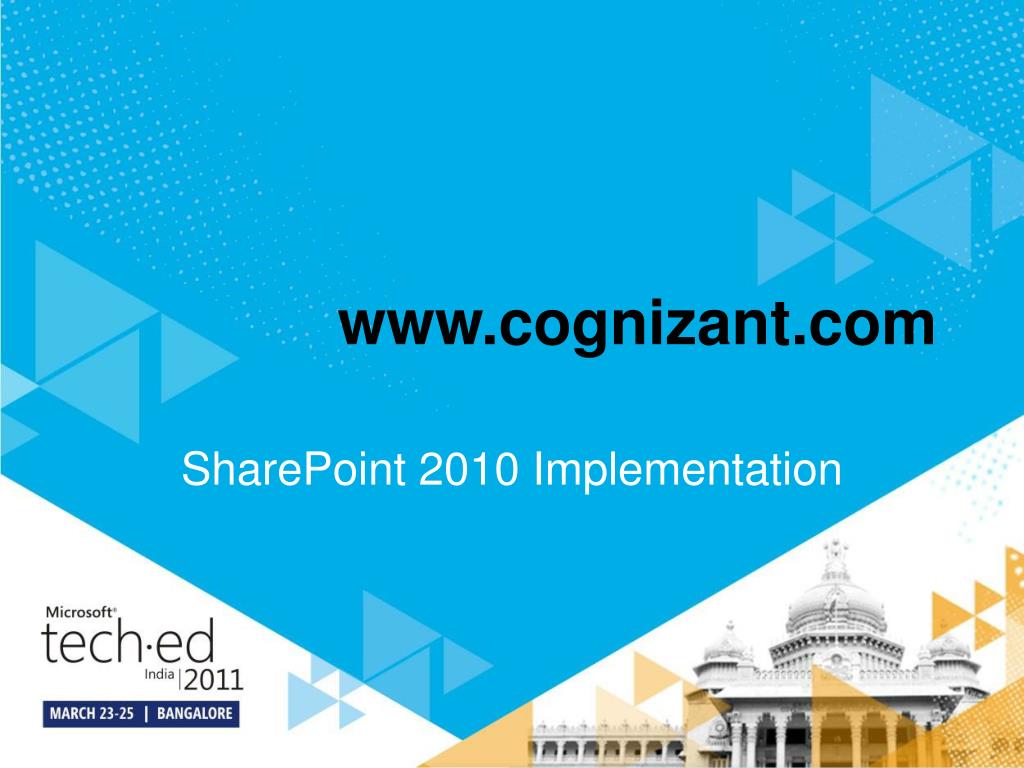

  3. www.cognizant.com SharePoint 2010 Implementation

  4. Publish Content • Marketing team needs a robust mechanism to publish content effectively without needing specialized technical skill

  5. Content Deployment Authoring Pre-Production www.cognizant.com Content authored is saved in the authoring server database Content push by marketing admin Content authored is moved to the preproduction environment. It allows the user to verify the content before pushing live Content push by marketing admin Content is moved from preproduction environment to live environment after verification

  6. Intuitive User Interface

  7. Intuitive User Interface

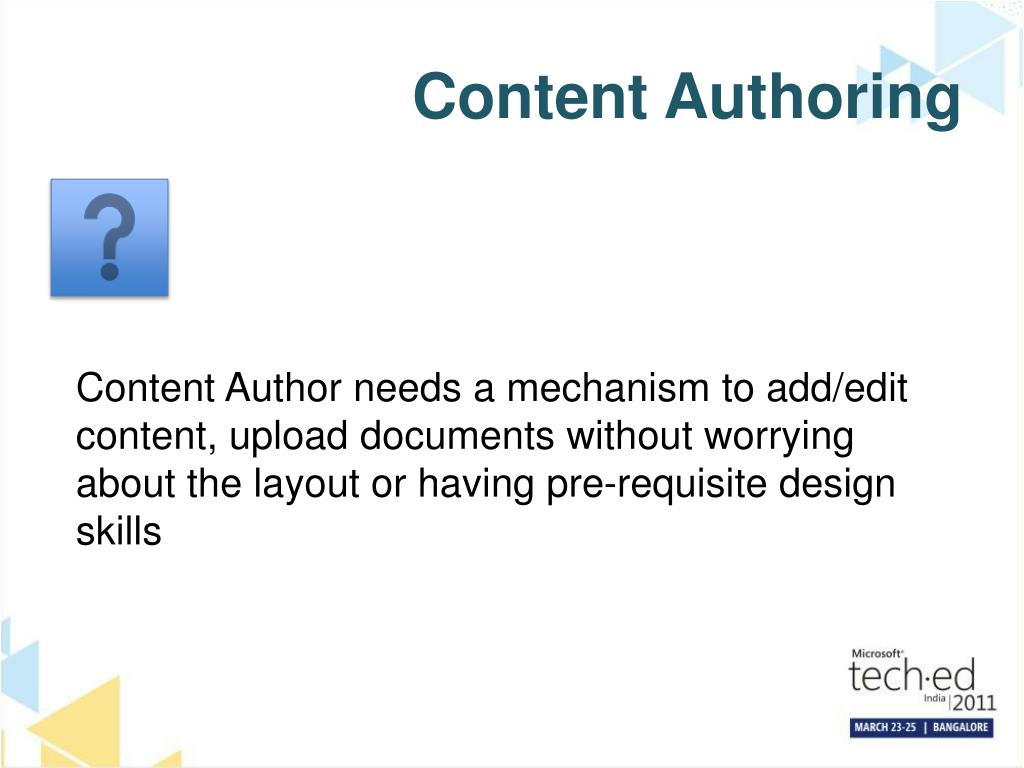

  8. Content Authoring • nt Content Author needs a mechanism to add/edit content, upload documents without worrying about the layout or having pre-requisite design skills

  9. Author Content

  10. Edit Page

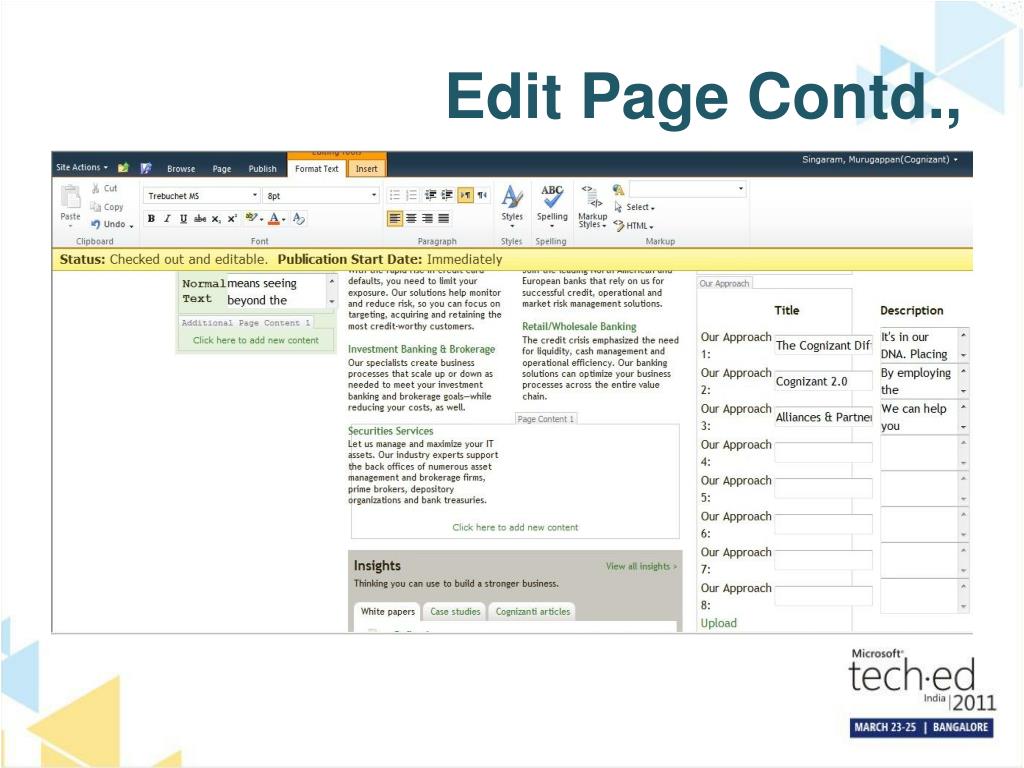

  11. Edit Page Contd.,

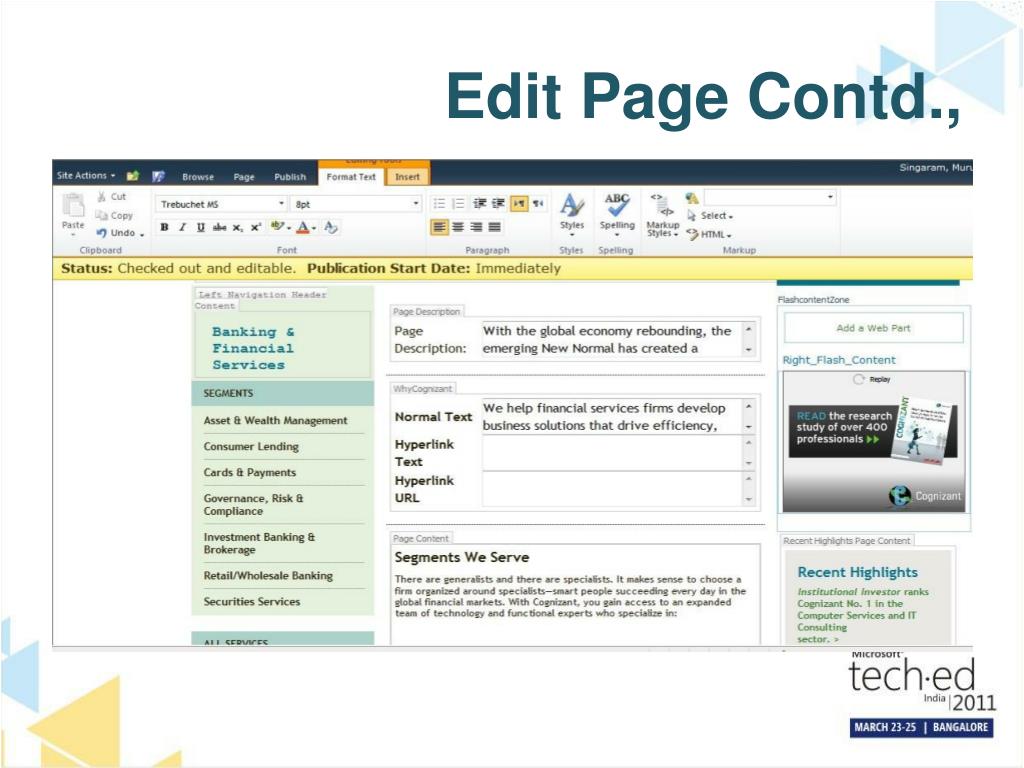

  12. Edit Page Contd.,

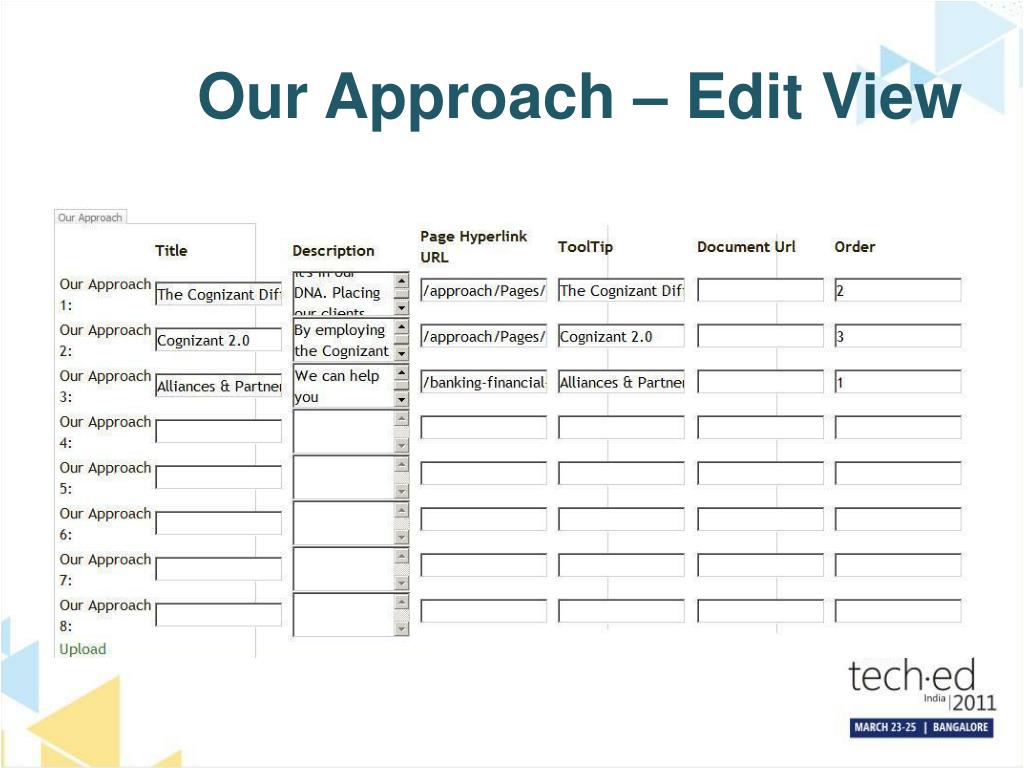

  13. Our Approach – Edit View

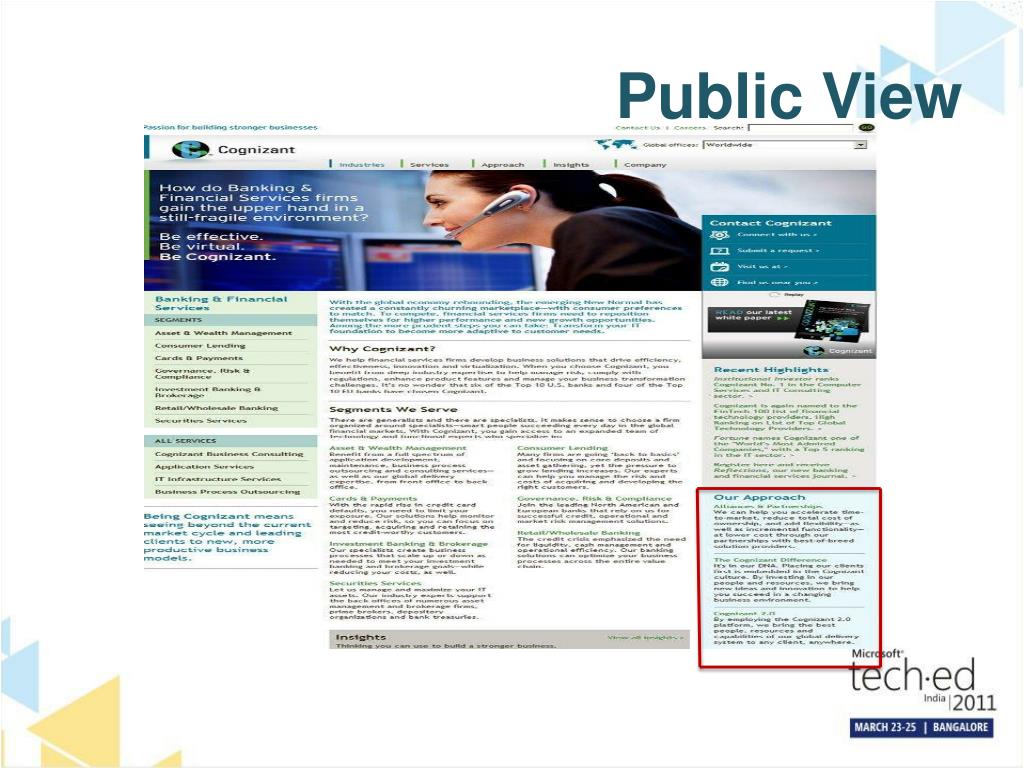

  14. Public View

  15. Friendly URLs Need for friendly URLs that are easier for users to remember and for search engines to find http://www.cognizant.com/banking-financial-services/Pages/landingPage.aspx

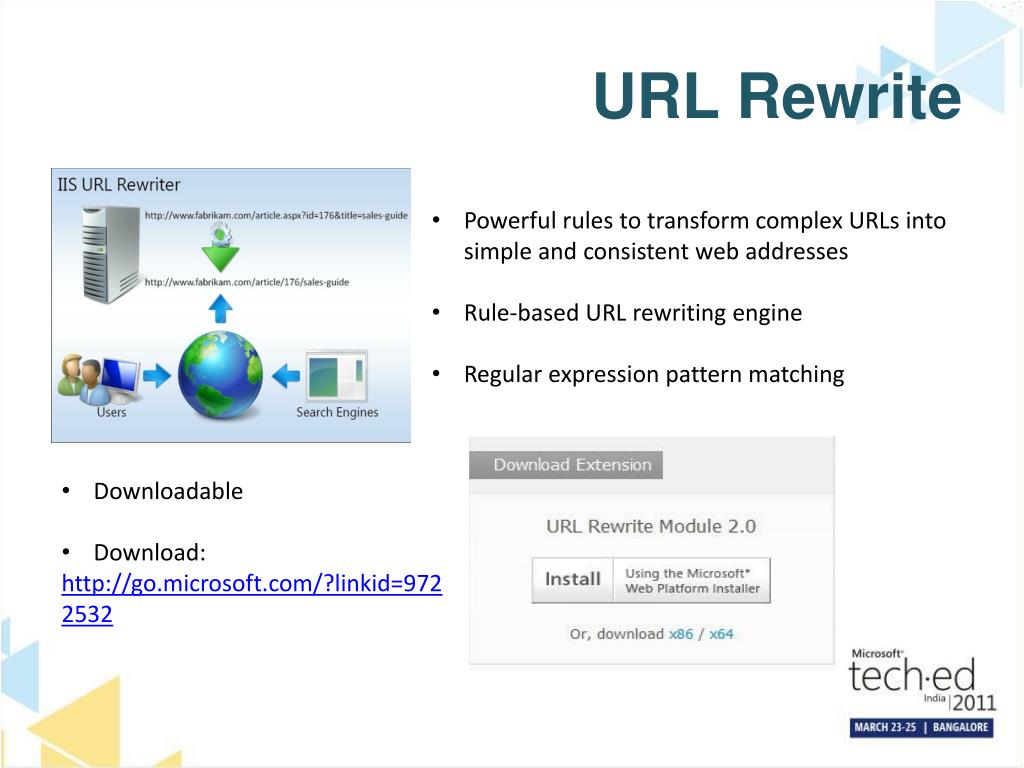

  16. URL Rewrite • Powerful rules to transform complex URLs into simple and consistent web addresses • Rule-based URL rewriting engine • Regular expression pattern matching • Downloadable • Download: • http://go.microsoft.com/?linkid=9722532

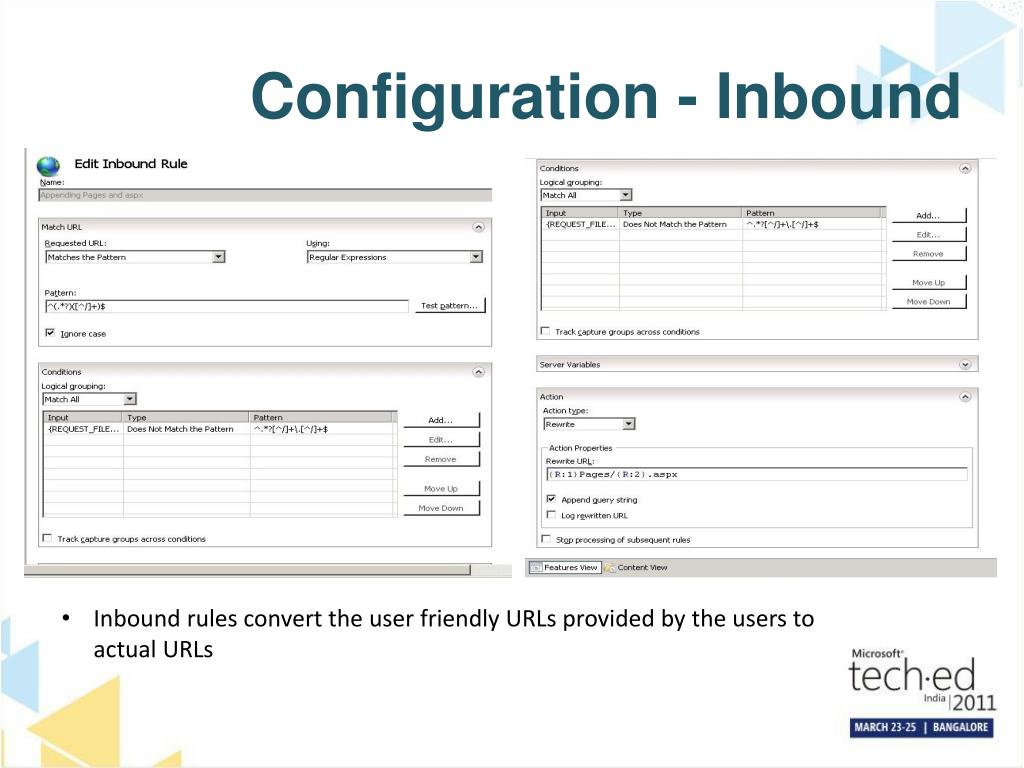

  17. Configuration - Inbound • Inbound rules convert the user friendly URLs provided by the users to actual URLs

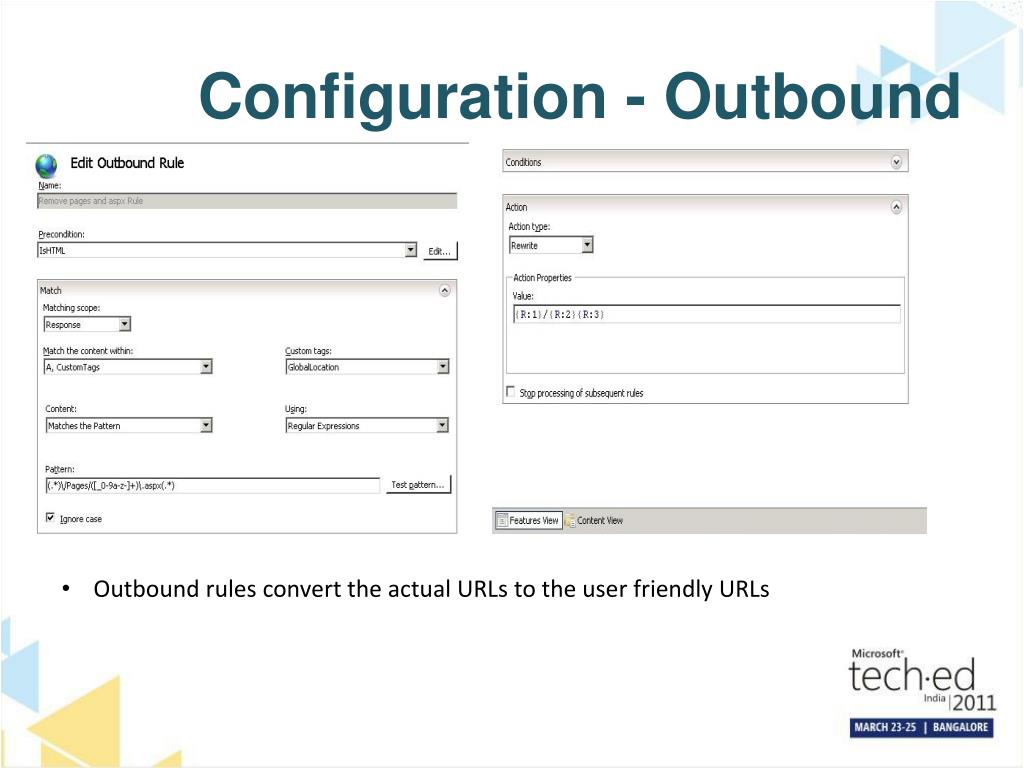

  18. Configuration - Outbound • Outbound rules convert the actual URLs to the user friendly URLs

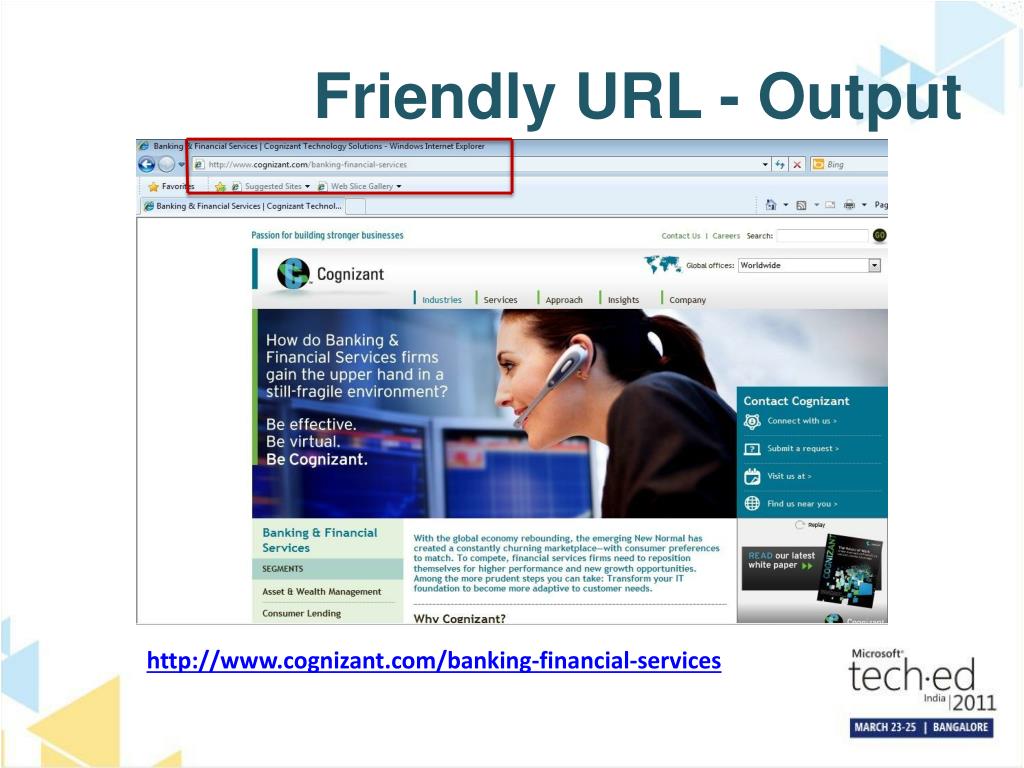

  19. Friendly URL - Output http://www.cognizant.com/banking-financial-services

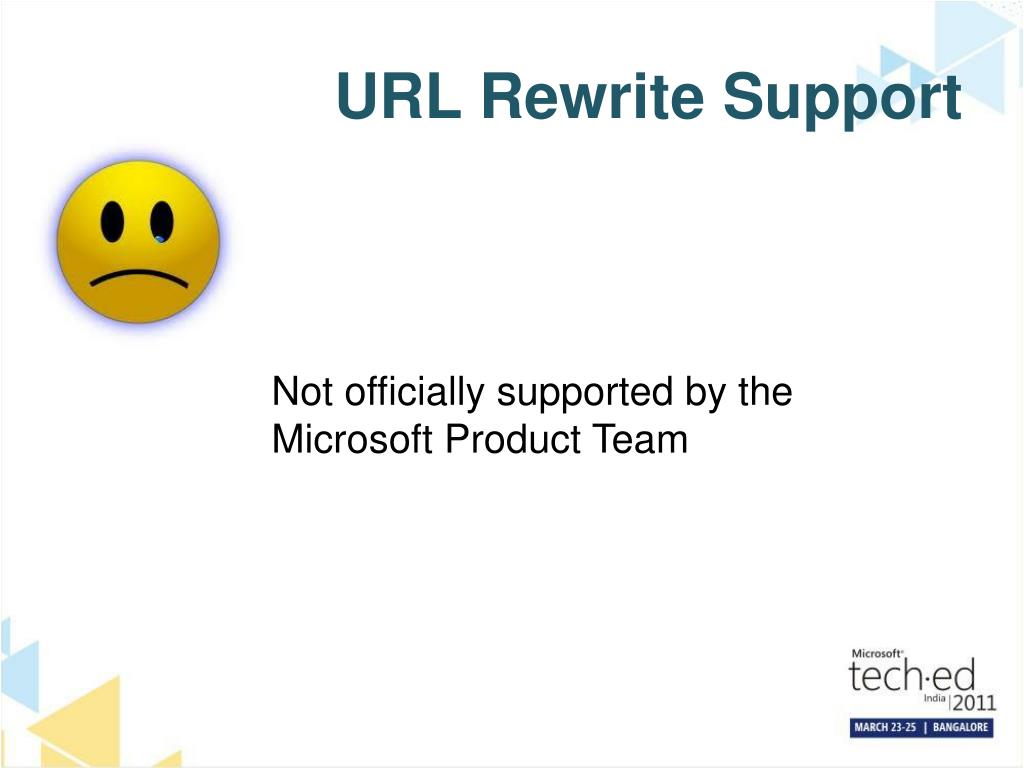

  20. URL Rewrite Support Not officially supported by the Microsoft Product Team

  21. Faster Site Need for the site to equally responsive and quick to all users across the globe. The load of users on the application will vary especially during financial results but I need a cost effective solution

  22. SharePoint Out-Of-Box • Output Caching • Object Cache • This can load but not latency

  23. Content Delivery Network • Deliver content faster • Scalability • Across the globe users has similar experience on accessing the site

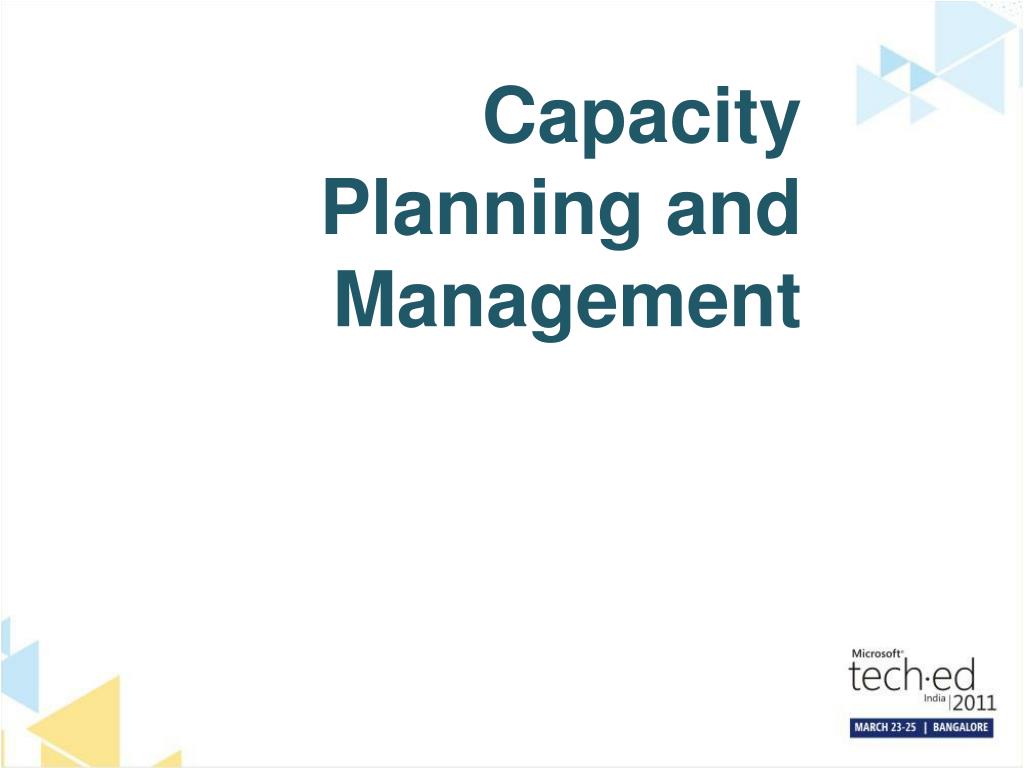

  24. Capacity Planning and Management

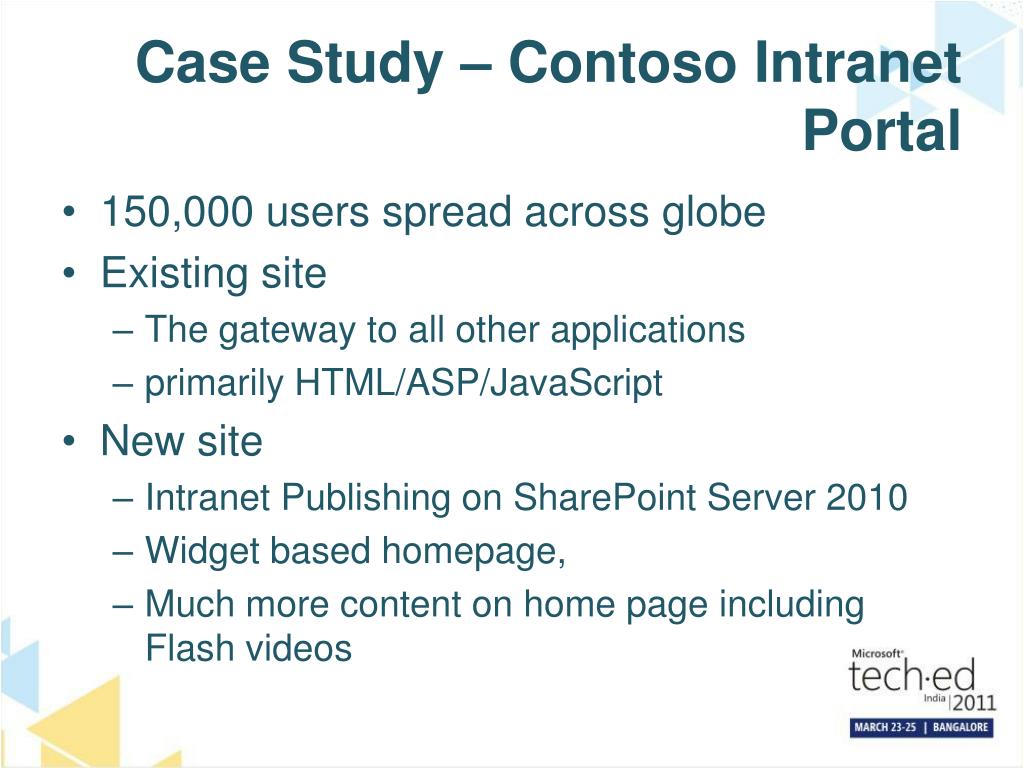

  25. Case Study – Contoso Intranet Portal • 150,000 users spread across globe • Existing site • The gateway to all other applications • primarily HTML/ASP/JavaScript • New site • Intranet Publishing on SharePoint Server 2010 • Widget based homepage, • Much more content on home page including Flash videos

  26. Capacity Management • Capacity Planning • One time sizing • Selection & Configuration • Data architecture • Topologies (physical and logical) • Hardware • Capacity Management • Extends Planning • Cyclic Process • Monitored & Optimized • Changing Conditions and Requirements

  27. Analogy

  28. Analogy

  29. Capacity Management Model

  30. Aspects of Performance • Latency • Throughput • Data Scale • Reliability

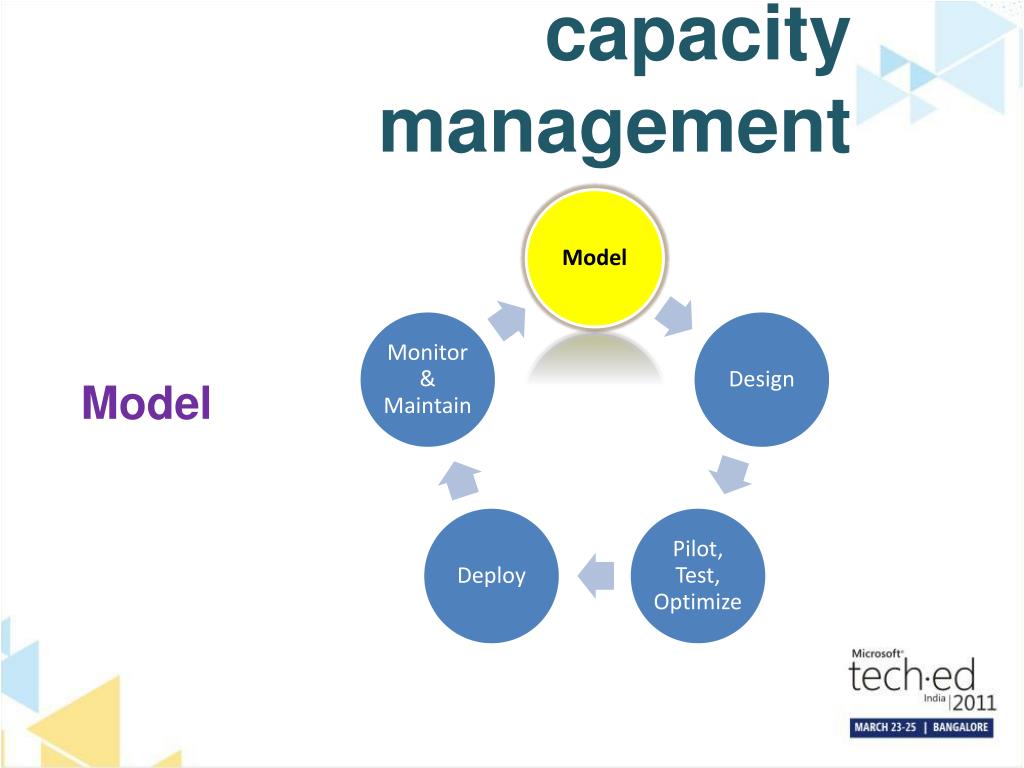

  31. capacity management Model

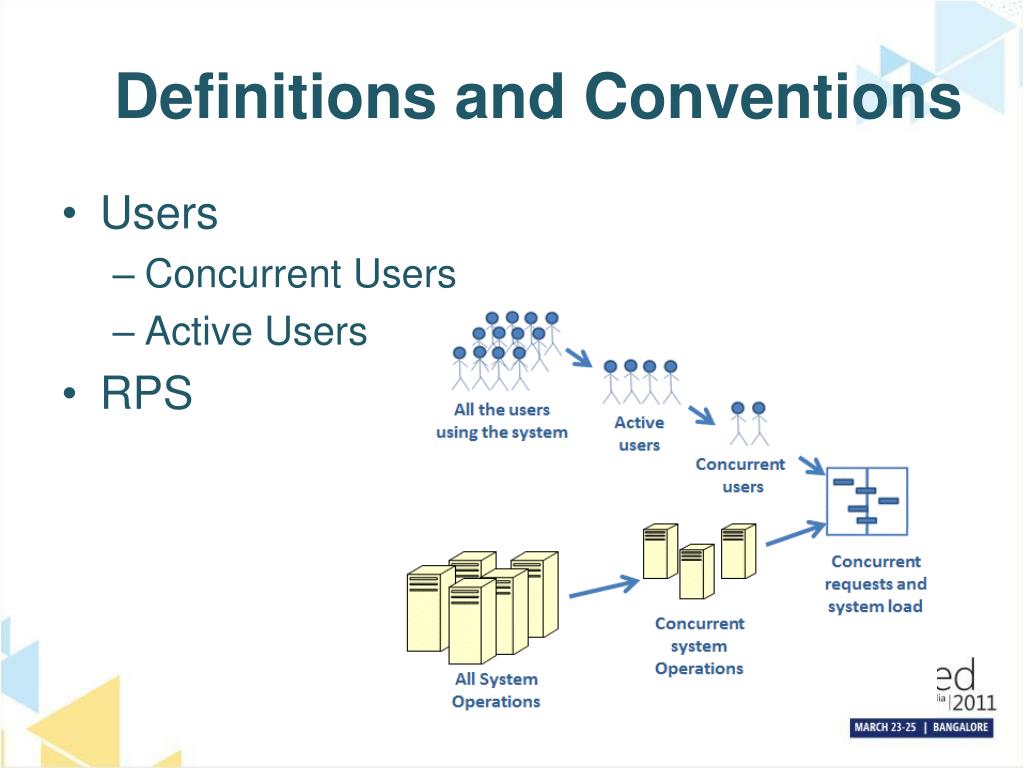

  32. Definitions and Conventions • Users • Concurrent Users • Active Users • RPS

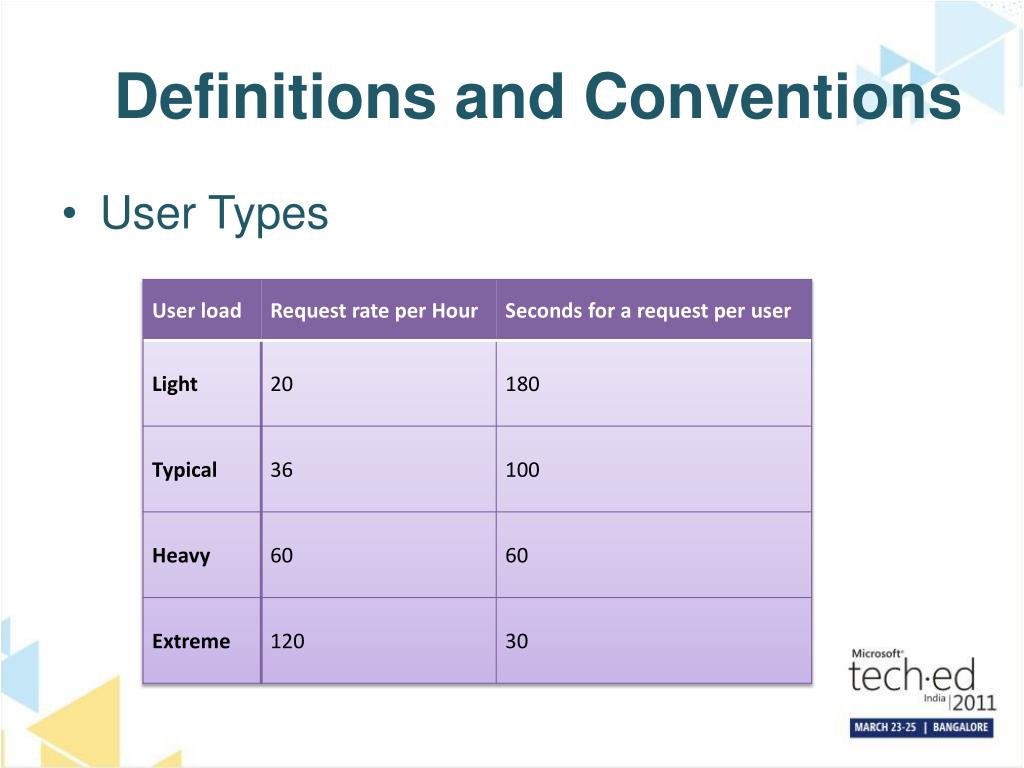

  33. Definitions and Conventions • User Types

  34. Model • Determine Workload • Determine DataSet • Set Performance and Reliability Targets

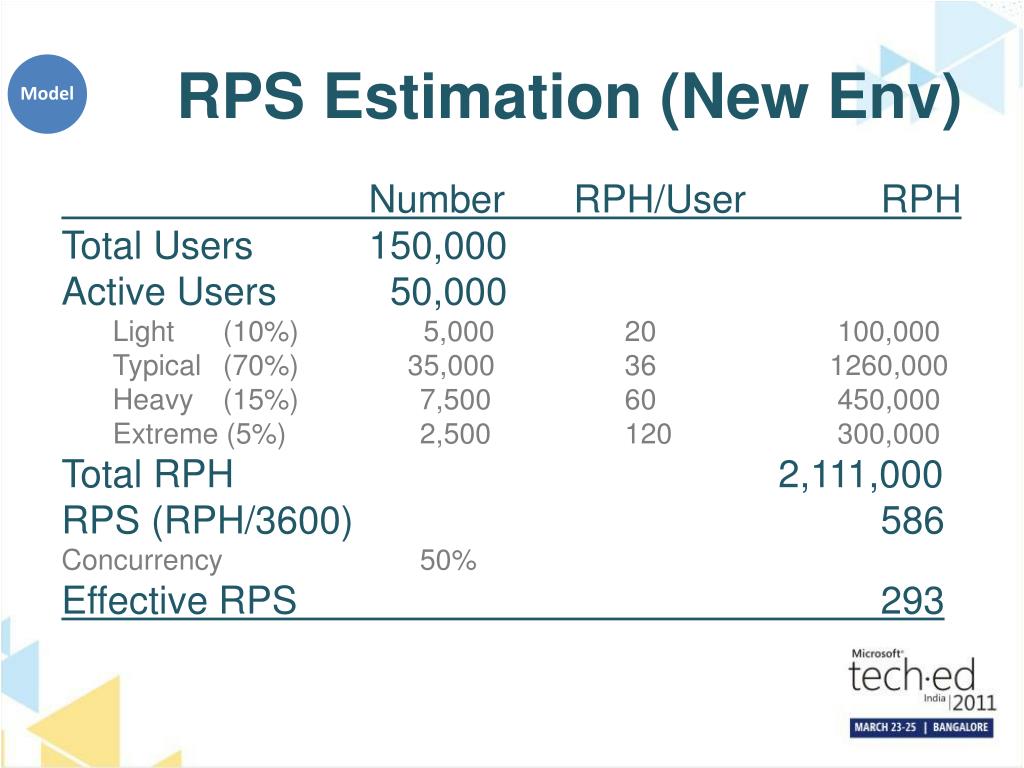

  35. RPS Estimation (New Env) Number RPH/User RPH Total Users 150,000 Active Users 50,000 Light (10%) 5,000 20 100,000 Typical (70%) 35,00036 1260,000 Heavy (15%) 7,500 60 450,000 Extreme (5%) 2,500 120 300,000 Total RPH 2,111,000 RPS (RPH/3600) 586 Concurrency 50% Effective RPS 293

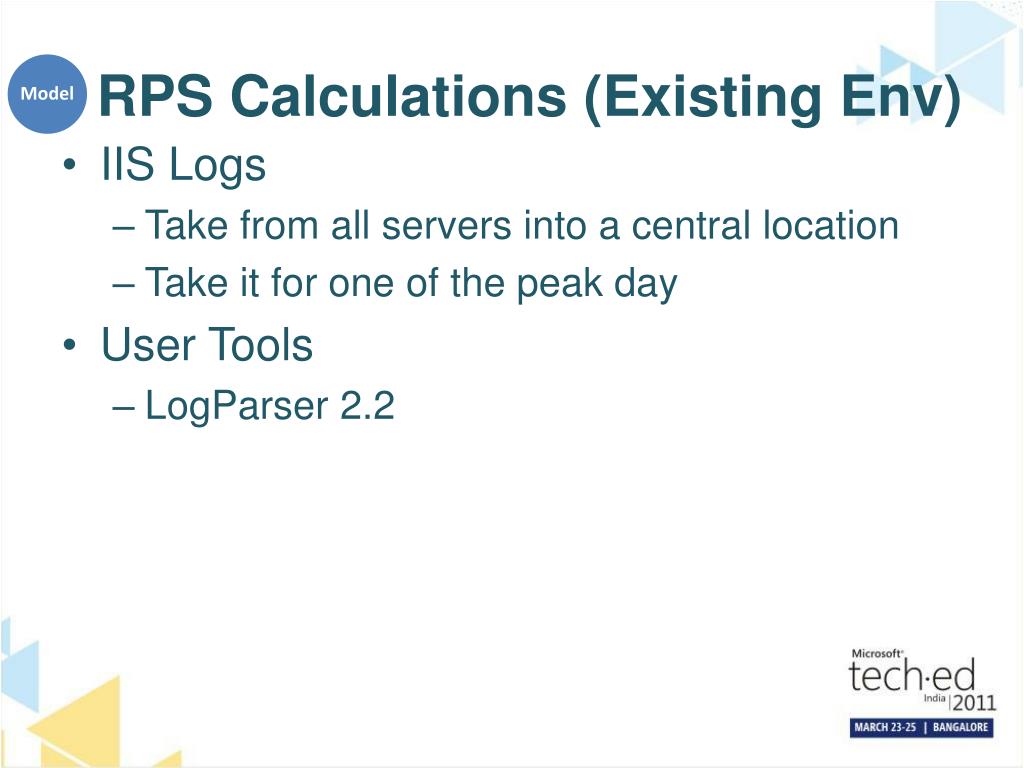

  36. RPS Calculations (Existing Env) • IIS Logs • Take from all servers into a central location • Take it for one of the peak day • User Tools • LogParser 2.2

  37. Get RPS per second logparser-i:IISW3C -o:CSV "SELECT QUANTIZE(TO_TIMESTAMP(date, time), 3600) AS Hour, QUANTIZE(TO_TIMESTAMP(date, time), 1) AS Second, COUNT(*) AS RPS INTORPS_No401s.csv FROM*.log WHEREsc-status <> 401 GROUP BY Hour, Second"

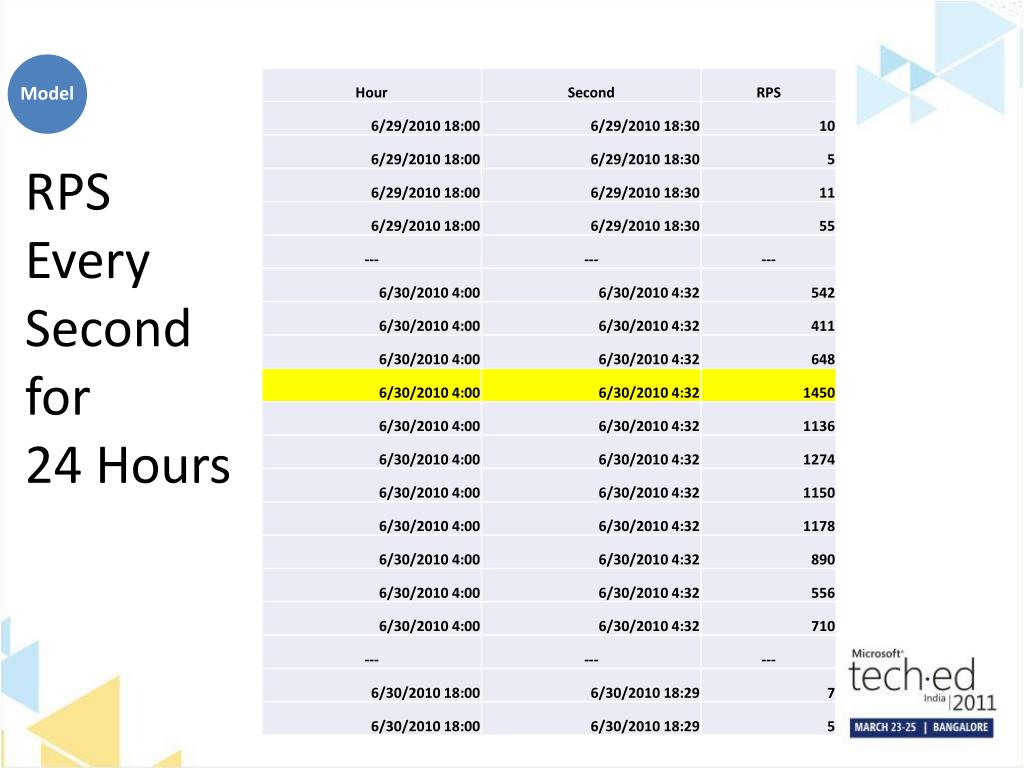

  38. RPS Every Second for 24 Hours

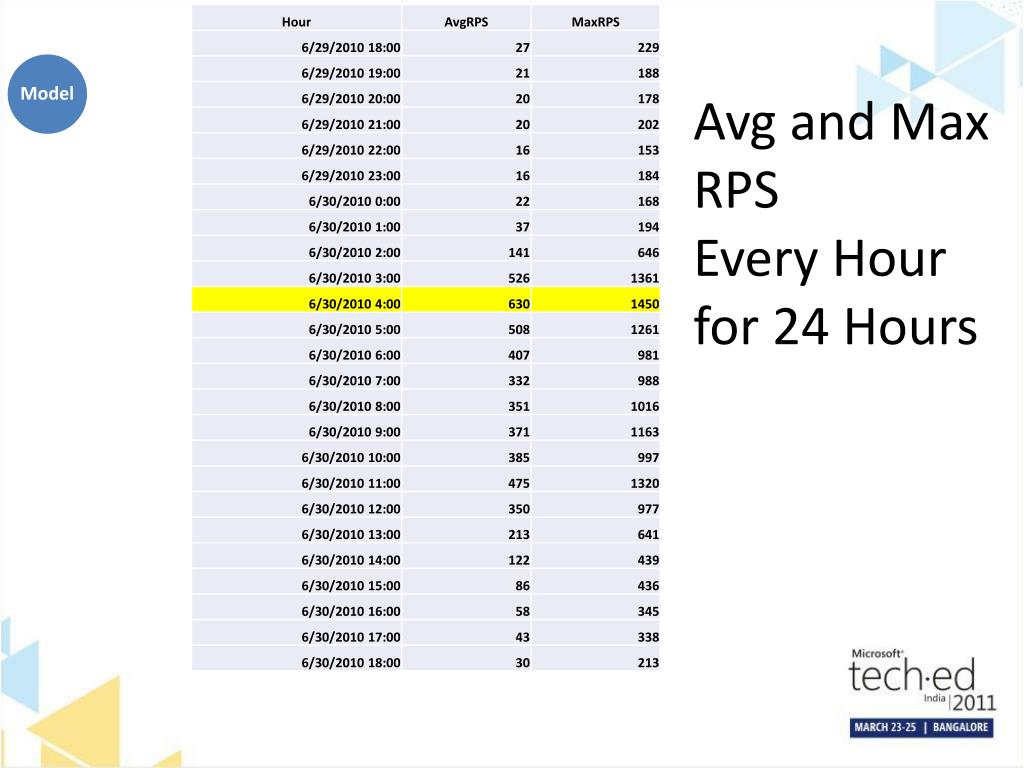

  39. Avg and Max RPS Every Hour for 24 Hours

  40. Avoid Image, CSS, JS • Get File Extension to_lowercase EXTRACT_EXTENSION(cs-uri-stem)) • exclude Where clause fext <> ‘jpg’ AND fext <> ‘jpeg’ AND fext <> ‘gif’ AND fext <> ‘png’ AND fext <> ‘js’ AND fext <> ‘css’

  41. Decision Point – Peak or Average • Average RPS on a day • Average RPS in a peak hour • Maximum RPS in a peak hour 220 700 1500

  42. Dataset - Content DB

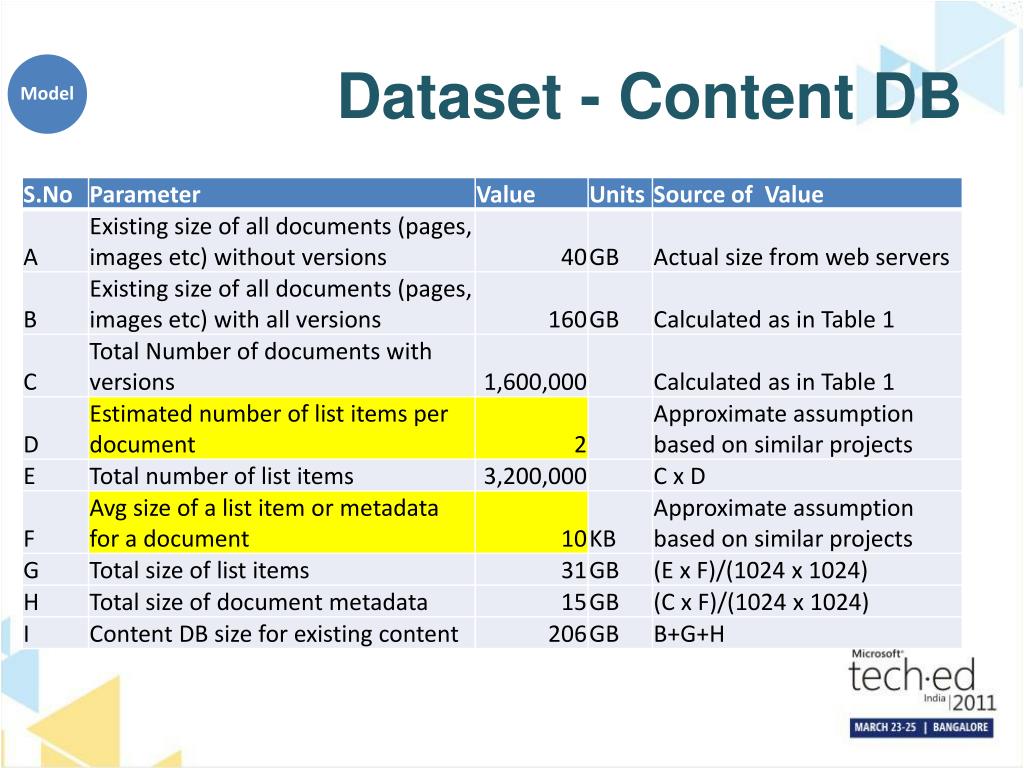

  43. Content DB Calculations

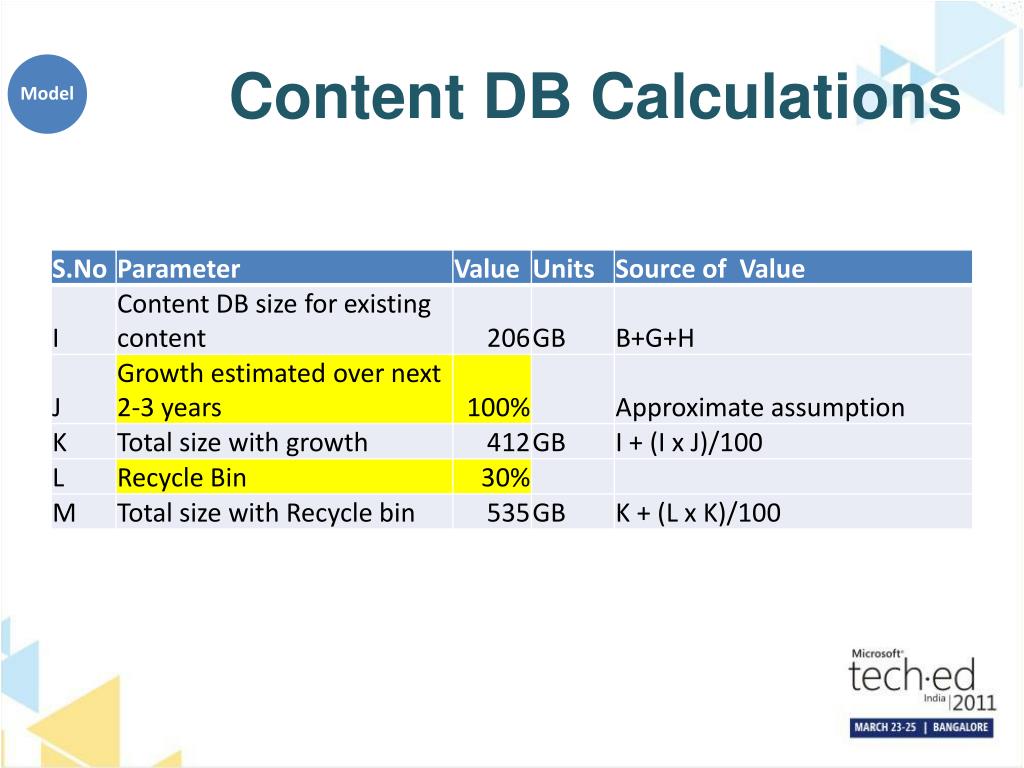

  44. All Databases Calculations

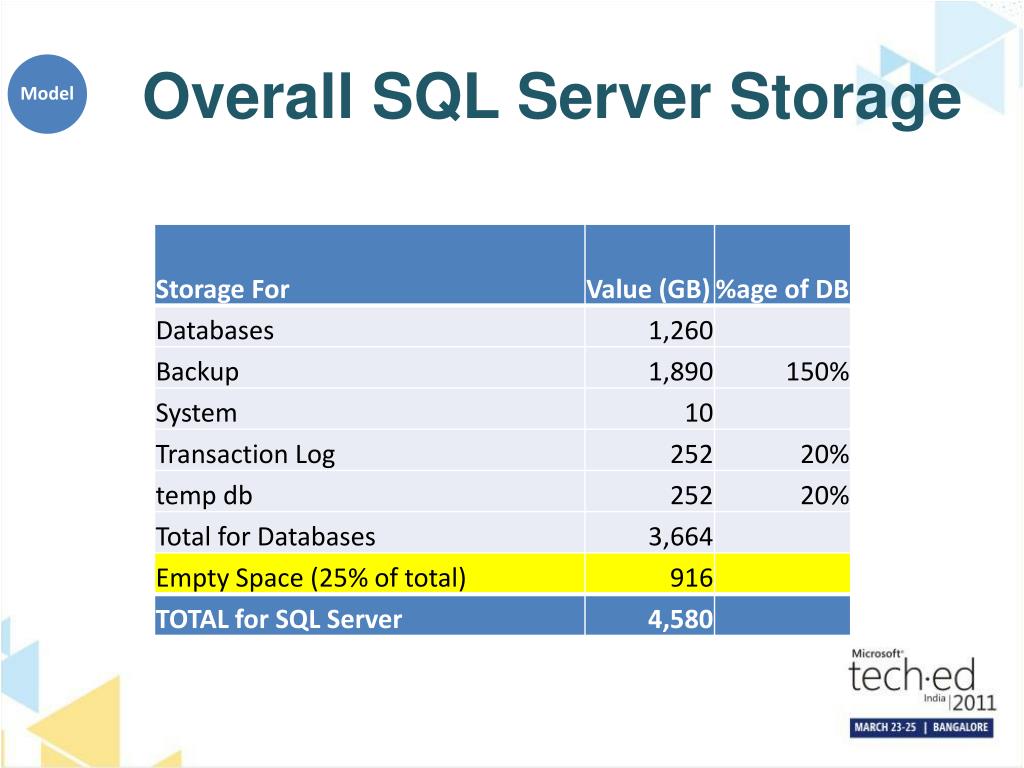

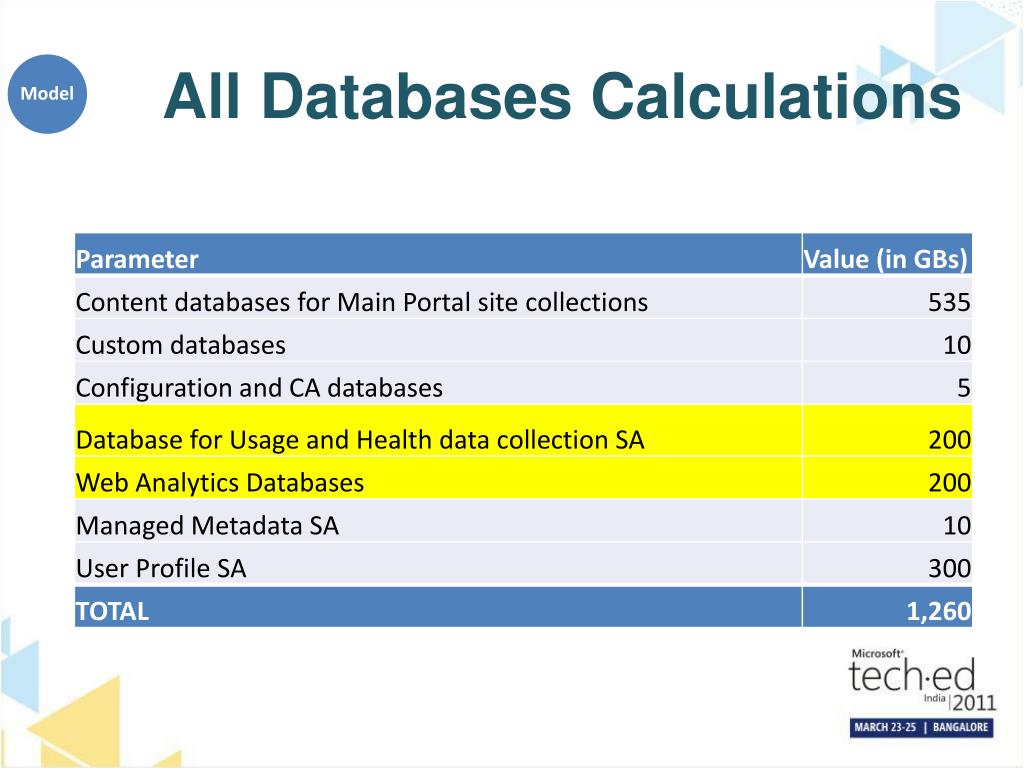

  45. Overall SQL Server Storage

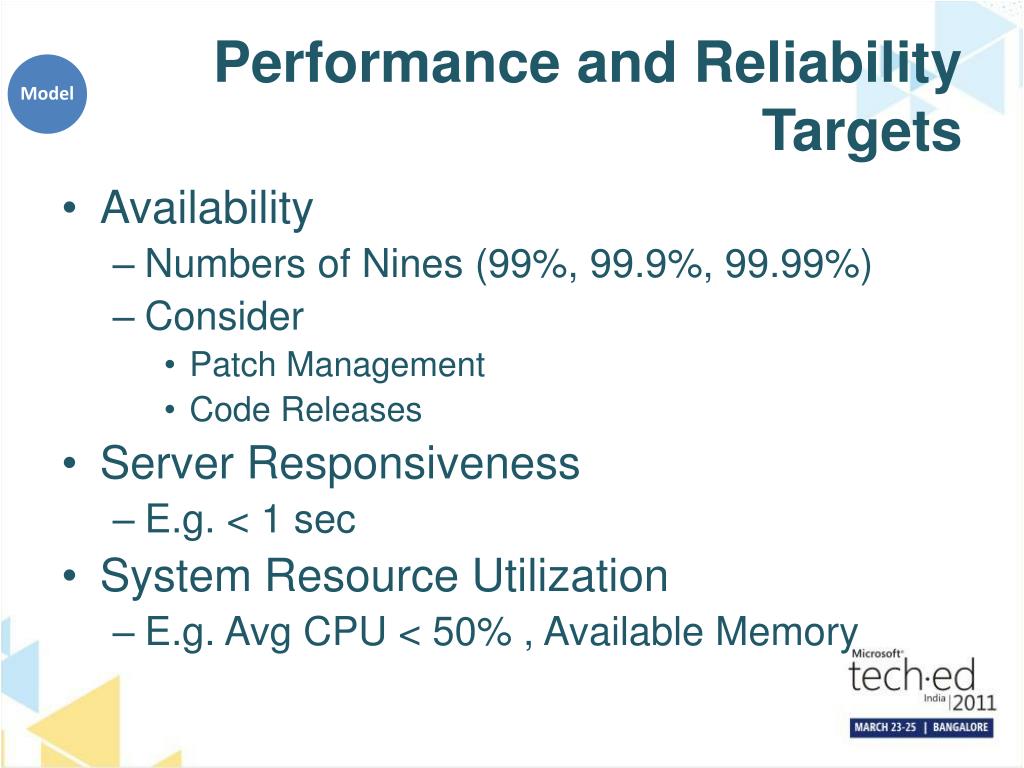

  46. Performance and Reliability Targets • Availability • Numbers of Nines (99%, 99.9%, 99.99%) • Consider • Patch Management • Code Releases • Server Responsiveness • E.g. < 1 sec • System Resource Utilization • E.g. Avg CPU < 50% , Available Memory

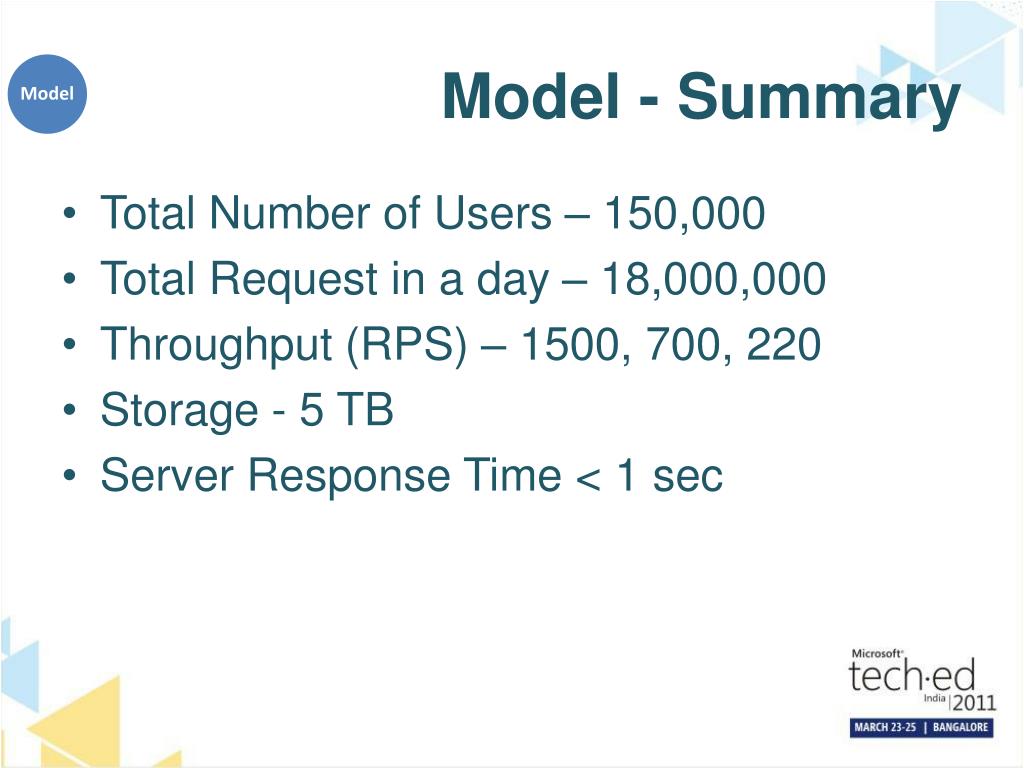

  47. Model - Summary • Total Number of Users – 150,000 • Total Request in a day – 18,000,000 • Throughput (RPS) – 1500, 700, 220 • Storage - 5 TB • Server Response Time < 1 sec

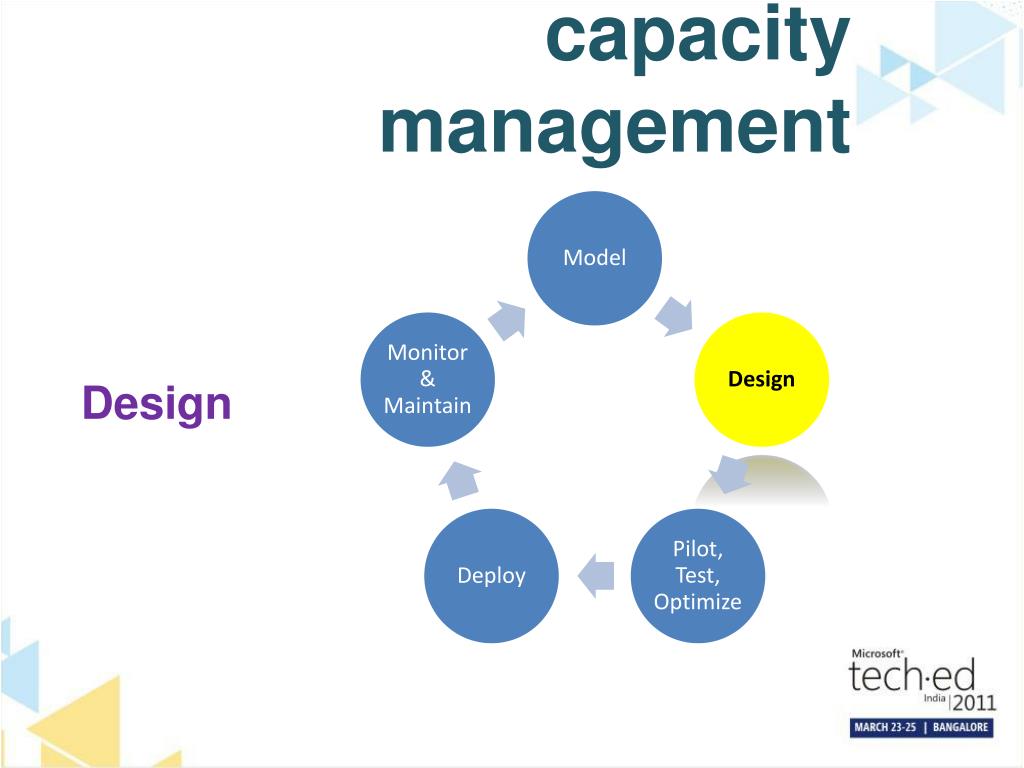

  48. capacity management Design

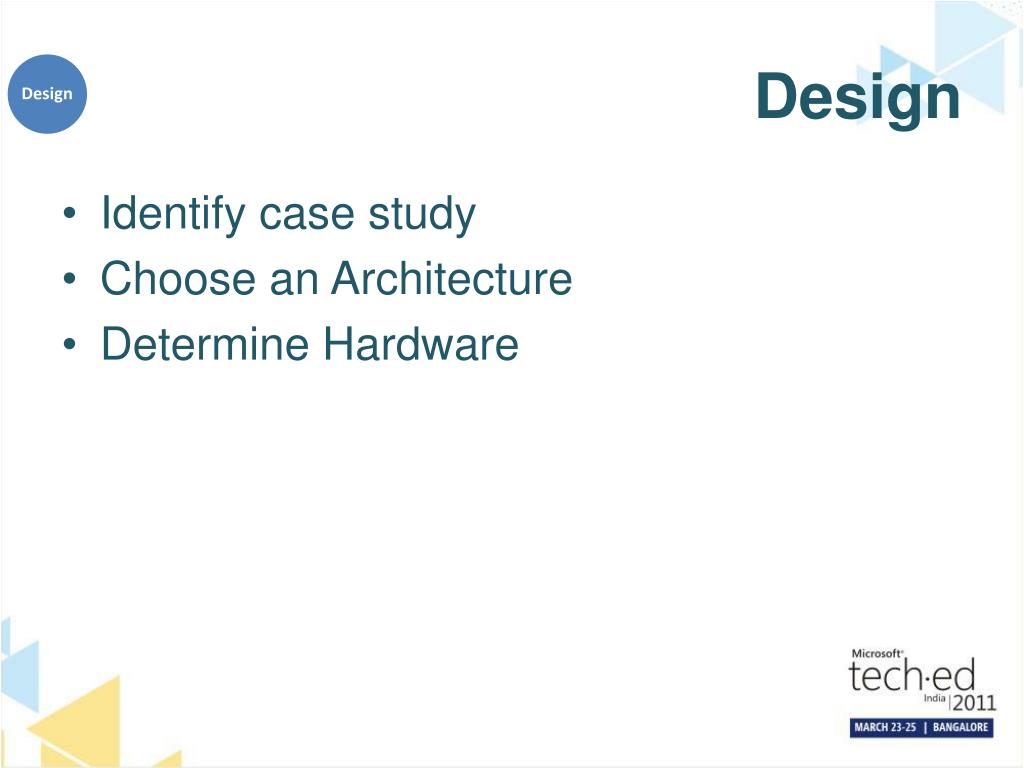

  49. Design • Identify case study • Choose an Architecture • Determine Hardware

  50. Know SharePoint 2010 • Vs SharePoint 2007 • Service Applications & Cross Farm Publishing • Oversizing vs. Undersizing • Reference Architectures • Single server, small, medium and large farms
