  1. Team Klickitat Team Members Maldeep Kang Chris Scott Rose Harber Michael Burton Faculty Advisor Dr. Peter Osterberg Industry Representative ZubinBagai, BPA & IEEE Client Sam and Emmi Leach Persistence of Vision Globe

  2. Agenda Introduction to the Team Project Overview Milestones MOSIS Chip Base GUI Interface for the Microcontroller Issues/Concerns Conclusion

  3. Team Klickitat • Michael Burton • Microcontroller Lead • Parts Supply Logistics • Maldeep Kang • MOSIS Design • Web Development Lead • Chris Scott • Motor, Base & Spinning Platter • Spring Team Lead • Rose Harber • Fall Team Lead • LED Ring and Debug

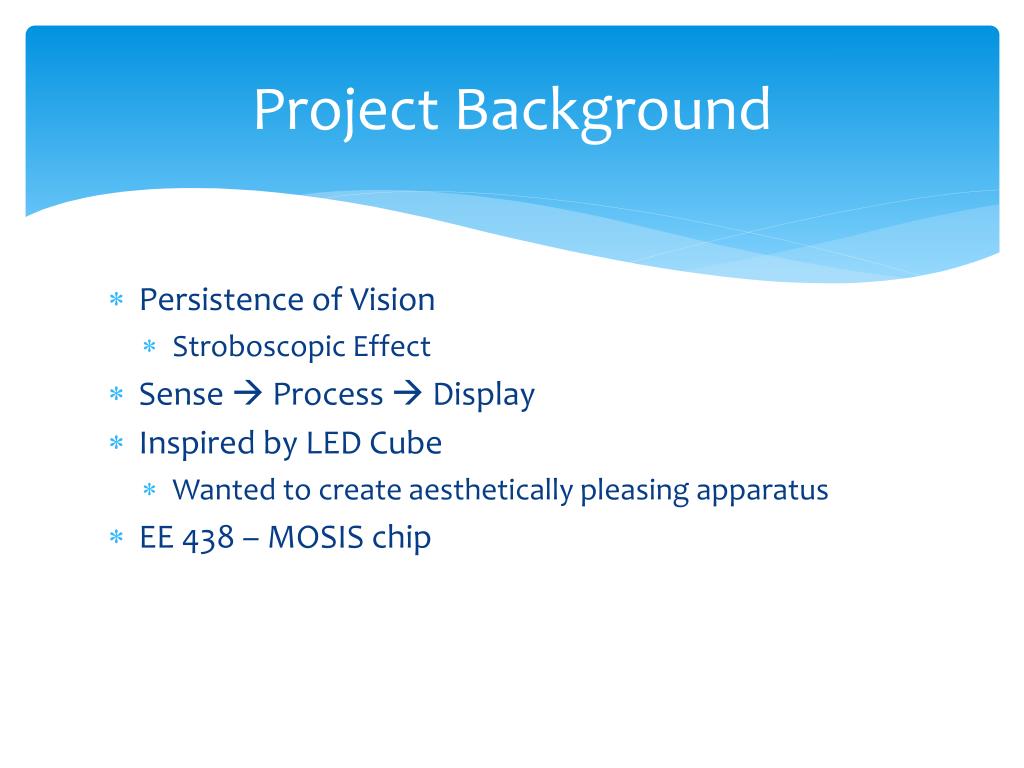

  4. Project Background • Persistence of Vision • Stroboscopic Effect • Sense  Process  Display • Inspired by LED Cube • Wanted to create aesthetically pleasing apparatus • EE 438 – MOSIS chip

  5. Design Overview Form Factor

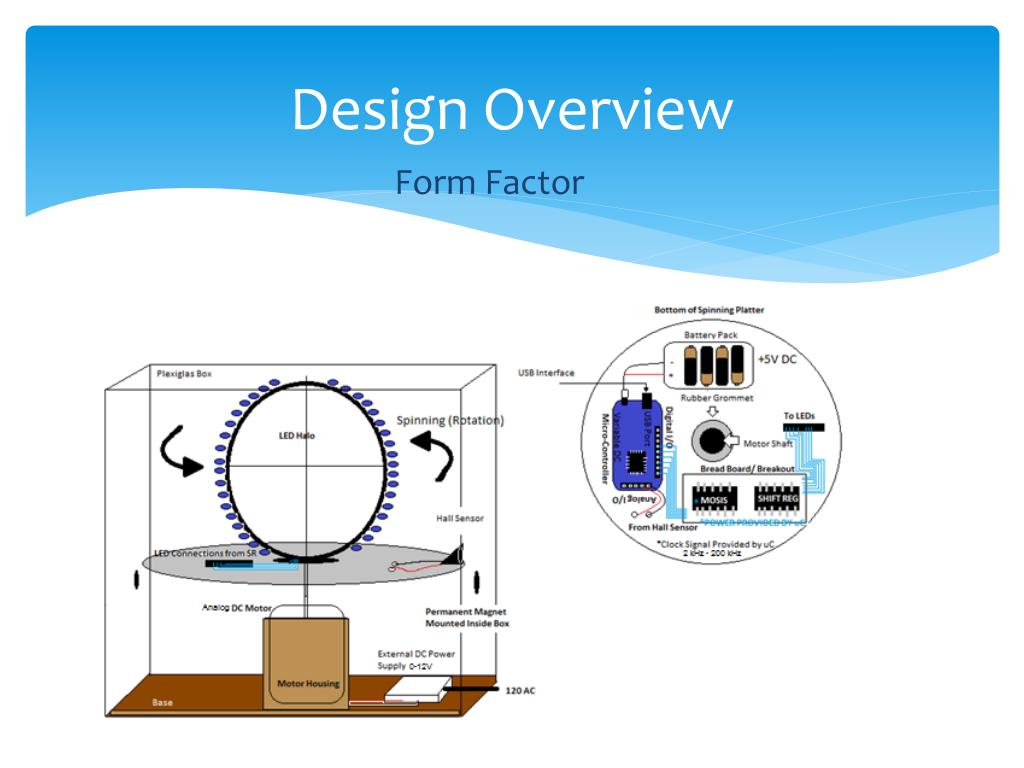

  6. Design Overview Block Diagram

  7. Fall Semester Milestones

  8. MOSIS Chip Design

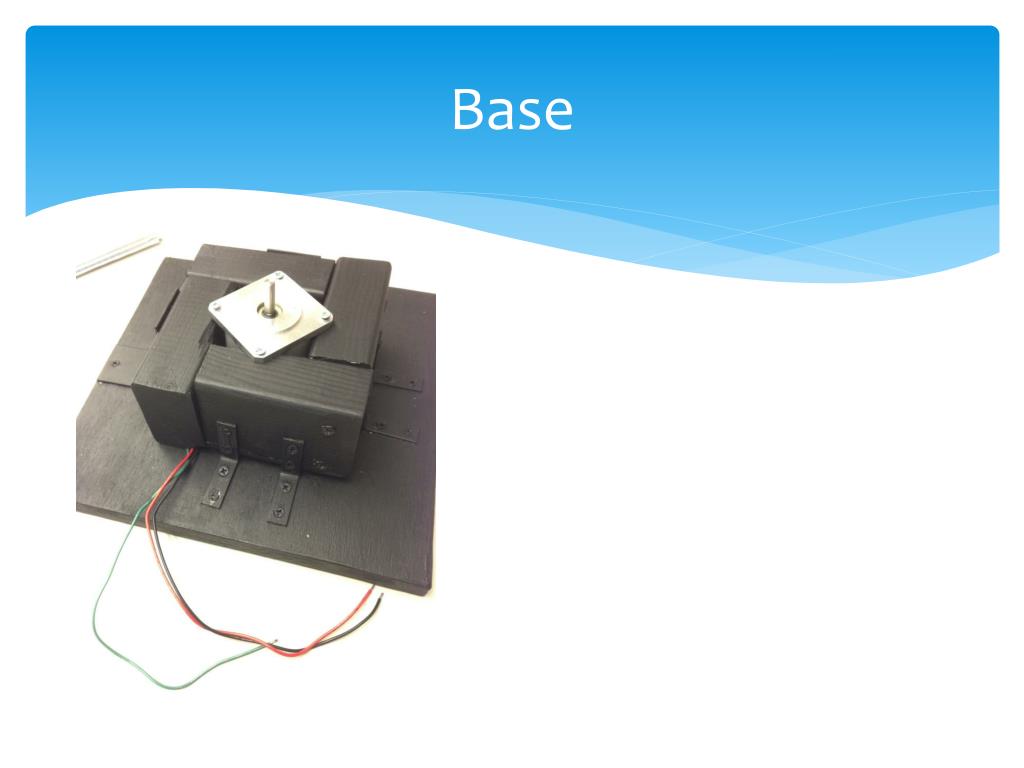

  9. Base

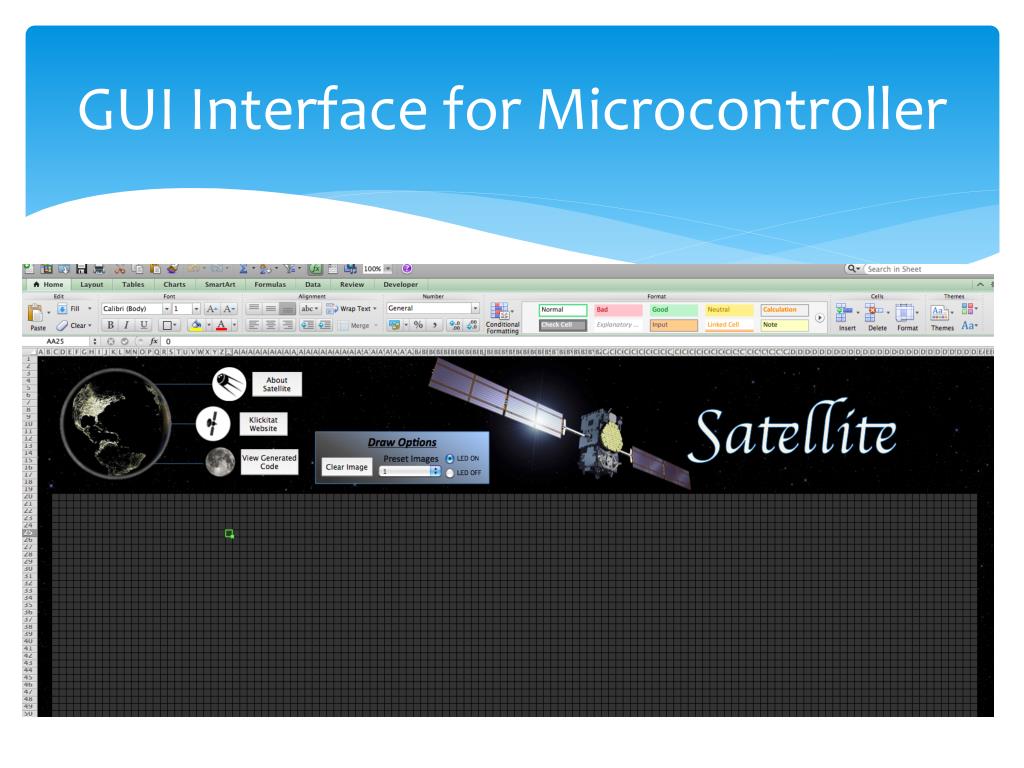

  10. GUI Interface for Microcontroller

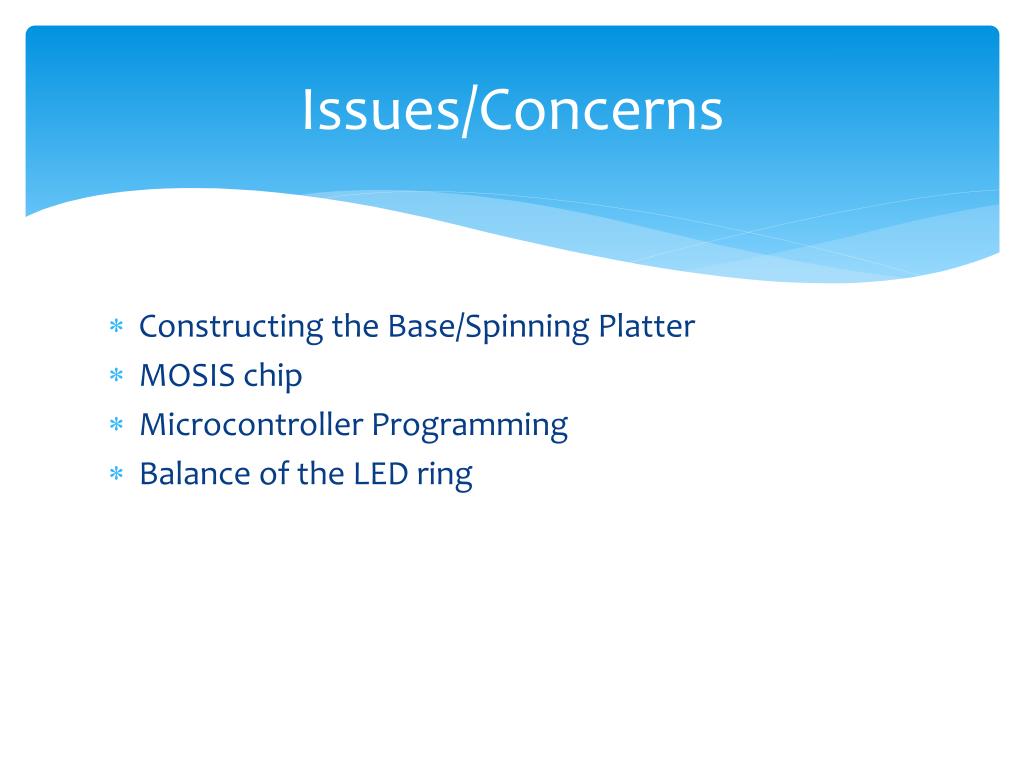

  11. Issues/Concerns Constructing the Base/Spinning Platter MOSIS chip Microcontroller Programming Balance of the LED ring

  12. Conclusion • Challenges will be overcome! • Project is on Schedule • Next: • Submit Final EDF File • Continue to build the POV Globe • Finish the GUI Interface • Finish Design Document

  13. Questions • Rose Harber (Fall Semester Team Lead / LED Ring) • harber14@up.edu • Chris Scott (Motor / Spring Semester Team Lead) • scott14@up.edu • Maldeep Kang (Website Developer/ MOSIS) • kang14@up.edu • Michael Burton (MOSIS Support / Microcontroller) • burton15@up.edu
