IN1

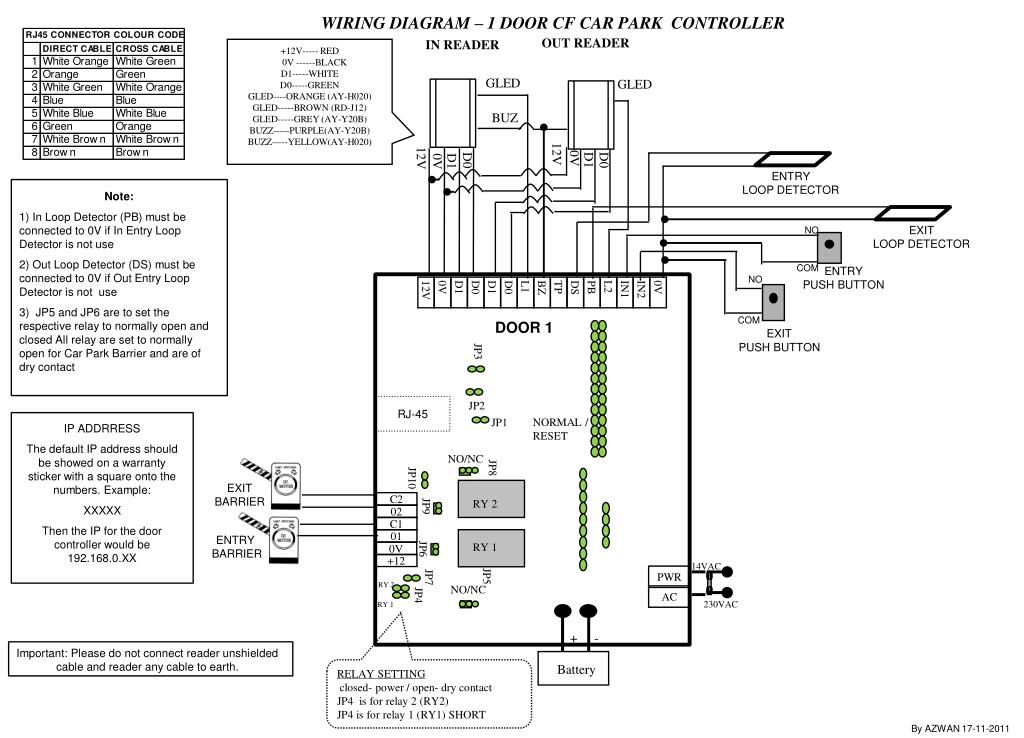

WIRING DIAGRAM – 1 DOOR CF CAR PARK CONTROLLER. OUT READER. IN READER. +12V----- RED 0V ------BLACK D1-----WHITE D0-----GREEN GLED----ORANGE (AY-H020) GLED-----BROWN (RD-J12) GLED-----GREY (AY-Y20B) BUZZ-----PURPLE(AY-Y20B) BUZZ-----YELLOW(AY-H020). GLED. GLED. BUZ. 12V. 12V.

kamal
Télécharger la présentation

IN1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. WIRING DIAGRAM – 1 DOOR CF CAR PARK CONTROLLER OUT READER IN READER +12V----- RED 0V ------BLACK D1-----WHITE D0-----GREEN GLED----ORANGE (AY-H020) GLED-----BROWN (RD-J12) GLED-----GREY (AY-Y20B) BUZZ-----PURPLE(AY-Y20B) BUZZ-----YELLOW(AY-H020) GLED GLED BUZ 12V 12V 0V D1 D0 D0 D1 0V ENTRY LOOP DETECTOR Note: 1) In Loop Detector (PB) must be connected to 0V if In Entry Loop Detector is not use 2) Out Loop Detector (DS) must be connected to 0V if Out Entry Loop Detector is not use 3) JP5 and JP6 are to set the respective relay to normally open and closed All relay are set to normally open for Car Park Barrier and are of dry contact EXIT LOOP DETECTOR NO COM ENTRY PUSH BUTTON NO 12V 0V D1 D0 D1 D0 L1 BZ TP DS PB L2 IN1 IN2 0V DOOR 1 COM EXIT PUSH BUTTON JP3 JP2 RJ-45 NORMAL / RESET JP1 IP ADDRRESS The default IP address should be showed on a warranty sticker with a square onto the numbers. Example: XXXXX Then the IP for the door controller would be 192.168.0.XX NO/NC JP8 C2 EXIT BARRIER JP10 02 RY 2 PWR C1 JP9 01 AC 0V ENTRY BARRIER RY 1 +12 JP6 14VAC JP5 NO/NC JP7 RY 2 - + 230VAC JP4 RY 1 Battery Important: Please do not connect reader unshielded cable and reader any cable to earth. RELAY SETTING closed- power / open- dry contact JP4 is for relay 2 (RY2) JP4 is for relay 1 (RY1) SHORT By AZWAN 17-11-2011
