  1. Reliable and Smooth Fine Granular Scalable Video Streaming Zhibo Chen Yun He 2002 IEEE Region 10 Conference on Computer, Communications, Control and Power Engineering

  2. Outline • Introduction • Server Architecture • Quality Weighted Bit Allocation • Quality Weighted Error Control • Simulation • Conclusion

  3. Introduction • Key of Video Streaming • Smooth Playback • Retransmission-based error control scheme • Tradeoff Problem • Prefetch a new packet • Retransmit a lost packet

  4. Introduction • FGS Stream • Base Layer (CBR) • Enhance Layer Base Enhance Enhance Enhance Enhance

  5. Introduction • Quality Weighted Bit Allocation (QWBA) • Achieve smooth quality of playback. • Quality Weighted Error Control (QWEC) • Loss protection. • Tradeoff between prefetching and retransmission.

  6. Server Architecture Rb≤ Rmin

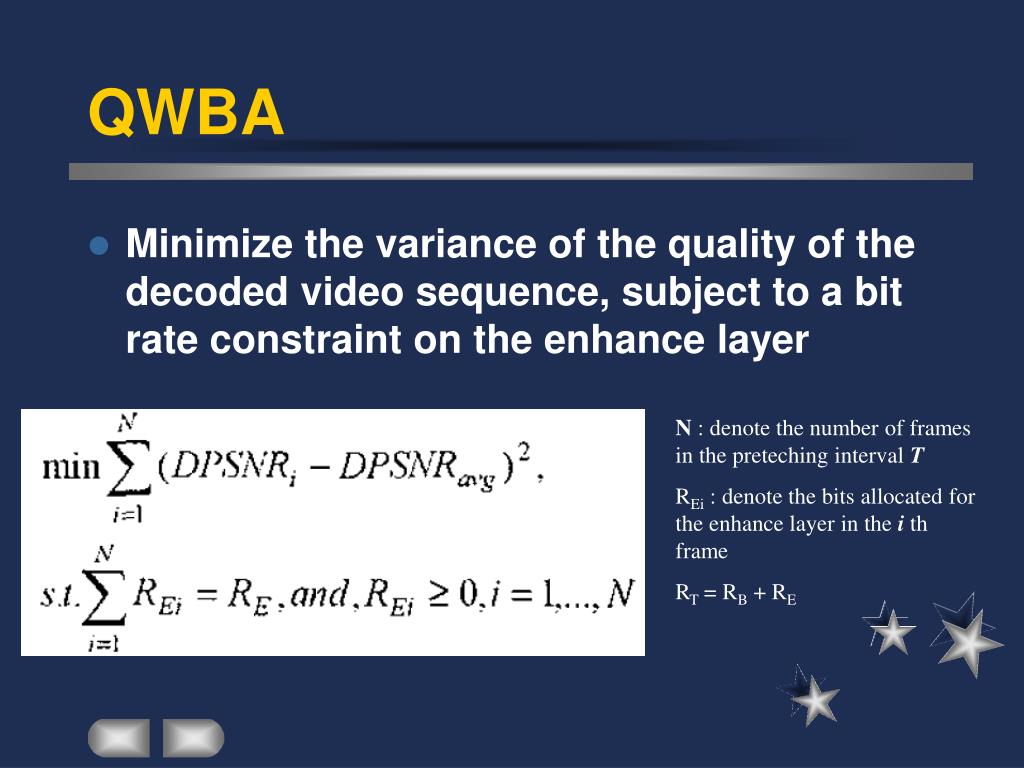

  7. QWBA • Minimize the variance of the quality of the decoded video sequence, subject to a bit rate constraint on the enhance layer N : denote the number of frames in the preteching interval T REi : denote the bits allocated for the enhance layer in the i th frame RT = RB + RE

  8. QWBA • Priori Information • BPSNRi • REi is in proportion to ∆PSNRi

  9. QWBA

  10. QWBA P : Sum of those pi with the constraint pi≥ 0 N’ : the number of frames with pi≥ 0, so N ≥ N

  11. QWEC • Enhance layer needs to be divided into several packets • Definition of enhance layer packet’s priority • Layer difference • Quality difference

  12. QWEC • Enum : sequence number of an enhance layer packet of a given frame (ex. 1, 2, 3, …N ) • The lower Vprio is the higher the priority of that packet • Vprio of all base layer packets : 0

  13. Comparison • Forward error correction (FEC) • Increase bandwidth consumption • Lower performance on burst channel • Addition computation load

  14. Simulation QWBA QWEC Packet loss rate : 10%

  15. Simulation

  16. Conclusion • QWBA manipulates the enhance layer stream according the PSNR variation of base layer based a solid theoretical analysis to achieve a smooth playback quality. • QWEC gives a packet’s priority definition considering both layer difference and quality difference.
