Forward Model

Instrument Model Gas Absorption coeff Solar Spectum Aerosol optical prop . Surface Properties. Measured spectrum & covariance y, S ε Observation Geometry Measurement Mode. Create a priori state Vector & covariance x a , S a. Forward Model. No. Calculated Spectrum f(x).

nayda-hines
Télécharger la présentation

Forward Model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

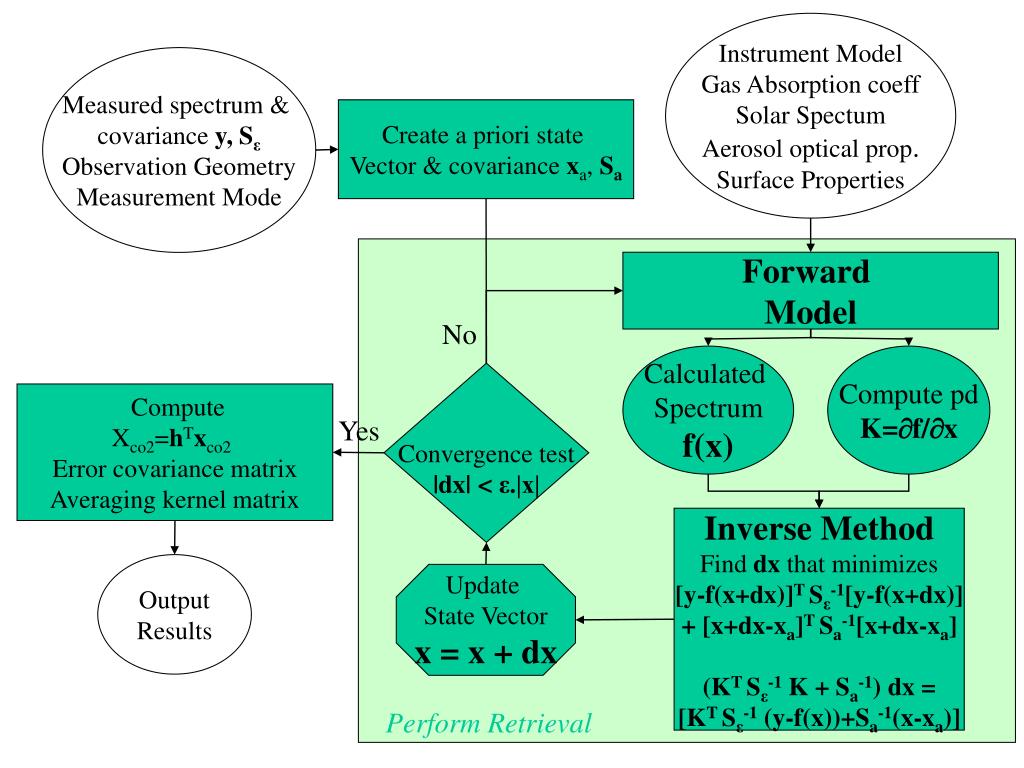

  1. Instrument Model Gas Absorption coeff Solar Spectum Aerosol optical prop. Surface Properties Measured spectrum & covariance y, Sε Observation Geometry Measurement Mode Create a priori state Vector & covariance xa, Sa Forward Model No Calculated Spectrum f(x) Compute pd K=f/x Convergence test |dx| < ε.|x| Compute Xco2=hTxco2 Error covariance matrix Averaging kernel matrix Yes Inverse Method Find dx that minimizes [y-f(x+dx)]T Sε-1[y-f(x+dx)] +[x+dx-xa]T Sa-1[x+dx-xa] (KT Sε-1 K + Sa-1) dx = [KT Sε-1 (y-f(x))+Sa-1(x-xa)] Output Results Update State Vector x = x + dx Perform Retrieval

  2. OCO Forward Model State Vector Pre-computed Aerosol Optical coefficients Mie Scattering Code SMART DISORT Pre-computed Gas Absorption coefficients Line-by-line Code (LBLABC) BRDF Solar Model Solar Linelist High-Resolution Radiance Spectrum Instrument Line Shape (ILS) Instrument Model Low-Resolution Radiance Spectrum
