KOILSAGAR LIFT IRRIGATION SCHEME, MAHABOOBNAGAR DISTRICT (FLOW DIAGRAM). FORESHORE OF PJP RESERVOIR ON KRISHNA RIVER FRL: + 318.516 MDDL: + 314.860. KOILSAGAR RESERVOIR FRL: + 411.300 M CAPACITY : 2.276 TMC. Delivery Lines steel 2.0 M Dia. PARDIPUR BALANCING TANK FRL +361.665

oistin
Télécharger la présentation

PACKAGE 22

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

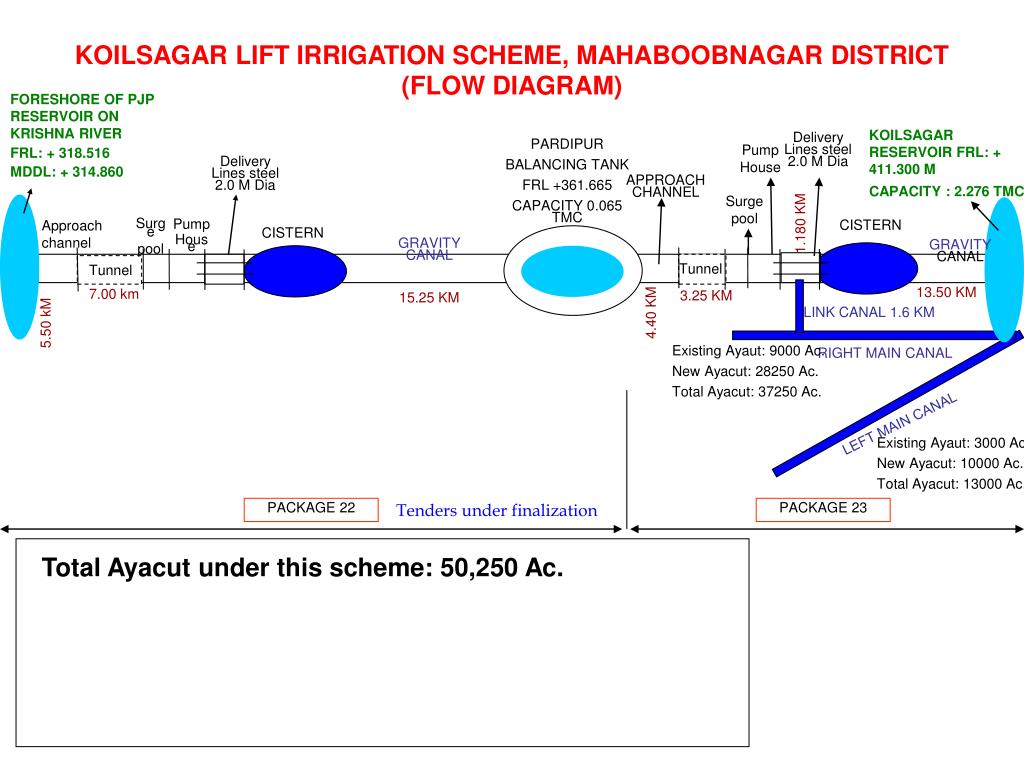

  1. KOILSAGAR LIFT IRRIGATION SCHEME, MAHABOOBNAGAR DISTRICT (FLOW DIAGRAM) FORESHORE OF PJP RESERVOIR ON KRISHNA RIVER FRL: + 318.516 MDDL: + 314.860 KOILSAGAR RESERVOIR FRL: + 411.300 M CAPACITY : 2.276 TMC Delivery Lines steel 2.0 M Dia PARDIPUR BALANCING TANK FRL +361.665 CAPACITY 0.065 TMC Pump House Delivery Lines steel 2.0 M Dia APPROACH CHANNEL Surge pool 1.180 KM Approach channel Surge pool CISTERN Pump House CISTERN GRAVITY CANAL GRAVITY CANAL Tunnel Tunnel 13.50 KM 7.00 km 3.25 KM 15.25 KM 4.40 KM 5.50 kM LINK CANAL 1.6 KM Existing Ayaut: 9000 Ac. New Ayacut: 28250 Ac. Total Ayacut: 37250 Ac. RIGHT MAIN CANAL LEFT MAIN CANAL Existing Ayaut: 3000 Ac. New Ayacut: 10000 Ac. Total Ayacut: 13000 Ac. Tenders under finalization PACKAGE 22 PACKAGE 23 Total Ayacut under this scheme: 50,250 Ac.

  2. KOILSAGAR LIFT IRRIGATION SCHEME

  3. KOILSAGAR LIFT IRRIGATION SCHEME

  4. KOILSAGAR LIFT IRRIGATION SCHEME

  5. KOILSAGAR LIFT IRRIGATION SCHEME Package No. Lift-I/ OC : Construction of pumping station including supply of pressure mains for Koilsagar LI Scheme stage-I and laying HT feeder line 132/11 KVA Sub-station, b) Earth work excavation and forming embankment of feeder and Gravity canal, CM & CD works, strengthening of Pardipur tank etc. 1st call= Rejected due to high premium Bids received for Rs. 184.86 Crs. To be awarded by High power committee. Agency :M/s IVRCL – SEW – PRASAD (JV)

  6. KOILSAGAR LIFT IRRIGATION SCHEME • Package No. Lift-II / OC : • Execution of Stage-II pumping station including sum of pumps, pressure mains of Koilsagar Lift Irrigation Scheme stage-II for lifting 630 c/s water from Pardipur BR. • Earth work execution and forming embankment of feeder and gravity canal, cistern, distributaries etc. Name of the Contractor : M/s IVRCL – SEW – PRASAD (JV) Agreement Amount : Rs. 175.32 Crs Agreement Date : 24-8-2005 Period of Completion : 36 Months(12 milestones) Date of completion : 24-08-2008 • Agreement concluded on : 24-8-2005 • Investigation under Progress • Alignment approved : for (approach channel, tunnel, surge pool, pump house, pressure mains and cisterns (Total length 8.75 Kms) • Land Acquisition : Required : 336 Acs; Acquired: 145.68 Acs • Expenditure : 16.42 Crs. ( Including Mob. Adv. of Rs.6.21Crs.) • Mob.Adv. Recovered : Rs. 2.29 Crores. • LA Paid : Rs. 0.85 Crs.
