Quick Reference Guide Agilent Low GAS Operation

Quick Reference Guide Agilent Low GAS Operation. Quick Reference Guide Agilent Low GAS Operation. www.agilent.com/chem/lowgas. www.agilent.com/chem/lowgas. Turn On Press and hold button (~1 second) until green LED appears Turn Off Press and hold button (~5 seconds) until red LED appears

ownah
Télécharger la présentation

Quick Reference Guide Agilent Low GAS Operation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

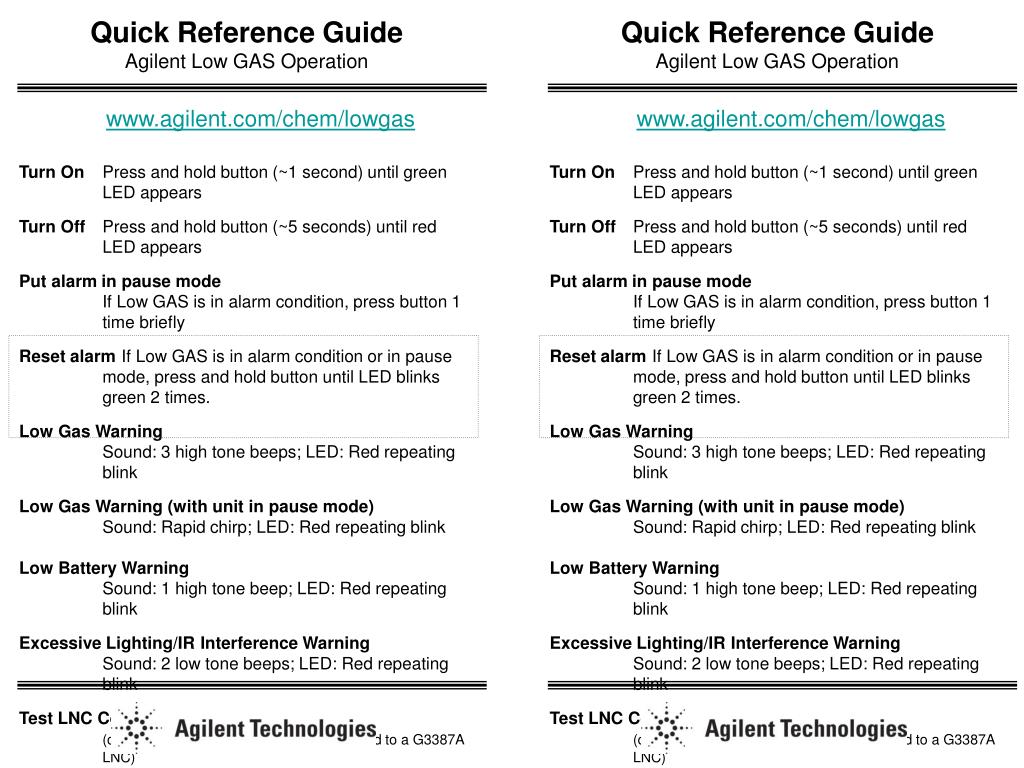

  1. Quick Reference GuideAgilent Low GAS Operation Quick Reference GuideAgilent Low GAS Operation www.agilent.com/chem/lowgas www.agilent.com/chem/lowgas Turn On Press and hold button (~1 second) until green LED appears Turn Off Press and hold button (~5 seconds) until red LED appears Put alarm in pause mode If Low GAS is in alarm condition, press button 1 time briefly Reset alarm If Low GAS is in alarm condition or in pause mode, press and hold button until LED blinks green 2 times. Low Gas Warning Sound: 3 high tone beeps; LED: Red repeating blink Low Gas Warning (with unit in pause mode) Sound: Rapid chirp; LED: Red repeating blink Low Battery Warning Sound: 1 high tone beep; LED: Red repeating blink Excessive Lighting/IR Interference Warning Sound: 2 low tone beeps; LED: Red repeating blink Test LNC Connection (only applies to Wireless versions connected to a G3387A LNC) Press button briefly to force transmission. The Receive and Send lights on the LNC will both blink briefly. Turn On Press and hold button (~1 second) until green LED appears Turn Off Press and hold button (~5 seconds) until red LED appears Put alarm in pause mode If Low GAS is in alarm condition, press button 1 time briefly Reset alarm If Low GAS is in alarm condition or in pause mode, press and hold button until LED blinks green 2 times. Low Gas Warning Sound: 3 high tone beeps; LED: Red repeating blink Low Gas Warning (with unit in pause mode) Sound: Rapid chirp; LED: Red repeating blink Low Battery Warning Sound: 1 high tone beep; LED: Red repeating blink Excessive Lighting/IR Interference Warning Sound: 2 low tone beeps; LED: Red repeating blink Test LNC Connection (only applies to Wireless versions connected to a G3387A LNC) Press button briefly to force transmission. The Receive and Send lights on the LNC will both blink briefly.
