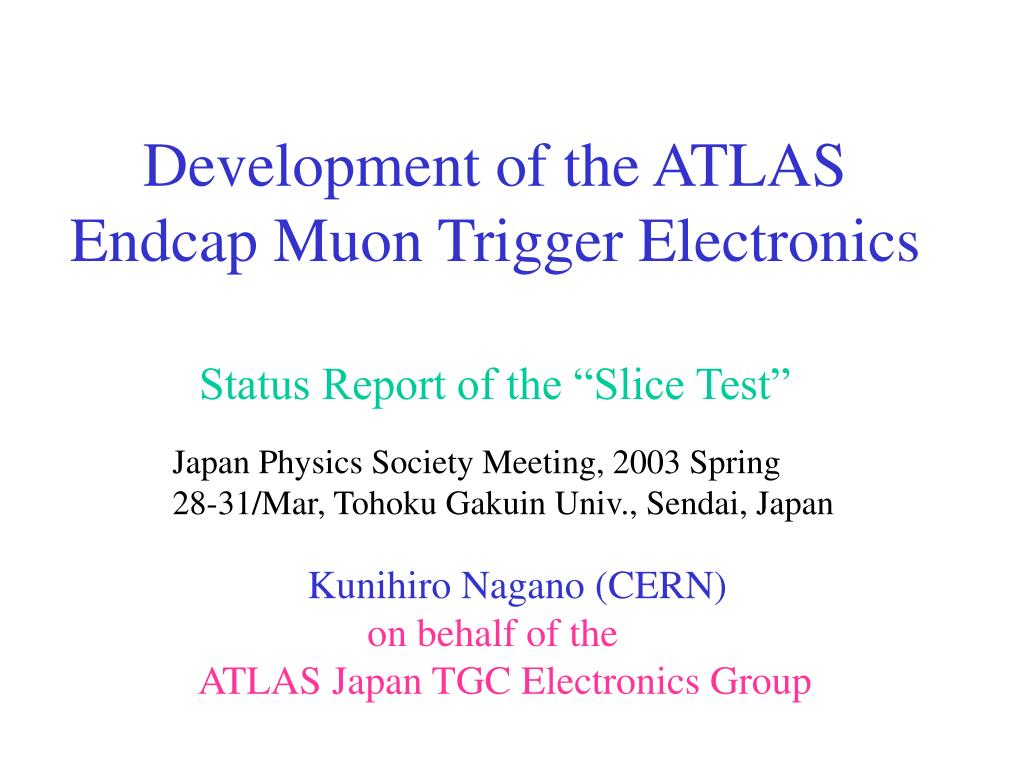

Development of the ATLAS Endcap Muon Trigger Electronics. Status Report of the “Slice Test”. Japan Physics Society Meeting, 2003 Spring 28-31/Mar, Tohoku Gakuin Univ., Sendai, Japan. Kunihiro Nagano (CERN) on behalf of the ATLAS Japan TGC Electronics Group. The “Slice Test”.

rudolf
Télécharger la présentation

Development of the ATLAS Endcap Muon Trigger Electronics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Development of the ATLAS Endcap Muon Trigger Electronics Status Report of the “Slice Test” Japan Physics Society Meeting, 2003 Spring28-31/Mar, Tohoku Gakuin Univ., Sendai, Japan Kunihiro Nagano (CERN)on behalf of the ATLAS Japan TGC Electronics Group

  2. The “Slice Test” • Development of custom ASICs: • Design works almost finalized. • Prototypes with full specification produced. • Stand-alone tests done. “Slice Test” = Integration and system-wide tests of full components

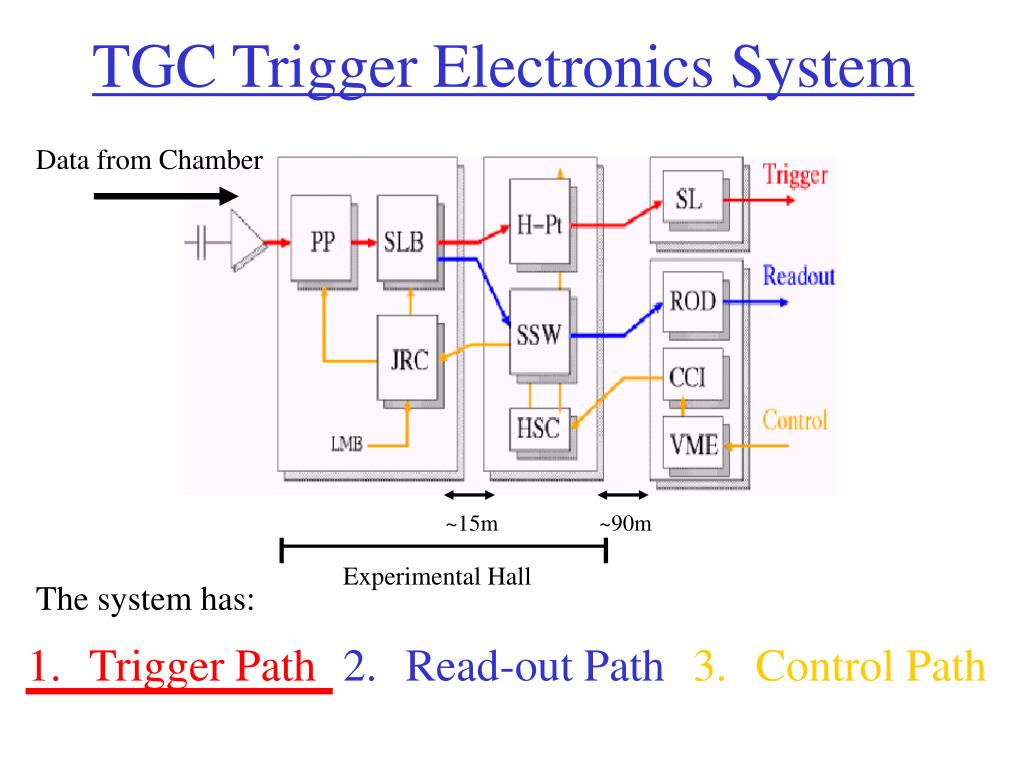

  3. ~15m ~90m • Trigger Path • Read-out Path • Control Path TGC Trigger Electronics System Data from Chamber Experimental Hall The system has:

  4. PS Board Slave-board (SLB)ASIC • Find low pT candidates by taking coincidence between 2 outer chamber stations • R and φ processed independently Patch-Panel (PP) ASIC • Latch data from chambers and synchronize them to 40.08 MHz clock (bunch crossing identification) • Fine timing adjustment

  5. HPT Board, SL Board Sector Logic (SL) Board • R-φ coincidence, pT determination • Implemented with FPGAs High-pT (HPT) ASIC • Find high-pT candidates by taking coincidence between hits in the inner most chamber station and low pT candidates • R and φinformation are processed indenpendently

  6. Setup Data flow • Input: Pulse-Pattern-Generators (PPGs). Test vectors were loaded into PPGs. • Output: a general-purpose FIFO (TOM) was used to read-out SL output. • Clock: provided by the Trigger, Timing, Control system (TTC) • A set of Wire (R) and Strip (φ) PS Boards. • One HPT Module • One SL Module

  7. Setup -cont’d- Corresponds to

  8. Functional Test Result • No error in comparison to simulation with: 1-Track: 10 K vectors, 2-Track: 10 K vectors

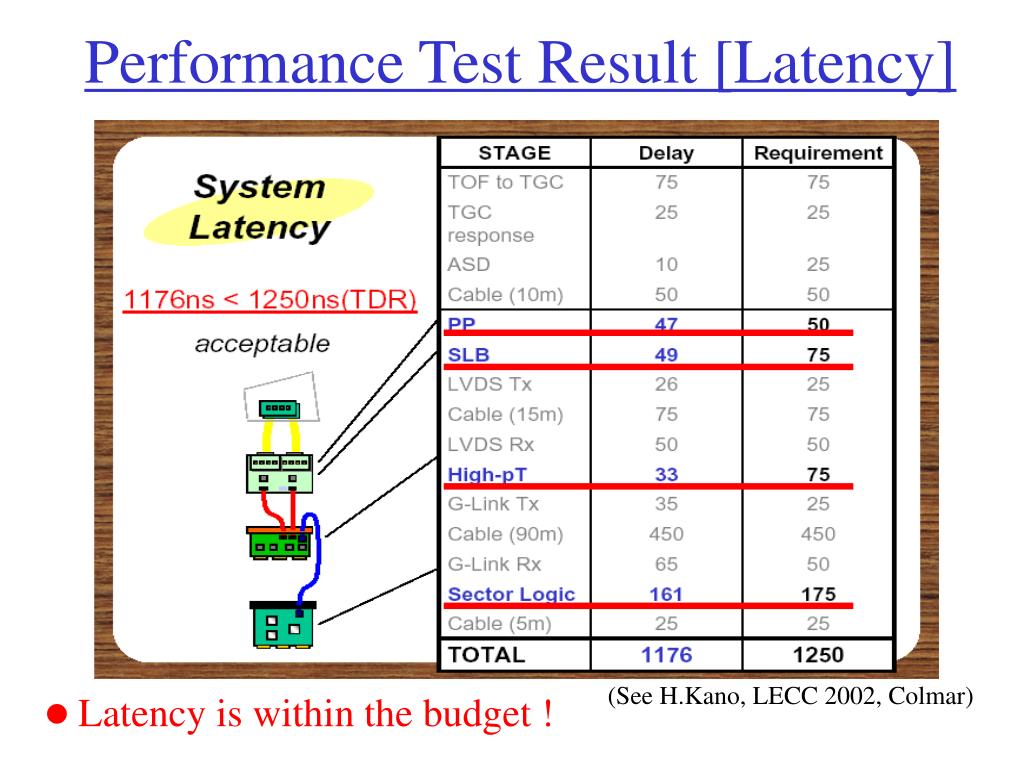

  9. Performance Test Result [Latency] (See H.Kano, LECC 2002, Colmar) • Latency is within the budget !

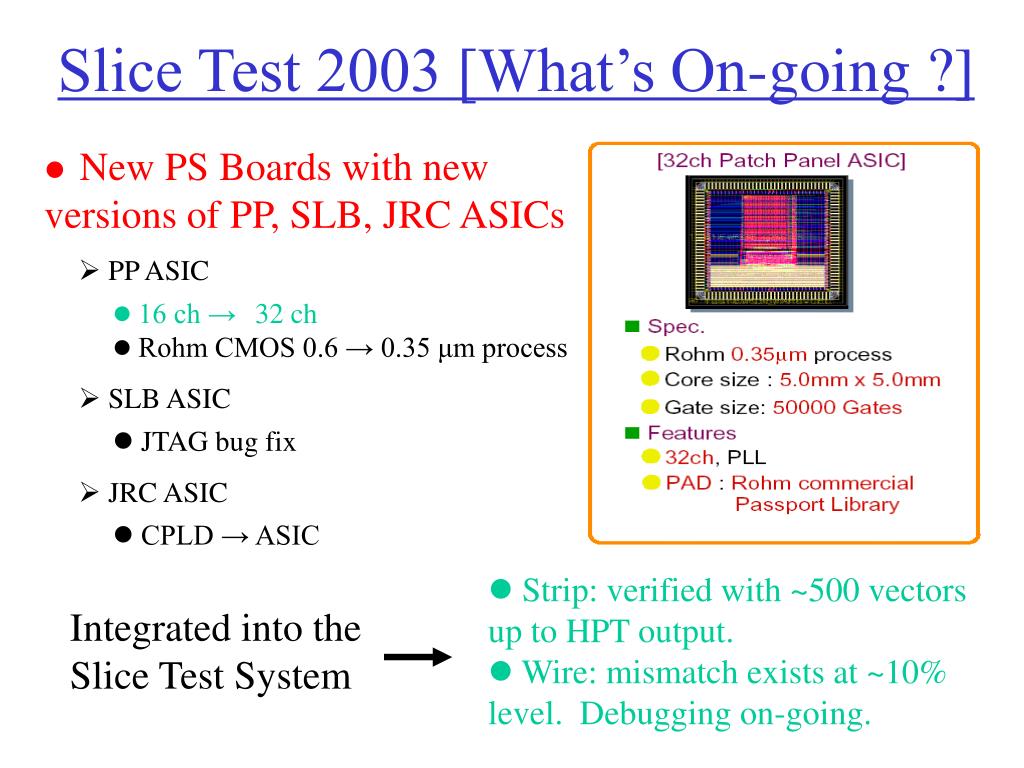

  10. Slice Test 2003 [What’s On-going ?] • New PS Boards with new versions of PP, SLB, JRC ASICs • PP ASIC • 16 ch →32 ch • Rohm CMOS 0.6 → 0.35 μm process • SLB ASIC • JTAG bug fix • JRC ASIC • CPLD → ASIC • Strip: verified with ~500 vectors up to HPT output. • Wire: mismatch exists at ~10% level. Debugging on-going. Integrated into theSlice Test System

  11. Slice Test 2003 -cont’d- • Star-Switch (SSW): full spec. prototype was produced • Control Path: HSC-CCI via SSW established • Readout Path: being tested. • Read-out Driver (ROD): ready • Connection to higher DAQ (ROB via S-Link) established Trigger + Read-out + Control at: • Chamber Integration Test at Cosmic-Ray Station (Kobe Univ.) in Mar. 2003 • Test-beam at CERN in May 2003

  12. Chamber Integration at Kobe (10-14 Mar., 2003) Chamber Elec. Connected by LVDS 40-twisted pair cables

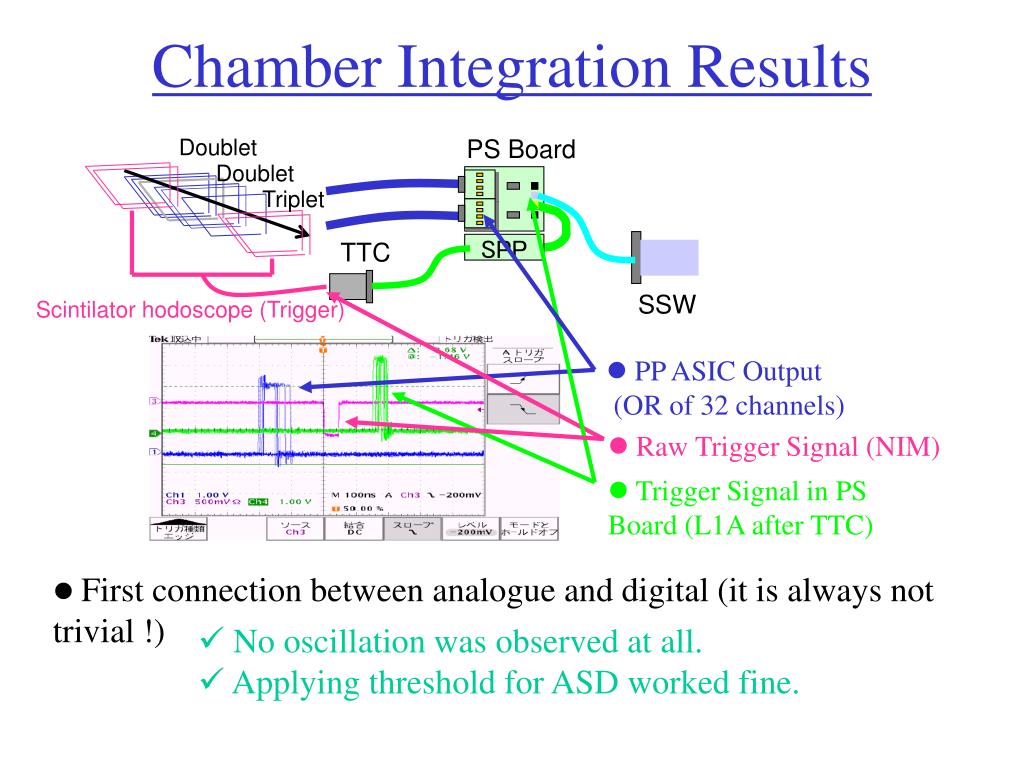

  13. Doublet PS Board Doublet Triplet TTC SPP SSW • PP ASIC Output (OR of 32 channels) • Raw Trigger Signal (NIM) • Trigger Signal in PS Board (L1A after TTC) Chamber Integration Results Scintilator hodoscope (Trigger) • First connection between analogue and digital (it is always not trivial !) • No oscillation was observed at all. • Applying threshold for ASD worked fine.

  14. Summary • Slice Test • Functional Test: verified with ~10 K test vectors each of 1-Track and 2-Track events • Performance Test: latency was measured as 1176 ns, which is less than the allowed budget of 1250 ns • Tests with new PS boards underway • Read-out path in full swing • Future Plan • Test-beam at CERN • Integration also to higher level systems → full chain to LVL1 Central Trigger Processor and to DAQ system.
