  1. CLEX - TBTS Control and measurement system Cedric Charrondiere EN-ICE-MTA / 16

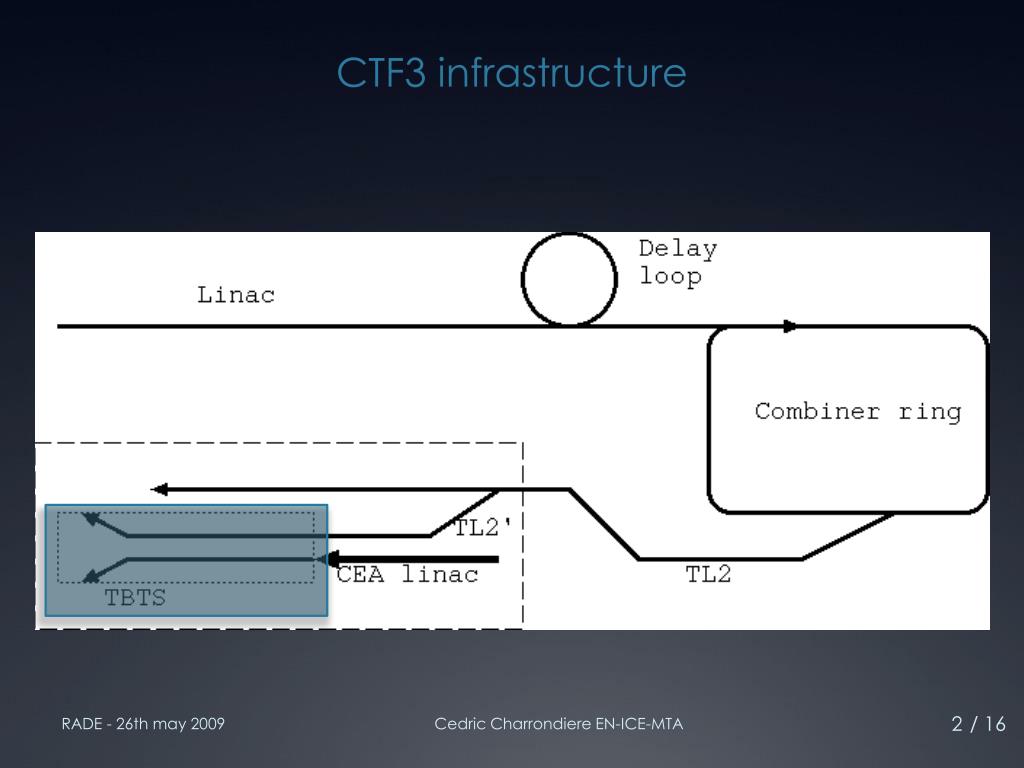

  2. CTF3 infrastructure Cedric Charrondiere EN-ICE-MTA / 16

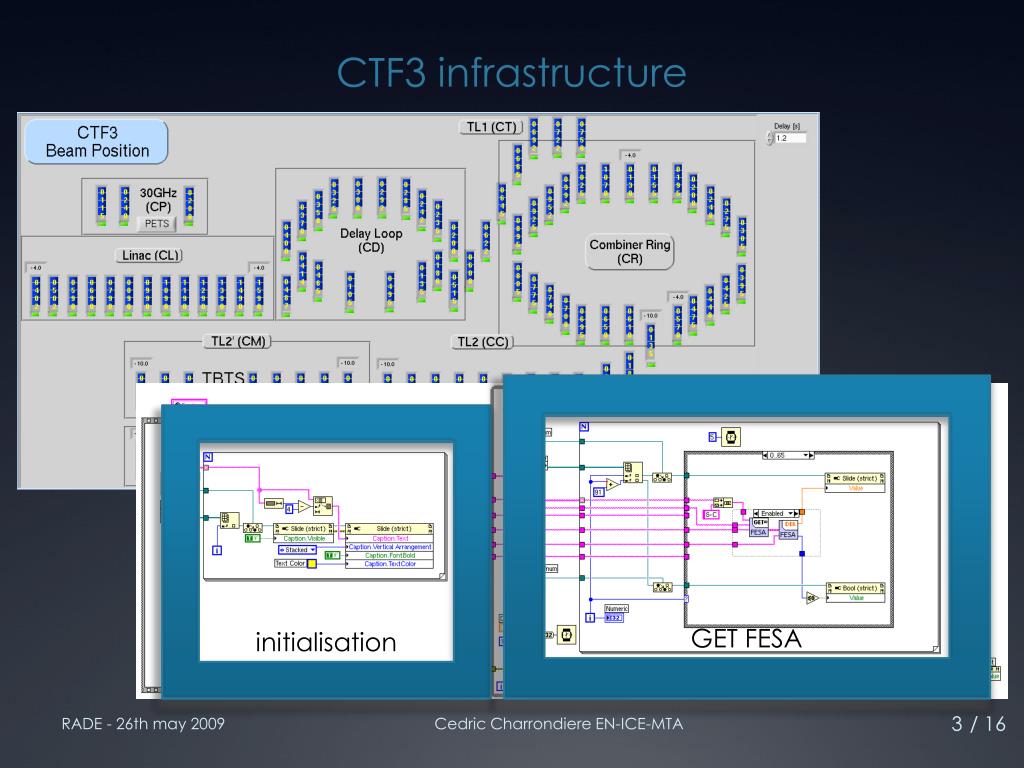

  3. CTF3 infrastructure GET FESA initialisation Cedric Charrondiere EN-ICE-MTA / 16

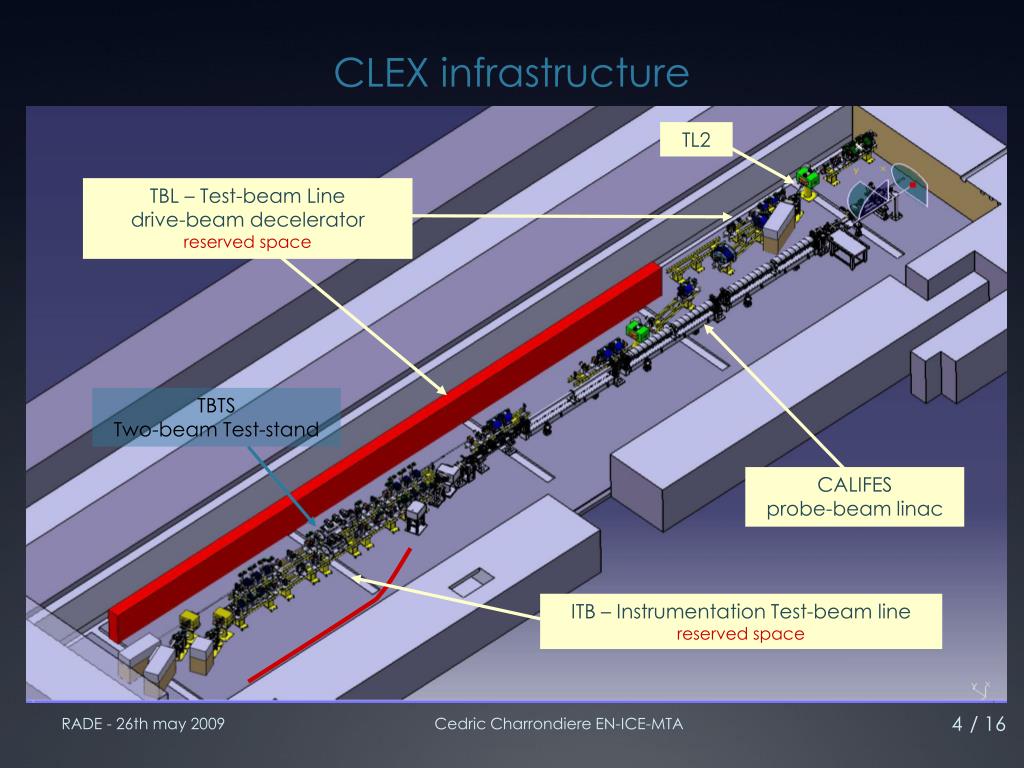

  4. CLEX infrastructure TL2 TBL – Test-beam Line drive-beam decelerator reserved space TBTS Two-beam Test-stand CALIFES probe-beam linac ITB – Instrumentation Test-beam line reserved space Cedric Charrondiere EN-ICE-MTA / 16

  5. TBTS infrastructure Cedric Charrondiere EN-ICE-MTA / 16

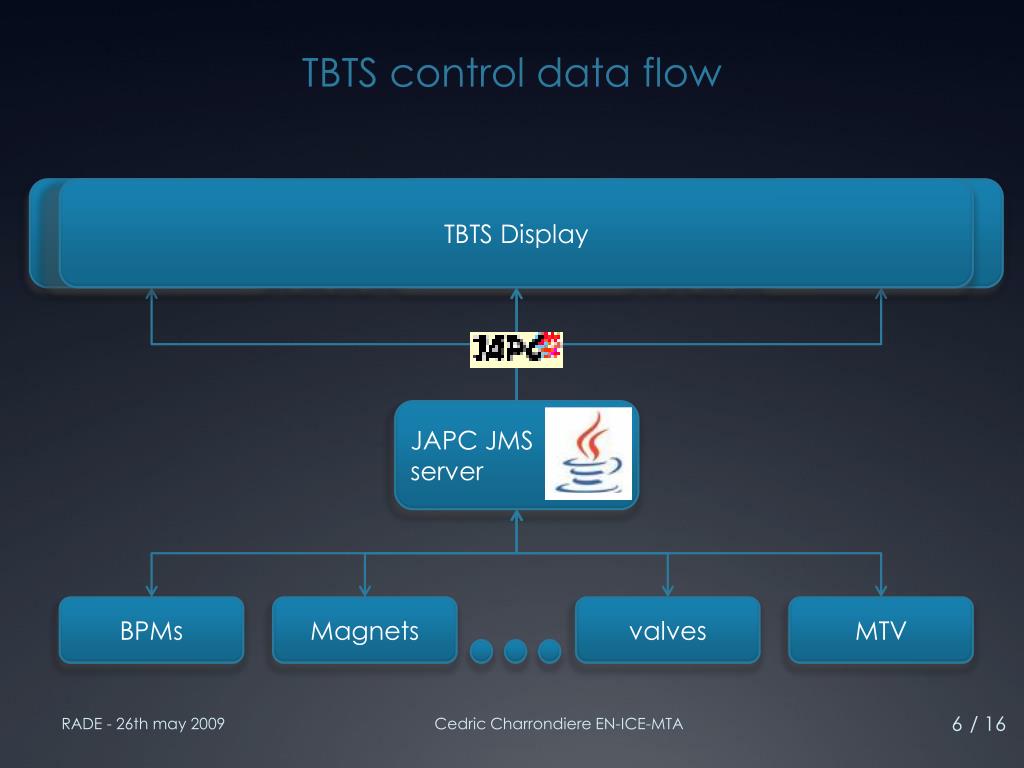

  6. TBTS control data flow Client 1 TBTS Display TBTS Display Client 2 JAPC JMS server BPMs Magnets valves MTV Cedric Charrondiere EN-ICE-MTA / 16

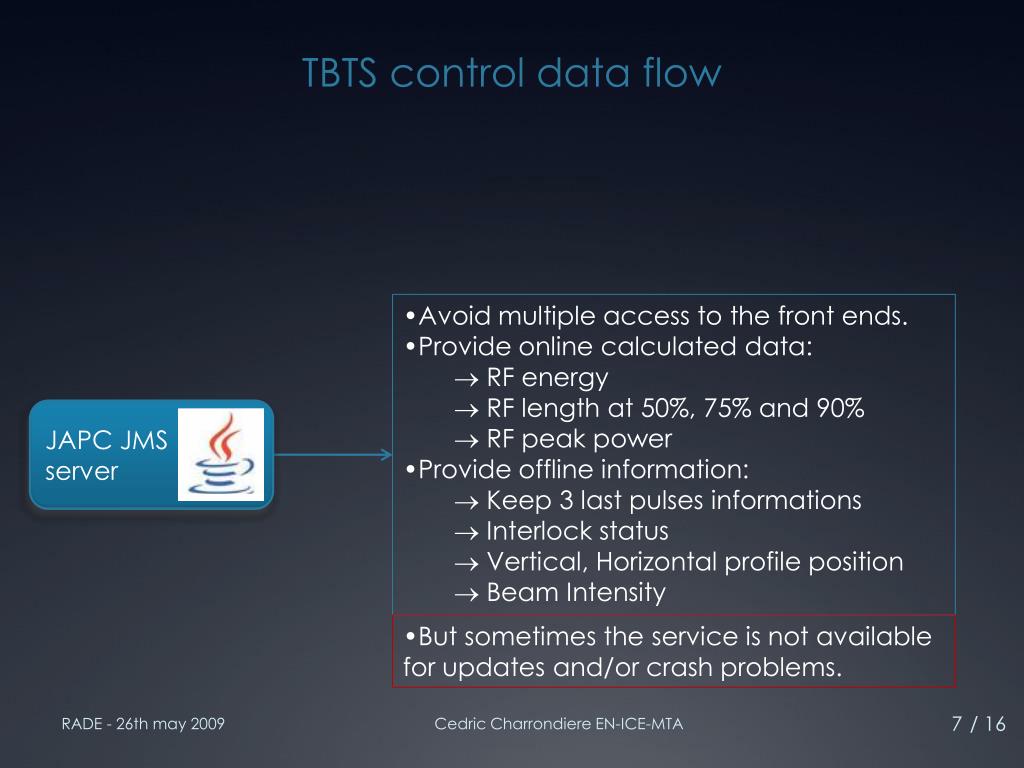

  7. TBTS control data flow • Avoid multiple access to the front ends. • Provide online calculated data: • RF energy • RF length at 50%, 75% and 90% • RF peak power • Provide offline information: • Keep 3 last pulses informations • Interlock status • Vertical, Horizontal profile position • Beam Intensity JAPC JMS server • But sometimes the service is not available for updates and/or crash problems. Cedric Charrondiere EN-ICE-MTA / 16

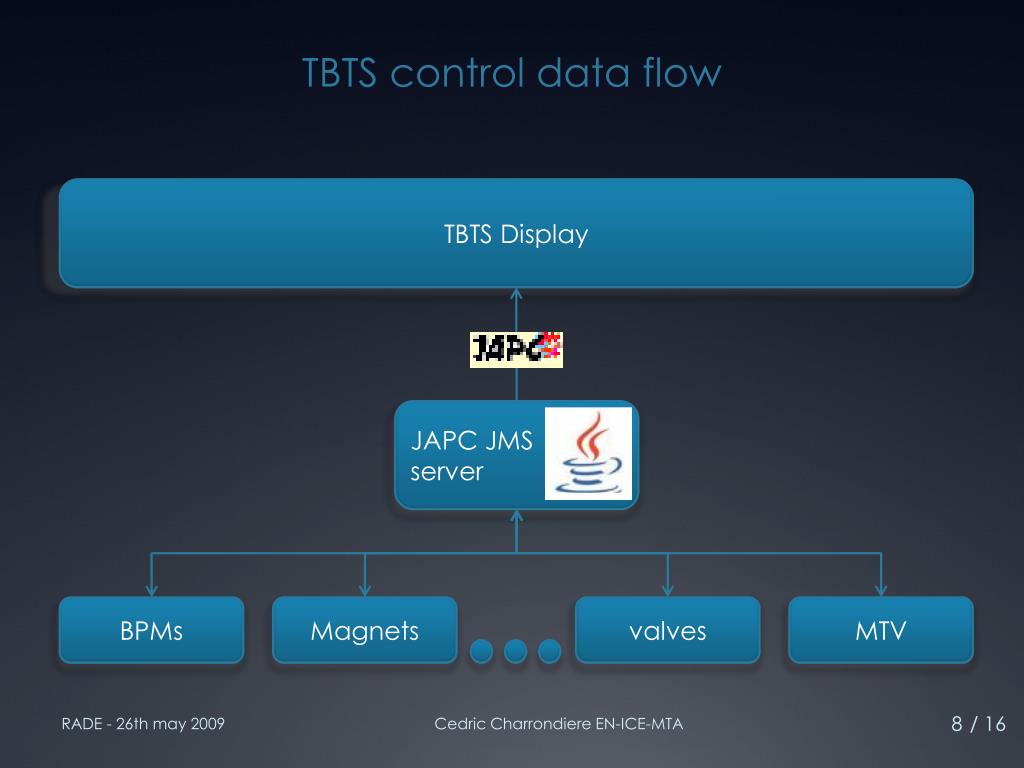

  8. TBTS control data flow TBTS Display JAPC JMS server BPMs Magnets valves MTV Cedric Charrondiere EN-ICE-MTA / 16

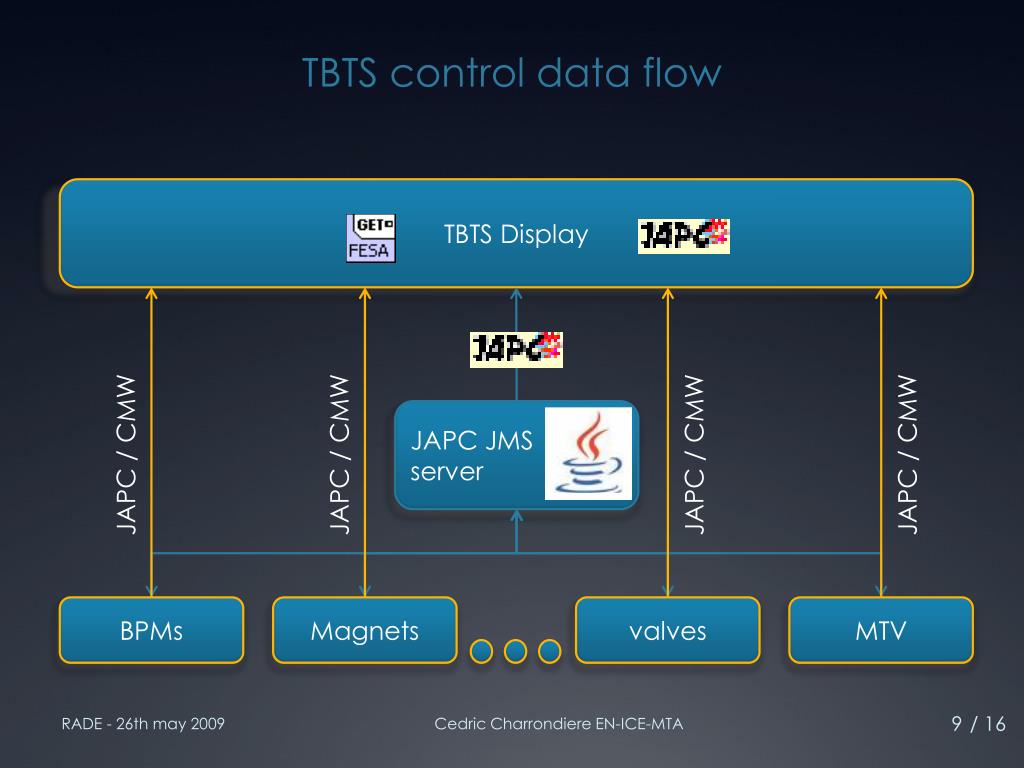

  9. TBTS control data flow TBTS Display JAPC / CMW JAPC / CMW JAPC / CMW JAPC / CMW JAPC JMS server BPMs Magnets valves MTV Cedric Charrondiere EN-ICE-MTA / 16

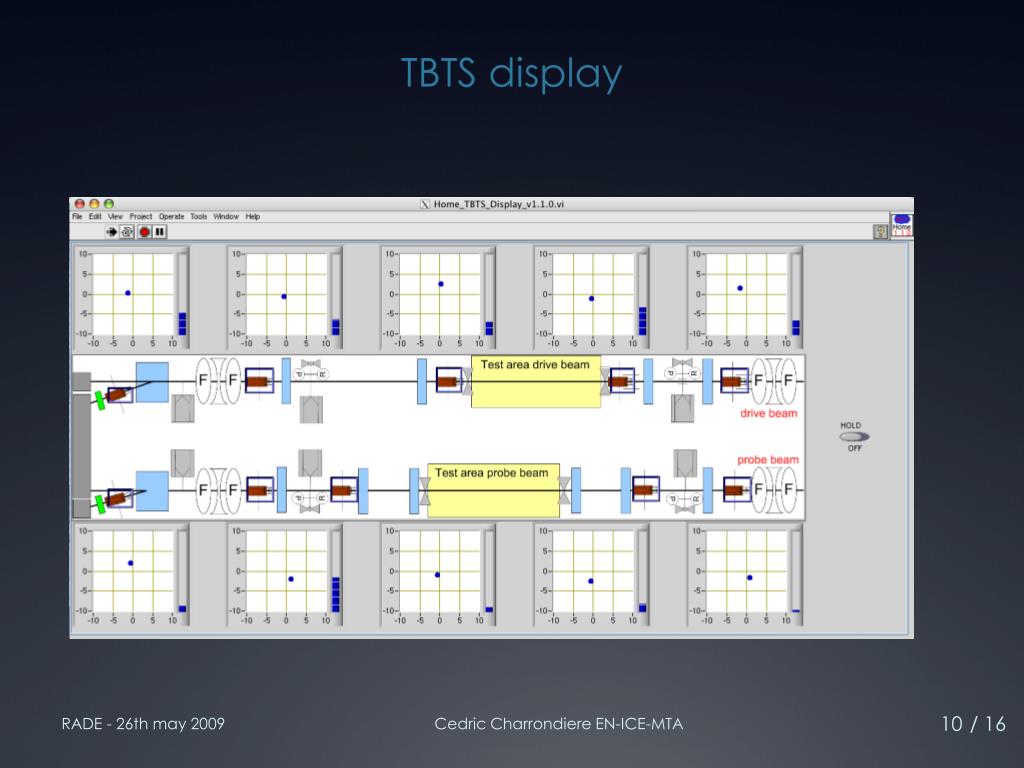

  10. TBTS display Cedric Charrondiere EN-ICE-MTA / 16

  11. TBTS display Cedric Charrondiere EN-ICE-MTA / 16

  12. TBTS display Cedric Charrondiere EN-ICE-MTA / 16

  13. TBTS display Cedric Charrondiere EN-ICE-MTA / 16

  14. TBTS control data flow JAPC / CMW JAPC / CMW JAPC / CMW JAPC / CMW JAPC JMS server BPMs Magnets valves MTV Cedric Charrondiere EN-ICE-MTA / 16

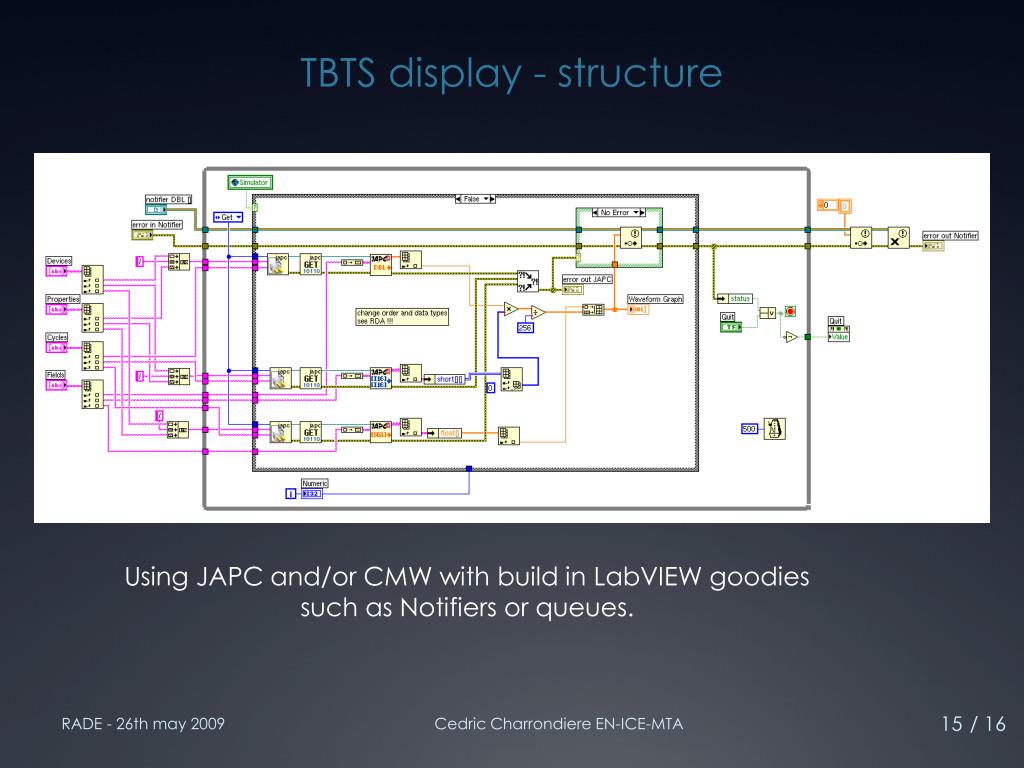

  15. TBTS display - structure Using JAPC and/or CMW with build in LabVIEW goodies such as Notifiers or queues. Cedric Charrondiere EN-ICE-MTA / 16

  16. Conclusions • RADE tools allow accessing accelerator Front-Ends really easily and in a few clicks. • CMW binary is a little faster than JAPC to access FESA devices. • JAPC can access Front-Ends, Databases, and JAVA servers. • Now we can access a lot of data very fast, so one should take care about performance by not duplicating data and also by using advance LabVIEW functions. (ie: Dynamic VI call, Notifiers, queues,…) • Improvements: • Develop better communication to PLC • Include drivers for wildly used hardware (Keithley,…) Cedric Charrondiere EN-ICE-MTA / 16
