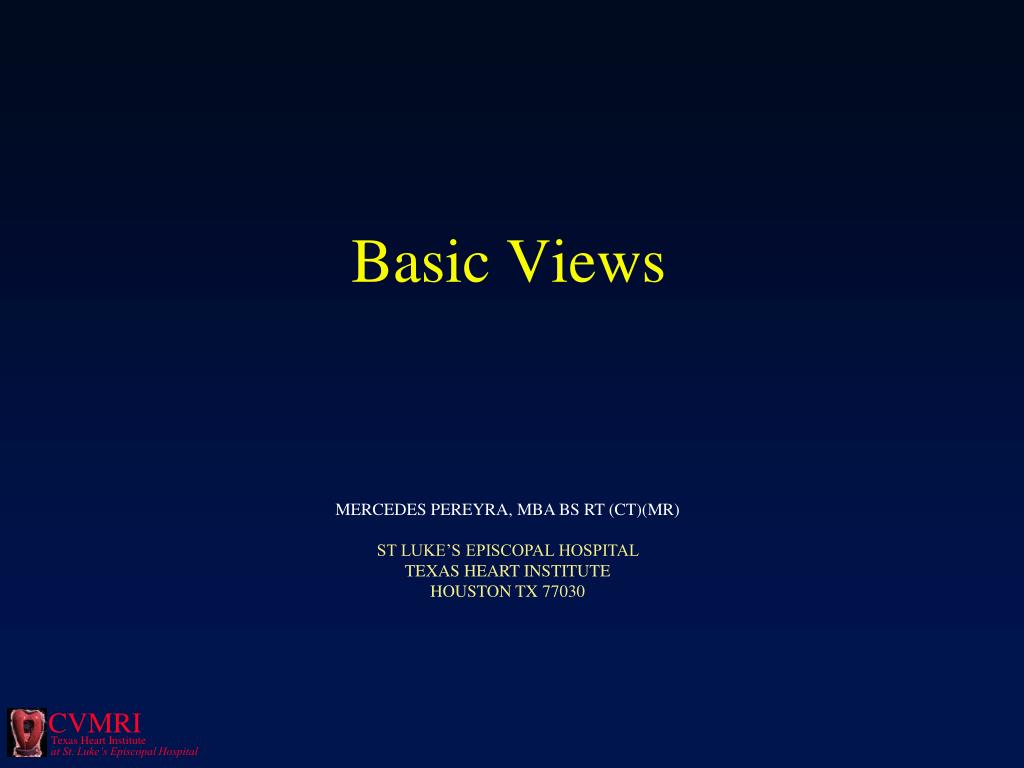

  1. Basic Views MERCEDES PEREYRA, MBA BS RT (CT)(MR) ST LUKE’S EPISCOPAL HOSPITAL TEXAS HEART INSTITUTE HOUSTON TX 77030

  2. 2 Chamber Long Axis • 2 Chamber Short Axis • 4 Chamber Horizontal View • LVOT View Basic Views of the Heart

  3. Use saturation bands Ascending order Correct HR Axial Stack T1 SE EPI

  4. RV 2CH Long Axis LV LA RA LV MV LA

  5. 2 Chamber Short Axis RV LV RA LA LA LV LV RV

  6. Planning the 4 Chamber View LA LV LV RV

  7. 4 Chamber Horizontal Axis RV LV RA LA

  8. Planning the LVOT View 4CH Coronal SA RV RA LV LA LV RV LA RV LV

  9. LVOT View SA @ The Base of HEART RV LV RA LV LV AV RA LV LA From the 4 CH position Move the plane up to the level of Aortic Valve through the Lf. Ventricular cavity

  10. LVOT View AA RV SVC AV LA LV MV DA

  11. AA RV SVC AV LA LV MV DA LVOT View

  12. LV Function SA LV RV RA BASE LV MV RV TV RA APEX LV MV LA Stack of SA from Apex to Base
