1 / 15

Views

Views. What is a view?. A named expression of the relational algebra Ex) VAR GOOD_SUPPLIER VIEW (S WHERE STATUS > 15) {S#, STATUS, CITY}; The view defining expression is stored in the catalog Users can access the view like a relation Ex) GOOD_SUPPLIER WHERE CITY  ‘ London ’

adolfo
Télécharger la présentation

Views

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

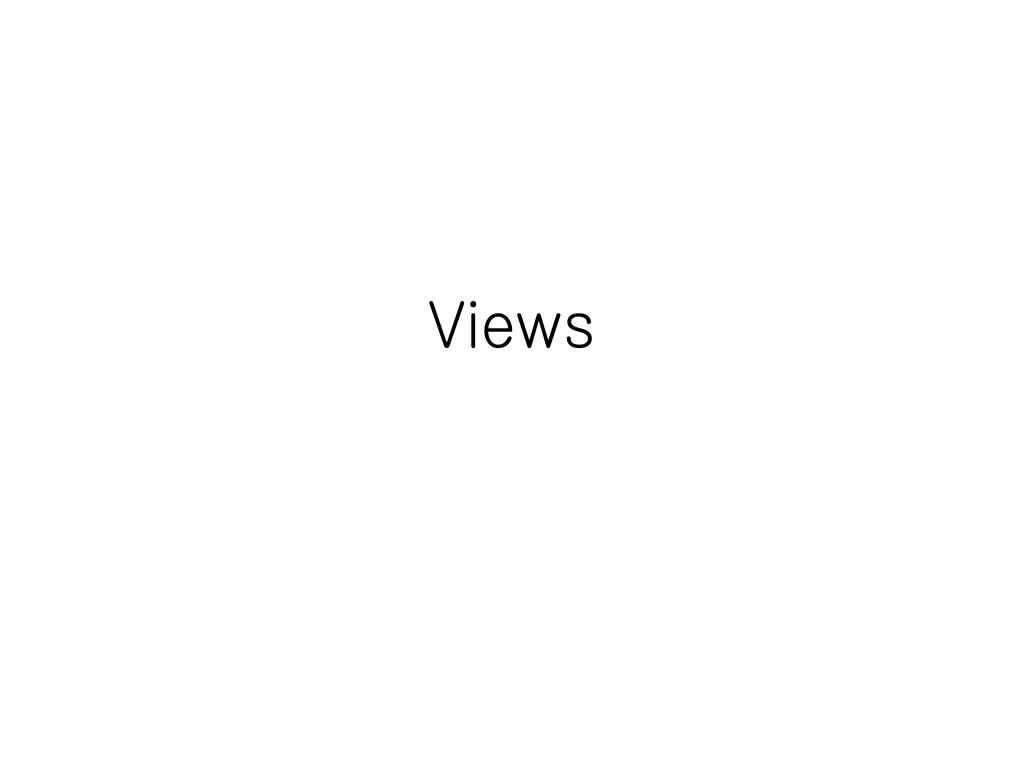

  1. Views

  2. What is a view? • A named expression of the relational algebra • Ex) VAR GOOD_SUPPLIER VIEW (S WHERE STATUS > 15) {S#, STATUS, CITY}; • The view defining expression is stored in the catalog • Users can access the view like a relation • Ex) GOOD_SUPPLIER WHERE CITY  ‘London’ GOOD_SUPPLIER

  3. What is a view?(cont.) • The previous 2 statements • VAR GOOD_SUPPLIER VIEW (S WHERE STATUS > 15) {S#, STATUS, CITY}; • GOOD_SUPPLIER WHERE CITY  ‘London’ • are equivalent to the following expression • ((S WHERE STATUS>15){S#, STATUS, CITY}) WHERE CITY  ‘London’

  4. Defining views • Format • VAR <relvar name> VIEW <relational expression> <candidate key definition list> • If system can infer candidate keys, the <candidate key definition list> can be omitted • Ex) for GOOD_SUPPLIER, {S#} is the candidate key

  5. Dropping views • Format • DROP VAR <relvar name> • If any view refers to a base relation, the base relation cannot be dropped • If any view refers to other views, the referred views cannot be dropped

  6. Reasons for supporting views • Automatic security for hidden data • Ex) supplier names in the case of view GOOD_SUPPLIER ※VAR GOOD_SUPPLIER VIEW (S WHERE STATUS > 15) {S#, STATUS, CITY}; • A shorthand or macro capability • Ex) if we don’t have the view GOOD_SUPPLIER, we should write • ((S WHERE STATUS>15){S#, STATUS, CITY}) WHERE CITY  ‘London’ • Instead of GOOD_SUPPLIER WHERE CITY  ‘London’

  7. Reasons for supporting views(cont.) • To allow the same data to be seen by different users in different ways at the same time • Focusing on related portion of the database only • Logical data independence

  8. Logical data independence • The immunity of users and user programs to changes in the logical structure of the database • Independence from the conceptual or community logical level • Growth and restructuring

  9. Logical data independence from growth • The growth of database does not affect existing views • The expansion of an existing base relvar to include a new attribute • The inclusion of a new base relvar

  10. Logical data independence from restructuring • The restructuring of database does not affect existing views • Although the overall information content remains the same, the logical placement of information changes • Ex) S{S#, SNAME, STATUS, CITY}  SNC{S#, SNAME, CITY} and ST{S#, STATUS} • S can be derived by joining the two relations • VAR S VIEW SNC JOIN ST;

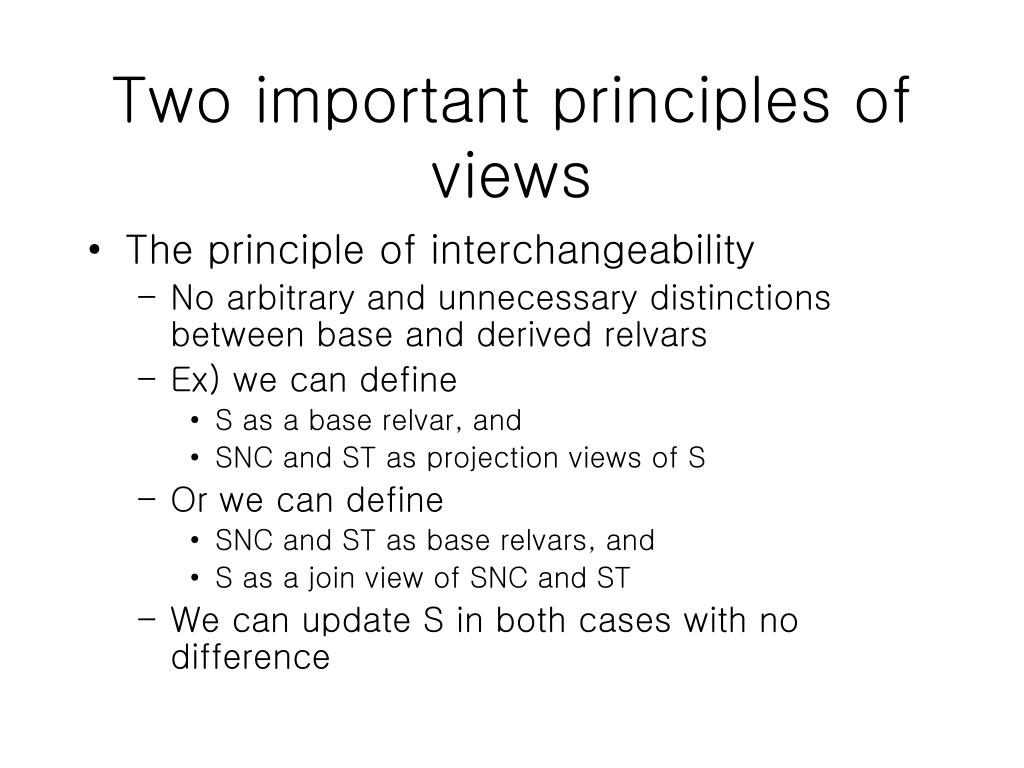

  11. Two important principles of views • The principle of interchangeability • No arbitrary and unnecessary distinctions between base and derived relvars • Ex) we can define • S as a base relvar, and • SNC and ST as projection views of S • Or we can define • SNC and ST as base relvars, and • S as a join view of SNC and ST • We can update S in both cases with no difference

  12. Two important principles of views(cont.) • The principle of database relativity • From the user’s point of view, all relvars are base relvars. • The choice of which database is the ‘real’ base relvar is arbitrary as long as the choices contain equivalent information

  13. View retrievals • Let D: a database, X: an expression, V: a view defined by X on D • That is, V = X(D) • Let R: a retrieval operation on V • So, R(V) = R(X(D)) • A retrieval operation on a view is converted into an equivalent operation on the underlying base relvar(s) --- substitution • A view is a materialization so that it is easier to users than the substitution

  14. Snapshots • Derived relvars • Exist as materialized copy of data • Read only relvar • Periodically refreshed • Ex) VAR P2SC SNAPSHOT ((S JOIN SP) WHERE P# = P#(‘P2’)) {s#, CITY} REFRESH EVERY DAY;

  15. Snapshots(cont.) • Applications of snapshots • Accounting • To freeze the data at the end of an accounting period • Reporting • To freeze large amounts of data for a complex query or read-only applications without locking out updates
