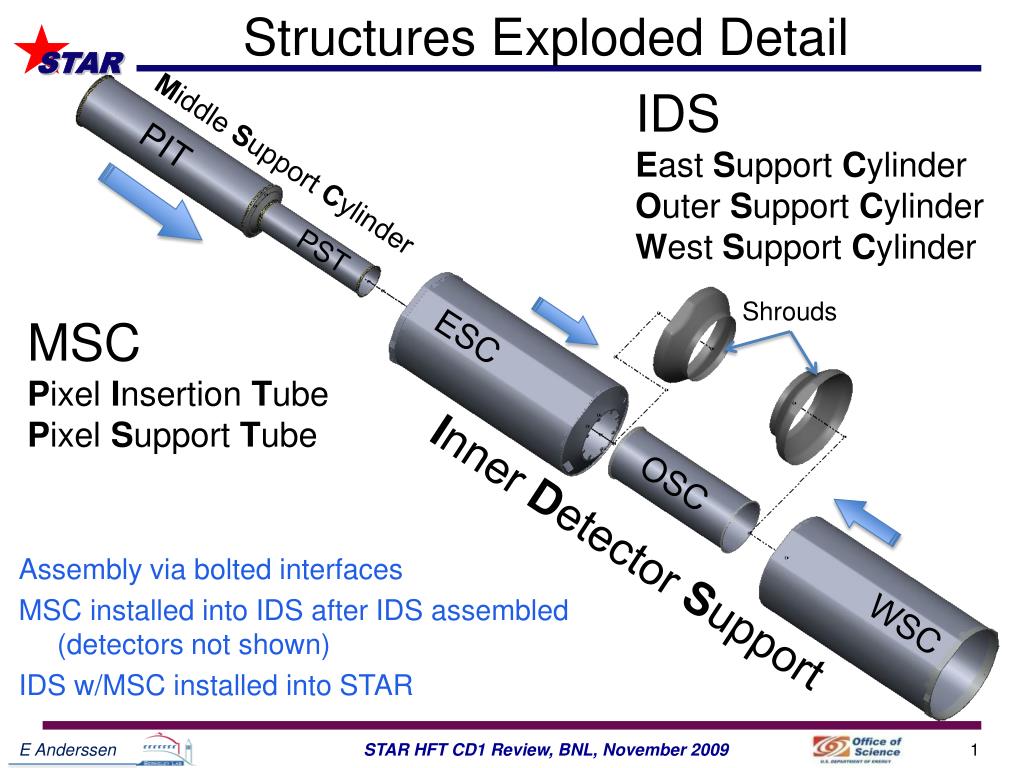

Structures Exploded Detail. IDS E ast S upport C ylinder O uter S upport C ylinder W est S upport C ylinder. PIT. M iddle S upport C ylinder. Assembly via bolted interfaces MSC installed into IDS after IDS assembled (detectors not shown) IDS w/MSC installed into STAR. PST.
