  1. Hierarchical Linear Modeling and Related Methods David A. Hofmann Department of Management Michigan State University Expanded Tutorial SIOP Annual Meeting April 16, 2000

  2. Hierarchical Data Structures • Hierarchical nature of organizational data • Individuals nested in work groups • Work groups in departments • Departments in organizations • Organizations in environments • Consequently, we have constructs that describe: • Individuals • Work groups • Departments • Organizations • Environments

  3. Hierarchical Data Structures • Hierarchical nature of longitudinal data • Time series nested within individuals • Individuals • Individuals nested in groups • Consequently, we have constructs that describe: • Individuals over time • Individuals • Work groups

  4. Theoretical Paradigms Click to edit Master title style • Meso Paradigm (House et al., 1995; Tosi, 1992): • Micro OB • Macro OB • Call for shifting focus: • Contextual variables into Micro theories • Behavioral variables into Macro theories • Longitudinal Paradigm (Nesselroade, 1991): • Intraindividual change • Interindividual differences in individual change

  5. Some Substantive Questions • Kidwell et al., (1997), Journal of Management • Dependent: Organizational citizenship behavior • Individual: Job satisfaction and organizational commit. • Group: Work group cohesion • Deadrick et al., (1997), Journal of Management • Dependent: Employee performance • Within individual: Performance over time (24 weeks) • Between individual: Cognitive & psychomotor ability • Question Given variables at different levels of analysis, how do we go about investigating them.

  6. Statistical & Methodological Options • Aggregate level • Discard potentially meaningful variance • Ecological fallacies, aggregation bias, etc. • Individual level • Violation of independence assumption • Complex error term not dealt with • Higher units tested based on # of lower units • Hierarchical linear models • Models variance at multiple levels • Addresses independence issues • Straightforward conceptualization of multilevel data

  7. HLM Overview • Two-stage approach to multilevel modeling • Level 1: within unit relationships for each unit • Level 2: models variance in level-1 parameters (intercepts & slopes) with between unit variables Level 1: Yij = ß0j + ß1j Xij + rij Level 2: ß0j = 00 + 01 (Groupj ) + U0j ß1j = 10 + 11 (Groupj ) + U1j

  8. Yij Regression lines estimated separately for each unit Xij Level 1 Level 2 Var. Intercepts = Modeled with between unit variables Var. Slopes = Modeled with between unit variables

  9. Some Substantive Questions: Applications of HLM • Kidwell et al., (1997), Journal of Management • Individual level job satisfaction and organizational commitment positively related to OCB • Cohesion will be positively related to OCB exhibited by employees beyond that accounted for by satisfaction and commitment • The relationships between commitment/satisfaction and OCB will be stronger in more cohesive groups • Deadrick et al., (1997), Journal of Management • Are there inter-individual differences in performance over time • Do individual differences in ability account for these inter-individual differences

  10. HLM Overview Some Preliminary definitions: • Random coefficients/effects • Coefficients/effects that are assumed to vary across units • Common Random coefficients/effects Within unit intercepts Within unit slopes Level 2 residual • Fixed effects • Effects that do not vary across units • Common Fixed effects Level 2 intercept Level 2 slope

  11. HLM Overview • Estimates provided: • Level 1 parameters (intercepts, slopes) • Level-2 parameters (intercepts, slopes)** • Variance of Level-1 residuals • Variance of Level-2 residuals*** • Covariance of Level-2 residuals • Statistical tests: • t-test for parameter estimates (Level-2, fixed effects)** • Chi-Square for variance components (Level-2, random effects)***

  12. A set of example hypotheses: Answering them using HLM

  13. HLM: A Simple Example • Individual variables • Helping behavior (DV) • Individual Mood (IV) • Group variable • Proximity of group members

  14. HLM: A Simple Example • Hypotheses 1. Mood is positively related to helping 2. Proximity is positively related to helping after controlling for mood • On average, individuals who work in closer proximity are more likely to help; a group level main effect for proximity after controlling for mood 3. Proximity moderates mood-helping relationship • The relationship between mood and helping behavior is stronger in situations where group members are in closer proximity to one another

  15. HLM: A Simple Example • Necessary conditions • Systematic within and between group variance in helping behavior • Mean level-1 slopes significantly different from zero (Hypothesis 1) • Significant variance in level-1 intercepts (Hypothesis 2) • Significant variance in level-1 slopes (Hypothesis 3) • Variance in intercepts significantly related to Proximity (Hypothesis 2) • Variance in slopes significantly related to Proximity (Hypothesis 3)

  16. HLM: Hypothesis Testing • One-way ANOVA - no Level-1 or Level-2 predictors (null) Level 1: Helpingij = ß0j + rij Level 2: ß0j = 00 + U0j • where: ß0j = mean helping for group j 00 = grand mean helping Var ( rij ) = 2 = within group variance in helping Var ( U0j ) = between group variance in helping Var (Helping ij ) = Var ( U0j + rij ) =  + 2 ICC =  / ( + 2 )

  17. HLM: Hypothesis Testing • Random coefficient regression model • Add mood to Level-1 model ( no Level-2 predictors) Level 1: Helpingij = ß0j + ß1j (Mood) + rij Level 2: ß0j = 00 + U0j ß1j = 10 + U1j • where: 00 = mean (pooled) intercepts (t-test) 10 = mean (pooled) slopes (t-test; Hypothesis 1) Var ( rij ) = Level-1 residual variance (R 2, Hyp. 1) Var ( U0j ) = variance in intercepts (related Hyp. 2) Var (U1j ) = variance in slopes (related Hyp. 3)

  18. HLM: Hypothesis Testing • Intercepts-as-outcomes - model Level-2 intercept (Hyp. 2) • Add Proximity to intercept model Level 1: Helpingij = ß0j + ß1j (Mood) + rij Level 2: ß0j = 00 + 01 (Proximity) + U0j ß1j = 10 + U1j • where: 00 = Level-2 intercept (t-test) 01 = Level-2 slope (t-test; Hypothesis 2) 10 = mean (pooled) slopes (t-test; Hypothesis 1) Var ( rij ) = Level-1 residual variance Var ( U0j ) = residual inter. var (R2 - Hyp. 2) Var (U1j ) = variance in slopes (related Hyp. 3)

  19. HLM: Hypothesis Testing • Slopes-as-outcomes - model Level-2 slope (Hyp. 3) • Add Proximity to slope model Level 1: Helpingij = ß0j + ß1j (Mood) + rij Level 2: ß0j = 00 + 01 (Proximityj) + U0j ß1j = 10 + 11 (Proximityj ) + U1j • where: 00 = Level-2 intercept (t-test) 01 = Level-2 slope (t-test; Hypothesis 2) 10 = Level-2 intercept (t-test) 11 = Level-2 slope (t-test; Hypothesis 3) Var ( rij ) = Level-1 residual variance Var ( U0j ) = residual intercepts variance Var (U1j ) = residual slope var (R2 - Hyp. 3)

  20. Statistical Assumptions • Linear models • Level-1 predictors are independent of the level-1 residuals • Level-2 random elements are multivariate normal, each with mean zero, and variance qq and covariance qq’ • Level-2 predictors are independent of the level-2 residuals • Level-1 and level-2 errors are independent. • Each rij is independent and normally distributed with a mean of zero and variance 2 for every level-1 unit i within each level-2 unit j (i.e., constant variance in level-1 residuals across units).

  21. Statistical Power • Kreft (1996) summarized several studies • .90 power to detect cross-level interactions 30 groups of 30 • Trade-off • Large number of groups, fewer individuals within • Small number of groups, more individuals per group • My experience • Cross-level main effects, pretty robust • Cross-level interactions more difficult • Related to within unit standard errors and between group variance

  22. Centering Decisions: Scaling of Level-1 Predictors (It’s important and confusing)

  23. Centering Decisions • Level-1 parameters are used as outcome variables at level-2 • Thus, one needs to understand the meaning of these parameters • Intercept term: expected value of Y when X is zero • Slope term: expected increase in Y for a unit increase in X • Raw metric form: X equals zero might not be meaningful

  24. Centering Decisions • 3 Options • Raw metric • Grand mean • Group mean • Kreft et al. (1995): raw metric and grand mean equivalent, group mean non-equivalent • Raw metric/Grand mean centering • intercept var = adjusted between group variance in Y • Group mean centering • intercept var = between group variance in Y [Kreft, I.G.G., de Leeuw, J., & Aiken, L.S. (1995). The effect of different forms of centering in Hierarchical Linear Models. Multivariate Behavioral Research, 30, 1-21.]

  25. Centering Decisions • An illustration: • 15 Groups / 10 Observations per • Within Group Variance: f (A, B, C, D) • Between Group Variable: Gj • G = f (Aj, Bj ) • Thus, if between group variance in A & B (i.e., Aj & Bj ) is accounted for, Gj should not significantly predict the outcome • Run the model: • Grand Mean • Group Mean • Group +

  26. Centering Decisions • Grand Mean Centering

  27. Centering Decisions • Group Mean Centering

  28. Centering Decisions • Group Mean Centering with A, B, C, D Means in Level-2 Model

  29. Centering Decisions • Centering decisions are also important when investigating cross-level interactions • Consider the following model: Level 1: Yij = ß0j + ß1j (Xgrand) + rij Level 2: ß0j = 00 + U0j ß1j = 10 • Bryk & Raudenbush (1992) point out that 10 does not provide an unbiased estimate of the pooled within group slope • It actually represents a mixture of both the within and between group slope • Thus, you might not get an accurate picture of cross-level interactions

  30. Centering Decisions • Bryk & Raudenbush make the distinction between cross-level interactions and between-group interactions • Cross-level: Group level predictor of level-1 slopes • Group-level: Two group level predictors interacting to predict the level-2 intercept • Only group-mean centering enables the investigation of both types of interaction • Illustration • Created two data sets • Cross-level interaction, no between-group interaction • Between-group interaction, no cross-level interaction

  31. Centering Decisions

  32. Centering Decision: Theoretical Paradigms • Incremental • group adds incremental prediction over and above individual variables • grand mean centering • group mean centering with means added in level-2 intercept model • Mediational • individual perceptions mediate relationship between contextual factors and individual outcomes • grand mean centering • group mean centering with means added in level-2 intercept model

  33. Centering Decisions: Theoretical Paradigms • Moderational • group level variable moderates level-1 relationship • group mean centering provides clean estimate of within group slope • separates between group from cross-level interaction • Practical: If running grand mean centered, check final model group mean centered • Separate • group mean centering produces separate within and between group structural models

  34. Hierarchical Linear Models: Let’s take a look at the software

  35. HLM versus OLS regression

  36. HLM versus OLS • Investigate the following model using OLS: Helpingij = ß0 + ß1 (Mood) + ß2 (Prox.) + rij • The HLM equivalent model (ß1j is fixed across groups): Level 1: Helpingij = ß0j + ß1j (Mood) + rij Level 2: ß0j = 00 + 01(Prox.) + U0j ß1j = 10 • Form single equation from two HLM equations: Help = [00 + 01(Prox.) + U0j ] + [10 ] (Mood) + rij = 00 + 10 (Mood) + 01(Prox.) + U0j + rij = 00 + ß1j(Mood) + 01(Prox.) + [U0j + rij] Independence Assump.

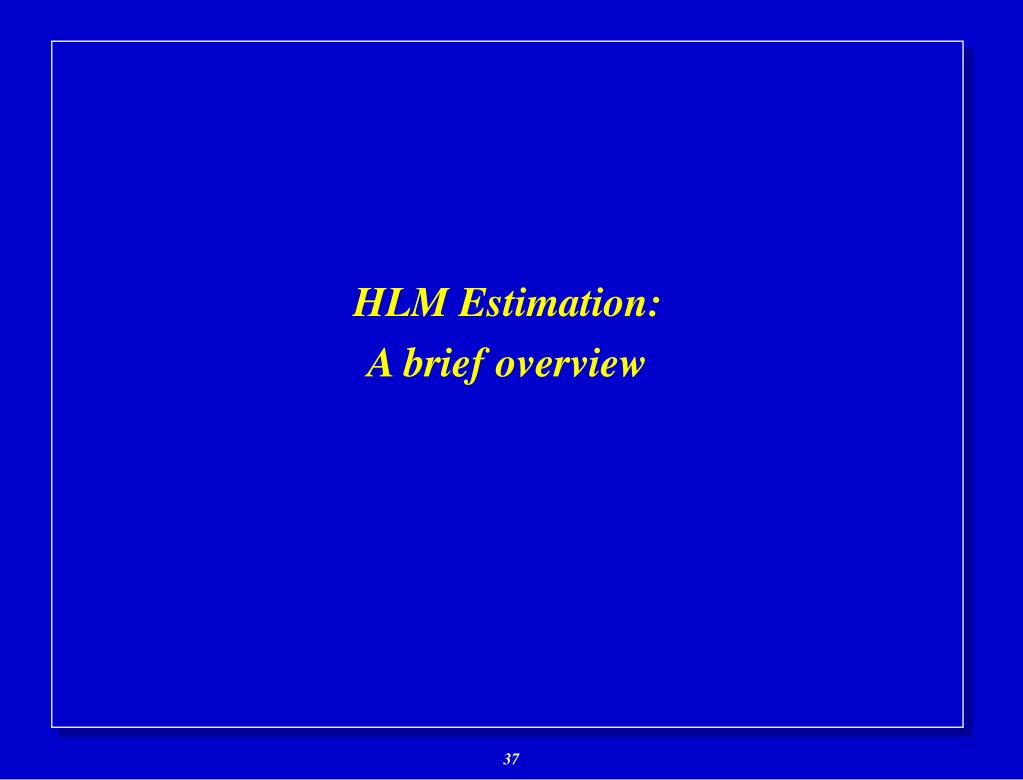

  37. HLM Estimation: A brief overview

  38. HLM Estimation • Types of effects estimated • Level-2 fixed effects / Level-1 random effects • Variance / covariance components • Estimated using maximum likelihood using EM algorithm • Purposes of HLM model • Inferences about level-2 effects • Estimating level-1 relationships for particular unit • Each purpose requires efficient estimates • level-2 effects => efficient estimates of level-2 regression coefficients • particular level-1 units => most efficient estimate of level-1 regression coefficients

  39. HLM Estimation (fixed effects) • General level-1 model (matrix): Yj = Xjßj + rj rj ~ N(0, 2 I ) • The OLS estimator of ßj is given by: ß^j = (Xj’Xj)-1 Xj’Yj • The dispersion, or variance in ß^j is given by: Var(ß^j ) = Vj = 2 (Xj’Xj)-1 • which means: ß^j = ßj + ej ej ~ N (0, Vj )

  40. HLM Estimation (fixed effects) • General model at level-2: ßj = Wj  + uj uj ~ N( 0, T ) • Substituting the equations yields a single combined model: ß^j = Wj  + uj + ej • where the dispersion of ß^j given Wj is Var (ß^j ) = Var (uj + ej ) = T + Vj =  j • which equals parameter dispersion + error dispersion.

  41. HLM Estimation (fixed effects) • The Generalized Least Squares (GLS) estimator for is: ^ = (  Wj’  j-1 Wj )-1 Wj’  j-1ß^j • which is a standard OLS regression estimate except each group’s data are weighted by its precision matrix ( j-1). • The dispersion of ^ follows: Var (^ ) = ( Wj’  j-1Wj )-1

  42. The Reported “Reliability” • The diagonal elements of T (e.g., qq ) and Vj (e.g., vqqj ) can be used to form a “reliability” index for each OLS level-1 coefficients: reliability (ß^qj ) = qq / (qq + vqqj ) • Because sampling variance (vqqj ) of ß^j will be different among the j units, each level-2 unit has a unique reliability index. The overall reliability can be summarized by computing the average reliability across j units: reliability (ß^q ) = 1/jqq / (qq + vqqj )

  43. The Reported “Reliability” ß^qj vqqj ß^qj vqqj ß^qj vqqj Between group variance in parameters is considered systematic whereas the variance around each estimate is considered error. Thus, the reliability equals the ratio of: True variance / (True + error) ß^qj vqqj ß^qj qq ß^qj ß^qj ß^qj ß^qj ß^qj

  44. HLM Estimation (random level-1 coefficients) • Purpose: To obtain most efficient estimates of parameters for a particular level-1 unit. • Two estimates are available • the OLS estimate, ß^j • the predicted value from level-2, ß^^j = Wj ^ where ^ is the GLS estimate described previously • Obviously, if two estimates are available, the best estimate is likely to be some combination of these two estimates.

  45. HLM Estimation (random level-1 coefficients) • A composite level-1 estimate: ß*j = j ß^j + ( I - j ) Wj ^ • where j = T ( T + Vj )-1 • which is the ratio of the parameter dispersion of ßj relative to the dispersion of ß^j (i.e., the ratio of “true” parameter variance over “observed” parameter variance). • Thus, the composite level-1 estimate is a weighted combination of the level-1 and level-2 estimate where each estimate is weighted proportional to its reliability. This is the most efficient estimate of the level-1 coefficient for any given unit (lowest mean square error; Raudenbush, 1988).

  46. Do You Really Need HLM? Alternatives for Estimating Hierarchical Models Part I: Cross Level Models

  47. SAS: Proc Mixed • SAS Proc Mixed will estimate these models • Key components of Proc Mixed command language • Proc mixed • Class • Group identifier • Model • Regression equation including both individual, group, and interactions (if applicable) • Random • Specification of random effects (those allowed to vary across groups)

  48. SAS: Proc Mixed • Key components of Proc Mixed command language • Some options you might want to select • Class: noitprint (suppresses interation history) • Model: • solution (prints solution for random effects) • ddfm=bw (specifies the “between/within” method for computing denominator degrees of freedom for tests of fixed effects) • Random: • sub= id (how level-1 units are divided into level-2 units) • type=un (specifies unstructured variance-covariance matrix of intercepts and slopes; i.e., allows parameters to be determined by data)

  49. SAS: Proc Mixed

  50. SAS: Proc Mixed • Key references • Singer, J. (1998). Using SAS PROC MIXED to fit multilevel models, hierarchical models, and individual growth models. Journal of Educational and Behavioral Statistics, 23, 323-355. • Available on her homepage • http://hugse1.harvard.edu/~faculty/singer/
