  1. Digital Content Integration January 2008

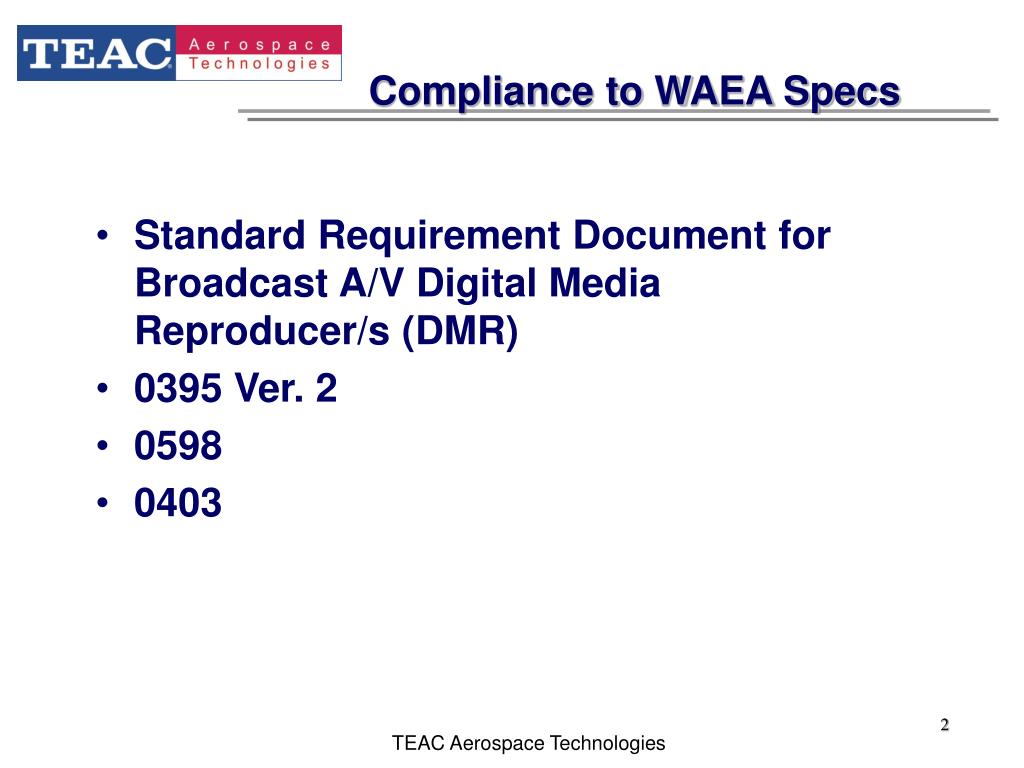

  2. Compliance to WAEA Specs • Standard Requirement Document for Broadcast A/V Digital Media Reproducer/s (DMR) • 0395 Ver. 2 • 0598 • 0403 TEAC Aerospace Technologies

  3. Apples to Others TEAC Aerospace Technologies

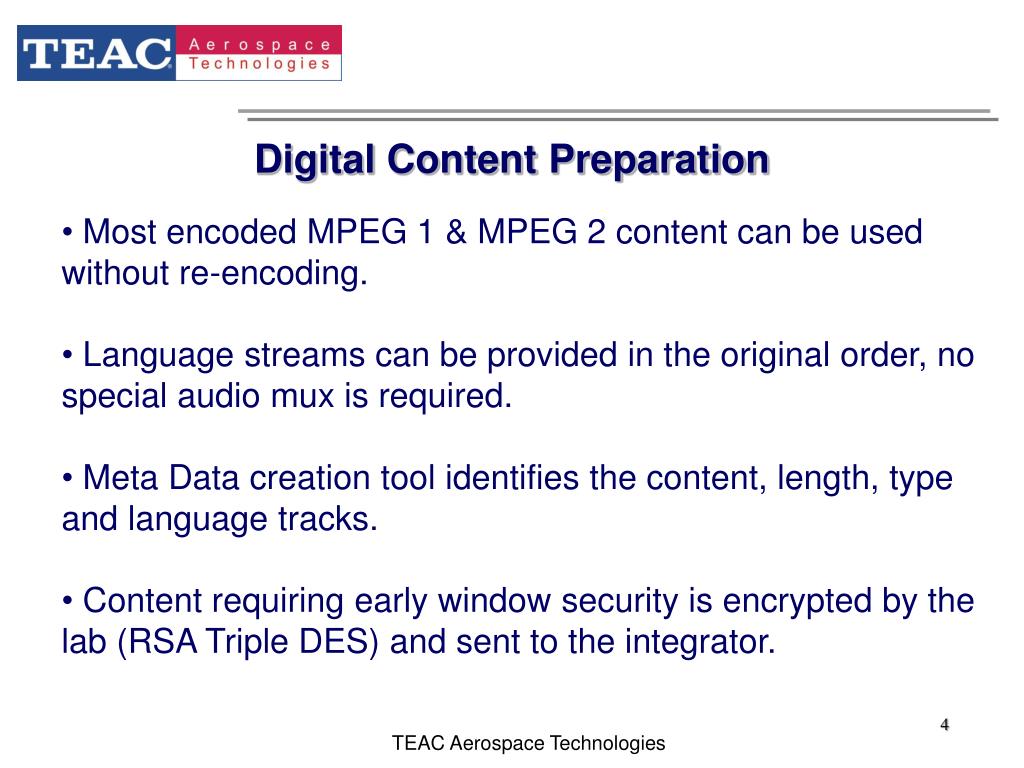

  4. Digital Content Preparation • Most encoded MPEG 1 & MPEG 2 content can be used without re-encoding. • Language streams can be provided in the original order, no special audio mux is required. • Meta Data creation tool identifies the content, length, type and language tracks. • Content requiring early window security is encrypted by the lab (RSA Triple DES) and sent to the integrator. TEAC Aerospace Technologies

  5. Meta Data Editor “Cable Labs” Identifies: Stream, MPEG type, and Language format. TEAC Aerospace Technologies

  6. Meta Data Editor Cont. Identifies: Title, Title brief, and Run Time. TEAC Aerospace Technologies

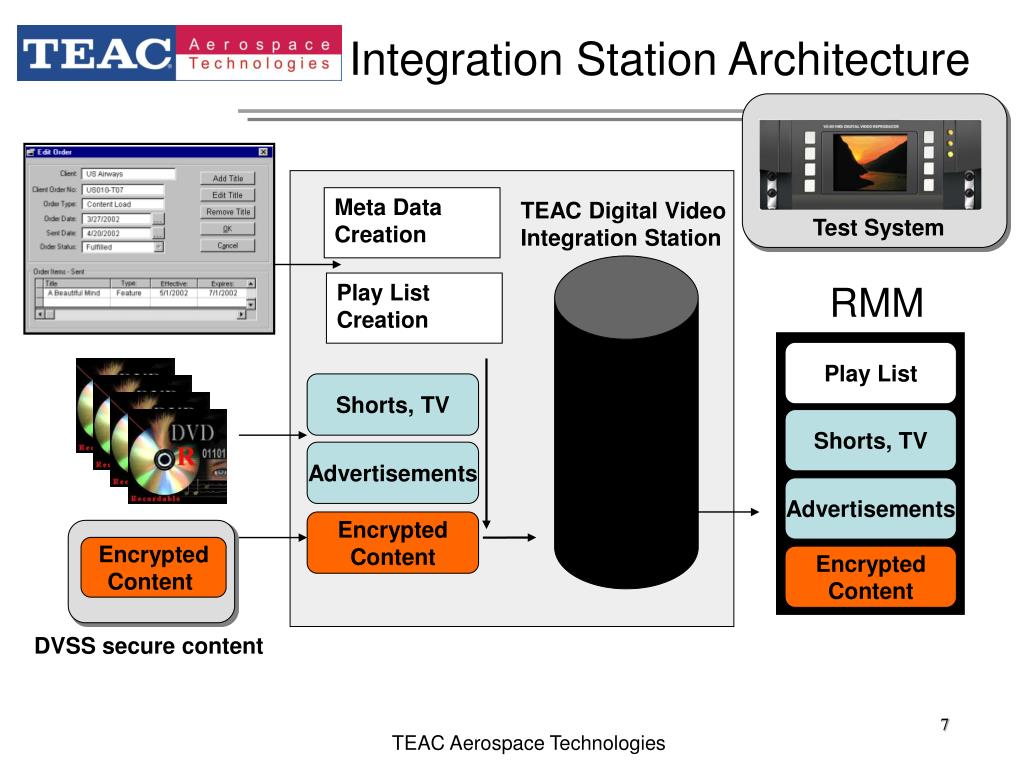

  7. Integration Station Architecture Meta Data Creation TEAC Digital Video Integration Station Test System Play List Creation RMM Assembled Digital Video Program Content With Encrypted Video Files Play List Shorts, TV Shorts, TV Advertisements Advertisements Encrypted Content Encrypted Content Encrypted Content DVSS secure content TEAC Aerospace Technologies

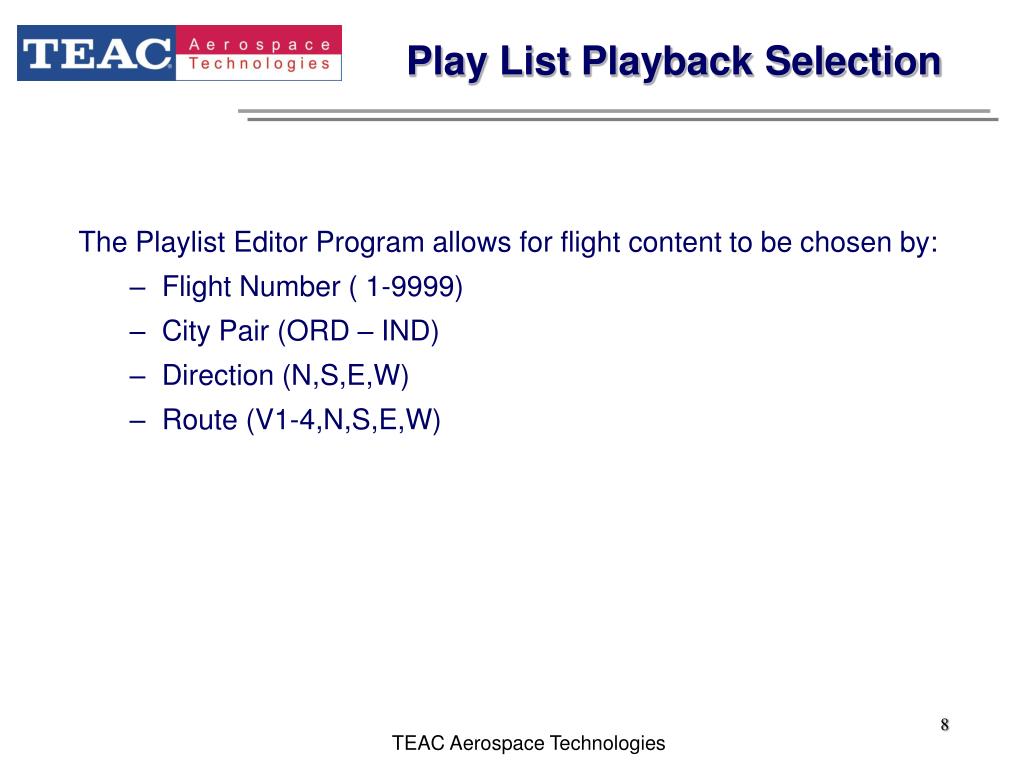

  8. Play List Playback Selection The Playlist Editor Program allows for flight content to be chosen by: • Flight Number ( 1-9999) • City Pair (ORD – IND) • Direction (N,S,E,W) • Route (V1-4,N,S,E,W) TEAC Aerospace Technologies

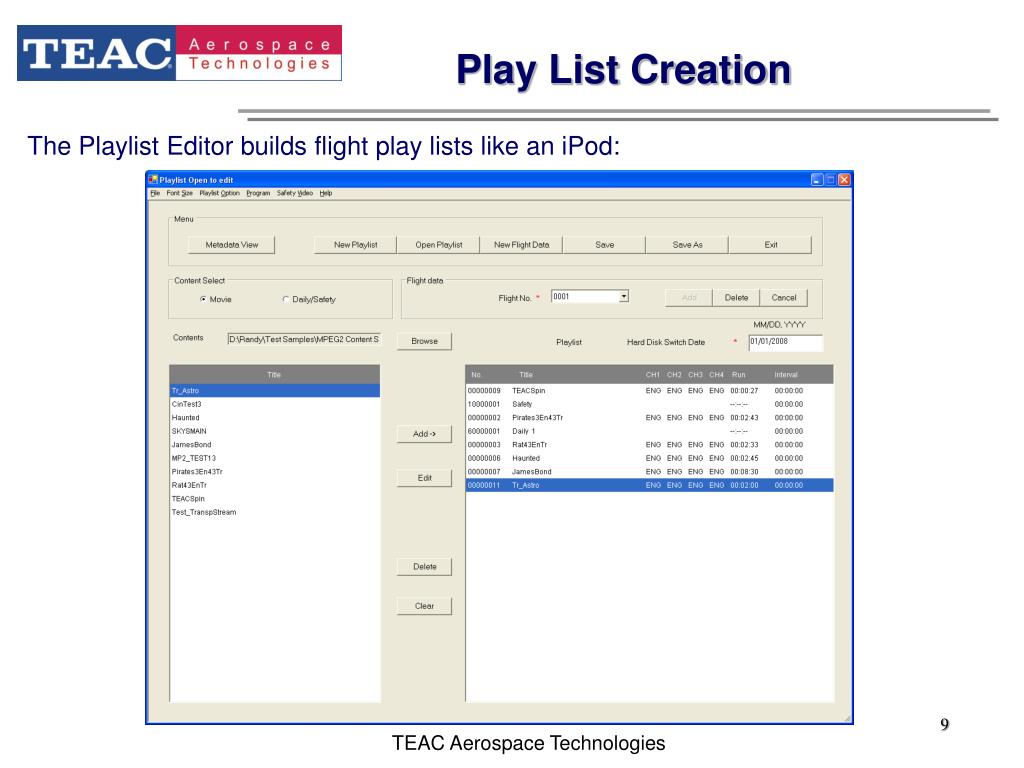

  9. Play List Creation The Playlist Editor builds flight play lists like an iPod: TEAC Aerospace Technologies

  10. Play List Date Activation The Playlist Editor allows multiple date changes per RMM: TEAC Aerospace Technologies

  11. Content Loading / Media Loader RMM inserted into VE-801HDi for content download TEAC Aerospace Technologies

  12. Content Loading Options • Removable Memory Module (RMM) • Monthly Updates • 60GB Hard drive • Ruggedized and Shock Proof • Solid State Update module • Daily news and advertisement updates • Compact Flash Memory (4GB Standard) • Identical footprint and connector as RMM TEAC Aerospace Technologies

  13. Digital Server with TCB BridgeDaily update application Out to Video System Ethernet, USB or serial connection • In via Wireless (Cellular or WiFi) • Daily content (Blast!) • Playlist updates • Advertisements • Promotions TEAC Aerospace Technologies

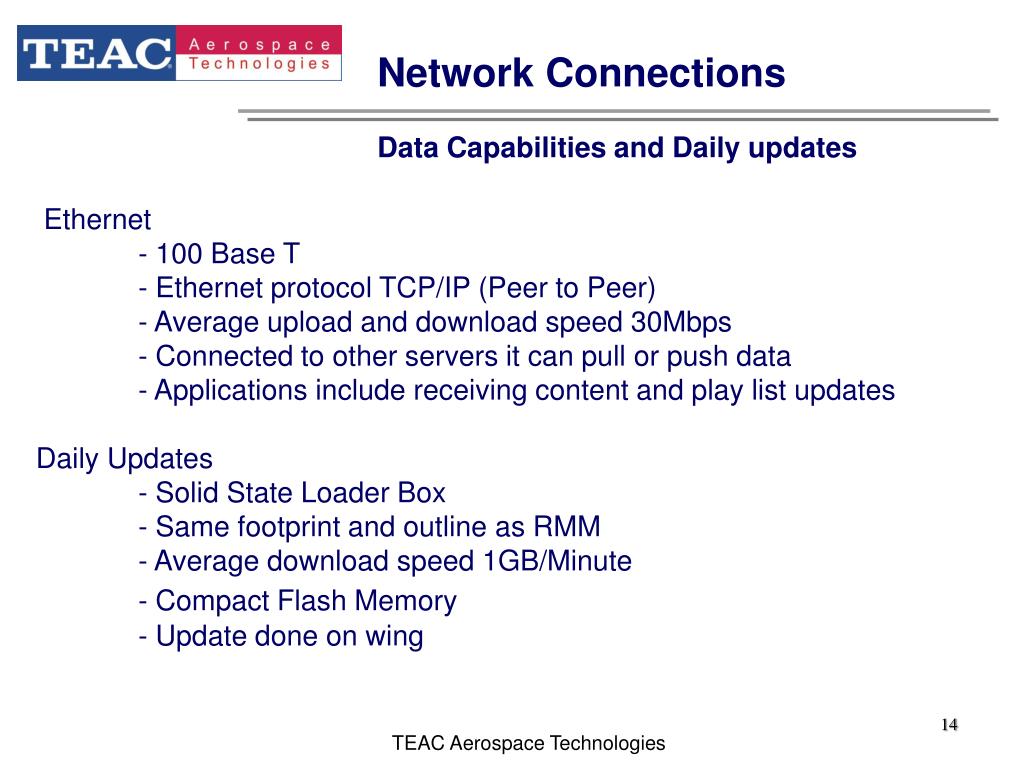

  14. Network Connections Data Capabilities and Daily updates Ethernet - 100 Base T - Ethernet protocol TCP/IP (Peer to Peer) - Average upload and download speed 30Mbps - Connected to other servers it can pull or push data - Applications include receiving content and play list updates Daily Updates - Solid State Loader Box - Same footprint and outline as RMM - Average download speed 1GB/Minute - Compact Flash Memory - Update done on wing TEAC Aerospace Technologies

  15. VE-801HDi Installation - Retrofit TEAC Aerospace Technologies

  16. Content Integration Station Stand alone PC with: • RMM Docking Slot • Playlist Editor Software • DVD Drive • Two 250 GB Hard Drives TEAC Aerospace Technologies
