Medical Refrigerator 75L

abtron Medical Refrigerator, with a 75L under-counter design, ensures safe storage for medicines and vaccines. Features include a microprocessor-based temperature controller (2u00b0C to 8u00b0C) and an easy-to-read LCD display .Frost free environment maintained by air-cooled chiller finned evaporator<br>u00a0

Anika27
Télécharger la présentation

Medical Refrigerator 75L

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MEDICAL REFrIgErATOr LMR-B1 SErIEs www.labtron.com info@labtron.com

  2. Medical Refrigerator LMR-B1 Series Medical Refrigerator Series is equipped with an under counter configuration con- taining all the features making this range ideal for safe storage of medicines and vaccines. Built-in LCD display and microprocessor controller maintaining temperature throughout the chamber. A fan assisted air cooling and finned evaporator helps in maintenance of a frost free environment making it a perfect fit for your requirements. Features Microprocessor based temperature controller Easy to read large LCD display Adjustable inner temperature: 2 oC to 8 oC Fan assisted air cooling Frost free environment maintained by air-cooled chiller finned evaporator High and low temperature alarm, sensor failure alarm, power failure alarm, door open alarm Buzzing and flashing alarm styles Door lock Two sensor design making it easy to operate even if one sensor gets damaged Optional monitoring module and exclusive software to realize remote monitoring Optional USB data download functions, thermal printer temperature recorder, test hole Applications Medical refrigerator is used for storing liquid, solid drugs, vaccines, biological specimens and samples in laboratories, research centers, hospitals, clinics etc.

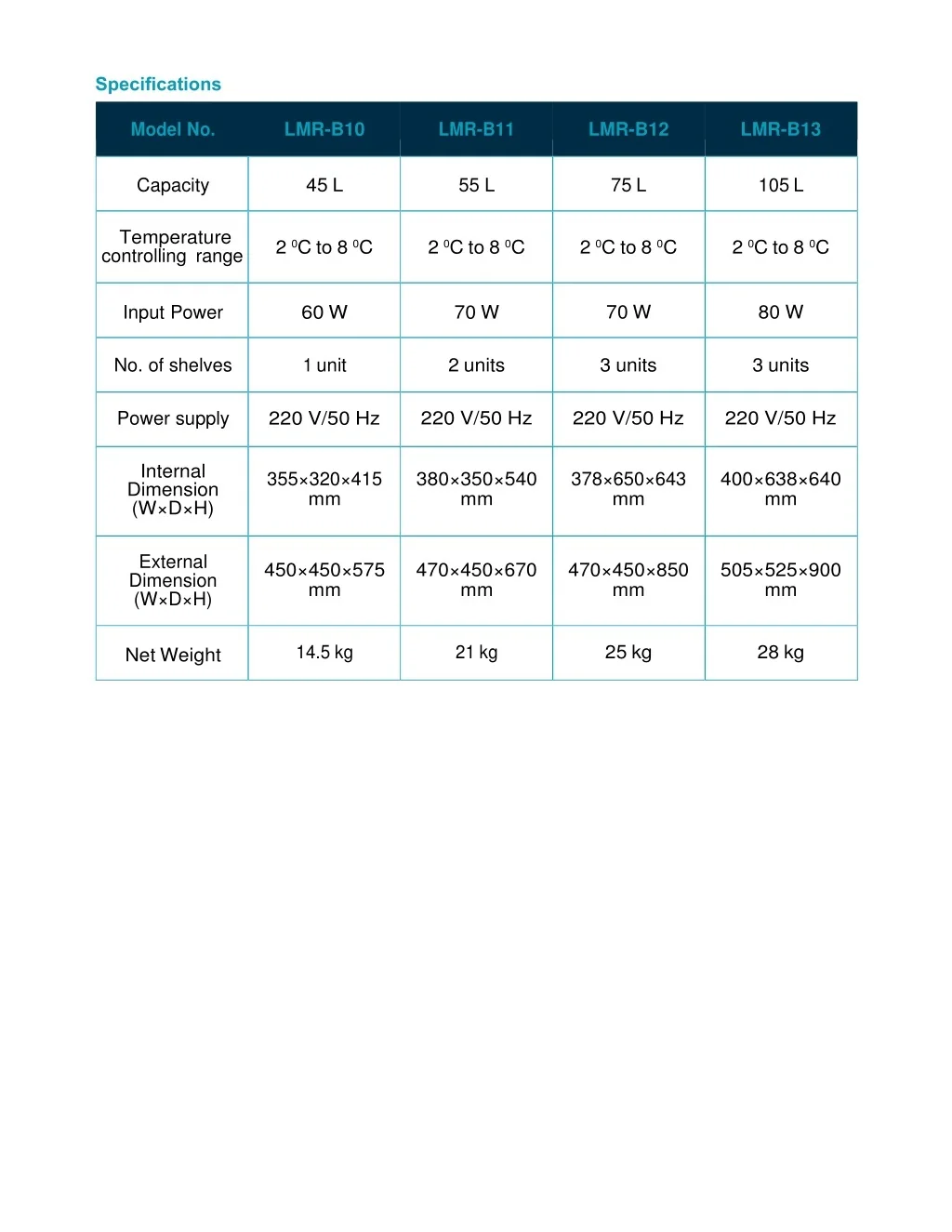

  3. Specifications Model No. LMR-B10 LMR-B11 LMR-B12 LMR-B13 Capacity 45 L 55 L 75 L 105 L Temperature controlling range 2 0C to 8 0C 2 0C to 8 0C 2 0C to 8 0C 2 0C to 8 0C 70 W 80 W Input Power 60 W 70 W No. of shelves 1 unit 2 units 3 units 3 units 220 V/50 Hz 220 V/50 Hz 220 V/50 Hz Power supply 220 V/50 Hz Internal Dimension (W×D×H) 355×320×415 mm 380×350×540 mm 378×650×643 mm 400×638×640 mm External Dimension (W×D×H) 450×450×575 mm 470×450×670 mm 470×450×850 mm 505×525×900 mm 14.5 kg 21 kg 25 kg 28 kg Net Weight
