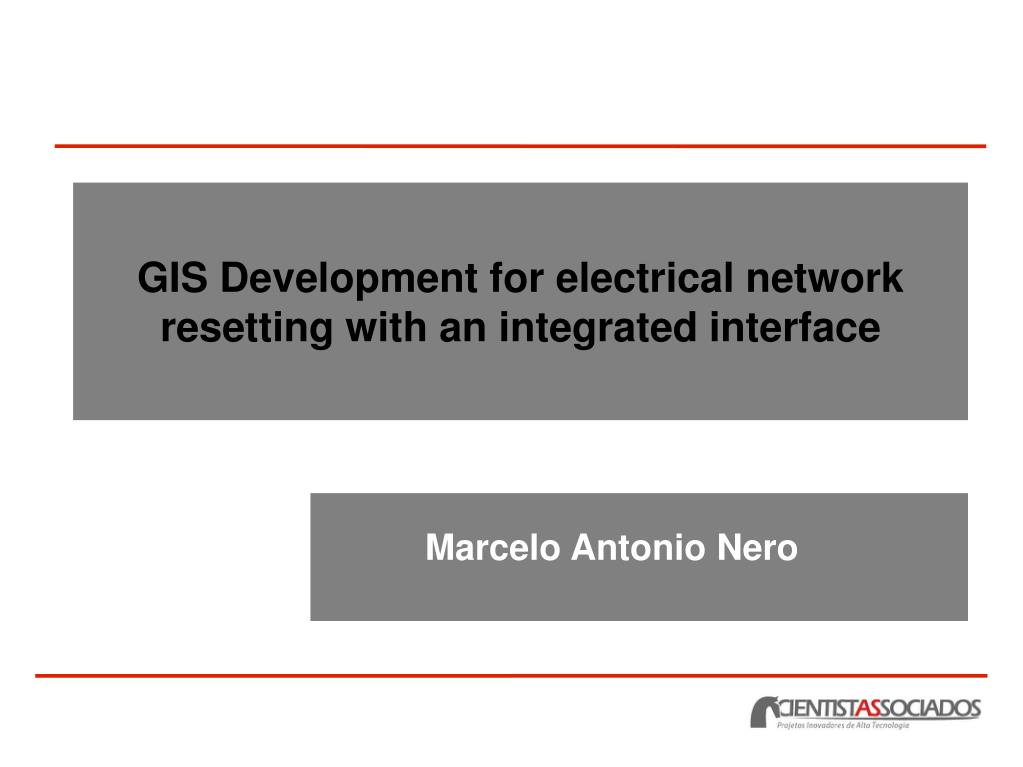

  1. GIS Development for electrical network resetting with an integrated interface Marcelo Antonio Nero

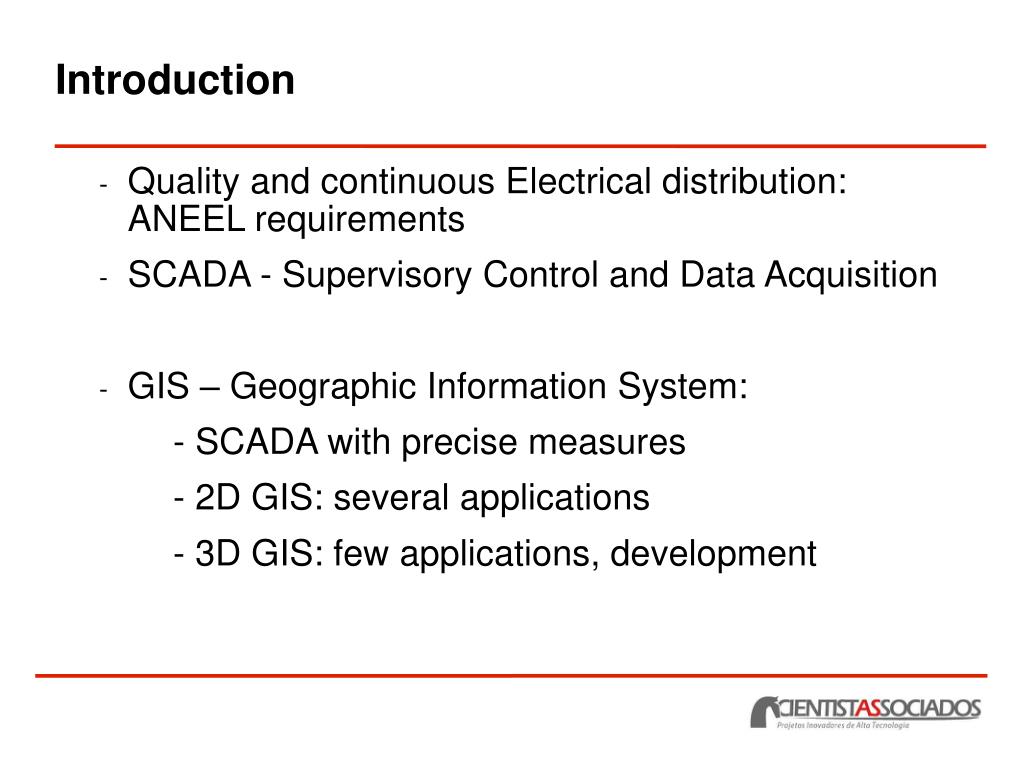

  2. Introduction • Quality and continuous Electrical distribution: ANEEL requirements • SCADA - Supervisory Control and Data Acquisition • GIS – Geographic Information System: - SCADA with precise measures - 2D GIS: several applications - 3D GIS: few applications, development

  3. Computing Systems based in Evolutive Algorithm Conception • Reconfiguration -> Customization • Restoration -> Contingency: faults solution

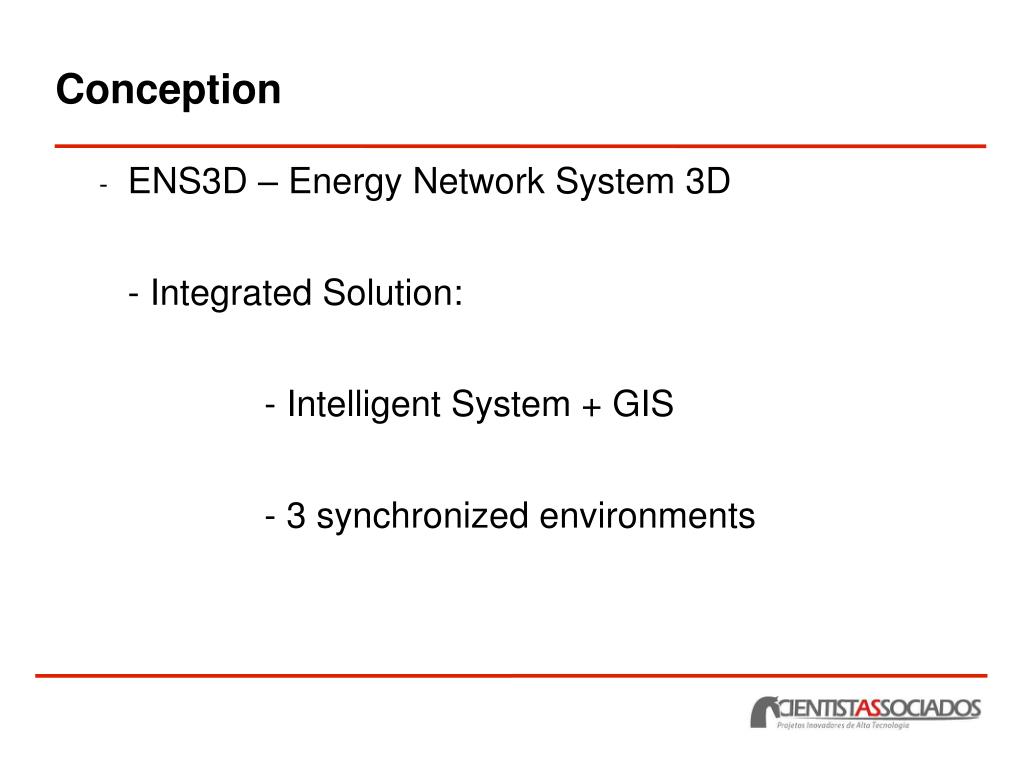

  4. Conception • ENS3D – Energy Network System 3D - Integrated Solution: - Intelligent System + GIS - 3 synchronized environments

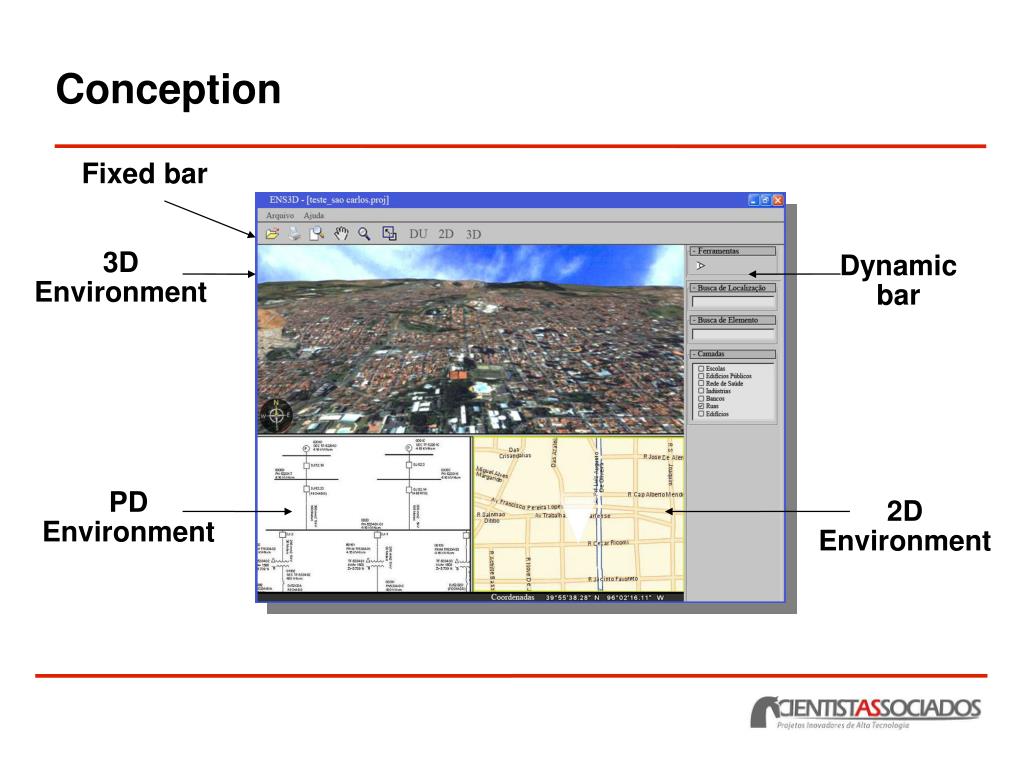

  5. Conception Fixed bar 3D Environment Dynamic bar PD Environment 2D Environment

  6. Tools • Free Library code • Spatial Database: PostGreSQL + PostGIS extention • 2D Environment: OGR/GDI Library • 3D Environment : VTP Library • PD Environment : MFC + Intelligent system • Interface: MFC

  7. Tools Main Libraries

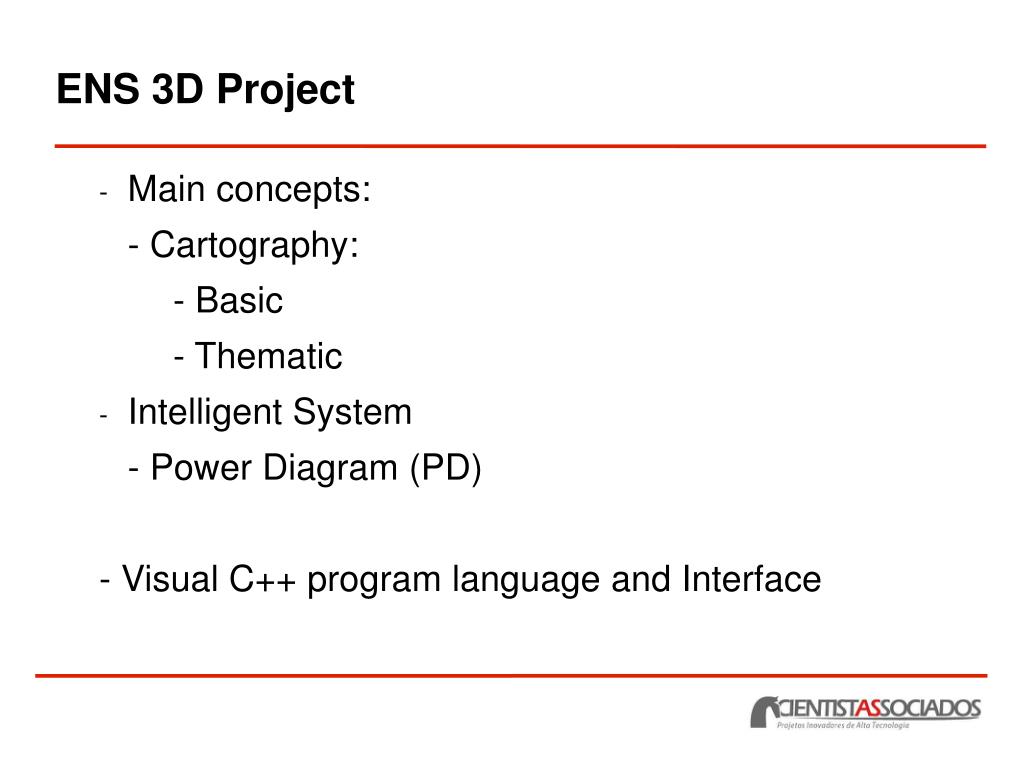

  8. ENS 3D Project • Main concepts: - Cartography: - Basic - Thematic • Intelligent System - Power Diagram (PD) - Visual C++ program language and Interface Projeto do Sistema ENS3D

  9. Cartography - Cartography for GIS using: - Basic: - 1:2K mapping– Prefeitura Municipal de São Carlos; - Street centerline (Quick address location) - TDM: 1 by 1 m height isolines. - Quick bird satellite image high spatial resolution

  10. Cartography

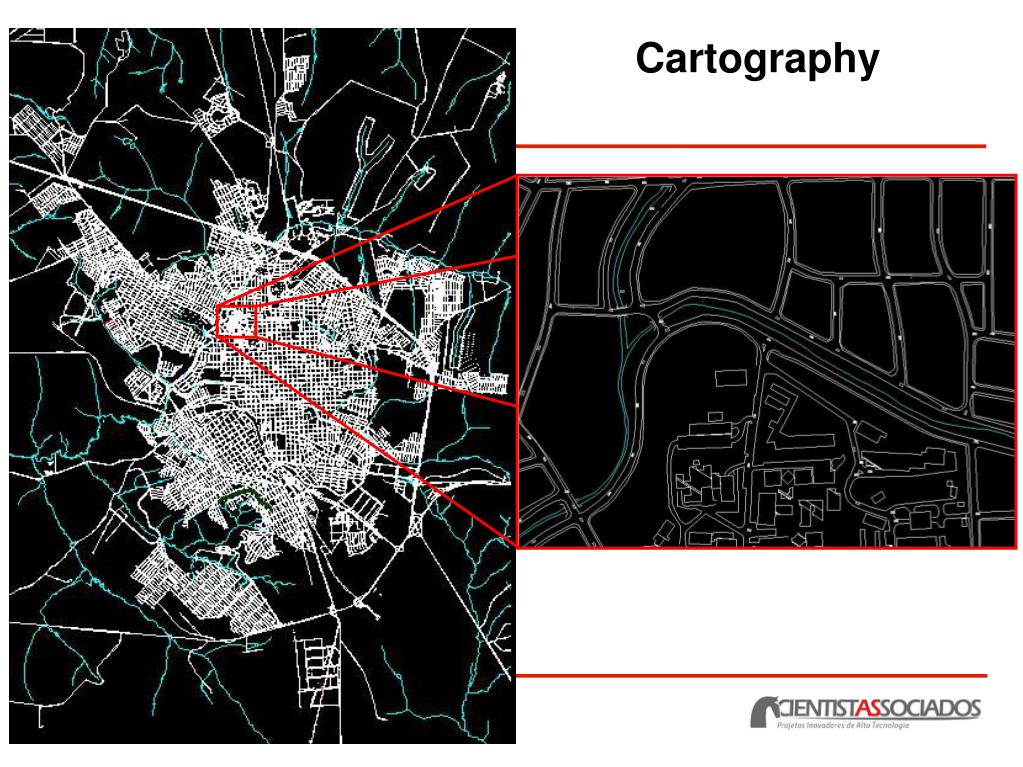

  11. Cartography

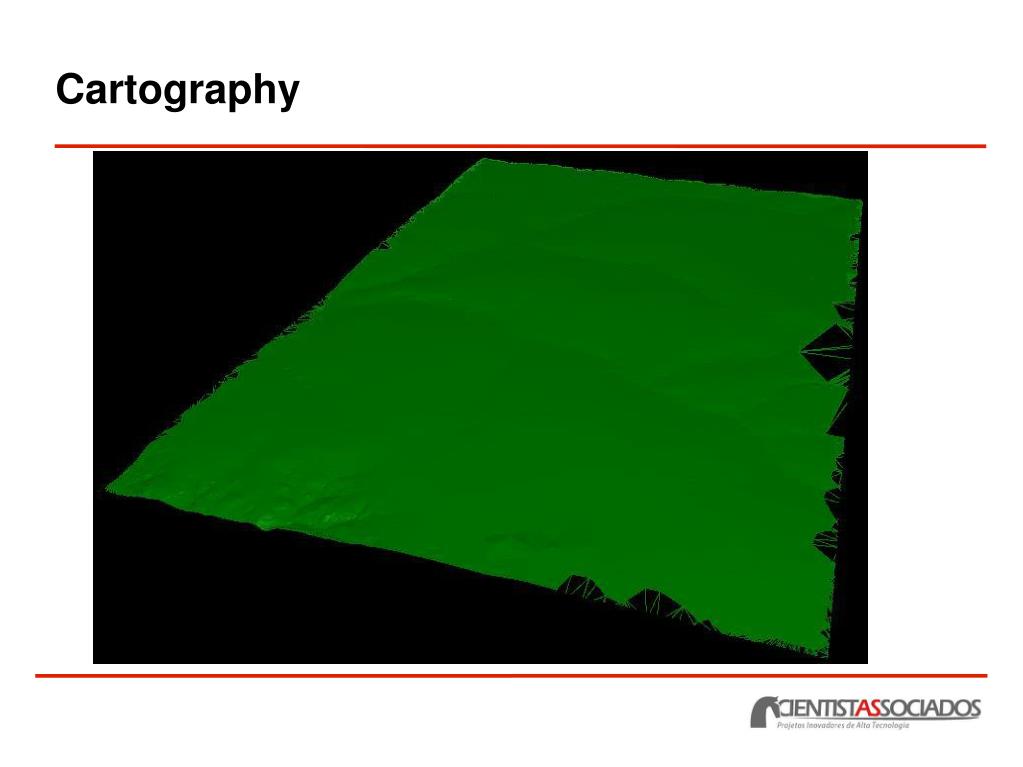

  12. Cartography

  13. Cartography

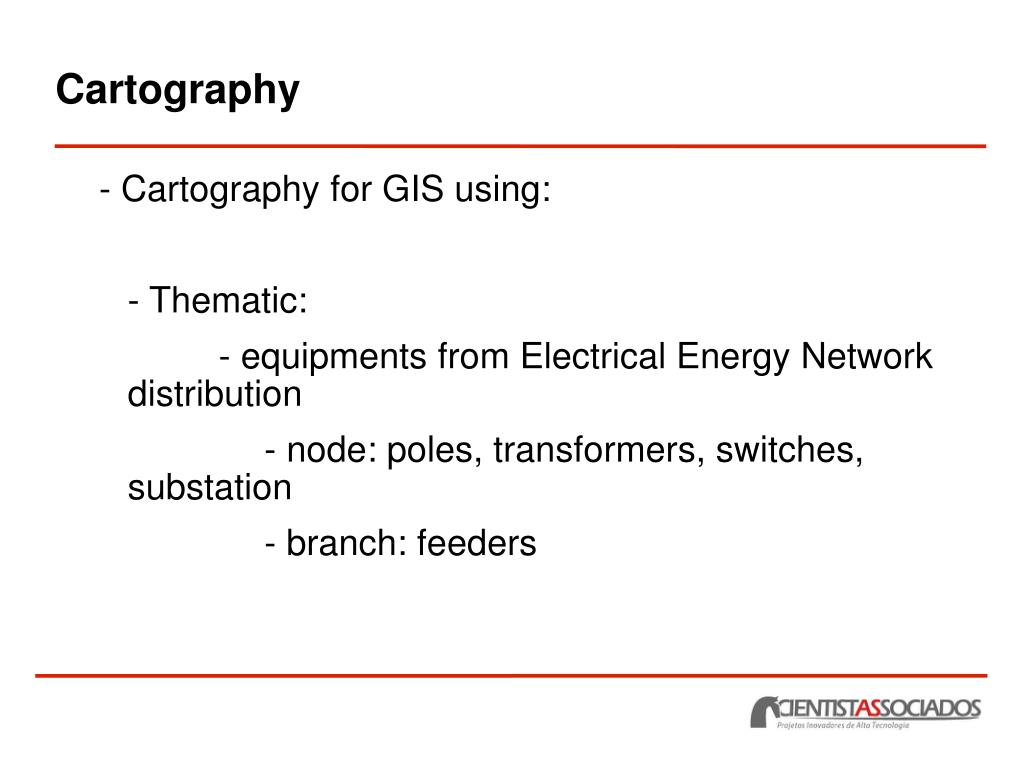

  14. Cartography - Cartography for GIS using: - Thematic: - equipments from Electrical Energy Network distribution - node: poles, transformers, switches, substation - branch: feeders

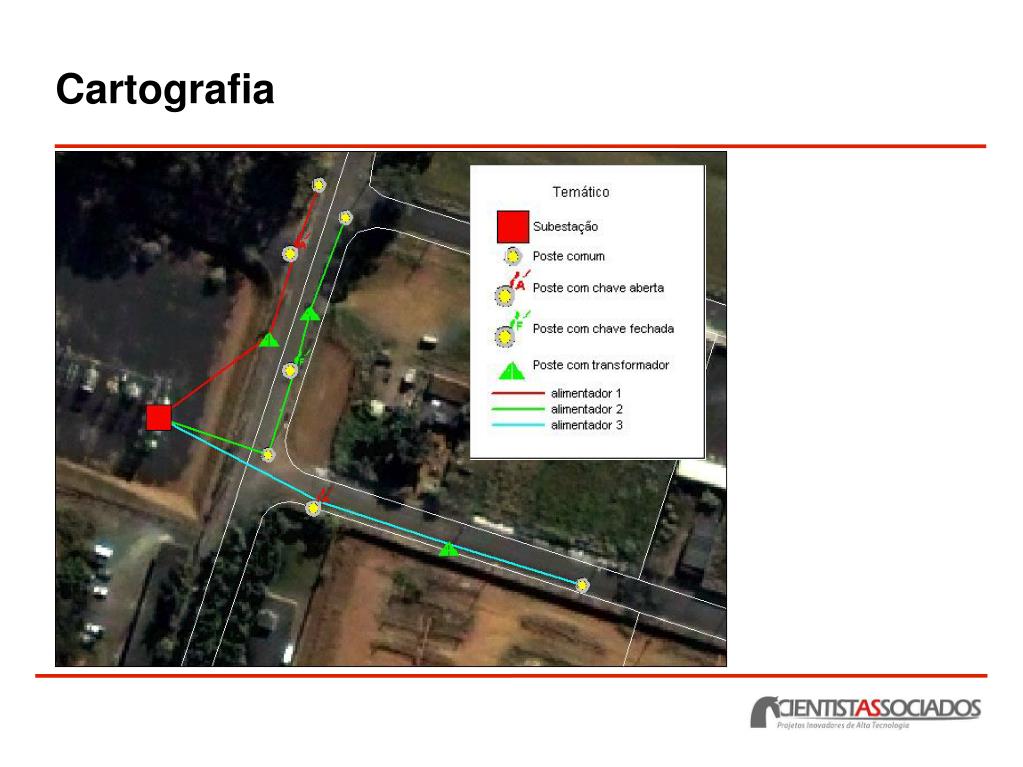

  15. Cartografia

  16. Cartography • Spatial data modeling: Digital Cartography edition and topology creation. - Spatial Data Model - Closing of polygons, overlapping nodes, neighboring and other

  17. Virtual Environments

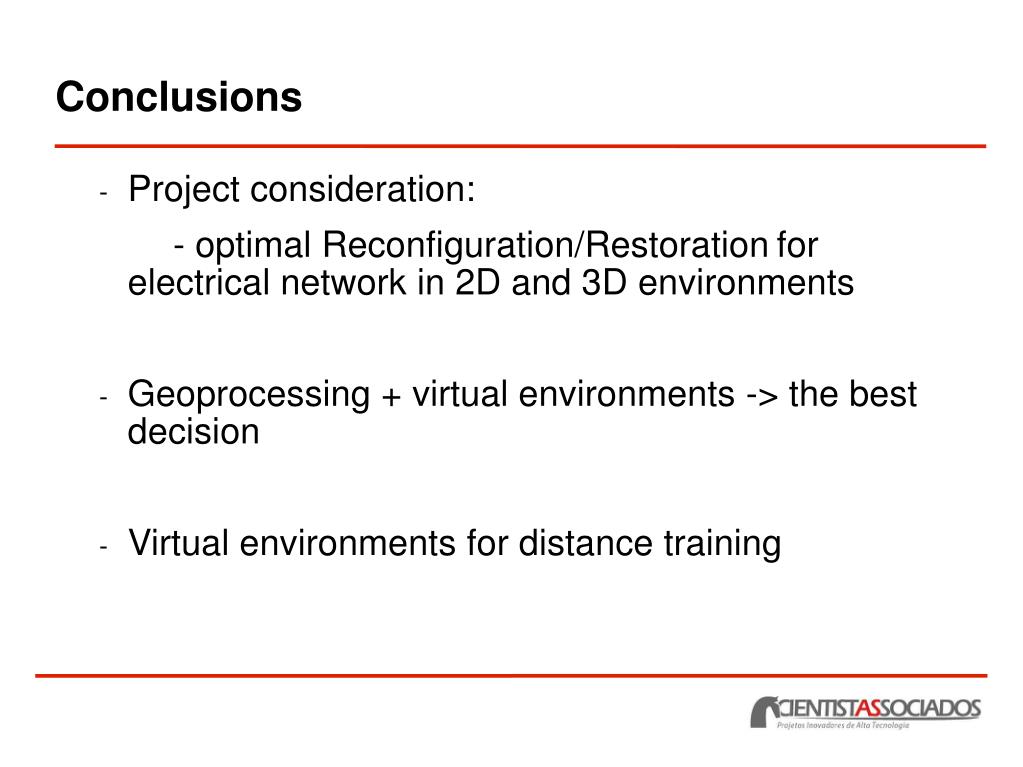

  18. Conclusions • Project consideration: - optimal Reconfiguration/Restorationfor electrical network in 2D and 3D environments • Geoprocessing + virtual environments -> the best decision • Virtual environments for distance training

  19. Conclusions • Open source code for GIS development • Development GIS 3D for future applications • Sub terrain utilities network applications • Utilities Planning and growing (infrastructure) • Several application to simulate the reality
