Alias Detection in Link Data Sets

Alias Detection in Link Data Sets. Master’s Thesis Paul Hsiung. Alias Definition. Alias of names Dubya = G.W. Bush Usama = Osama G.W.Bush = the President Osama bin Laden = the Emir, the Prince Misspelled words Unintentional (typos) Intentional : mortgage = m0rtg@ge (Spam).

Audrey
Télécharger la présentation

Alias Detection in Link Data Sets

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Alias Detection in Link Data Sets Master’s Thesis Paul Hsiung

  2. Alias Definition • Alias of names • Dubya = G.W. Bush • Usama = Osama • G.W.Bush = the PresidentOsama bin Laden = the Emir, the Prince • Misspelled words • Unintentional (typos) • Intentional : mortgage = m0rtg@ge (Spam)

  3. In What Context Do Aliases Occur? • Newspaper articles • WebPages • Spam emails • Any collections of text

  4. Link Data Set • A way to represent the context • Compose of set of names and links • Names are extracted from the text • Names can refer to the same entity (“Dubya” and “G.W.Bush”) • Links are collection of names and represent a relationship between names

  5. Example Wanted al-Qaeda terror network chief Osama bin Laden and his top aide, Ayman al-Zawahri, have Moved out of Pakistan and are believed to have Crossed the mountainous border back into Afghanistan • (Osama bin Laden, Ayman al-Zawahri, al-Qaeda) • (Pakistan, Osama bin Laden) • (Afghanistan, Osama bin Laden)

  6. Graph Representation Pakistan Afghanistan al-Qaeda Osama Ayman

  7. Advantages • Link data set is easily understood by computers • Mimic the way intelligence communities gather data

  8. Alias Detection • Given two names in a link data set, are they aliases (i.e. do they refer to the same entity?) • How to measure their alias-ness? • Semi-supervised learning

  9. Orthographic Measures • String edit distance • Minimum number of insertions, deletions, and substitutions required to transform one name into the other • SED(Osama, Usama) = 2 • SED(Osama, Bush) = 7 • Intuitive measure

  10. Some Orthographic Measures • String edit distance • Normalized string edit distance • Discretized string edit distance

  11. Semantic Measures • But what about aliases such as the Prince and Osama? • Define friends of Osama as people who have occurred in same links with Osama • Through link data sets, number of occurrences of each friend can be collected • Intuition: friends of the Prince look like friends of Osama • Treat friends as probability vectors

  12. Example of Friends al-Qaeda 10 CNN Osama 2 5 Islam

  13. Comparing Two Friends Lists al-Qaeda 2 10 The Prince CNN 8 2 Osama 50 5 Islam Music

  14. Some Semantic Measures • Dot Product: 10 * 2 + 2 * 8 • Normalized Dot Product • Common Friends: 2 (CNN, AlQaeda) • KL Distance:

  15. Classifier • So we have a link data set • We have some measures of what aliases are • We can easily hand-pick some examples of aliases • Let’s build a classifier!

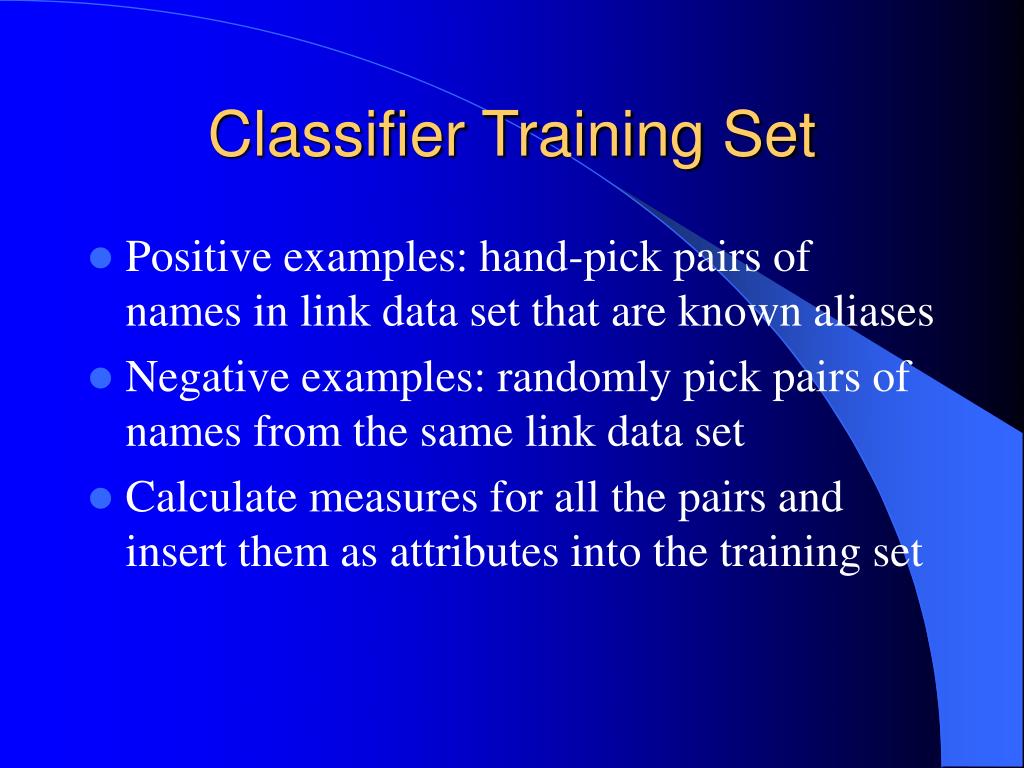

  16. Classifier Training Set • Positive examples: hand-pick pairs of names in link data set that are known aliases • Negative examples: randomly pick pairs of names from the same link data set • Calculate measures for all the pairs and insert them as attributes into the training set

  17. Classifier Example:

  18. Classifier : Cross-Validation • Experimented with Decision Trees, k-Nearest Neighbors, Naïve Bayes, Support Vector Machines, and Logistic Regression • Logistic Regression performed the best

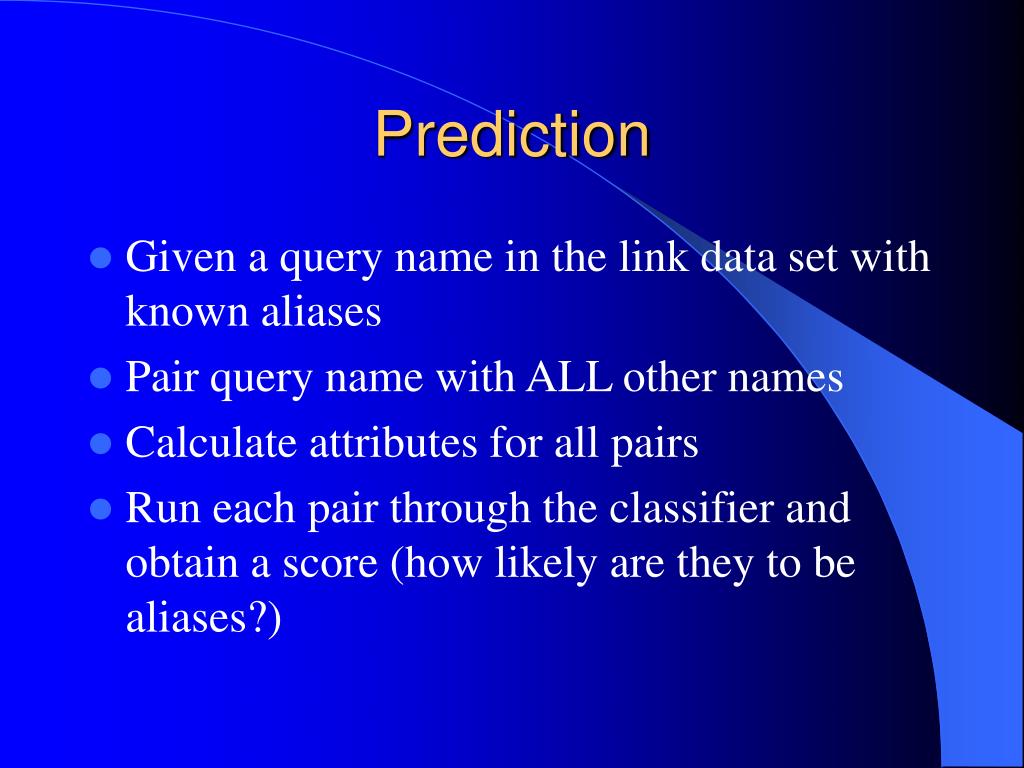

  19. Prediction • Given a query name in the link data set with known aliases • Pair query name with ALL other names • Calculate attributes for all pairs • Run each pair through the classifier and obtain a score (how likely are they to be aliases?)

  20. Example

  21. Prediction • Use the score to sort the pairs from most likely to be an alias to least likely • See where the true aliases lie in the sorted list and produce a ROC curve • Evaluate classifier based on ROC curve

  22. Summary True alias pairs (no query name) Random pairs Query name Calc Attributes Calc Attributes Train Logistic Regression Run Classifier ROC curve

  23. ROC Curve • Start from (0,0) on the graph • Go down the sorted list • If the name on the list is a true alias, move y by one unit • If the name on the list is not a true alias, move x by one unit

  24. Perfect ROC Example 3 2 1 0 1 2 3

  25. ROC Example 3 2 1 0 1 2 3

  26. ROC: Normalize • Balance positive and negative examples • Area under curve(AUC) = 5/9 • Able to average multiple curves 1 0.6 0.3 0 0.3 0.6 1

  27. Empirical Results • Test on one web page link data set and two spam link data sets • Hand pick aliases for each set

  28. Empirical Results • Choose an alias from the set of hand pick aliases as a query name • Build classifier from other aliases that are not aliases with the query name • Do prediction and obtain ROC curve • Repeat for each alias in the set of hand pick aliases • Average all ROC curves by normalized axis

  29. Evaluation • We want to know how significant is each group of attributes • Train one classifier with just orthographic attributes • Train another with just semantic attributes • Train a third with both sets of attributes • Compare curve and area under curve (AUC)

  30. Terrorist Data Set • Manually extracted from public web pages • News and articles related to terrorism • Names mentioned in the articles are subjectively linked • Used 919 alias pairs for training

  31. Web Page Chart

  32. Spam Data Set • Collection of spam emails • Filter out html tags • All the words are converted to tokens with white spaces being the boundaries • Common tokens are filtered (e.g. “the” “a”) • Each email represents a link • Each link contains tokens from corresponding email

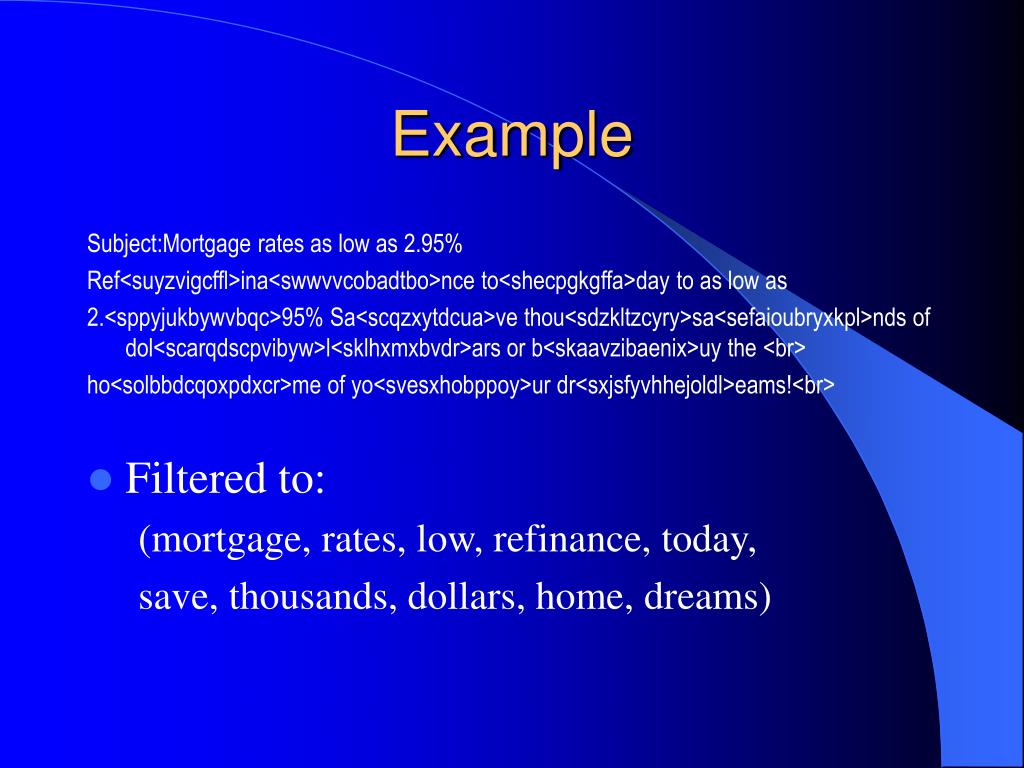

  33. Example Subject:Mortgage rates as low as 2.95% Ref<suyzvigcffl>ina<swwvvcobadtbo>nce to<shecpgkgffa>day to as low as 2.<sppyjukbywvbqc>95% Sa<scqzxytdcua>ve thou<sdzkltzcyry>sa<sefaioubryxkpl>nds of dol<scarqdscpvibyw>l<sklhxmxbvdr>ars or b<skaavzibaenix>uy the <br> ho<solbbdcqoxpdxcr>me of yo<svesxhobppoy>ur dr<sxjsfyvhhejoldl>eams!<br> • Filtered to: (mortgage, rates, low, refinance, today, save, thousands, dollars, home, dreams)

  34. Spam I Chart

  35. Spam II Chart

  36. Conclusion • Orthographic measures work well • Semantic sometimes better, sometimes worse than orthographic • Combining them produces the best • Future work includes adding other measures such as phonetic string edit distance • Larger question: many aliases to many names
