Cube-Ice-Maker-LBN-CI146

Cube Ice Maker LBN-CI146 features an insulated storage bin with a capacity of 200 kg and works with a single compressor and an air cooling method. The device is intended to create up to 265 kg of cube-shaped ice per day, which is expected to melt more slowly than ice flakes. Based on the water flow technique, it produces ice cubes that are uniform, consistent, and transparent. It consists of a fault detection alarm system and a real-time monitoring system.

Brittany8
Télécharger la présentation

Cube-Ice-Maker-LBN-CI146

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

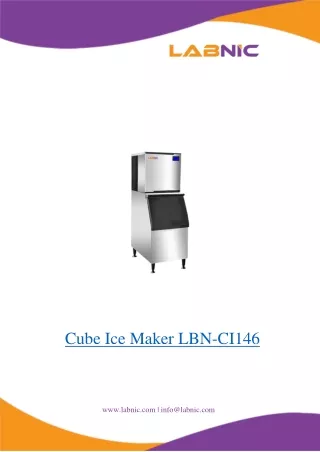

  1. Cube Ice Maker LBN-CI146 www.labnic.com | info@labnic.com

  2. Overview Cube Ice Maker LBN-CI146features an insulated storage bin with a capacity of 200 kg and works with a single compressor and an air cooling method. The device is intended to create up to 265 kg of cube-shaped ice per day, which is expected to melt more slowly than ice flakes. Based on the water flow technique, it produces ice cubes that are uniform, consistent, and transparent. It consists of a fault detection alarm system and a real-time monitoring system. Specifications : Output 265 Kg/ 24 h 200 Kg 220 V/ 1P/ 60 Hz 25 16 Storage Bin Capacity Voltage Ambient Temperature Water Supply Temperature Working Condition 5 - 40 , water supply 5 - 30 Power 1350 W Compressor Single Compressor Cooling Method Air Cooled Refrigerant R404a Display LCD touchscreen Ice Size 2.22 2.22 2.22 cm Storage Bin Detachable/ Removable 770 920 1620 mm Dimensions (L W H) Weight 180 Kg

  3. Features : It is safe, reliable, easy-to-use, and power saving Insulated storage bin and door Fault detection system Ambient temperature 25-degree Celsius Ice cubes produced are transparent, consistent, and uniform Single compressor with an air-cooling method Rust-free front panel Incorporated with a PLC controller and touch screen display Can holds up to 200 Kg Applications : Cube Ice Makers are used for keeping samples, reagents, foods, and beverages cool in the fields of medical laboratories, scientific research institutes, health clinics, restaurants, etc. Labnic Scientific USA Email: info@labnic.com | Website: www.labnic.com
