Presentation Transcript

  1. WIND POWER IN WYOMINGJune 14, 2007 What’s in it for Wyoming Farmers and Ranchers?

  2. Wind Power • What is Wind Power? • Why is Wind Power important? • Where in Wyoming? • What help can you get? • Issues with wind power

  3. What is Wind Power? • History of Wind Power • First examples are sails on boats.

  4. What is Wind Power • Wind Mills to operate Sawmills, Grain mills and Pumps

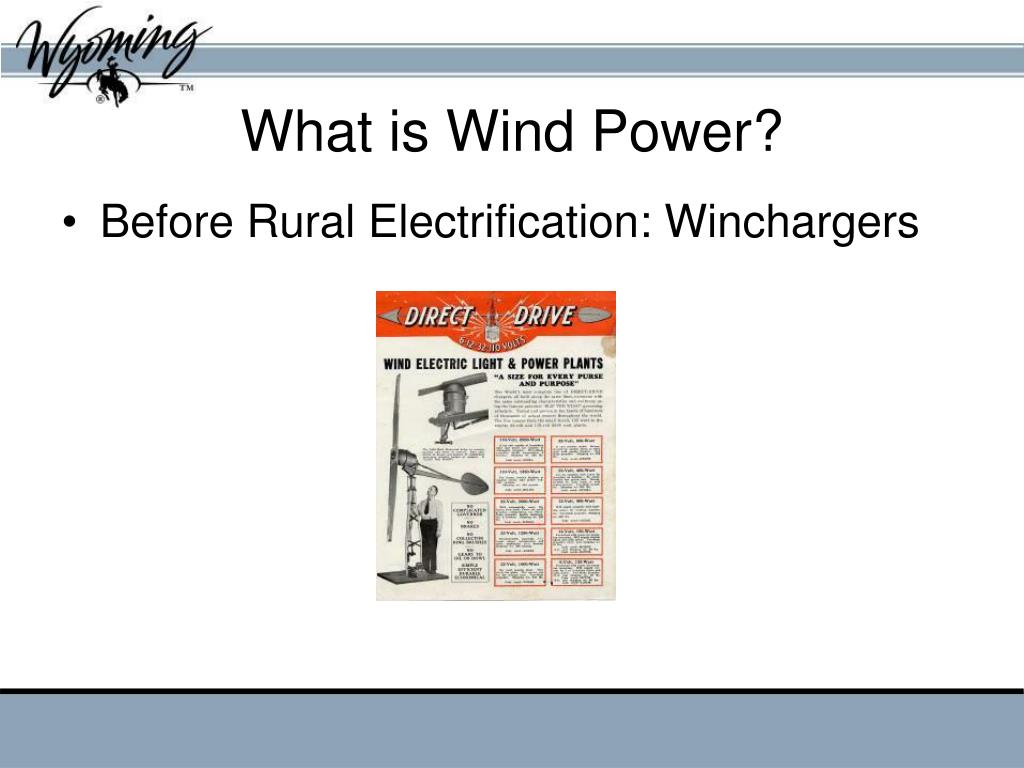

  5. What is Wind Power? • Before Rural Electrification: Winchargers

  6. What is Wind Power? • Current wind power technology started about 25 years ago. • Early commercial turbines were small and unreliable. --40 to 100 cents/kwh • Typical current commercial Turbines • 675kW –1.5mW—3 to 5 cents/kwh • GE 3.6mW and Clipper 2.5mW

  7. Small Wind Power • Turbines 1kW to 25kW to 100kW • Tip up masts to permanent towers • Wyoming Net Metering Rule • 25kW LIMIT • ANNUAL TRUE-UP

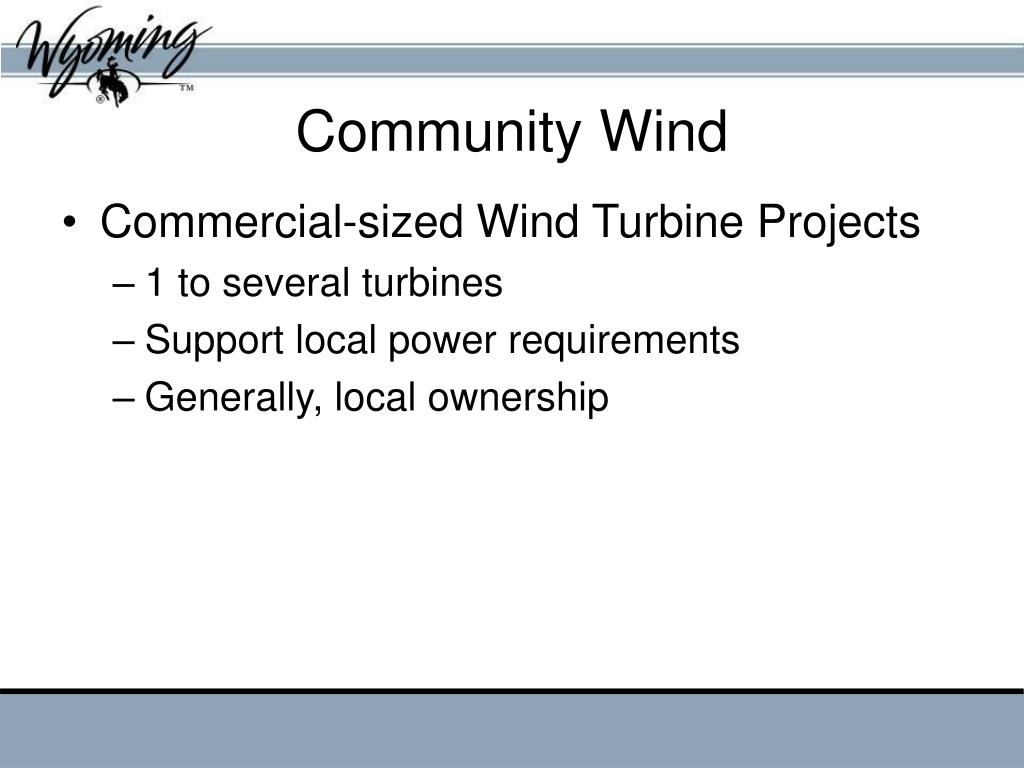

  8. Community Wind • Commercial-sized Wind Turbine Projects • 1 to several turbines • Support local power requirements • Generally, local ownership

  9. Commercial Wind Projects • Many wind turbines 10-100 • Larger turbines 500kW and larger • Generally, Utility or Producer-owned.

  10. WHY IS WIND POWER IMPORTANT? • PRODUCES ELECTRICITY WITHOUT GREENHOUSE GASES • PROVIDES LOCAL ECONOMIC DEVELOPMENT ~ 14 JOBS PER 100MW • DOE SOFTWARE –JEDI

  11. WHERE IN WYOMING?

  12. WIND MAP • HIGH DEFINITION 50M • WIND POWER AND SPEED • www.windpowermaps.org • USE FOR WIND PROSPECTING

  13. Wind development in WY • 288 mW • Arlington • Evanston • F.E. Warren • Wind development potential in WY • 5300 mW per WGA

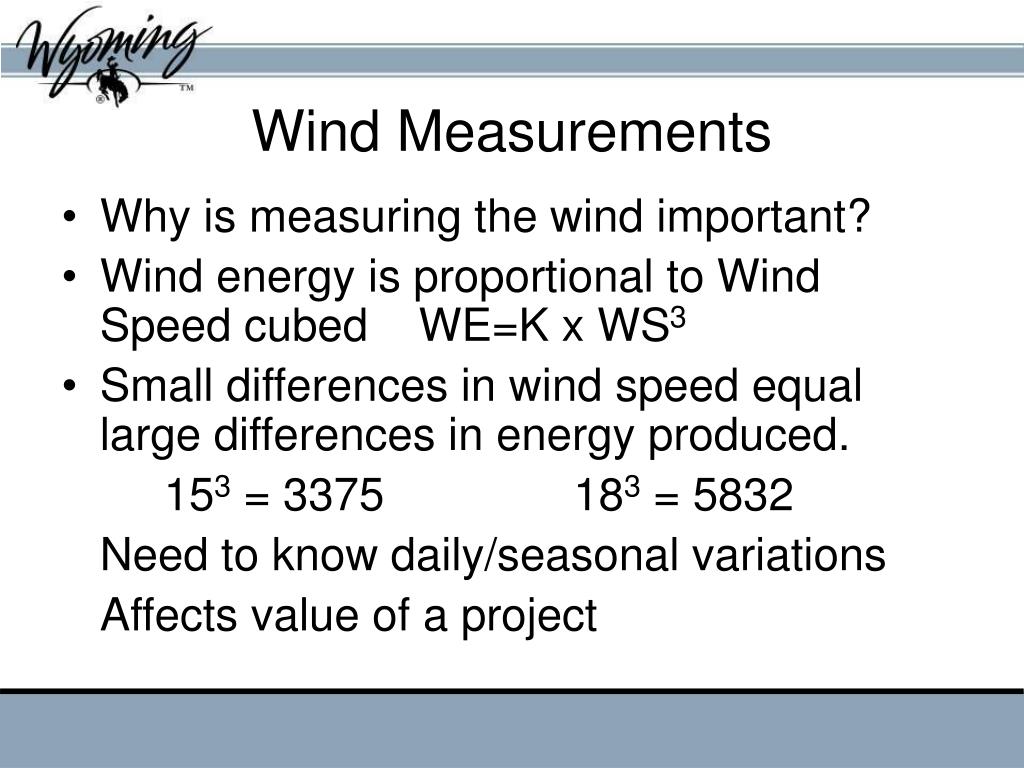

  14. Wind Measurements • Why is measuring the wind important? • Wind energy is proportional to Wind Speed cubed WE=K x WS3 • Small differences in wind speed equal large differences in energy produced. 153 = 3375 183 = 5832 Need to know daily/seasonal variations Affects value of a project

  15. ANEMOMETER LOAN PROGRAM • ASSIST IN THE DEVELOPMENT OF COMMERCIAL-SCALE WIND POWER • 50M TOWERS- 3 LEVELS OF INSTRUMENTATION • WYO. STATE ENERGY OFFICE PURCHASE • LANDOWNER PAYS FOR INSTALLATION COSTS • WYO. SEO PAYS FOR DATA ANALYSIS AND TOWER RELOCATION

  16. ANEMOMETER LOAN PROGRAM • 30M TOWERS • FOR SMALL TURBINES—FARM/RANCH USE • COLLECT DATA AT ONE LEVEL • FOR SMALL WIND APPLICATIONS • 3 AVAILABLE • NO COST TO LAND OWNER

  17. ISSUES FOR WIND IN WYOMING • TRANSMISSION LINE CAPACITY • PROBLEM FOR FOSSIL AND RENEWABLES • ROCKY MOUNTAIN AREA TRANSMISSION STUDY • FRONTIER LINE-WY-UT-NV-CA • TOT-3 • TRANS-WEST • PACIFICORP—JIM BRIDGER WEST • WYOMING INFRASTRUCTURE AUTHORITY • PROPOSED CHANGE IN CONSTITUTION TO ALLOW STATE TO PARTICIPATE IN TRANSMISSION LINE DEVELOPMENT • TRANSMISSION LINES TO SITES • PRODUCTION TAX CREDIT INSECURITY 1.8 cents/kWh • NO RENEWABLE PORTFOLIO STANDARD IN WYOMING • NON-DISPATCHABILITY OF WIND—MITIGATED BY WIND PREDICTION MODELING/ENERGY STORAGE SYSTEMS • VIEW SHED ISSUES—SOME SITES OFF-LIMITS • DEVELOPER LAND MEN—LEASES –GET GOOD LEGAL ADVICE

  18. OTHER ASSISTANCE/TRAINING • WIND WORKING GROUP • ISSUES ORIENTED –WINDPOWER AMERICA SPONSORED • NEXT MEETING JULY/AUGUST • ROPING THE WIND CONFERENCE-JANUARY/FEBRUARY 2008 • USDA SECTION 9006

  19. CONTACT INFORMATION • TOM FULLER WYOMING BUSINESS COUNCIL-STATE ENERGY OFFICE 214 W 15TH ST CHEYENNE WY 82002 TOM.FULLER@WYBUSINESS.ORG 307 777 2804 DALE HOFFMAN WBC-SEO DALE.HOFFMAN@WYBUSINESS.ORG WWW.WYOMINGBUSINESS.ORG BUSINESS ASSISTANCE, STATE ENERGY PROGRAM

  20. MORE CONTACT INFO • ROPING THE WIND, WIND WORKING GROUP • ED WERNER • 307 358 2007
