  1. Capacitors in Series and Parallel 20.12

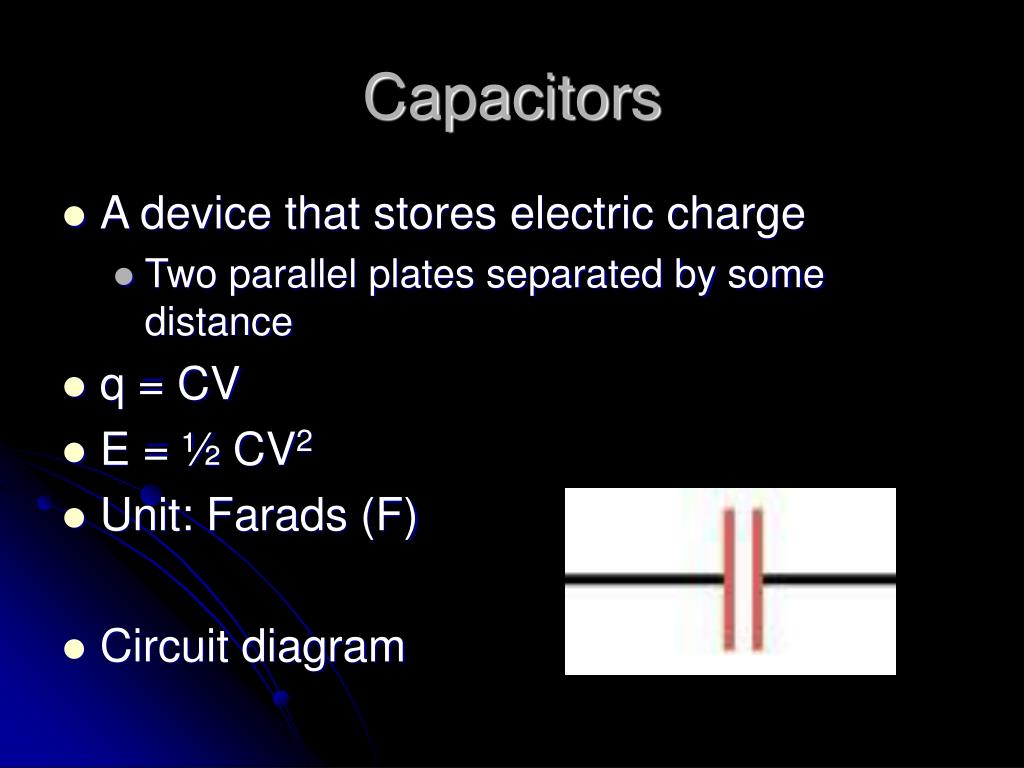

  2. Capacitors • A device that stores electric charge • Two parallel plates separated by some distance • q = CV • E = ½ CV2 • Unit: Farads (F) • Circuit diagram

  3. Parallel Capacitors • Add the charges of the capacitors • q = q1 + q2 = C1V + C2V = CPV • CP = C1 + C2

  4. Series Capacitors • All capacitors in series store the same charge regardless of their capacitances • The charge stored in the first charges the second by induction • V = V1 + V2 = q/C1 + q/C2 = q/CS

  5. Example • An electric circuit was accidentally constructed using a 5.0 F capacitor instead of the required 16 F value. What can a technician do to correct this circuit? • Add a 11 F capacitor in parallel with the first one.

  6. Example 2 • You have three capacitors. How can you arrange them to give the greatest capacitance? • Parallel • Least capacitance? • Series

  7. C2 C1 V C3 Example 3 • Determine the equivalent capacitance of the circuit shown if C1 = C2 = 2C3 = 12.5 F. • How much charge is stored on each capacitor when V = 45.0 V?

  8. Practice Problems • Test your capacitance for these types of problems • 616 P86 – 89 • Total of 4 Problems
