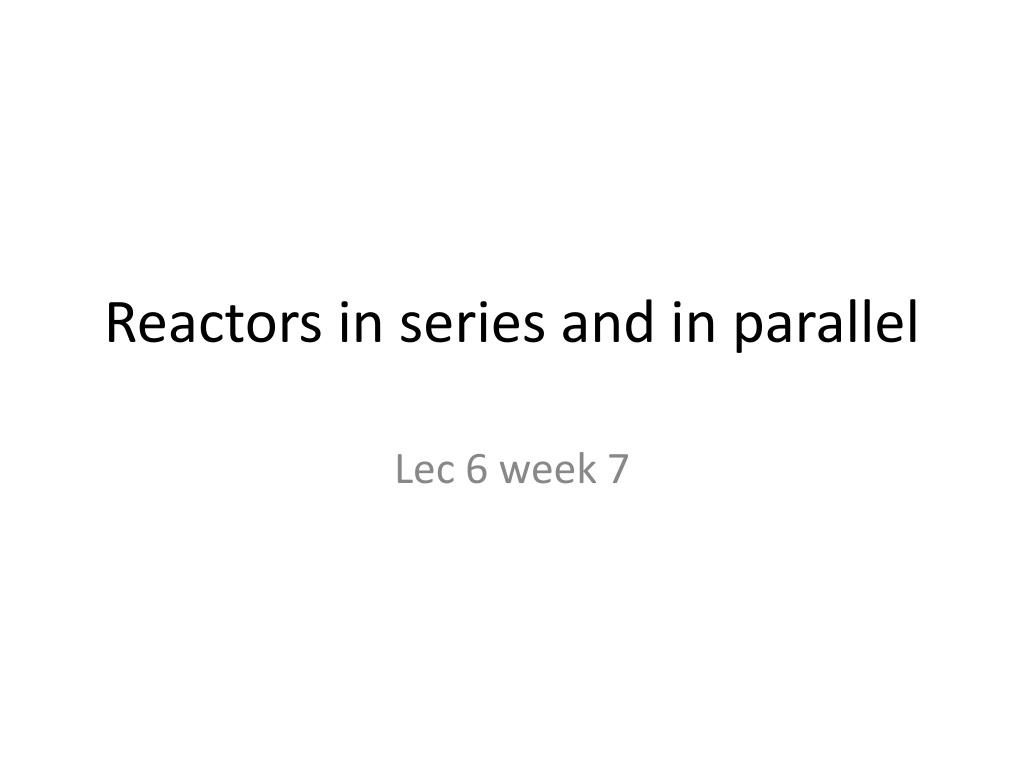

Reactors in series and in parallel. Lec 6 week 7. CSTR in series. A first-order reaction with no change in the volumetric flow rate (v = v0) is to be carried out in two CSTRs placed in series. For the 1 st reactor: Mole balance :.

Télécharger la présentation
## Reactors in series and in parallel

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

**Reactors in series and in parallel**Lec6 week 7**CSTR in series**• A first-order reaction with no change in the volumetric flow rate (v = v0) is to be carried out in two CSTRs placed in series. • For the 1st reactor: • Mole balance :**Rate law Let's consider a first-order irreversible reaction**for which the rate law is • Stoichiometry: • (1) • Combine: • (2) From (1) and (2)**The effluent concentration of reactant A from the first CSTR**can be found from the following concentration:**Substituting for Cn in terms of conversion and Since the**reactors are of equal size, operate at the same temperature, and have identical feed rates. the conversion wilI be the same for each reactor: x1 = X2 = ... = Xn = X**CSTR in Parallel**• The individual reactor volume • Since the reactors are of equal size, operate at the same temperature, and have identical feed rates. the conversion wilI be the same for each reactor: • X1 = X2 = ... = Xn = X**Example**• The adiabatic exothermic irreversible gas phase reaction is to be carried out in a flow reactor for a stoichiometric feed of A and B. • Additional Information
