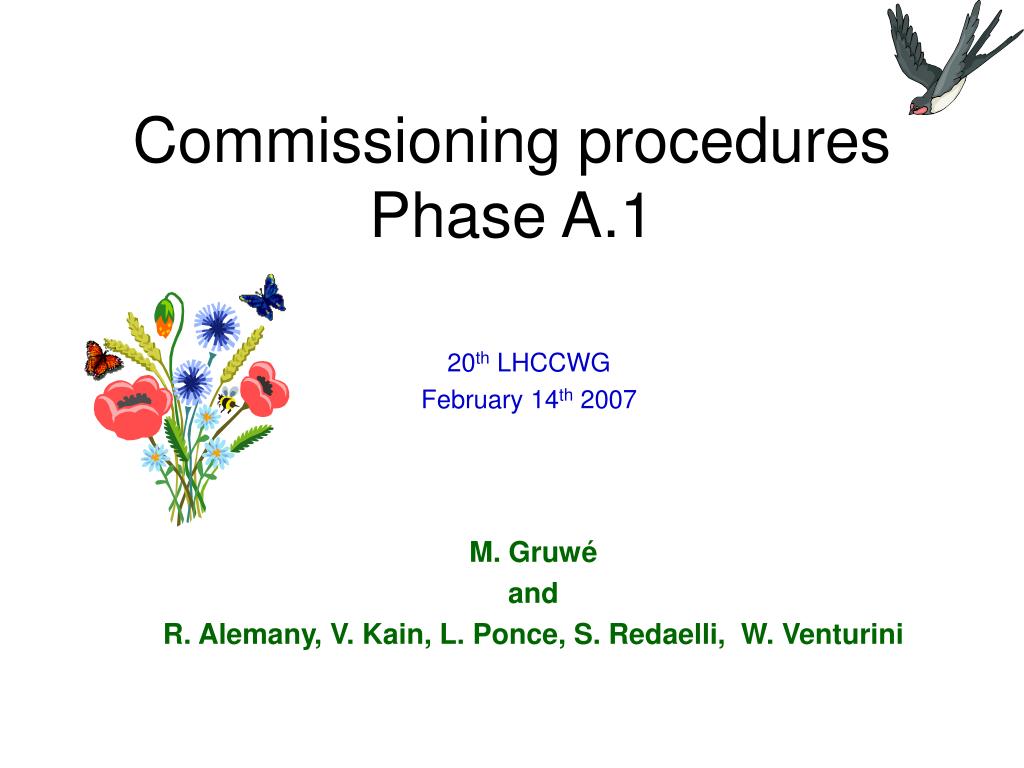

  1. Commissioning proceduresPhase A.1 20th LHCCWG February 14th 2007 M. Gruwé and R. Alemany, V. Kain, L. Ponce, S. Redaelli, W. Venturini

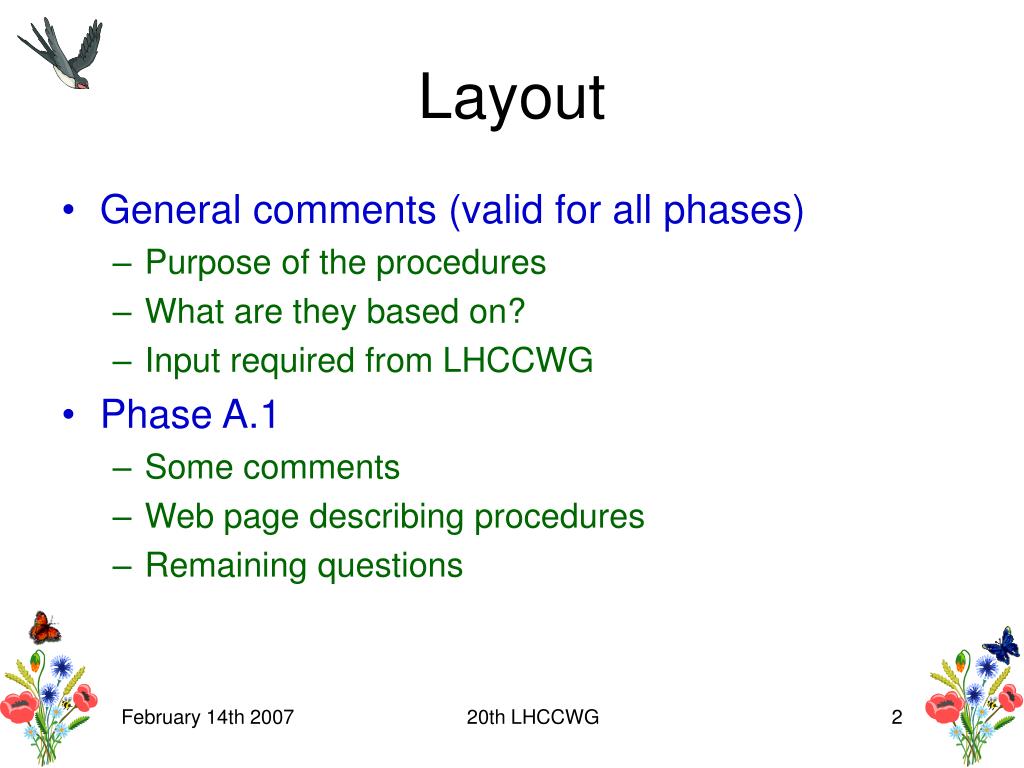

  2. Layout • General comments (valid for all phases) • Purpose of the procedures • What are they based on? • Input required from LHCCWG • Phase A.1 • Some comments • Web page describing procedures • Remaining questions 20th LHCCWG

  3. General comments • Trial of presentation in LHCCWG: • One phase presented per meeting (or every 2nd meeting) • Will go through • layout of the procedures web pages • main steps of the procedure • remaining questions • But: will not go into details (too long to go through in such a wide group) • Work in progress (and will remain so till actual commissioning...) 20th LHCCWG

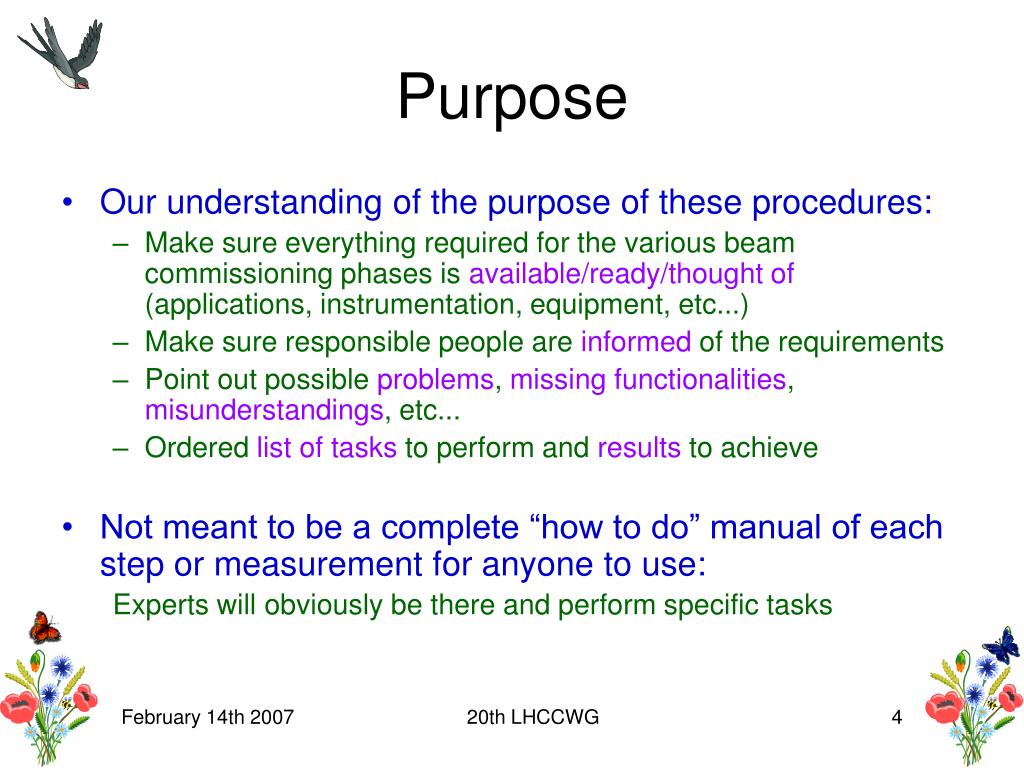

  4. Purpose • Our understanding of the purpose of these procedures: • Make sure everything required for the various beam commissioning phases is available/ready/thought of (applications, instrumentation, equipment, etc...) • Make sure responsible people are informed of the requirements • Point out possible problems, missing functionalities, misunderstandings, etc... • Ordered list of tasks to perform and results to achieve • Not meant to be a complete “how to do” manual of each step or measurement for anyone to use: Experts will obviously be there and perform specific tasks 20th LHCCWG

  5. Based on... • The procedures are based on • Presentations in the LHCCWG • Some Chamonix presentations • Mike’s web pages http://lhc-commissioning.web.cern.ch/lhc-commissioning • Discussions with experts, individuals • Our current understanding... 20th LHCCWG

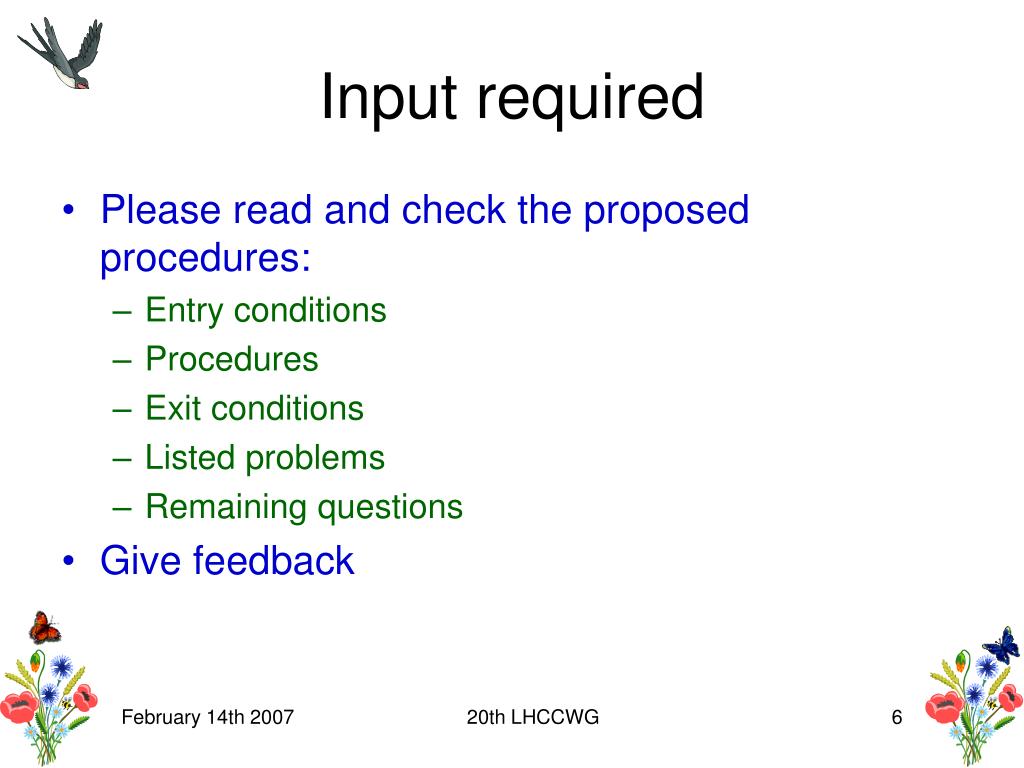

  6. Input required • Please read and check the proposed procedures: • Entry conditions • Procedures • Exit conditions • Listed problems • Remaining questions • Give feedback 20th LHCCWG

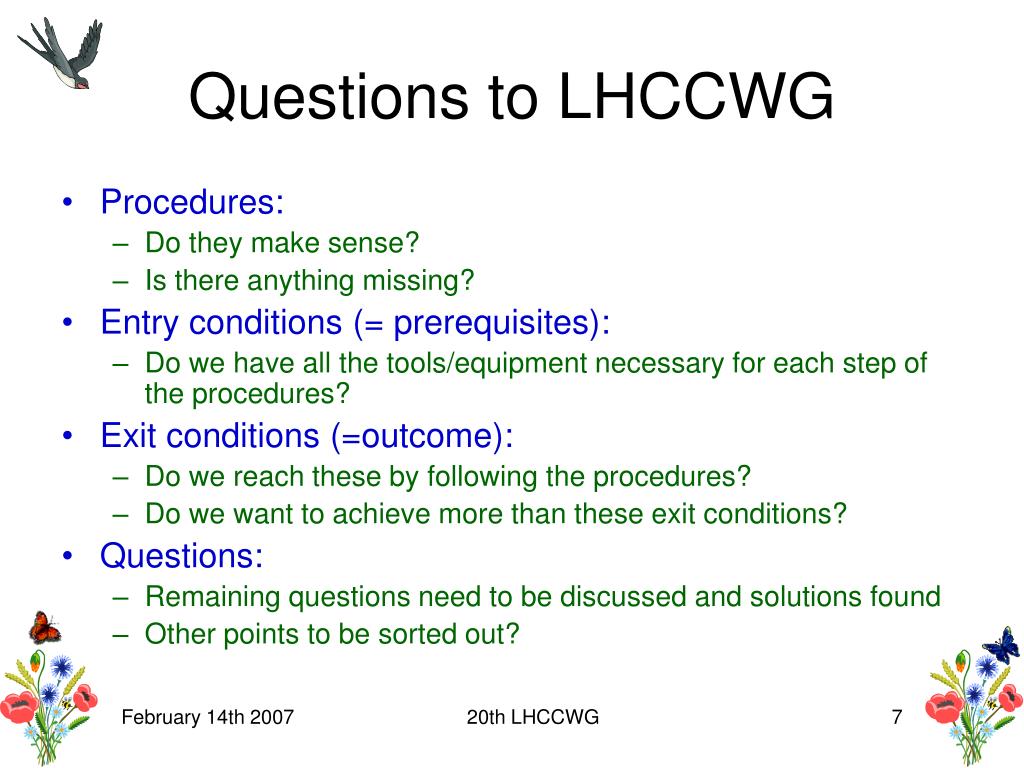

  7. Questions to LHCCWG • Procedures: • Do they make sense? • Is there anything missing? • Entry conditions (= prerequisites): • Do we have all the tools/equipment necessary for each step of the procedures? • Exit conditions (=outcome): • Do we reach these by following the procedures? • Do we want to achieve more than these exit conditions? • Questions: • Remaining questions need to be discussed and solutions found • Other points to be sorted out? 20th LHCCWG

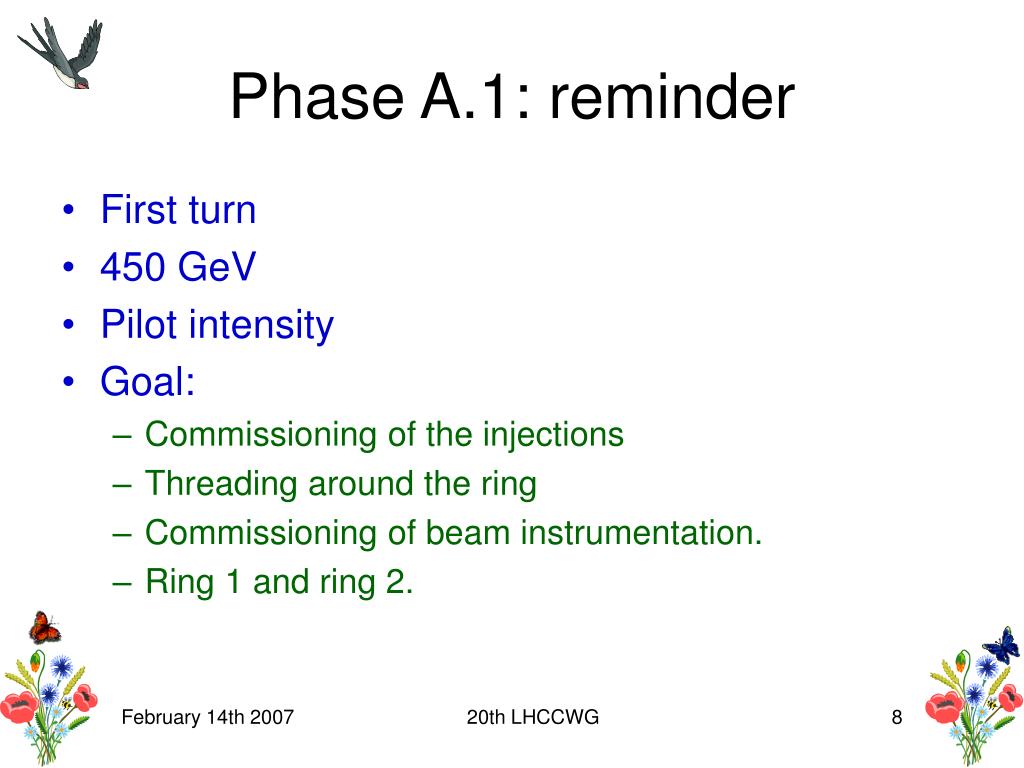

  8. Phase A.1: reminder • First turn • 450 GeV • Pilot intensity • Goal: • Commissioning of the injections • Threading around the ring • Commissioning of beam instrumentation. • Ring 1 and ring 2. 20th LHCCWG

  9. Web page • The procedures for phase A.1 can be found in: http://lhccwg.web.cern.ch/lhccwg/Procedures/stageA/phaseA1/index.htm • Comments: • As one of the entry conditions: link to LHC machine checkout web page (Mike’s web page) • To be added: a table listing all steps of the procedures versus all required applications and instrumentation • Procedures for phase A.1 should/will be discussed in the Injection working group (Brennan) • No time estimate included at this stage. Should be added later to facilitate the beam commissioning planning. 20th LHCCWG

  10. Remaining questions (I) • Recycling required ever? If energy mismatch detected and MBs adjusted, recycling? If yes, how often? • Will we have an additional event indexed database like SDA? • Which magnets have to be fully commissioned for this stage? • When shall we check interleaved ring 1/ring 2 injections? Already in this phase? • Display of the spare channels of BLM cards should be available in the CCC (this is currently not foreseen: we need a soft to see all spare channels in the CCC)...NEEDED FOR MOBILE BLMs 20th LHCCWG
