  1. Knowing the Fitness of Your BuildingAnd Making the Financially-Driven Business Case for Improving Energy EfficiencyPresented to International Conference on Sustainable UrbanizationLarry Wash, President Global ServicesHussmann, Thermo King and TraneIngersoll Rand December 15, 2010

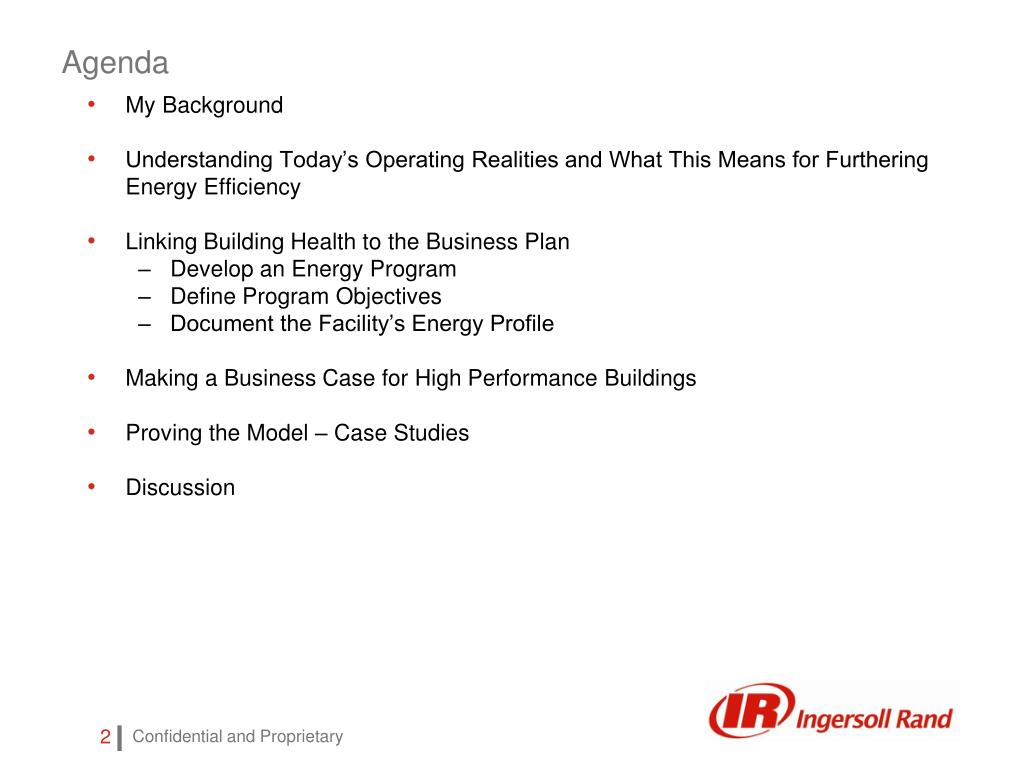

  2. My Background Understanding Today’s Operating Realities and What This Means for Furthering Energy Efficiency Linking Building Health to the Business Plan Develop an Energy Program Define Program Objectives Document the Facility’s Energy Profile Making a Business Case for High Performance Buildings Proving the Model – Case Studies Discussion Agenda

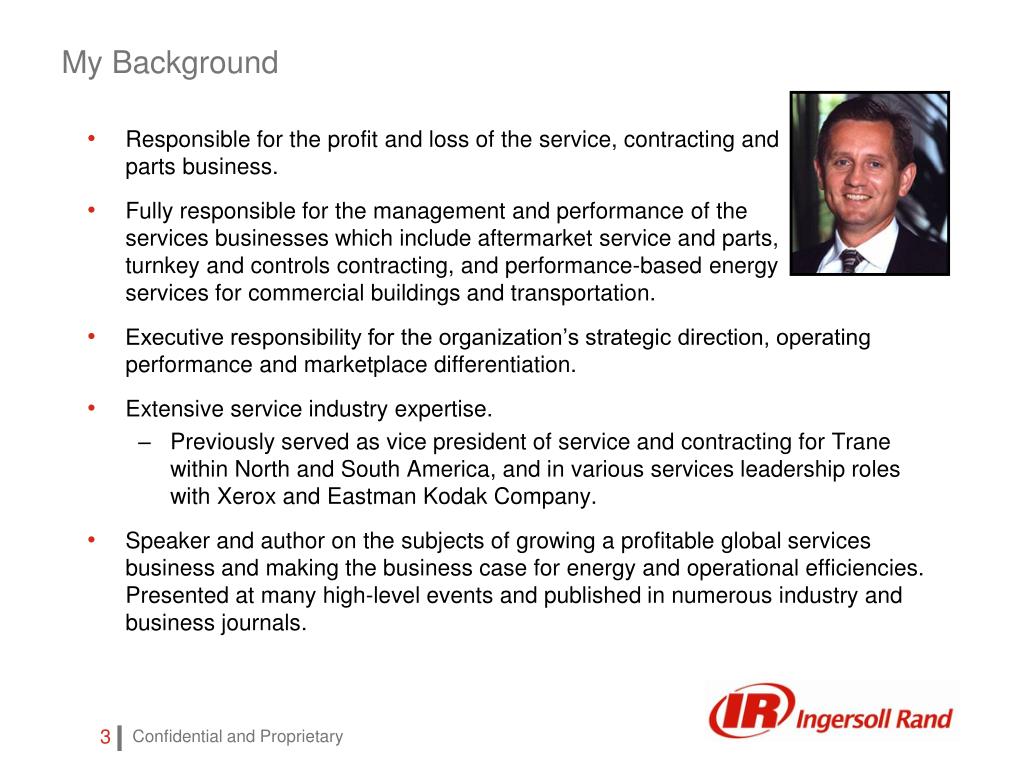

  3. Responsible for the profit and loss of the service, contracting and parts business. Fully responsible for the management and performance of the services businesses which include aftermarket service and parts, turnkey and controls contracting, and performance-based energy services for commercial buildings and transportation. Executive responsibility for the organization’s strategic direction, operating performance and marketplace differentiation. Extensive service industry expertise. Previously served as vice president of service and contracting for Trane within North and South America, and in various services leadership roles with Xerox and Eastman Kodak Company. Speaker and author on the subjects of growing a profitable global services business and making the business case for energy and operational efficiencies. Presented at many high-level events and published in numerous industry and business journals. My Background

  4. New construction outlook remains weak Considered to be operating in a global recessionary market Businesses pinched more than ever Operating costs continue to rise with intense pressure to reduce Access to cash and credit more limited Limited appetite for capital investments without clear payback Energy use in buildings projected to grow Up to 40% of total operating expenses of some buildings Contributes to Climate Change Tremendous amount of energy-related policy to Improve environment and reduce oil reliance Stimulate the economy and create jobs Reduce risk and increase business confidence Understanding Today’s Operating Realities An unprecedented energy and operating environment

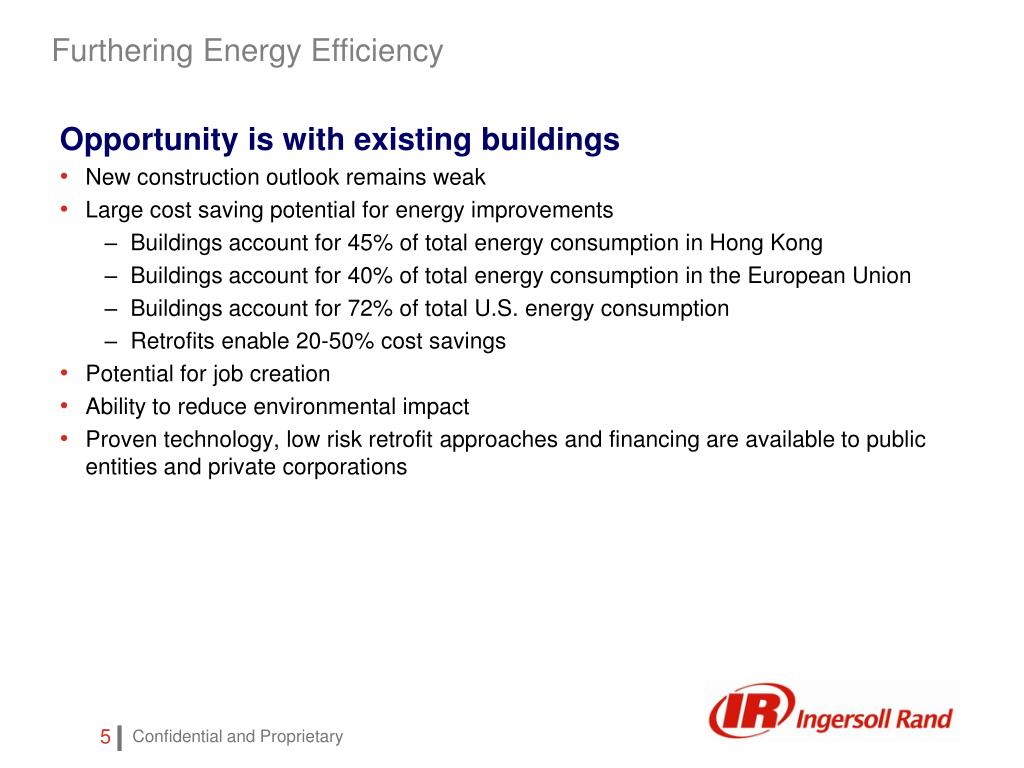

  5. Opportunity is with existing buildings New construction outlook remains weak Large cost saving potential for energy improvements Buildings account for 45% of total energy consumption in Hong Kong Buildings account for 40% of total energy consumption in the European Union Buildings account for 72% of total U.S. energy consumption Retrofits enable 20-50% cost savings Potential for job creation Ability to reduce environmental impact Proven technology, low risk retrofit approaches and financing are available to public entities and private corporations Furthering Energy Efficiency

  6. Building an Energy Efficient Building Plan • Many of the world’s best companies do not have effective business processes to align their facilities’ infrastructure needs with their business plans • As a result, facilities engineers, who are responsible for the comfort, health effects, operating specifications and utilities management, often get trapped in a “deferred maintenance / catch-up loop” Linking building performance to business objectives benefits building owners, facility engineers and occupants

  7. Develop an Energy Program • Assemble a team • Building owner • Facility manager • Energy solutions provider • Department representatives • Appoint a team leader Build an energy management team with “buy in” from key internal stakeholders, including owners, managers and department heads

  8. Define Program Objectives • What are the desired outcomes? • decreased operating costs • higher operations performance • better occupant comfort and productivity • tax benefits • environmental certification • others Identify energy management goals that reinforce the organization’s overall business objectives

  9. Document the Facility’s Energy Profile • The energy profile: • Includes energy costs and consumption data • Benchmarks the facility’s energy consumption • Your energy management program will only be as good as the data you collect – accurate tracking is vital! Successful strategic energy plans combine the latest climate control technology with consistent monitoring and personal decisions

  10. Making the Case for Energy Efficient Buildings Owners who view their building as assets link the physical environment to business outcomes – customer and employee satisfaction, productivity, operating expense reduction, among others These buildings can be “high performance” and tie to the mission, values and results of a business Critical question: Is your building overhead or an asset? • Value to people the building serves (environment, comfort, safety) • Value to customers and community (competence, environmental responsibility) • Value to the bottom line (cost savings, avoidance, ROIC)

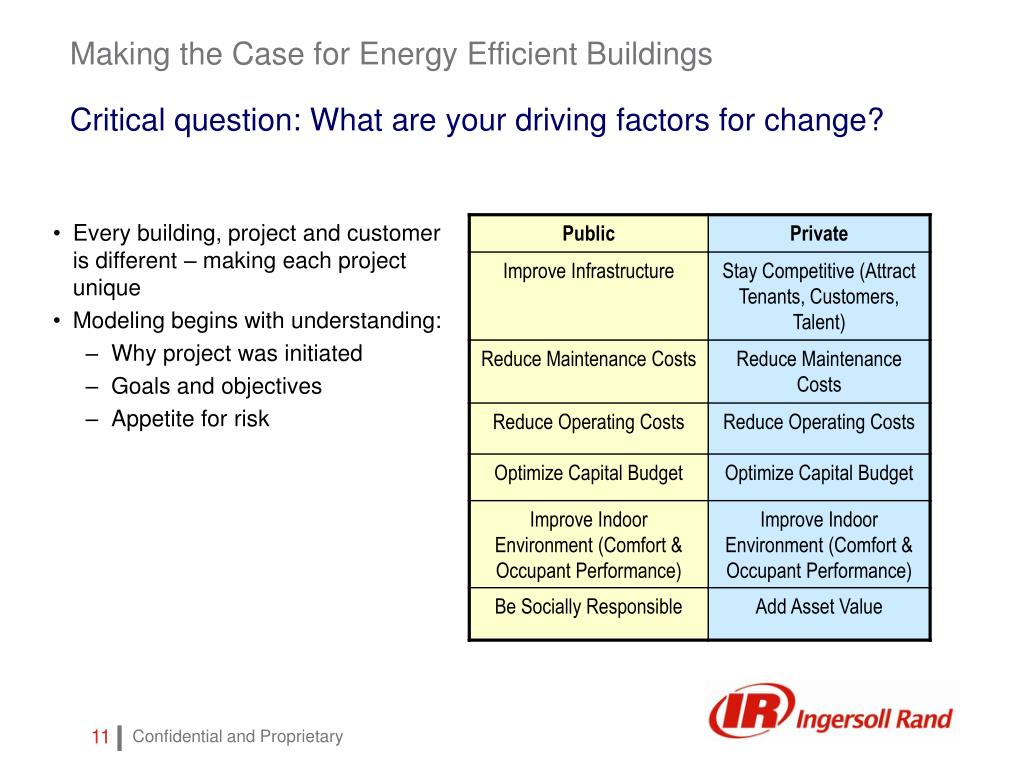

  11. Making the Case for Energy Efficient Buildings Critical question: What are your driving factors for change? • Every building, project and customer is different – making each project unique • Modeling begins with understanding: • Why project was initiated • Goals and objectives • Appetite for risk

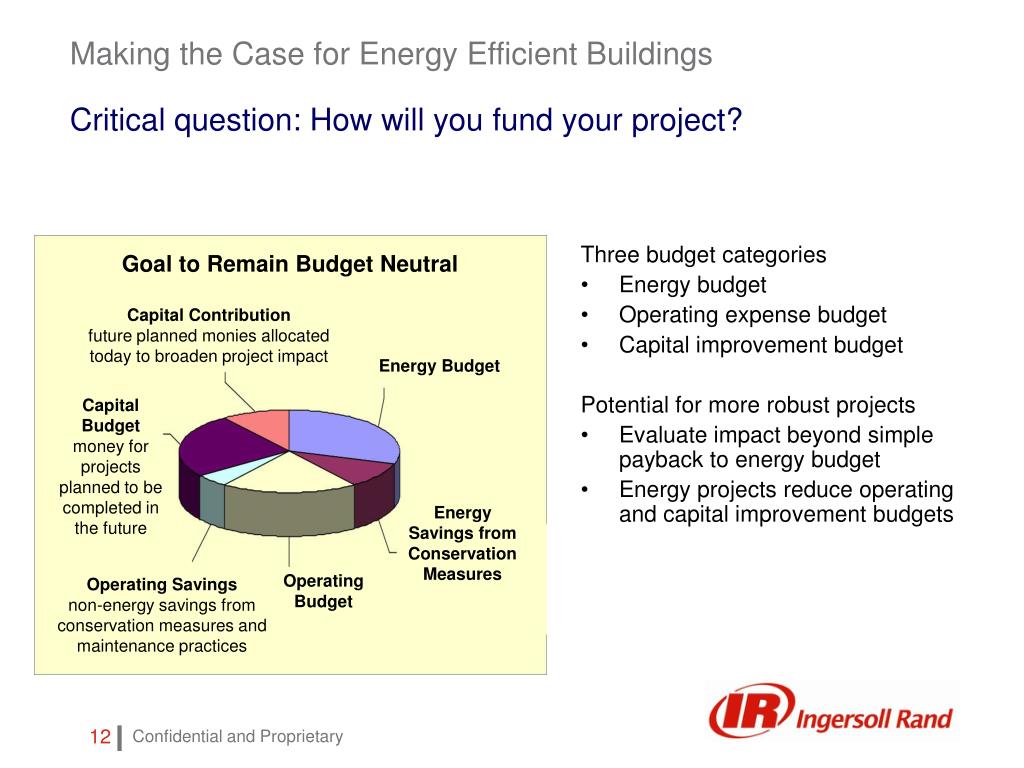

  12. Goal to Remain Budget Neutral Capital Contributionfuture planned monies allocated today to broaden project impact Energy Budget Capital Budgetmoney for projects planned to be completed in the future Energy Savings from Conservation Measures Operating Budget Operating Savingsnon-energy savings from conservation measures and maintenance practices Making the Case for Energy Efficient Buildings Critical question: How will you fund your project? • Three budget categories • Energy budget • Operating expense budget • Capital improvement budget • Potential for more robust projects • Evaluate impact beyond simple payback to energy budget • Energy projects reduce operating and capital improvement budgets

  13. Making the Case for Energy Efficient Buildings Critical question: How will you fund your project? • Goal: Allocate potential savings and capital to fund project and stay in budget • Set capital budget and revise annually – project out several years • Don’t spend capital in large amounts for major energy projects when they happen • Allocate capital amounts in an annualized approach • Plan for $100K per year for 10 years • Rather than $500K in year 3, $250K in year 5 and $250K in year 7

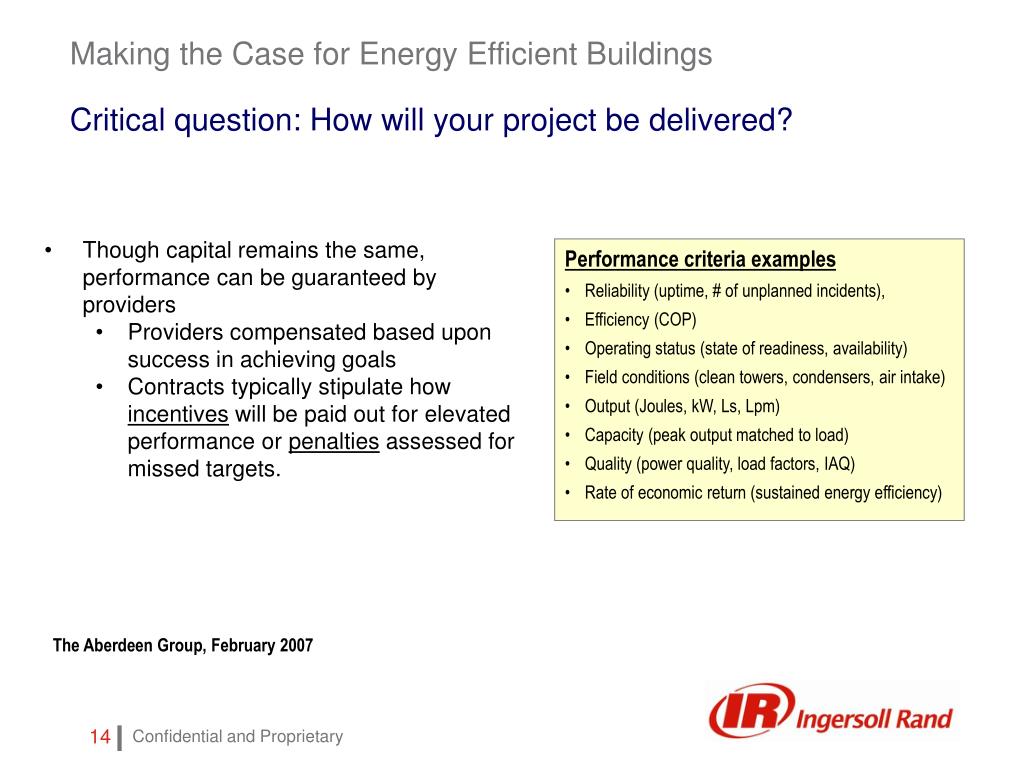

  14. Making the Case for Energy Efficient Buildings Critical question: How will your project be delivered? • Though capital remains the same, performance can be guaranteed by providers • Providers compensated based upon success in achieving goals • Contracts typically stipulate how incentives will be paid out for elevated performance or penalties assessed for missed targets. • Performance criteria examples • Reliability (uptime, # of unplanned incidents), • Efficiency (COP) • Operating status (state of readiness, availability) • Field conditions (clean towers, condensers, air intake) • Output (Joules, kW, Ls, Lpm) • Capacity (peak output matched to load) • Quality (power quality, load factors, IAQ) • Rate of economic return (sustained energy efficiency) The Aberdeen Group, February 2007

  15. Making the Case for Energy Efficient Buildings Critical question: What changes can be made based upon financial objectives? • Purpose of the building determines the investment strategy • If a lifecycle return / financial approach is taken, owners can enjoy the benefits of everything listed on the chart = significant energy, operating, environmental and business benefits

  16. Top 25 Energy Conservation Measures • Many, many Energy Conservation Measure (ECM) technologies and applications  need a methodology to assess and rate • Methodology developed using Six Sigma analysis processes and tools • Evaluation process based on 5 key customer and Trane “importance factors” • Savings potential, practicality, commercial viability, risk management, business differentiation • Score of 0-100% with 100% being the best ranking Utilizes six sigma methodology to select energy measures

  17. Making the Case for Energy Efficient Buildings Critical question: What costs need to be considered when financially modeling an energy project? Visible Costs • Total cost of ownership approach • All of these factors need to be addressed at some point • Modeling the building as a long-term asset • Offers greater financial transparency • Will ultimately save energy and operating dollars throughout the life of the asset Price/Time Engineering Charges Energy Costs CFC Issues Maintenance Costs Equipment Shutdown Costs Construction Change Orders Legal Costs Security Costs Start-up Delays Indoor Air Quality Being Green Costs Fire Protection Cost Performance Problems Hidden Costs

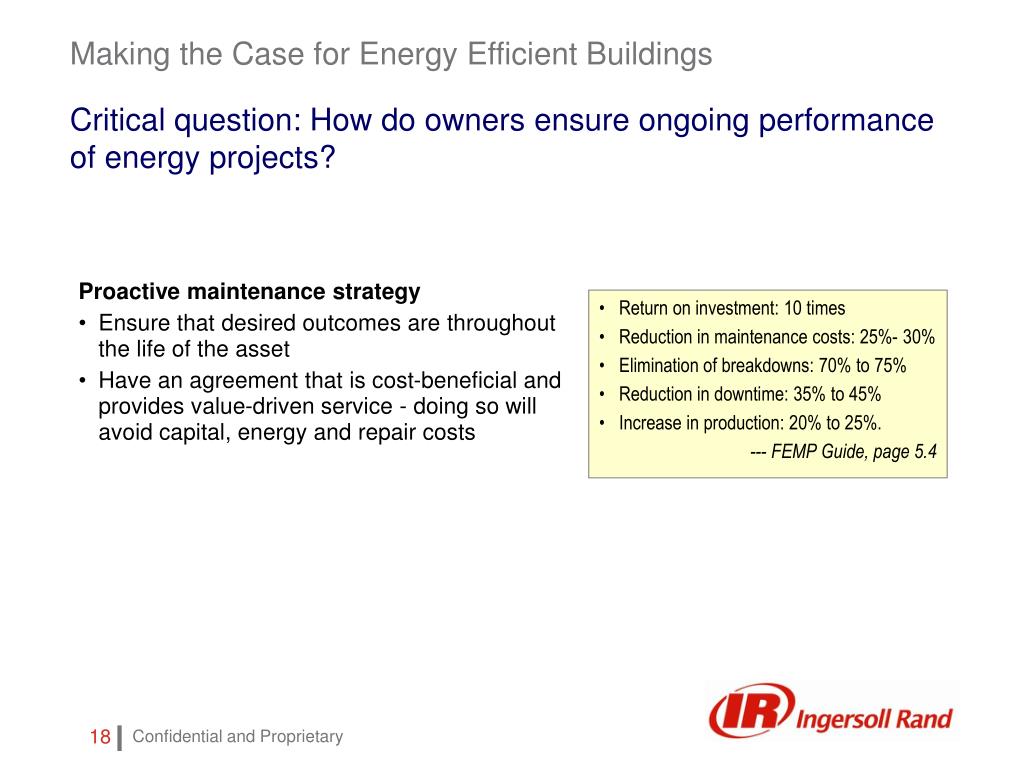

  18. Making the Case for Energy Efficient Buildings Critical question: How do owners ensure ongoing performance of energy projects? • Proactive maintenance strategy • Ensure that desired outcomes are throughout the life of the asset • Have an agreement that is cost-beneficial and provides value-driven service - doing so will avoid capital, energy and repair costs • Return on investment: 10 times • Reduction in maintenance costs: 25%- 30% • Elimination of breakdowns: 70% to 75% • Reduction in downtime: 35% to 45% • Increase in production: 20% to 25%. • --- FEMP Guide, page 5.4

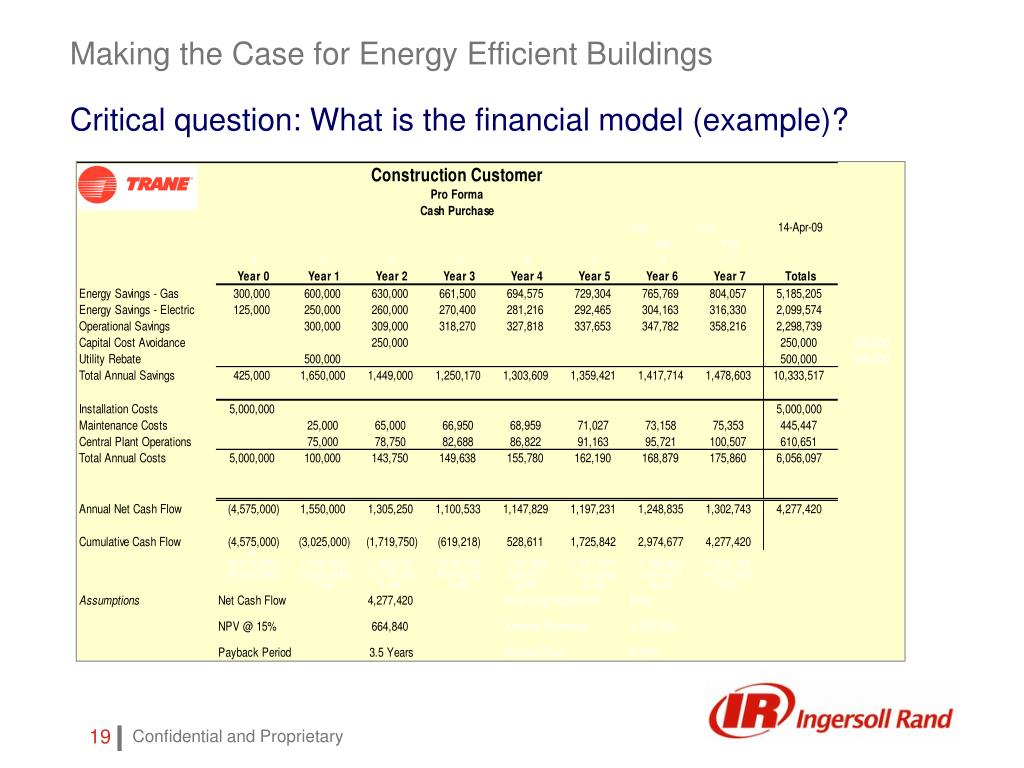

  19. Making the Case for Energy Efficient Buildings Critical question: What is the financial model (example)?

  20. Making the Case for Energy Efficient Buildings Critical question: What is the financial model (example)? • Model offers comprehensive view • Driving factors, funding and budget allocations, capital expenses, total cost of ownership and financial return • Analyzes cash flow over project life • Model incorporates more ECMs • If owner considers only energy savings in financial decision • Project would yield a 11.7 year payback • If owner considers energy, operating cost, maintenance and asset replacement cost savings over the life of the project • Project yields a 3 year payback and it generates positive cash flow

  21. Making the Case for Energy Efficient Buildings Critical statement: Different Payback, Same Return on Investment • Return calculations dependent on benefits received beyond initial payback • Guaranteed returns support analysis beyond simple payback calculations and provide financial basis for long term investment in sustainability • Simple payback calculations help assess risk • Guaranteed savings minimize risk of evaluating longer term projects

  22. Proving the Model: Examples of Large Energy Projects

  23. Royal London Hospital SITUATION Trane Care customer with needs including: environment, efficiency, reliability APPROACH Offers from each Trane Care category Refrigerant retrofit Compressor R’newal Compressor soft starters Controls upgrade Heat exchanger R’newal Soft starts on condensers and evaporator water pumps Chiller re-paint • RESULTS • Tuned in to customer needs • Trusted source of solution • Used all knowledge • Managing equipment life cycle • Mastering project management Addressing building owner needs with service innovation

  24. SITUATION Campus-style (1.1 million-sq-ft) heavy industrial manufacturing plant Aging infrastructure with low energy efficiency and reliability and high operating and maintenance costs Dramatic downturn in product sales While experiencing 70+% increase in energy costs Corporate goal, 15% reduction in energy cost by 2013 APPROACH Factors driving improvements: Need to stay competitive Reduce maintenance and operating costs Add asset value Industrial Facility Energy project makes manufacturing facility more competitive

  25. Industrial Facility (cont.) IDENTIFYING INVESTMENT BENEFITS 1. Assessment 2. ECM Selection 3. Payback Analyzed HVAC systems, compressed air and lighting for efficiency, capacity and effective operating and maintenance practices. Evaluated remote monitoring application potential. Lighting retrofits, building automation upgrades and hot water boiler Selected ECMs offer quick return $2.1 million project investment in new air compressors, hot water boiler, lighting retrofit and remote monitoring • RESULTS • Two-year payback with projected $1.13 mil. in annual energy savings + $275,000 in annual labor cost reduction • Energy reduction of 11.5 MKWH equivalent to CO2 emissions from 11 tanker truckloads • On track to achieve mandated 15% reduction by 2013 Safer, more reliable and energy efficient plant

  26. SITUATION 20-story hotel with 518 guest rooms, casino and meeting and exhibition Frequent breakdowns, reduced efficiency and high operating costs from outdated systems Difficult-to-access plant room and decentralized system control Infrastructure systems generating noise complaints from guests APPROACH Factors driving improvements: Increase competitiveness Reduce operating costs Increase asset value Environmental responsibility in compliance with 2010 mandate Warsaw Marriott (Poland) Upgrades for increased reliability

  27. Warsaw Marriott (Poland) (cont.) 1. Assessment 2. ECM Selection 3. Payback Evaluated central plant comfort systems for performance, energy consumption, operational efficiencies and maintenance access High-efficiency chiller systems with variable flow water pumps to reduce energy use and a centralized BAS Selected ECMs offer medium timed return • RESULTS • 15% improvement in overall building energy efficiency (30% system improvement) • Significantly reduced carbon emissions to meet 2010 mandates • Increased comfort by reducing system noise by 25dbA • Lower noise operating levels • Reduced system breakdowns to near zero (reduction in maintenance costs) • Completed project off-season without disrupting hotel operations $2 million integrated system with projected six-year payback

  28. SITUATION Customer: Swire Properties To change the mindset of landlord technicians to new water cooled system operation instead of air cooled system Limited space for installation Statutory approval for application for pilot scheme of fresh water usage for cooling tower APPROACH Provide more practical training and method statement to handle water cooled plant Site modification work to suit the limited space Ask the appropriate people to get approval in short time frame Island Place Shopping Centre (Hong Kong) • RESULTS • Annual energy saving of around 1,176,000kWh and payback of 4.8 years • Conversion of 660RT A/C to W/C system • Annual saving ~35% achieved

  29. SITUATION Customer: Nan Fung Properties New business partner for supply and installation project Difficult chilled water system installation on high rise tower roof Merging low and high zone into one circuit APPROACH Provide professional image and job reference to the client Dismantle chilled water system in pieces for delivery to roof Precise site measurement for equipment selection 113 Argyle Street (Hong Kong) • RESULTS • Annual energy saving is around 1,460,000kWh and payback 7.5 years • Conversion of 1,100RT A/C to W/C system • Guarantee annual saving 37%

  30. Bottom Line Business Case Energy efficiency makes more sense than ever Projects will move forward despite the economy Financial business case will drive decisions There’s proof that it works Link the building to a business mission Determine the funding strategy Understand ECMs and their payback Consider total cost of ownership Conduct the financial analysis – including cash flow

  31. Larry Wash, President Global Services Hussmann, Thermo King and Trane lwash@trane.com

  32. Questions
