LINEAR PROGRAMMING: GRAPHICAL METHODS

1. LINEAR PROGRAMMING: GRAPHICAL METHODS

2. 9. Linear Programming: Graphical Methods • Linear programming (LP) is a mathematical technique designed to help managers in their planning and decision making. It is usually used in an organization that is trying to make most effective use of its resources. Resources typically include machinery, manpower, money, time, warehouse space, or raw materials. • A few examples of problems in which LP has been successfully applied are: • Development of a production schedule that will satisfy future demands for a firm’s product and at the same time minimize total production and inventory costs.

3. Establishment of an investment portfolio from a variety of stocks or bonds that will maximize a company’s return on investment. • Allocation of a limited advertising budget among radio, TV, and newspaper spots in order to maximize advertising effectiveness. • Determination of a distribution system that will minimize total shipping cost from several warehouses to various market locations. • Selection of the product mix in a factory to make best use of machine and man hours available while maximizing the firm’s profit.

4. These are but a few of the applications of linear programming that we shall discuss in the next few units of this book. All LP problems. As you can see above, seek to maximize or minimize some quantity (usually profit or cost). We refer to this property as the objective of an LP problem. • The second property that LP problems have in common is the presence of restrictions, or constraints, that limit the degree to which we can pursue our objective. We want, therefore, to maximize or minimize a quantity (the objective function) subject to limited resources (the constraints).

5. Formulating Linear Programming Problems A very common linear programming problem is the “product mix” problem. Two or more products are usually formed using limited resources, such as personnel and machines. The profit, which the firm seeks to maximize, is base on the profit contribution per unit of each product. The company would like to determine how many units of each product they should produce so as to maximize overall profit given their limited resources.

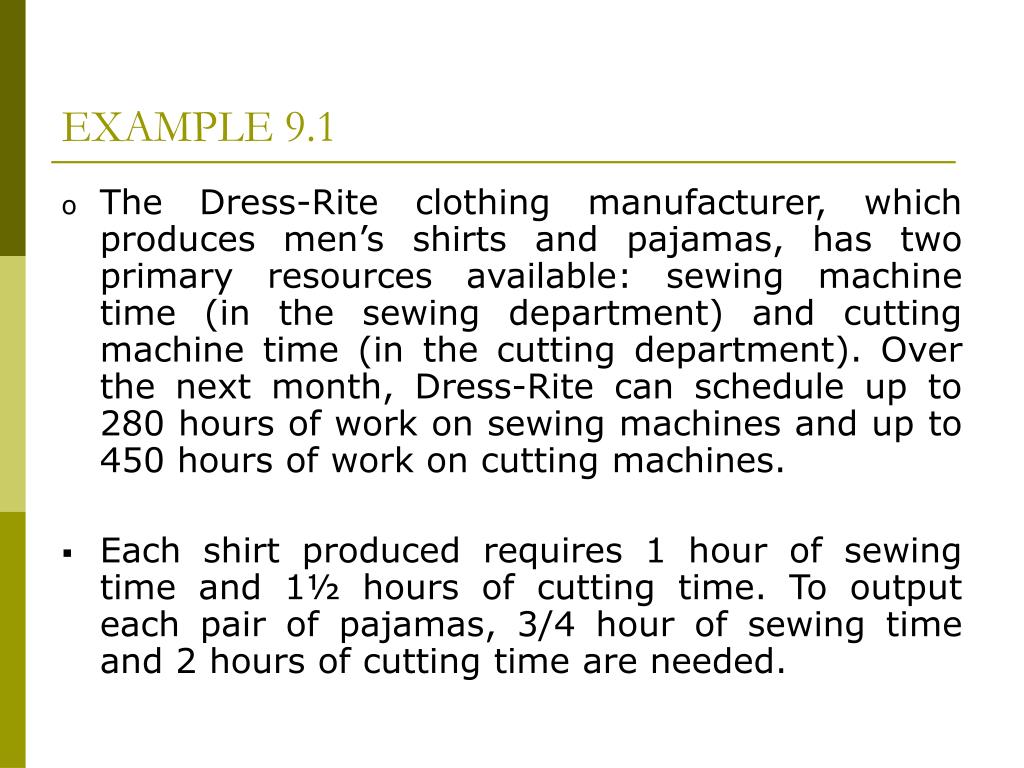

6. EXAMPLE 9.1 • The Dress-Rite clothing manufacturer, which produces men’s shirts and pajamas, has two primary resources available: sewing machine time (in the sewing department) and cutting machine time (in the cutting department). Over the next month, Dress-Rite can schedule up to 280 hours of work on sewing machines and up to 450 hours of work on cutting machines. • Each shirt produced requires 1 hour of sewing time and 1½ hours of cutting time. To output each pair of pajamas, 3/4 hour of sewing time and 2 hours of cutting time are needed.

7. Our goal here is to develop relationships to describe these restrictions. One general relationship is that the amount of resource used is ≤ the amount of resource available. • In the case of the sewing department, for example, the total time used is: • (1 hour/shirt) X (number of shirts produced) + (3/4 hour/pajama) X (number of pajamas produced) • To express the LP constraints for this problem mathematically, we let X1 = number of shirts produced X2= number of pajamas produced

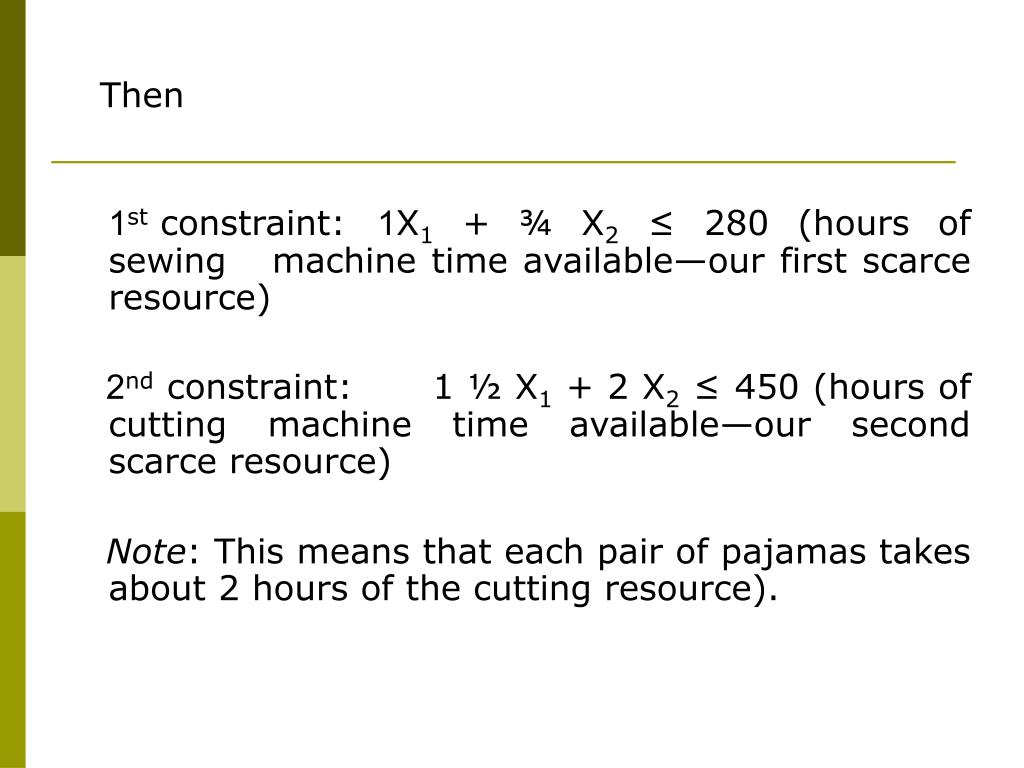

8. Then 1st constraint: 1X1 + ¾ X2 ≤ 280 (hours of sewing machine time available—our first scarce resource) 2nd constraint: 1 ½ X1 + 2 X2 ≤ 450 (hours of cutting machine time available—our second scarce resource) Note: This means that each pair of pajamas takes about 2 hours of the cutting resource).

9. EXAMPLE 9.2 • In Example 9.1, Dress-Rite established two constraints which will keep the company from exceeding the machine time available for production. But the company wants to determine the product mix (of shirts and pajamas) that will maximize its profits. Its accounting department analyzes cost and sales figures and states that each shirt produced will yield a $4 contribution to profit and that each pair of pajamas will yield a $3 contribution to profit.

10. This information can be used to create the LP objective function for this problem. • Objective function: maximize total contribution to profit = $4X1 + $3X2 where again X1 = number of shirts produced X2 = number of pajamas produced

11. EXAMPLE 9.3 • Electro Corp. manufactures two electrical products, air conditioners and fans. The assembly process for each is similar in that both require a certain amount of wiring and drilling. Each air conditioner takes 4 hours of wiring and 2 hours of drilling. Each fan must go through 2 hours of wiring and 1 hour of drilling. During the next production period, 240 hours of wiring time are available and up to 100 hours of drilling time may be used. Each air conditioner sold yields a profit of $27—each fan assembled may be sold for a $15 profit. • Electro would like this production mix situationformulated as a linear programming problem.

12. Let X1 = number of air conditioners to be produced X2 = number of fans to be produced • Objective function: maximize profit = $27 X1 + $15 X2 1st constraint: 4X1 + 2X2 ≤ 240 (hours of wiring time available) 2nd constraint: 2X1 + 1X2 ≤100 (hours of drilling time available) Constraints added to ensure nonnegative solutions: X1 ≥ 0 X2 ≥ 0

13. We see in the previous examples that each linear programming problem contains • an objective function, • certain constraints (resulting from limited resources) which keep the firm from producing unlimited quantities and hence makingunlimited profits, and • certain interactions between variables: namely, the more units of one product produced, the less the firm can make of other products.

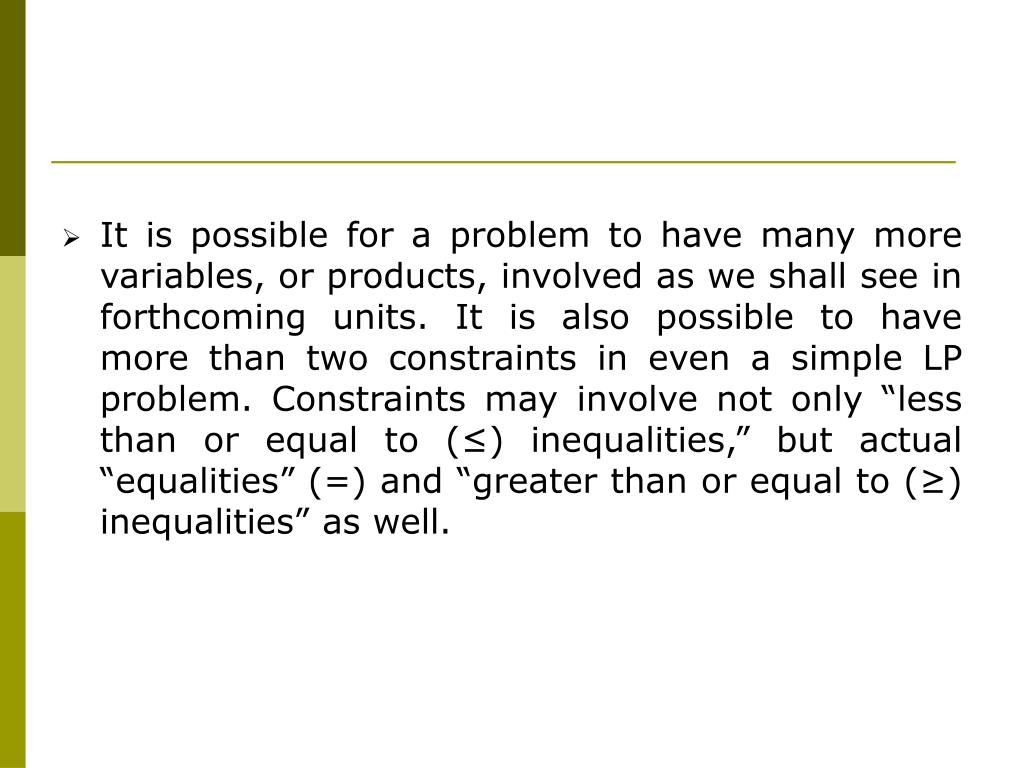

14. It is possible for a problem to have many more variables, or products, involved as we shall see in forthcoming units. It is also possible to have more than two constraints in even a simple LP problem. Constraints may involve not only “less than or equal to (≤) inequalities,” but actual “equalities” (=) and “greater than or equal to (≥) inequalities” as well.

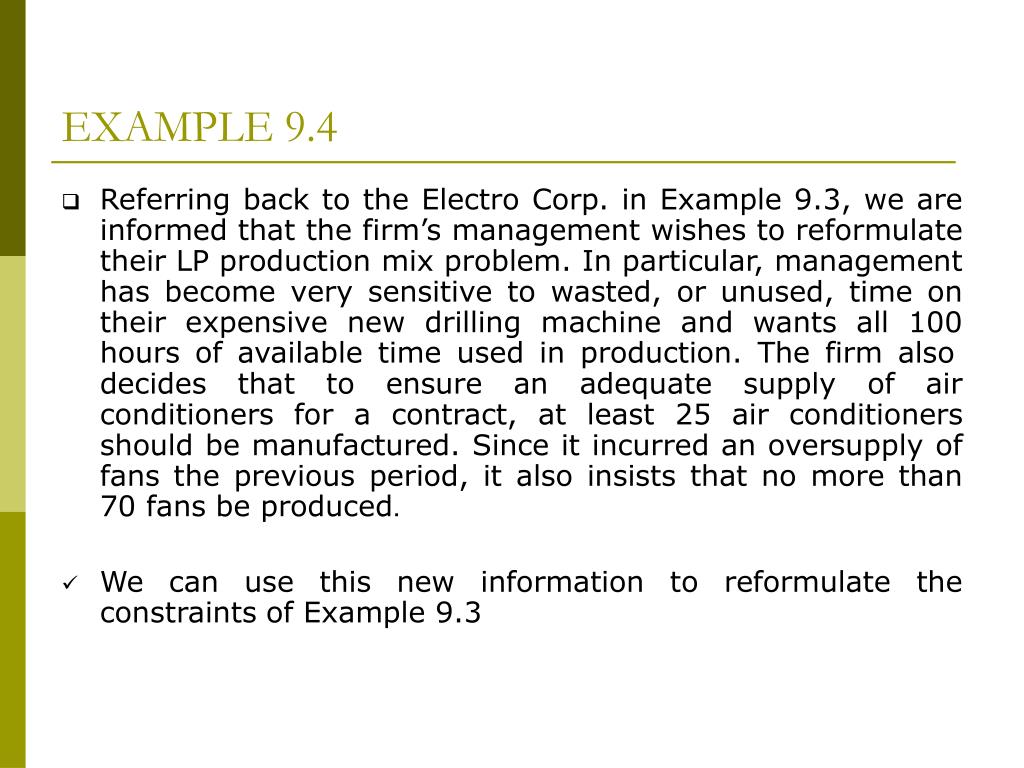

15. EXAMPLE 9.4 • Referring back to the Electro Corp. in Example 9.3, we are informed that the firm’s management wishes to reformulate their LP production mix problem. In particular, management has become very sensitive to wasted, or unused, time on their expensive new drilling machine and wants all 100 hours of available time used in production. The firm alsodecides that to ensure an adequate supply of air conditioners for a contract, at least 25 air conditioners should be manufactured. Since it incurred an oversupply of fans the previous period, it also insists that no more than 70 fans be produced. • We can use this new information to reformulate the constraints of Example 9.3

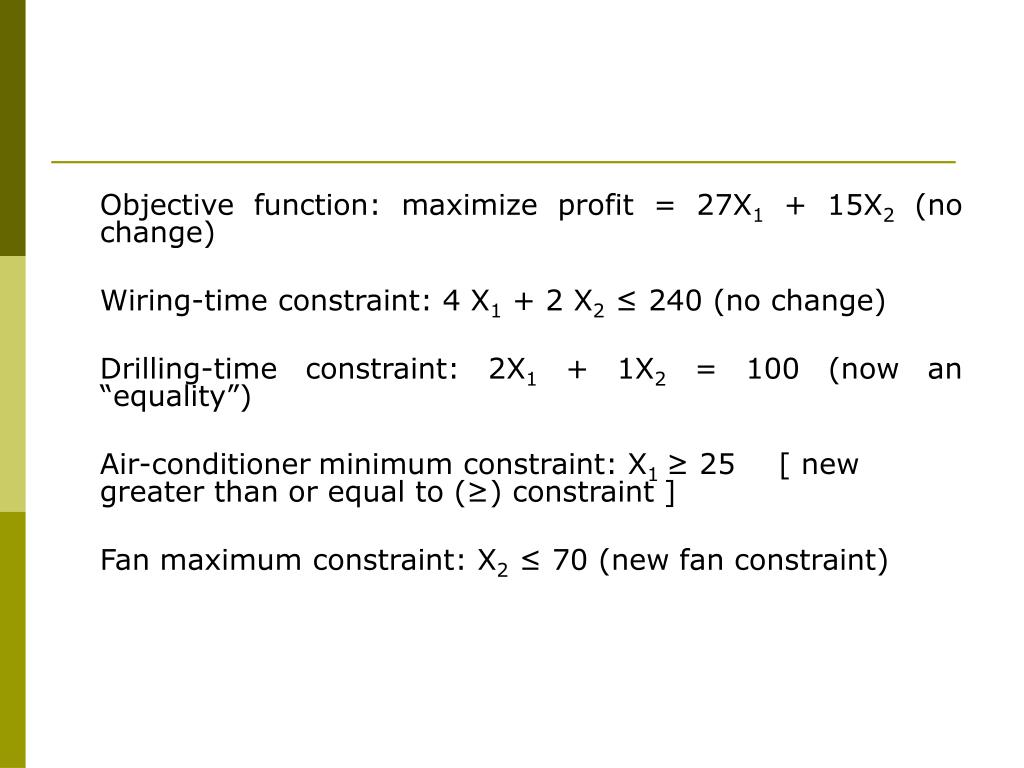

16. Objective function: maximize profit = 27X1 + 15X2 (no change) Wiring-time constraint: 4 X1 + 2 X2 ≤ 240 (no change) Drilling-time constraint: 2X1 + 1X2 = 100 (now an “equality”) Air-conditionerminimum constraint: X1 ≥ 25[ new greater than or equal to (≥) constraint ] Fan maximum constraint: X2 ≤ 70 (new fan constraint)

17. GRAPHICAL REPRESENTATION OF CONSTRAINTS • In order to determine the optimal solution to a linear programming problem, we must first identify a set, or region, of feasible solutions. When there are only two variables in the problem, as in the examples and problems above, this can be accomplished by plotting the constraints on a two-dimensional graph. • The variable X1 is usually treated as the horizontal axis and the variable X2 as the vertical axis. Because of the nonnegativity constraints (i.e., X1 ≥ 0, X2 ≥ 0), we are always working in the first (or northeast) quadrant of the graph. The graphical method of dealing with LP problems is best demonstrated by way of an example.

18. EXAMPLE 9.5 • The Flair Furniture Company producesinexpensive tables and chairs. it has formulated the following LP problem: Maximize profit =$7X1 + $5X2 subject to: 4X1 + 3X2 ≤ 24 (constraint A) 2 X1 + 1X2 ≤ 10 (constraint B) X1 ≥ 0, X2 ≥ 0 where X1 stands for the number of tables produced and X2 stands for the number of chairs produced. We would like to graphically represent the constraints of this problem. • The first step is convert the constraint inequalities into equalities (or equations): • 4X1 + 3X2 = 24 (A) 2X1 + 1X2 = 10 (B)

19. The equation on the left (A) is plotted in Figure 9.1(A) and the one on the right in Figure 9.1(B). To plot

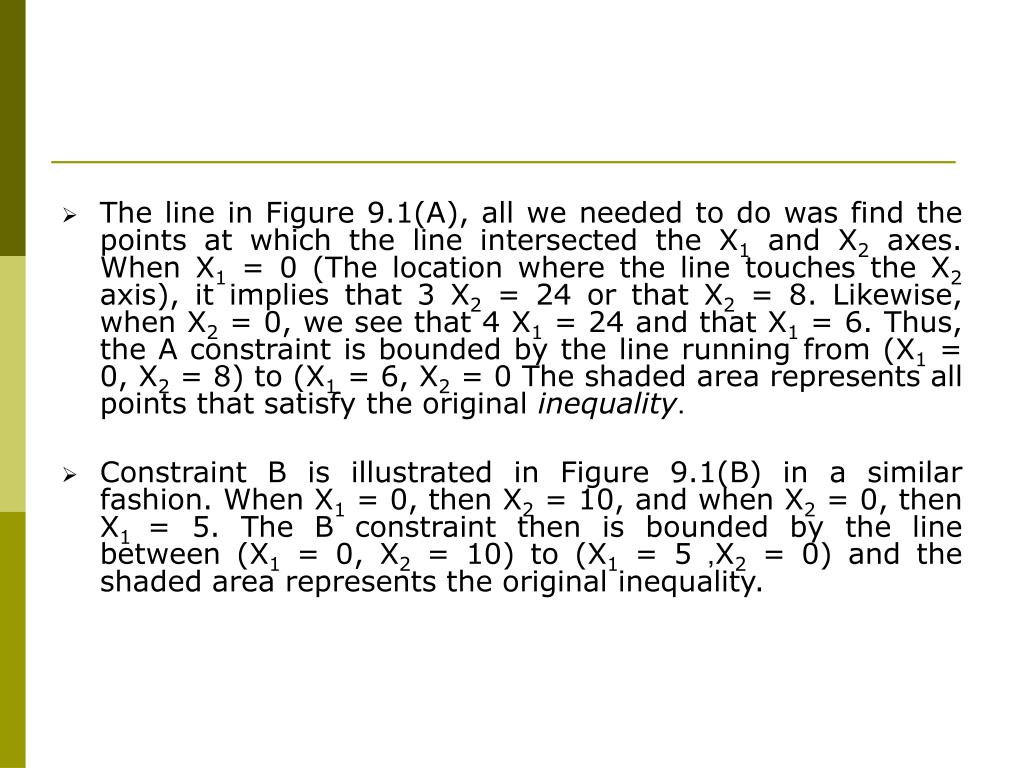

20. The line in Figure 9.1(A), all we needed to do was find the points at which the line intersected the X1 and X2 axes. When X1 = 0 (The location where the line touches the X2 axis), it implies that 3 X2 = 24 or that X2 = 8. Likewise, when X2 = 0, we see that 4 X1 = 24 and that X1 = 6. Thus, the A constraint is bounded by the line running from (X1 = 0, X2 = 8) to (X1 = 6, X2 = 0 The shaded arearepresents all points that satisfy the original inequality. • Constraint B is illustrated in Figure 9.1(B) in a similar fashion. When X1 = 0, then X2 = 10, and when X2 = 0, then X1 = 5. The B constraint then is bounded by the line between (X1 = 0, X2 = 10) to (X1= 5, X2 = 0)and the shaded area represents the original inequality.

21. Figure 9.2 shows both constraints together- the shaded region is the part that satisfies both restrictions.

22. The shaded region in Figure 9.2 is called the area of feasible solutions or simply the feasible region. This region must satisfy all conditions specified by the program’s constraints, and is thus the region where all constraints overlap. Any point in the region would be a feasible solution to the Flair Furniture Company problem—any point outside the shaded area would represent an infeasible solution. Hence, it would be feasible to manufacture 3 tables and 2 chairs (X1 =3, X2=2), but it would violate the constraints to produce 7 tables and 4 chairs.

23. THE CORNER-POINT SOLUTION METHOD • There are several approaches that can be taken in solving for the optimal solution once the feasible region has been established graphically. The simplest one conceptually is called the corner-point method. The mathematical theory behind linear programming states that the optimal solution to any problem (that is, the values of the X1 variables which yield the maximum profit or minimum cost) will lie at a corner point, or extreme point, of the feasible region. Hence, it is only necessary to find the values of the variables at each corner—the maximum profit or optimal solution will lie at one of them. This concept is illustrated in Example 9.6

24. point a: (X1 = 0, X2 = 0)profit = ($7)(0) + ($5)(0) = $0 • point b: (X1 = 0, X2 = 8)profit = ($7)(0) + ($5)(8) = $40 • point d: (X1 = 5, X2 = 0)profit = ($7)(5) + ($5)(0) = $35

25. We skipped corner point c momentarily because to accurately establish its coordinates, it is necessary to solve for the intersection of the two constraint lines. To do so, we apply the method of simultaneous equations to 4X1 + 3X2 = 24 and 2X1 + 1X2 = 10 • Multiply the second equation by -2 and add it to the first equation: 4X1 + 3X2 = 24 -4X1 - 2X2 =-20 [ which is –(2)(2X1+ 3X2 = 10)] 1X2 = 4 • When X2= 4, then 4X1 + (3)(4)= 24,implying that 4X1= 12or X1= 3.Now we can evaluate point c point C: (X1 = 3, X2 = 4) profit = ($7)(3) + ($5)(4) =$41

26. Because point c produces the highest profit of any corner point, the product mix X1 = 3 tables and X2 = 4 chairs is the optimal solution to Flair Furniture’s problem. This solution will result in a profit of $41.

27. Note: Although the optimal solution to Example 9.6 and Problems 9.6 and 9.7 fell at a corner point which was located at the intersection of two constraint equations, this is by no means always the case. The optimalsolution could just as easily have been at a corner bordering on the X1 or X2 axis (such as points b or d in Example 9.6). It all depends upon the values of the objective function coefficients and the angle of the profit line. This topic is discussed next.

28. THE ISO-PROFIT-LINE SOLUTION METHOD • A second approach to graphically solving linear programming problems employs the iso-profit line. This technique is often more speedy than the corner-point method, for we do not have to evaluate the profit at every corner. Instead, we draw a series of parallel profit lines. Any point along a particular iso-profit line will have the same profit or value of the objective function. The highest profit line (or one farthest from the zero origin) which touches the feasibleregion pinpoints the optimal solution.

29. EXAMPLE 9.7 • The objective function for an LP problem is given as: maximize profit = 2X1 + 8X2 • The corresponding feasible region has been graphed in Figure 9.4. We wish to determine which corner point is optimal usingthe iso-profit-line solution method.

31. We may begin by selecting any profit level, for example, P=$200, and drawing its (dashed) iso-profit line. Is therea higher possible profit line which touches a corner of the feasible region? The answer appears to be yes, and by drawing a series of parallel profit lines farther and farther away from the origin, we eventually reach the tip of the feasible region (atcorner point b). The profit there will be P = $2(X1 = 0) + 8(X2 = 50) = 2(0) + 8(50) = $400. Thus, the maximum profit line is 400 = 2X1 + 8X2

32. MINIMIZATION PROBLEMS IN LINEAR PROGRAMMING • Many linear programming problems involve minimizing an objective such as cost, instead of maximizing a profit function. Basically the same graphical approachesmay be applied to solving these types of problems.

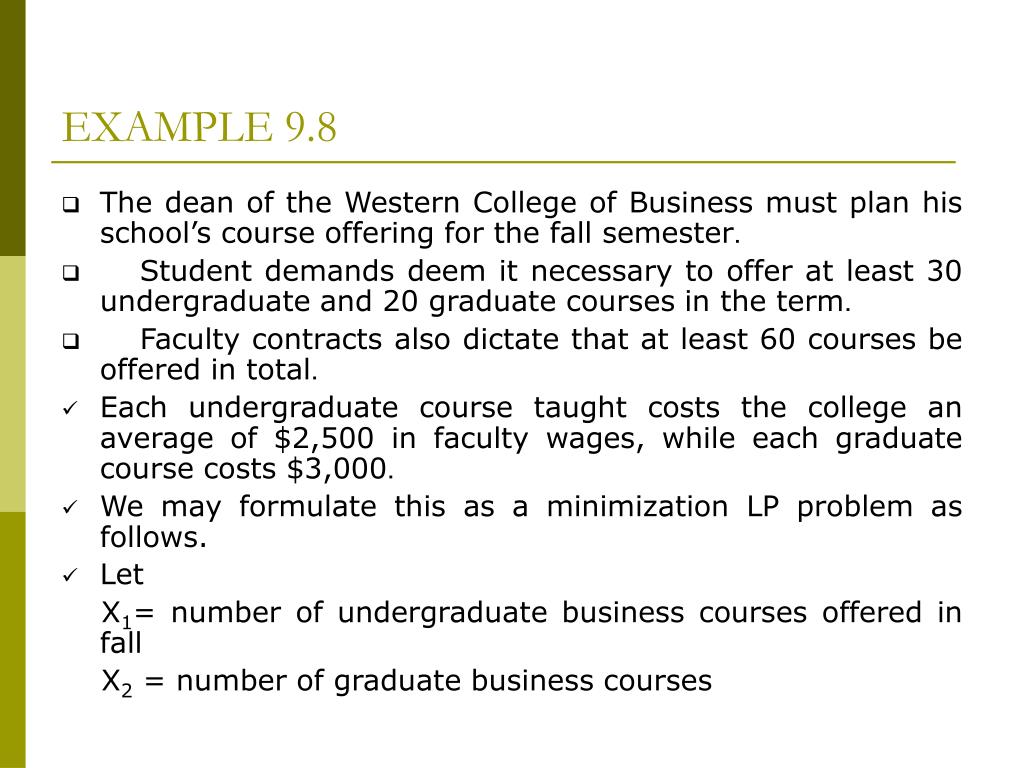

33. EXAMPLE 9.8 • The dean of the Western College of Business must plan his school’s course offering for the fall semester. • Student demands deem it necessary to offer at least 30 undergraduate and 20 graduate courses in the term. • Faculty contracts also dictate that at least 60 courses be offered in total. • Each undergraduate course taught costs the college an average of $2,500 in faculty wages, while each graduate course costs $3,000. • We may formulate this as a minimization LP problem as follows. • Let X1= number of undergraduate business courses offered in fall X2 = number of graduate business courses

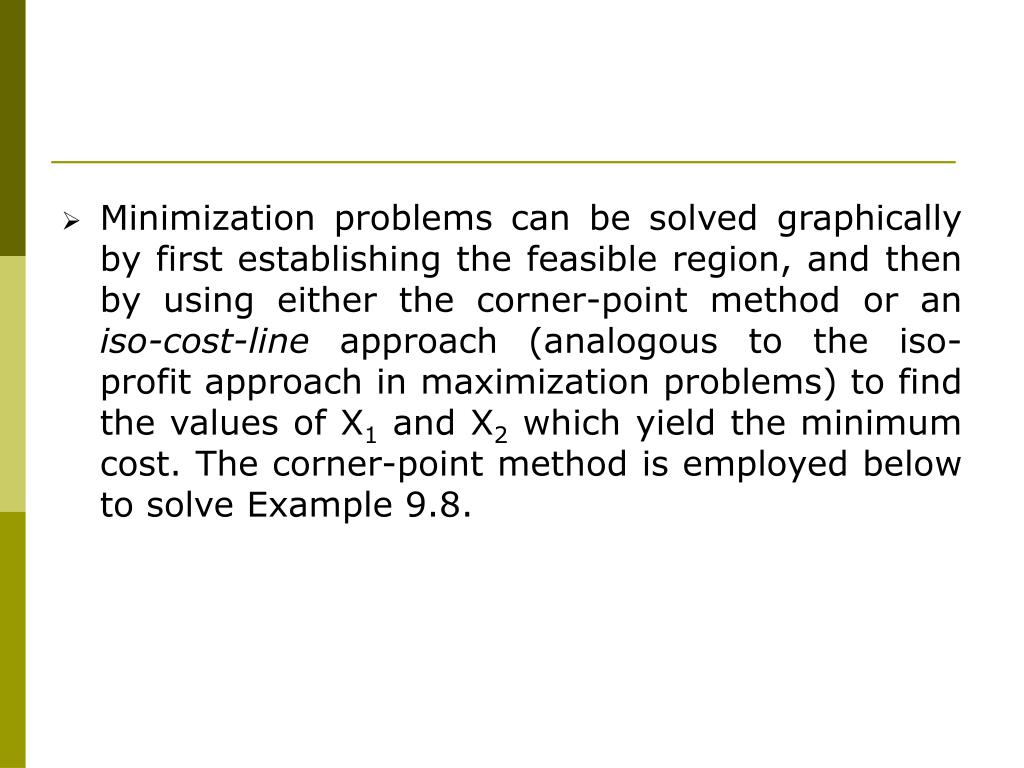

34. Minimization problems can be solved graphically by first establishing the feasible region, and then by using either the corner-point method or an iso-cost-line approach (analogous to the iso-profit approach in maximization problems) to find the values of X1 and X2 which yield the minimum cost. The corner-point method is employed below to solve Example 9.8.

35. EXAMPLE 9.9 • To solve Example 9.8 graphically, we construct the problem’s feasible region (Figure 9.5). Minimization problems are often unbounded outward (that is, on the right side and on the top), but this causes no problem in solving them. As long as they are bounded inward (on the left side and the bottom), corner points may be established. The optimal solution will lie at one of the corners.

37. In the case above, there are only two corner points, a and b. It is easy to determine that at point a, X1= 40 and X2= 20 and that at point b, X1= 30 and X2= 30. The optimal solution is found at the point yielding the lowest total cost. total cost at a = $2,500 X1 + $3,000 X2 = (2,500)(40) + (3,000)(20) = $160,000 total cost at b = $2,500 X1 + $3,000 X2 = (2,500)(30) + (3,000)(30) = $165,000 The lowest cost to the college is at point a; hence, the dean should schedule 40 undergraduate courses and 20 graduate courses.

38. As mentioned, the iso-cost-line approach may also be used to solve LP minimization problems. As with iso-profit lines (see Example 9.7 and Problem 9.8), we need not compute the cost at each corner point, butinstead draw several parallel cost lines, The lowest cost line to touch the feasible region provides us with the optimal solution corner.
