From Scatterbrained to Focused: UI Support for Today’s Crazed Info Worker

1. From Scatterbrained to Focused: UI Support for Today’s Crazed Info Worker Mary Czerwinski, Principal Researcher Manager, VIBE, Microsoft Research

2. Overview • Background Studies • Diary study • Large display findings • Information worker productivity • Programmer productivity and business intelligence • Future directions

3. Diary Study: Motivation • Hypothesis: Current software does not support multitasking well • How bad/universal is the problem? • Seek SW design ideas… • Research shows users developing workaround strategies • Interruptions research shows harmful effects of incoming notifications on current task • Memory for To Do’s poor, undersupported • Need to better understand task switching and multitasking

4. Method • 10 multitasking users recruited • An excel spreadsheet was used as a diary “template” to be filled out each day • Diaries emailed back to me each evening • Participants instructed to write down every “task switch” • how hard to switch, # of docs required, # of interrupts experienced, task time, anything forgotten, notes, etc.

5. Partial diary for MS (6 hours)

6. Task Frequencies Breakdown Indicative of Difficulty Tracking Tasks “Returned to” Tasks from this group

7. Frequency of Task Shift Initiators

8. Difficulty Switching by Type

9. Task Length by Type

10. Document Requirements by Task Type

11. Interruptions by Task Type

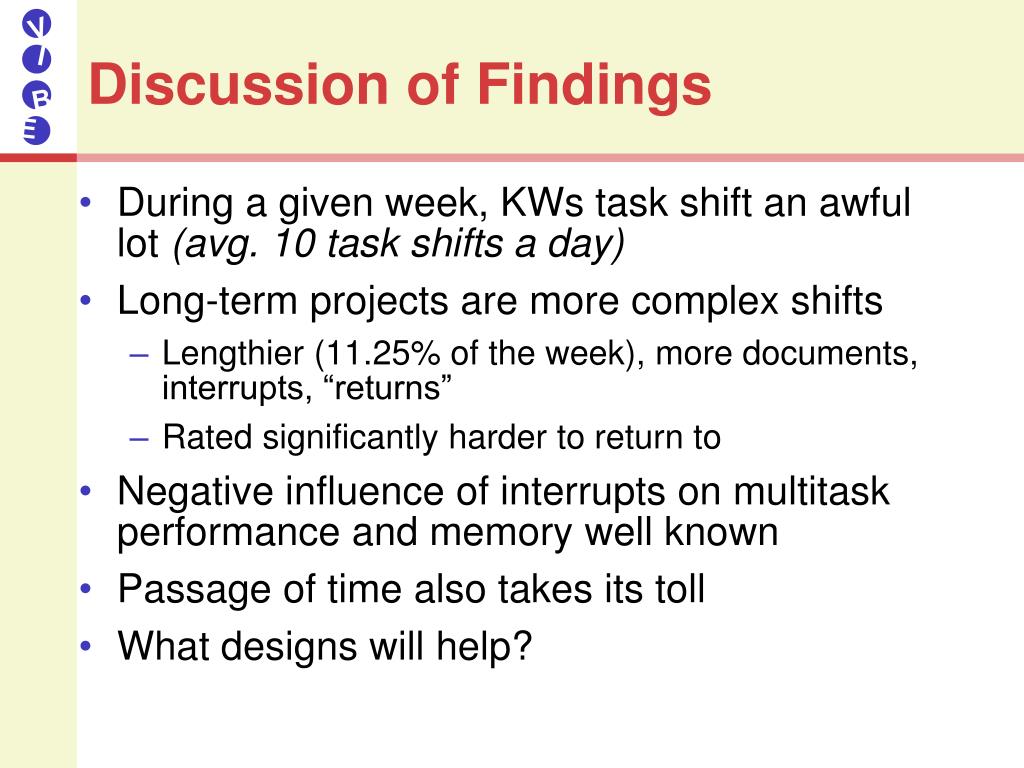

12. Discussion of Findings • During a given week, KWs task shift an awful lot (avg. 10 task shifts a day) • Long-term projects are more complex shifts • Lengthier (11.25% of the week), more documents, interrupts, “returns” • Rated significantly harder to return to • Negative influence of interrupts on multitask performance and memory well known • Passage of time also takes its toll • What designs will help?

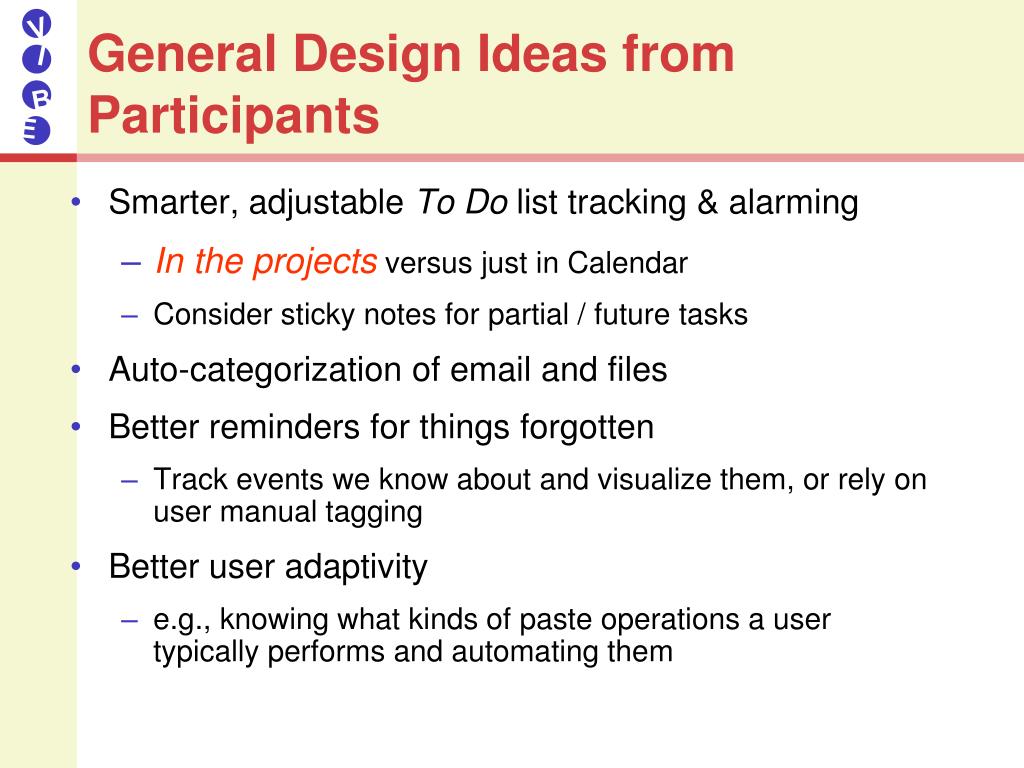

13. General Design Ideas from Participants • Smarter, adjustable To Do list tracking & alarming • In the projects versus just in Calendar • Consider sticky notes for partial / future tasks • Auto-categorization of email and files • Better reminders for things forgotten • Track events we know about and visualize them, or rely on user manual tagging • Better user adaptivity • e.g., knowing what kinds of paste operations a user typically performs and automating them

14. Focus on Returned to Tasks • Elapsed time spanned hours to days • Maintaining desktop state isn’t always the answer • Often, users said they were waiting on info from other people or places (web, server)—prospective reminders needed here • Info came in via phone, email, web, or personal contacts (better app integration needed here) • But reminding about task context and info assembly / layout was a key problem identified

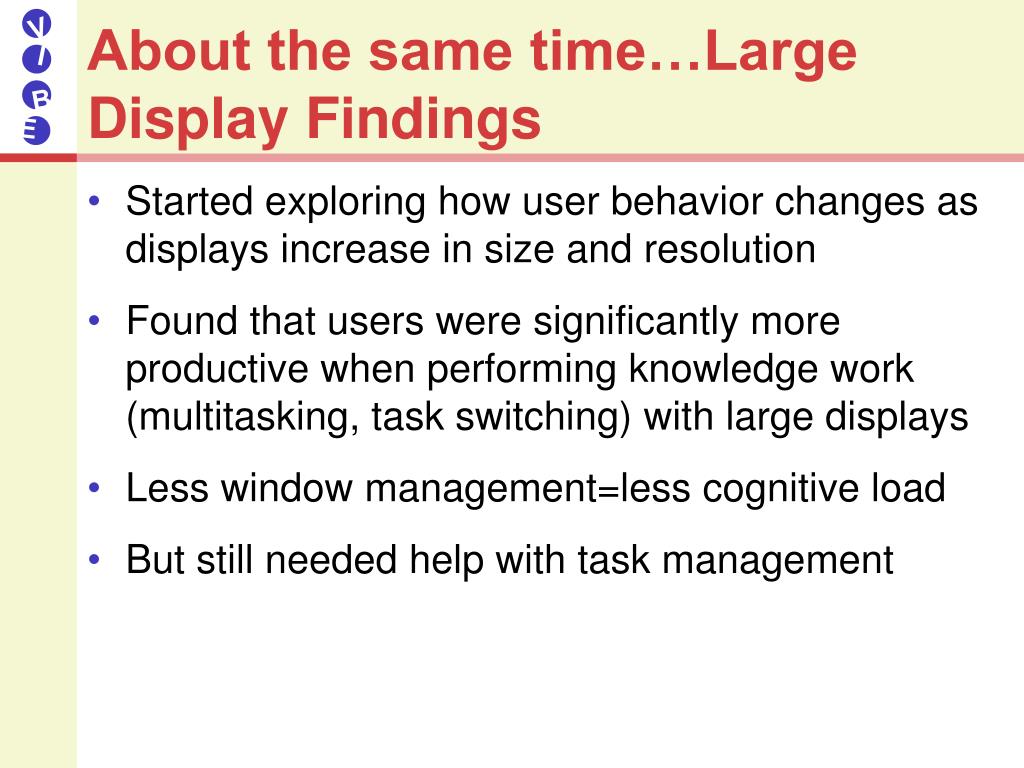

15. About the same time…Large Display Findings • Started exploring how user behavior changes as displays increase in size and resolution • Found that users were significantly more productive when performing knowledge work (multitasking, task switching) with large displays • Less window management=less cognitive load • But still needed help with task management

16. Color Plate 1. Scalable Fabric showing the representation of three tasks as clusters of windows, and a single window being dragged from the focus area into the periphery. Tools for Task Management • GroupBar joins related items in the taskbar, remembers spatial layouts of tasks (Smith et al., 2003) • Desktop “snapshots” • Can “rehydrate” tasks with the press of a button • Scalable Fabric and VibeLog (AVI 2004) • Over 5000 downloads of SF • Logging of task activity

17. New iWorker Productivity Solutions • Task Tracking • Event logging: StatusWriter • Dev team navigation tracking • FacetMap and FaThumb • Sensing and adapting

18. Swish: Semantic Analysis of Window Titles and Switching History Nuria Oliver, Greg Smith, Chintan Thakkar, Arun Surendran

19. Automatic Window Clustering • Goal: • Assist users in managing their tasks • Assumption: • Windows belonging to the same task share some common features that can be identified from data • In SWISH we explore: • Title-based clustering (“Re: Dad, get me Potter-6” & “Amazon: Harry Potter and the Half Blood Prince” ) • Behavior-based (switching history) clustering (Looking into the MSDN Library while coding in Visual Studio)

20. Top 3 keywords A few exemplary titles Harry Potter Book Cluster 1 Donna Review Malayeri Cluster 2 Expedia Flight Trip Cluster 3

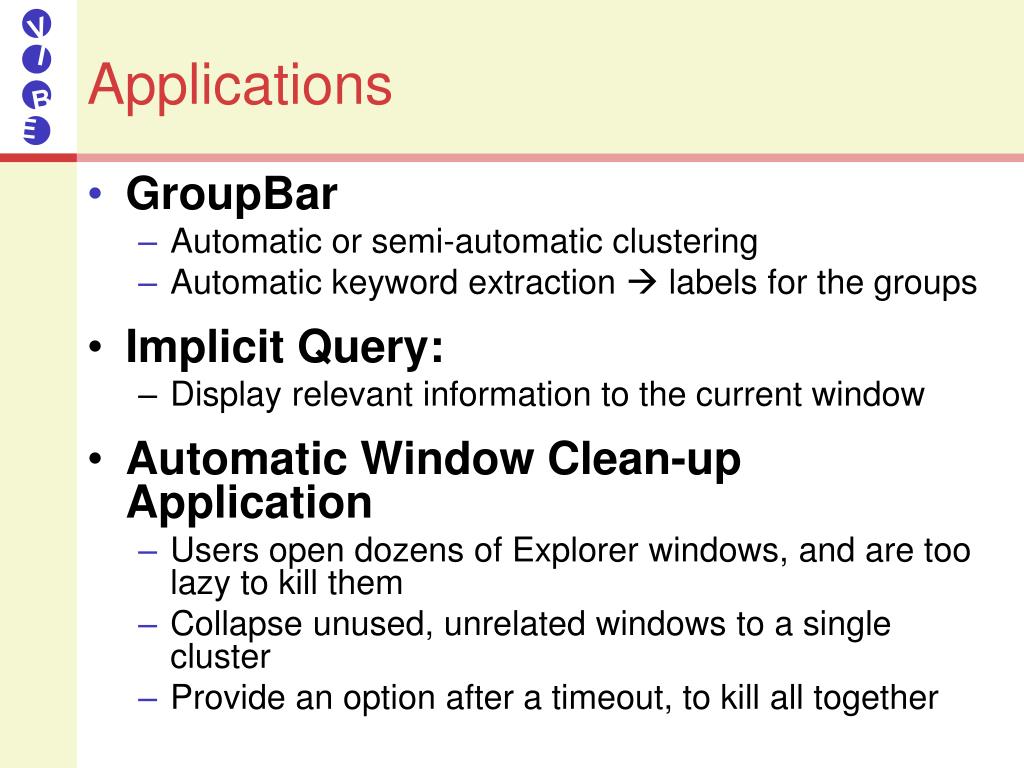

21. Applications • GroupBar • Automatic or semi-automatic clustering • Automatic keyword extraction  labels for the groups • Implicit Query: • Display relevant information to the current window • Automatic Window Clean-up Application • Users open dozens of Explorer windows, and are too lazy to kill them • Collapse unused, unrelated windows to a single cluster • Provide an option after a timeout, to kill all together

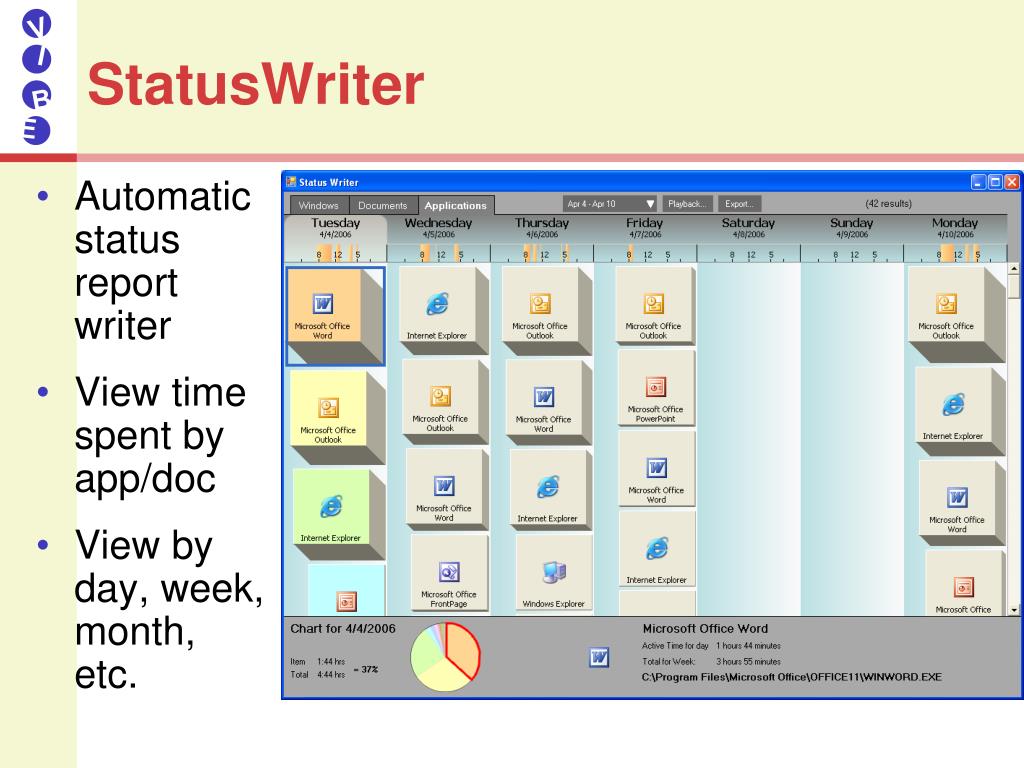

22. StatusWriter • Automatic status report writer • View time spent by app/doc • View by day, week, month, etc.

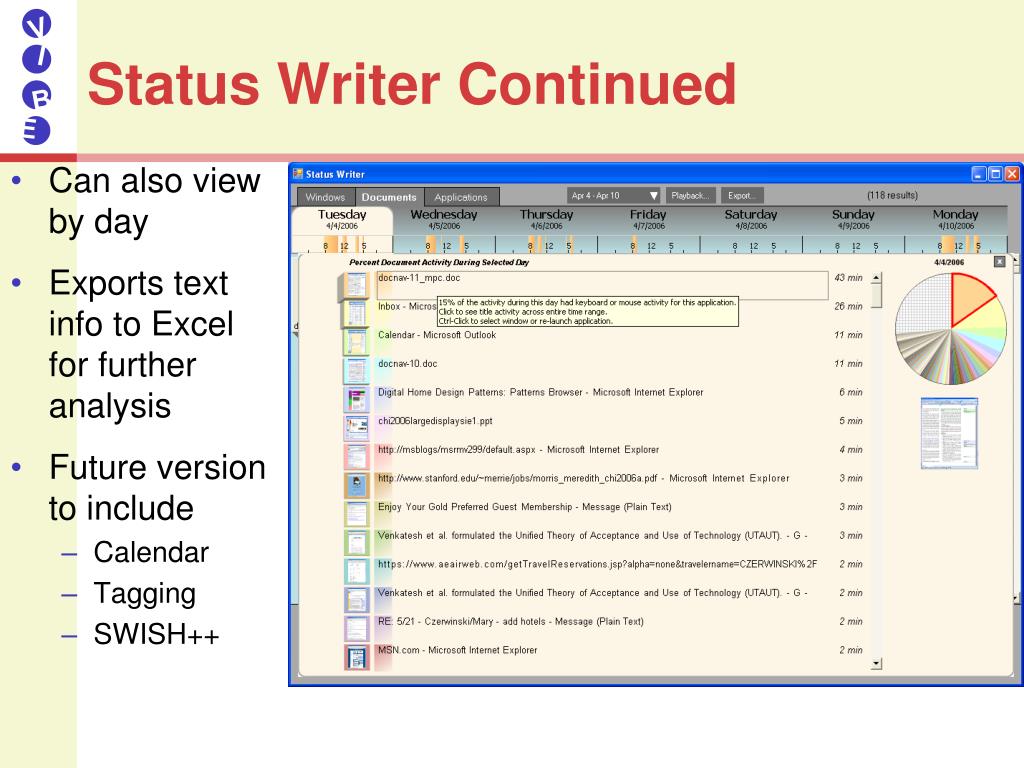

23. Status Writer Continued • Can also view by day • Exports text info to Excel for further analysis • Future version to include • Calendar • Tagging • SWISH++

24. Clipping Lists and Change BordersPeripheral Information Display Tara Matthews, Mary Czerwinski, George Robertson, and Desney Tan

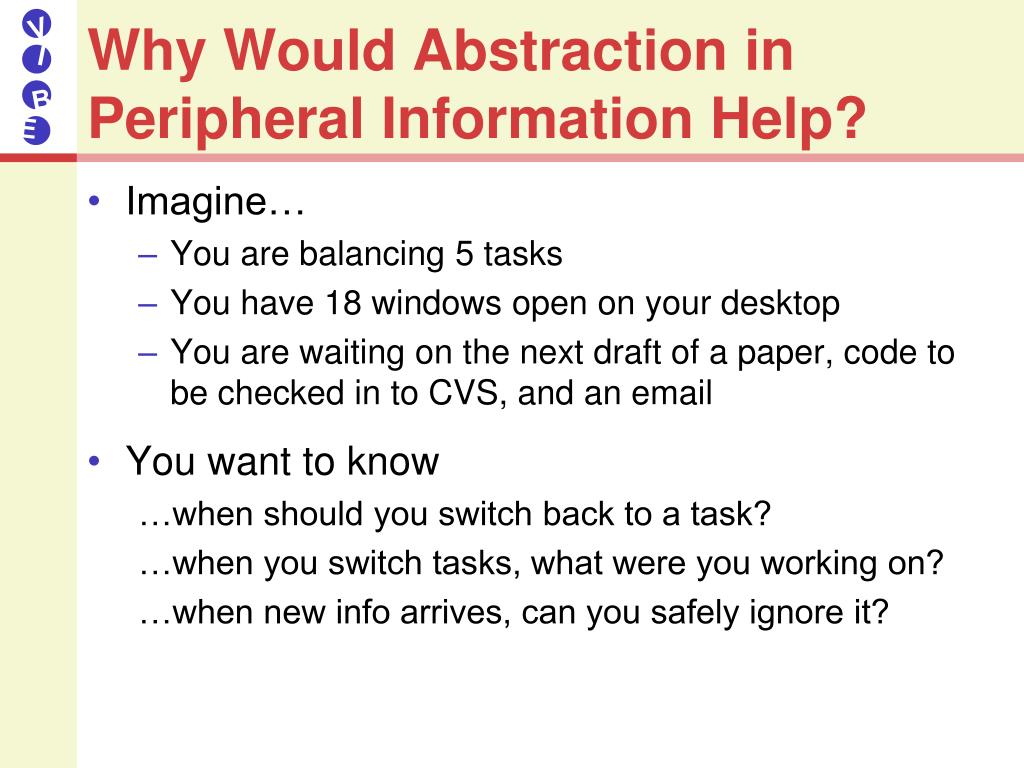

25. Why Would Abstraction in Peripheral Information Help? • Imagine… • You are balancing 5 tasks • You have 18 windows open on your desktop • You are waiting on the next draft of a paper, code to be checked in to CVS, and an email • You want to know …when should you switch back to a task? …when you switch tasks, what were you working on? …when new info arrives, can you safely ignore it?

26. Study of Proposed Solutions:Clipping Lists and Change Borders • Compare interfaces w/ varying types of abstraction • All interfaces based on Scalable Fabric (SF) • Abstraction types: • Change detection • Semantic content extraction • 4 interfaces:

27. Baseline: Scalable Fabric • Tasks as piles • Windows shrunken

28. Change Borders • Adds red borders around windows changing content • Border turns green when change is complete

29. Clipping Lists • Extracts window content • Two ways to select content • Default: title bar • User WinCut • Future: AI • Goal of selection: • Help w/ recognition, resumption timing, and flow

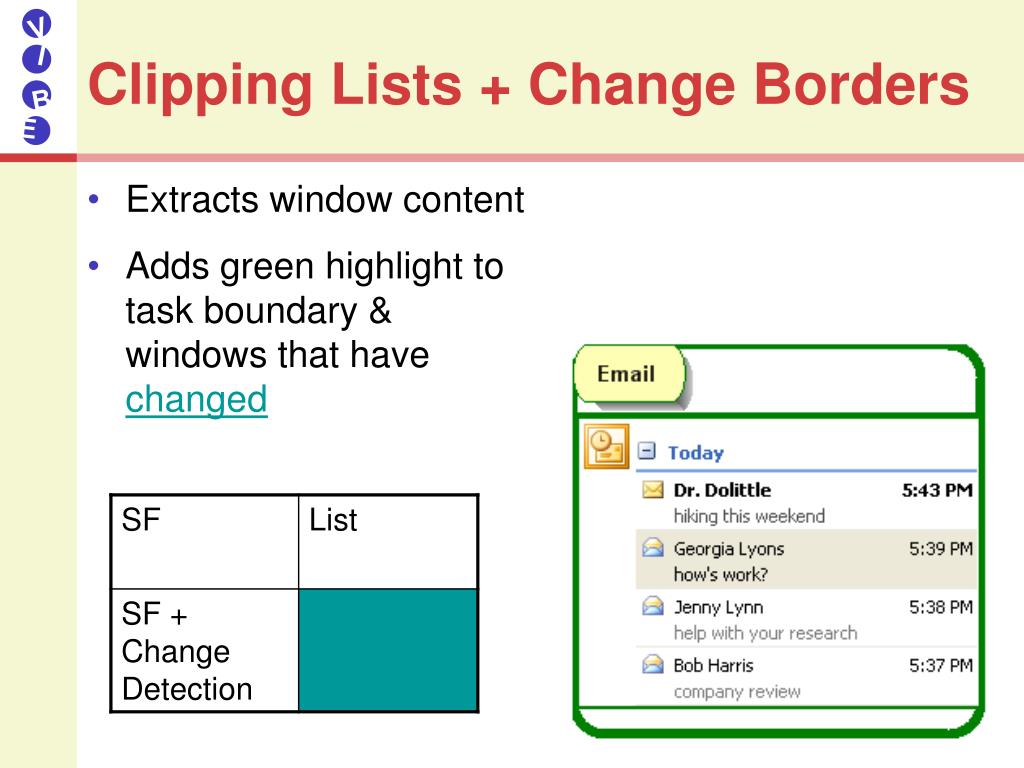

30. Clipping Lists + Change Borders • Extracts window content • Adds green highlight to task boundary & windows that have changed

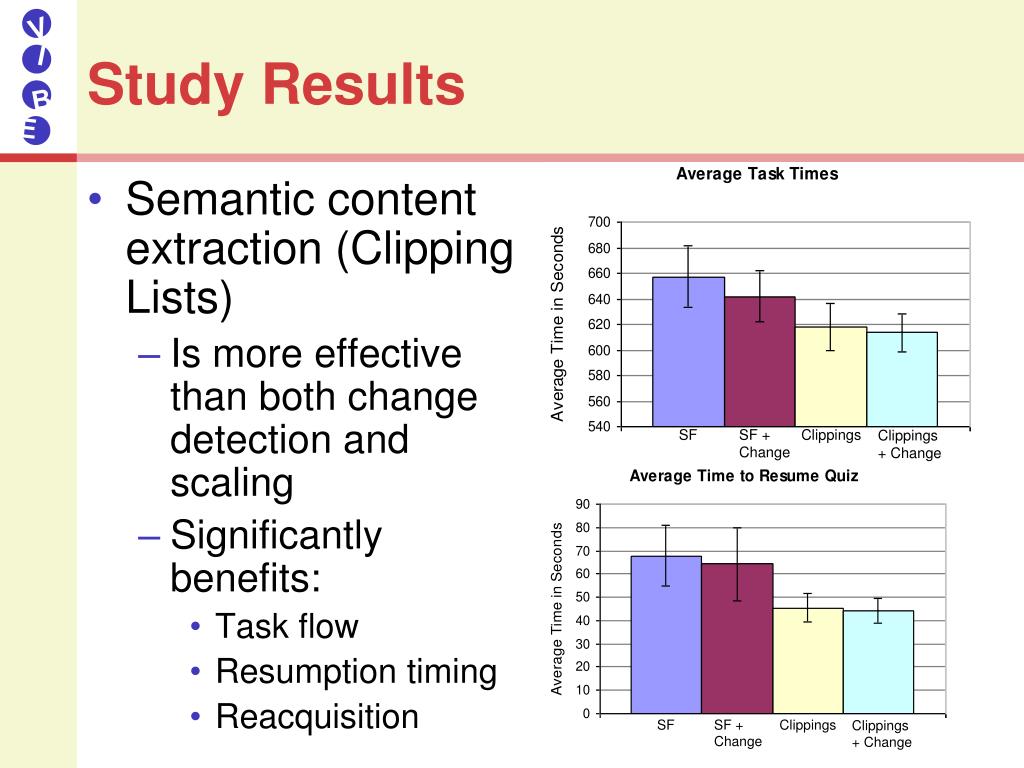

31. Study Results • Semantic content extraction (Clipping Lists) • Is more effective than both change detection and scaling • Significantly benefits: • Task flow • Resumption timing • Reacquisition

32. Programmer Productivity: Team Tracks • We have observed devs struggling with unfamiliar code • Inefficient navigation to find task-relevant code • Misleading results of text searches • Disorientation from too much navigation, too many open files, interruptions • [DeLine, Khella, Czerwinski, Robertson SoftVis ’05], [Ko, Aung, Myers ICSE ’05] • Team Tracks guides code exploration • Records the team’s code navigation during development • Mines that data to prune the working set and guide navigation

34. Evaluating Team Tracks • Study 1: Does nav frequency indicate importance? • Setup: Four programming tasks, then ratings questionnaire and quiz • Dependent measures: code paths, task completion, ratings, quiz scores • Hypothesis: Navigation frequency correlates to importance rating [reported at SoftVis ’05] • Study 2: Does Team Tracks improve productivity? • Use Team Tracks with Group 1’s navigation data • Same set up and dependent measures • Hypothesis: Team Tracks improves task completions and quiz scores

35. Navigation frequency does correlate with importance ratings • Pearson product moment correlation, r=0.79, p<0.01

36. Team Tracks does improve task completion rates and quiz scores • Improved task completion rates • All completed tasks 1 and 2 • Task 3 (localized code): 1 / 7 without, 3 / 9 with Team Tracks • Task 4 (dispersed code): 1 / 7 without, 7 / 9 with Team Tracks • Group 2 quiz scores significantly higher t(16)=-2.04, p<.03 • IE 8.0 team deployment ethnography next • Added annotations and other features

37. FaThumb A Facet-based Interface for Mobile Search Amy K. Karlson (U of Maryland), George Robertson, Daniel C. Robbins, Mary Czerwinski, Greg Smith VIBE Group Microsoft Research

38. Current Query Search Terms Results Facet Navigation Menu Standard keypad FaThumb: Overview + Video • Keypad is least-common-denominator • Cell-phone • Remote control • ATM • Number key-pad • Typing text is hard • Let users browse data attributes taxonomy (facets)

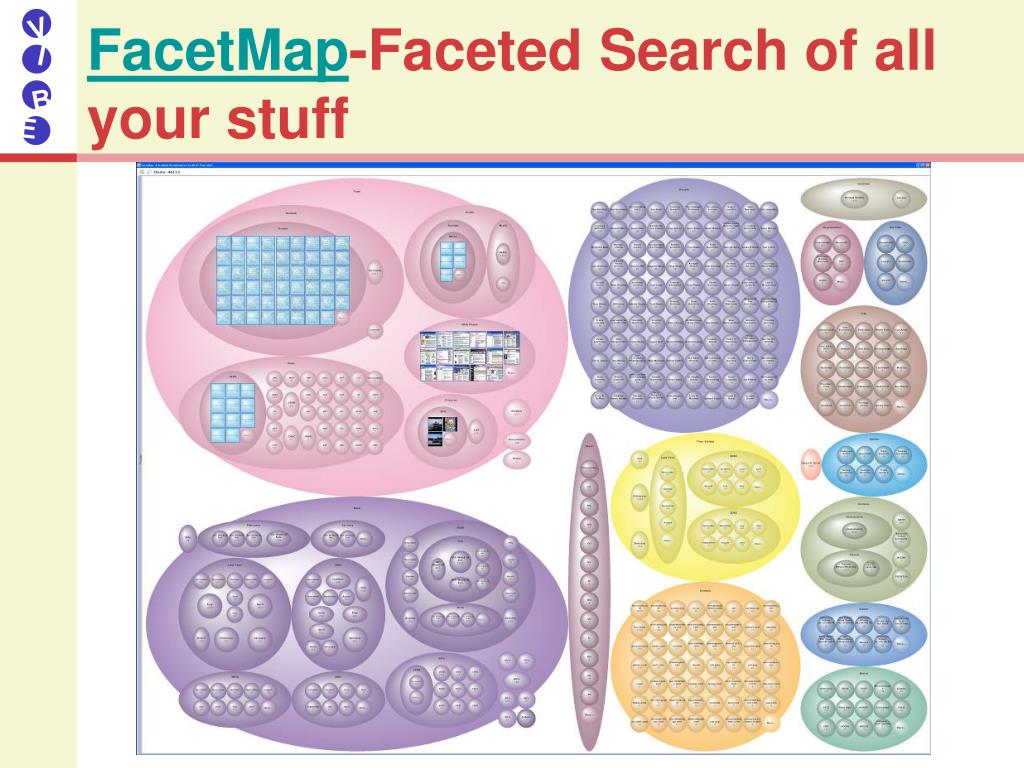

39. FacetMap-Faceted Search of all your stuff

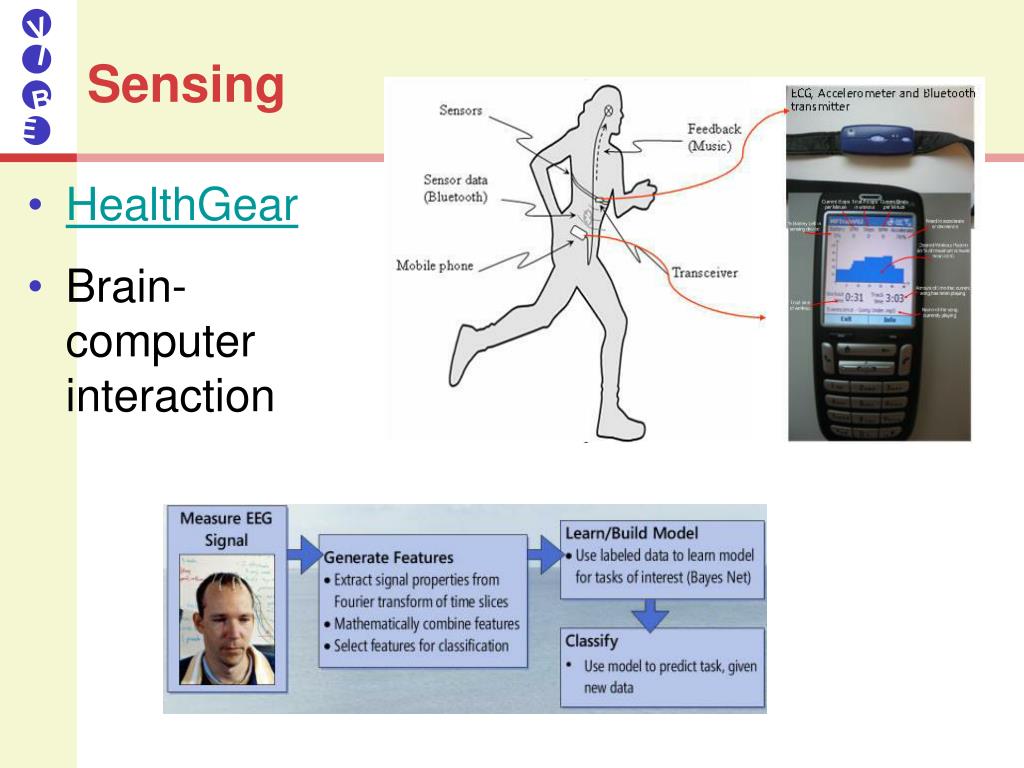

40. Sensing • HealthGear • Brain-computer interaction

41. Future Directions • Information worker productivity • Intelligent summaries and visualizations of tasks • IR & Info Vis • FacetMap • FaThumb on SmartPhone • Info vis toolkit prototype in January • Rich desktop search client • Interaction techniques • Adaptive UI: study predictability • Other, step-based UIs • Sensing • HealthGear: whole new line of research and networking to be done • BCI: actually use it while running real applications

42. Thank you for your attention!
