Advanced Thermal Cycler (Basic)

An advanced thermal cycler is a cutting-edge laboratory instrument designed to facilitate precise and efficient polymerase chain reaction (PCR) processes.<br>An advanced thermal cycler incorporates gradient temperature control, enabling the creation of a temperature gradient across samples. This feature is <br>crucial for optimizing PCR conditions in multi-sample experiments.The thermal cycler supports different PCR tube or plate formats, ensuring <br>compatibility with diverse experimental setups and laboratory preferences.

Kimber4
Télécharger la présentation

Advanced Thermal Cycler (Basic)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

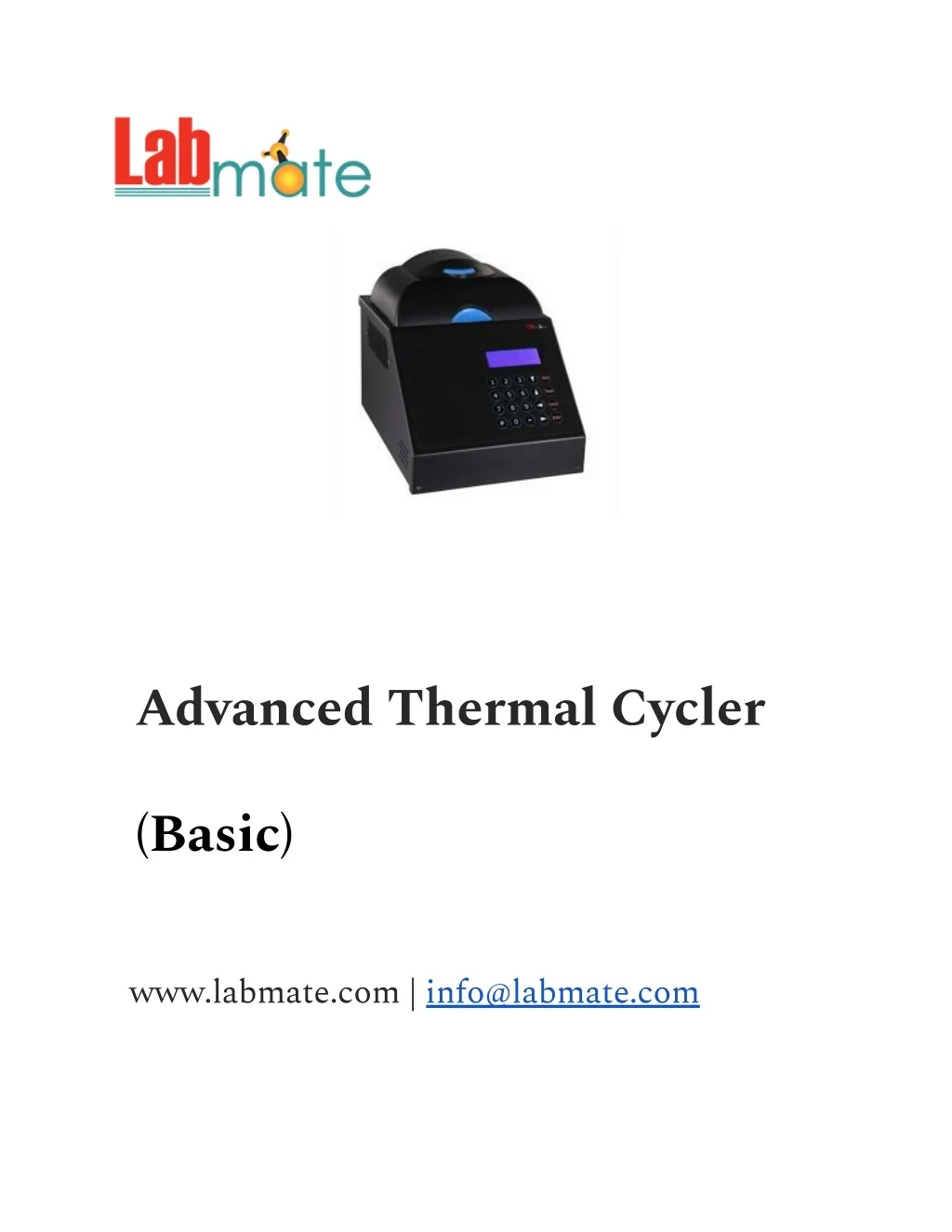

  1. Advanced Thermal Cycler (Basic) www.labmate.com | info@labmate.com

  2. Overview: An advanced thermal cycler is a cutting-edge laboratory instrument designed to facilitate precise and efficient polymerase chain reaction (PCR) processes.An advanced thermal cycler incorporates gradient temperature control, enabling the creation of a temperature gradient across samples. This feature is crucial for optimizing PCR conditions in multi-sample experiments.The thermal cycler supports different PCR tube or plate formats, ensuring compatibility with diverse experimental setups and laboratory preferences. Specifications :

  3. Block Capacity 48 wells x 0.2 mL + 48 wells x 0.5 mL Block Temperature 0 °C - 99 °C Range Temperature ≤ ± 0.2 °C Accuracy Temperature ≤ ± 0.2 °C Uniformity Ramping Rate 0.1 °C - 3 °C Heating Rate 3 °C/s

  4. Cooling Rate 2 °C/s Display Resolution 0.1 °C Hot-lid 105 ℃ Temperature Max No. of 125 Program Max No. of Cycles 99 Increment / 1 - 60 sec (Long Decrement Time PCR)

  5. Increment / 0.1 °C - 10.0 ℃ Decrement (Touchdown PCR) Temperature Display Blue Light LCD Display Power 500 W Consumption Power Supply AC 175 / 275 V; 50 / 60 Hz Dimension 315 x 240 x 275 mm

  6. Net Weight 9.8 Kg Features : - Real time observation on Blue Light LCD display - Peltier based heating and cooling control - Stepless adjustable Hot-lid to avoid evaporation - Adjustable Ramping rate for rapid operation - Auto shut off when temperature is ˂ 30 °C or a?er cycle - Auto pause / start during technical errors

  7. - Block / Tube temperature control mode Labmate Scientific Email: info@labmate.com | Website: www.labmate.com
