Cooling-Incubator

Kimber4 avatar
Kimber4
4 diapositives · 32 Views · Jan 19, 2024

Cooling Incubator functions at a high standard, making safe, reproducible incubation feasible even at extreme temperatures. The stainless-steel chamber holds the
capacity of 175 L with movable shelves, making it easy to clean. The double door design, auxiliary thermostat and the LCD screen makes it an ideal operating
equipment. The external printer can record data in real time.

#cooling-incubator #dry bath incubator #small incubator
Cooling-Incubator - slide 1
01 / 4Cooling-Incubator
1 / 17

Télécharger la présentation

Cooling-Incubator
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

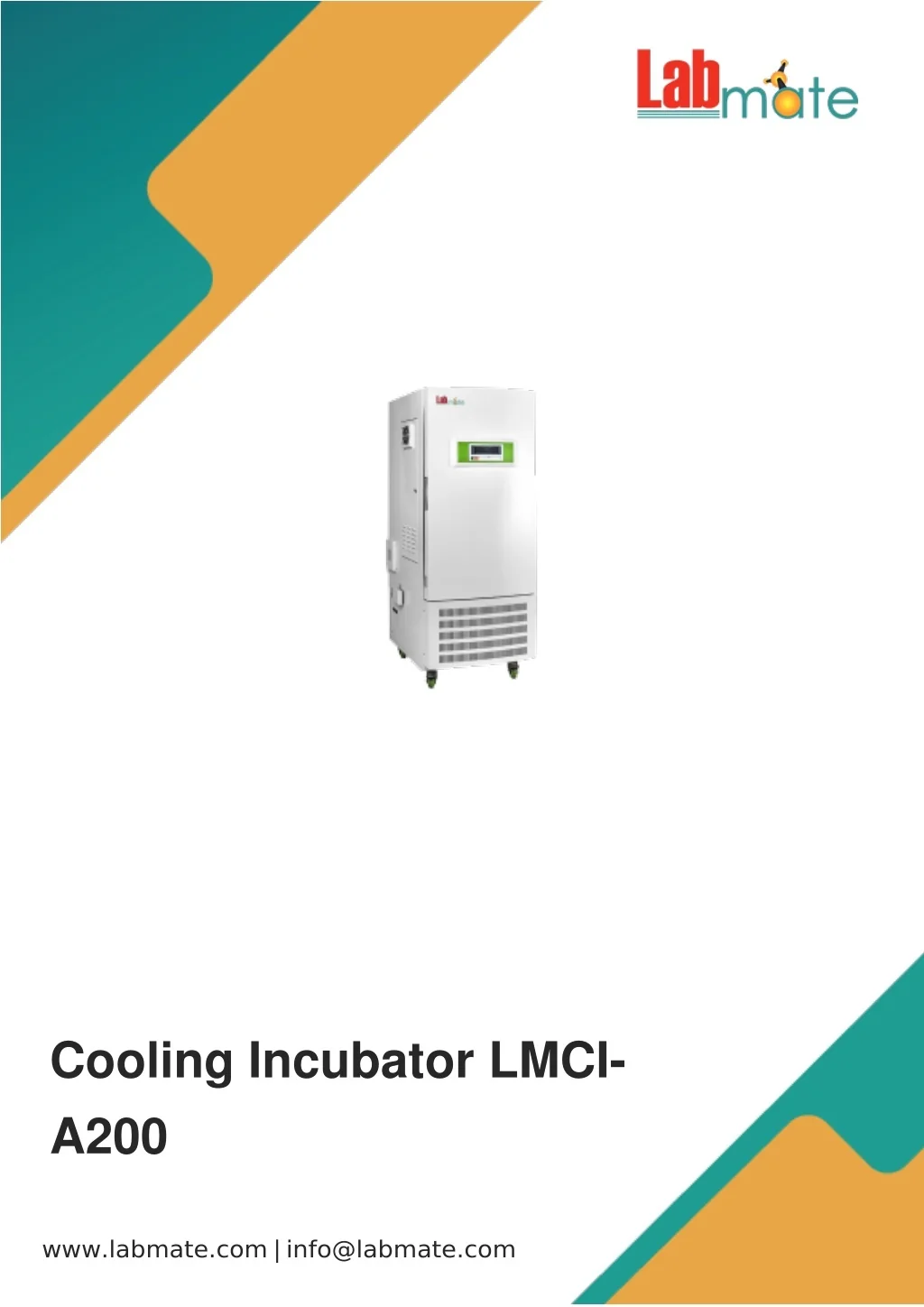

  1. Cooling Incubator LMCI- A200 www.labmate.com info@labmate.com |

  2. Overview Cooling Incubator LMCI-A200 functions at a high standard, making safe, reproducible incubation feasible even at extreme temperatures. The stainless-steel chamber holds the capacity of 175 Lwith movable shelves, making it easy to clean. The double door design, auxiliary thermostat and the LCD screen makes it an ideal operating equipment. The external printer can record data in real time. Specifications : Chamber Volume 175 L Temperature Range -10-75 °C Display Resolution 0.1 °C Temperature Stability ±0.5 °C Temperature Uniformity ±1 °C Timing Range 0 – 99h59min Refrigerant R134a Power Rating 300 W Power Supply AC 220 10%, 50Hz 2% Chamber Size (W x Dx H) 450 × 420 × 930 mm Exterior Dimension (W x D x H) 610 × 620 ×1500 mm Net weight 115 Kg Features :

  3. - Compressor for automatic control of hot and cold temperature - High precision, microprocessor temperature control with large LCD display - Polished stainless-steel chamber, equipped with a fan for forced convection - Adjustable and moveable shelves that are easy to clean - Equipped with power supply outlet and lamp for easy observation - Equipped with spare temperature control which ensures the product work normally even the main temperature control failed (for heating) - The incubator door is built as a double door, with the inner door consisting of tempered glass for easy observation - RS485 connector to link computer and printer; computer and printer can both display temperature and time data - Equipped with leakage protection - Spare temperature control and the auxiliary thermostat ensures the normal working of the product Optional Accessories : Programmable temperature controller RS485/232 connector Built-in printer Wireless alarm system (SMS alarm system) 25mm (50mm) test hole

  4. Applications : Cooling Incubators are used in Pharmaceutical, biotechnology, and research institutes for storage and incubation studies. They are mostly used for B.O.D tests, the preservation of sensitive bacterial, microbial, and plant cultures, serum incubation studies, and immunological work, etc. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
