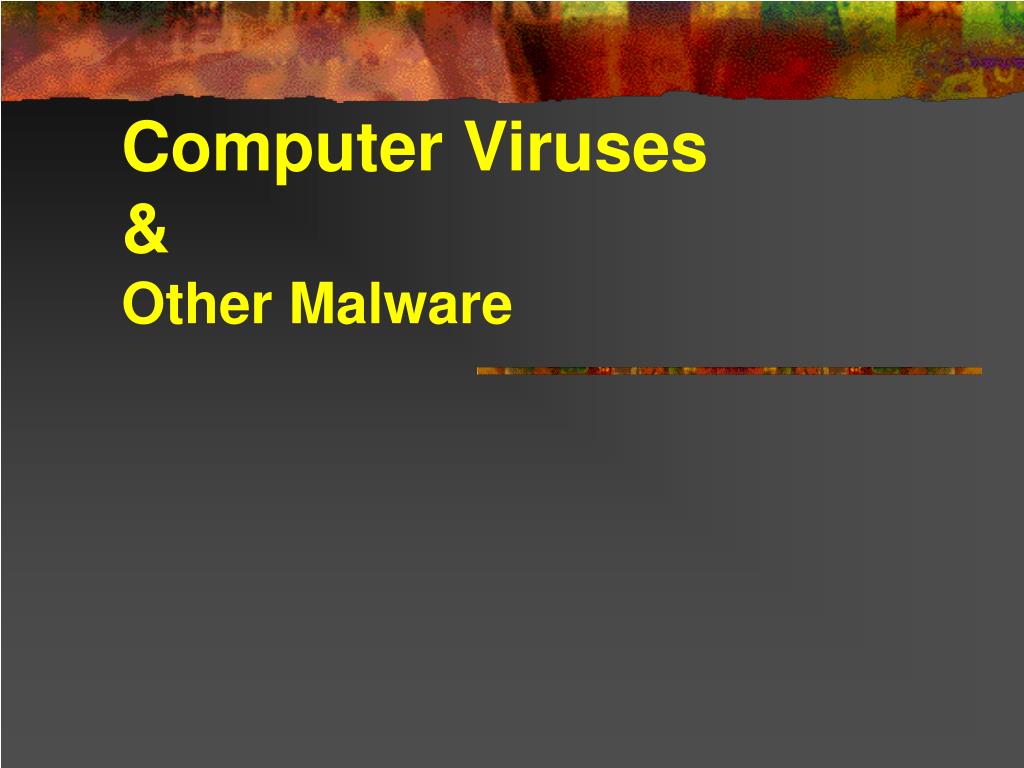

  1. Computer Viruses &Other Malware

  2. CONTENT • Definition of Virus/Malware • Classification of V/M • New generation viruses • New technology • How to design a powerful V/M

  3. Definition of a Computer Virus • An executable code • That could make copies of itself or attach itself to other executable codes • Most of computer viruses have their latency period. • Attack programs or data on your hard drive on a specific day when conditions has been fulfilled. • That could make copies of itself or attach itself to other executable codes

  4. Malware - unexpected or malicious programs or mobile codes

  5. Why / Who write viruses • To prove their own theories. • To see if they can do it. • People who are political, religionary ardor. • People usually publish their virus source codes in BBSes or the Internet for users who are interested in computer virus programming. • Most of them belong to specific organizations

  6. Classification of Viruses • BOOT Viruses • DOS Viruses • Windows Viruses • Macro Viruses • Script Viruses • Java Viruses • Palm Viruses

  7. Classification of Other Malware • Worms • Trojans • Joke Programs • Hacking Tools • Virus Droppers

  8. Global Template WORD Content Global Macros WORD Macros WORD Content WORD Macros Macro Viruses With the Macro Virus resident in the Global Template, it can now reproduce copies of itself to other documents opened. When an infected Document is opened in Word, it will copy its macro codes in the Global Template

  9. XLStart Directory EXCEL Sheet Startup Files Excel Macros EXCEL Sheet Excel Macros Macro Viruses With the Macro Virus resident every time Excel is opened, it can now infect every sheet opened in Excel When an infected sheet is opened in Excel, it will create an excel file in the directory \Microsoft Office\Office\XLStart

  10. Normal File Infected File Macro Viruses Using DFVIEW.EXE to view a Word 2K Document An infected file will show that it has a MACROS folder

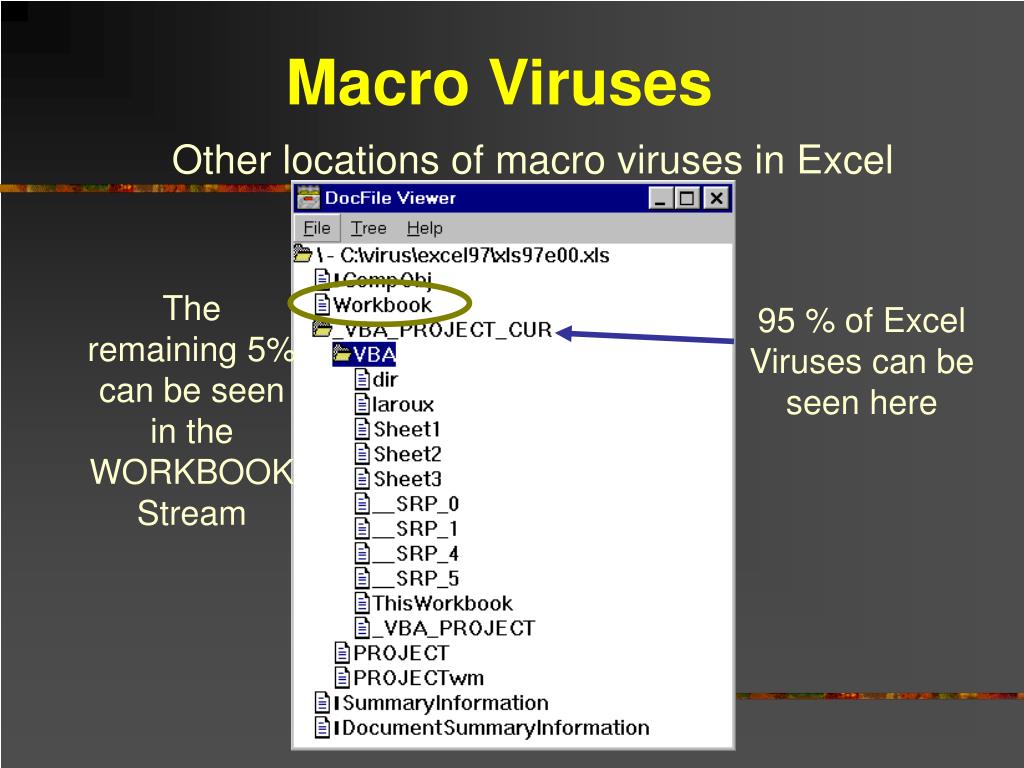

  11. Macro Viruses Other locations of macro viruses in Excel The remaining 5% can be seen in the WORKBOOK Stream 95 % of Excel Viruses can be seen here

  12. Header &Table INFECTED FILE Windows Viruses Virus modifies Header and Table Host Program Attaches Virus Code Virus Section

  13. Windows Viruses • unusual entries in the Task Manager list • unusual slowdown of system • increase in file size of infected files

  14. Windows Viruses Checking the Registry for possible Virus residence • \HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Run • \HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\RunOnce • \HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\RunServices • \HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\RunServicesOnce • HKEY_CLASSES_ROOT\exefile\shell\open\command • ( Where the only entry should be (Default)= "%1" %* )

  15. Script Viruses Thus enabling them to replicate to other mail recipients or web page users If a mail or a web page has some malicious scripts These malicious scripts utilizes Scripting Host execution capabilities of Browsers and Mail Systems

  16. Upon receiving an e-mail with script in it, the following message will appear Clicking Yes will run the Script, which might contain malicious codes. Clicking No will show this message. Now you can see that the mail has some script in it because of this script icon Now you can verify the contents of the saved HTM file if it has some malicious codes or not Script Viruses Script Viruses in E-mails / Web

  17. Java Viruses • security loopholes exploited by virus writers • annoying while some infect • depends on the security settings for the virus to run • has the extension *.CLASS

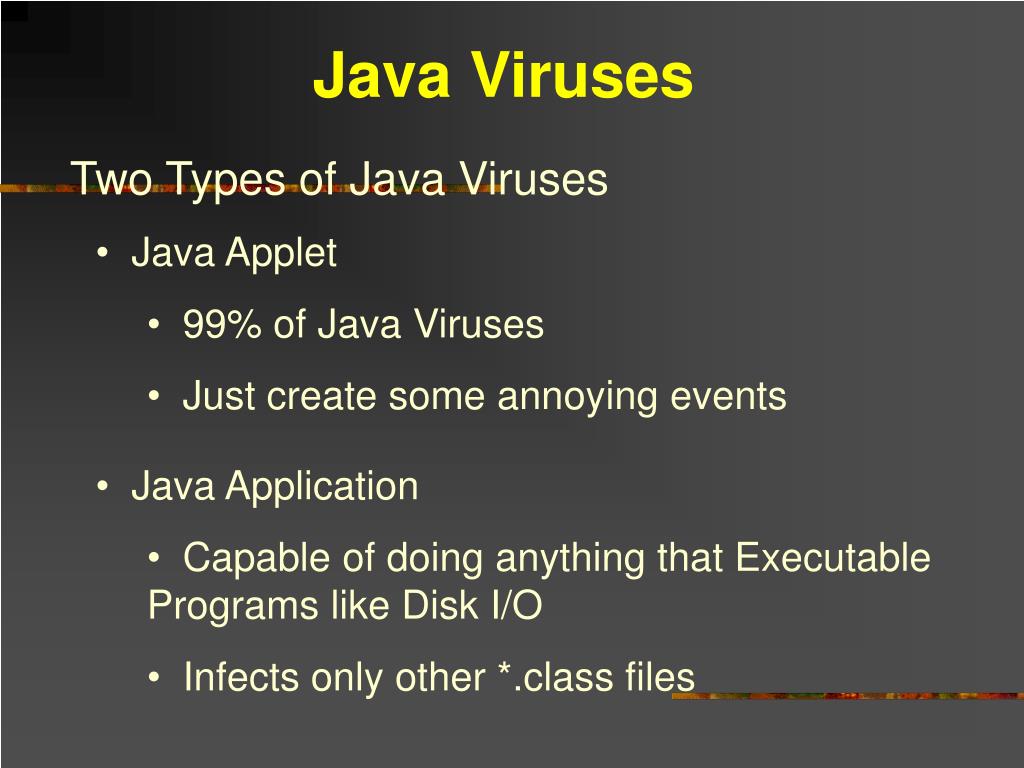

  18. Java Viruses Two Types of Java Viruses • Java Applet • 99% of Java Viruses • Just create some annoying events • Java Application • Capable of doing anything that Executable Programs like Disk I/O • Infects only other *.class files

  19. Palm Viruses • Trojan Type • Download from Internet to PC, HotSync to Palm

  20. Hacker Trojans, Worms & Net Hacking Tools A computer worm is a self-contained program that is able to spread functional copies of itself to other computer systems. Trojans are malicious codes that create havoc to files or systems Net Hacking tools are malicious codes that has the sole purpose of controlling computers remotely and to exploit some backdoors in some systems.

  21. Trojans, Worms & Net Hacking Tools • The checking for these malware is the same as that of Windows Viruses (registry, task manager….) • Sometimes they are able to reside in memory • Capable of attacking other systems via the network or by mail • unusual slowdown of system • unusual behaviour of the system or screen

  22. Joke Malware Ordinary executable programs created to make fun of users. You can only go back to what you are doing after you solve the puzzle • will not infect or do any damage, it will just annoy you. • usually difficult to halt or terminate the program • unusual function of devices (mouse, keyboard)

  23. Virus Dropping Malwares Upon Execution this malware will drop a virus or other malwares. If the dropped malware is executed, then it can already infect or do some payload • a program that drops a Virus or other Malware • used by novice programmers to create viruses • unnecessary addition of files

  24. JMP JMP Virus Body 0x400 65 7a 4e 2a 0x484 How to catch a virus(Virus ‘TEST-ABC’) 0x000 EXE Header Pattern Info Name: TEST-ABC First byte: Jump depth: File offset: Signature: E9 fd 02 00 0x100 01 02 03 04 Program Body 0xe9 (JMP xx) 0x00 0x84 0x65, 0x7a, 0x4e, 0x2a Found !!! Virus ‘TEST-ABC’

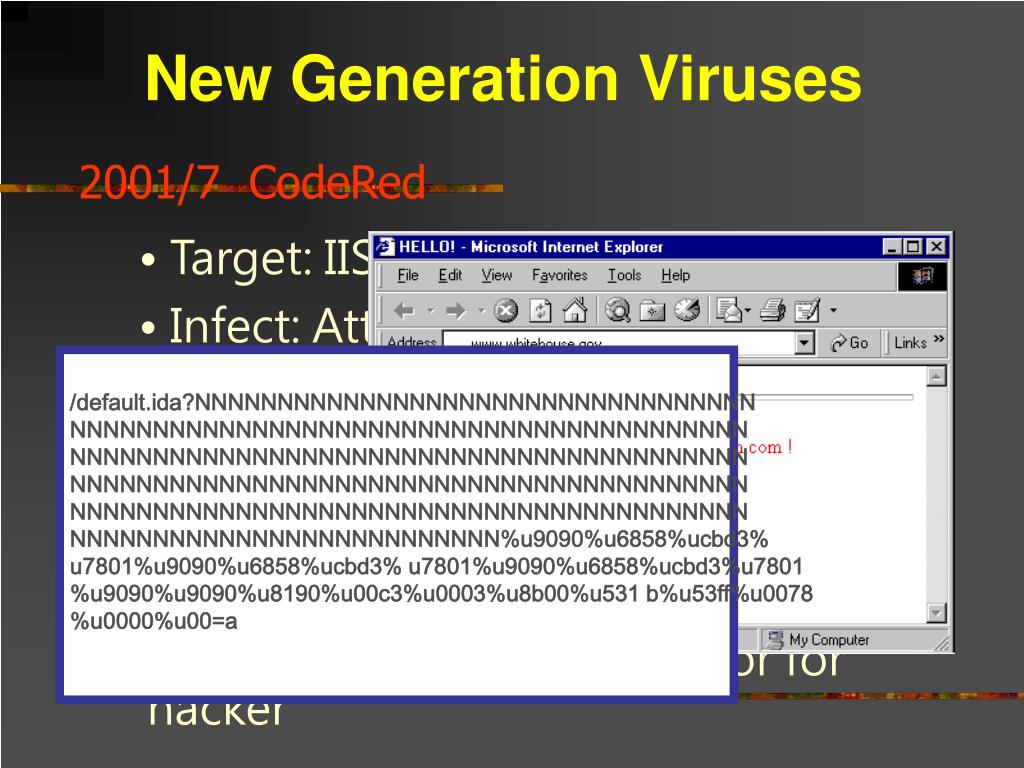

  25. New Generation Viruses 2001/7 CodeRed • Target: IIS Servers with exploitable flaw • Infect: Attack IIS servers via HTTP, utilize Indexing Service (IDA) buffer overflow, embed the virus code in memory /default.ida?NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN NNNNNNNNNNNNNNNNNNNNNNNNNN%u9090%u6858%ucbd3% u7801%u9090%u6858%ucbd3% u7801%u9090%u6858%ucbd3%u7801 %u9090%u9090%u8190%u00c3%u0003%u8b00%u531 b%u53ff%u0078 %u0000%u00=a • Effect : Spit out hundreds of attacking threads, cause network congestion • CodeRed.C : leave backdoor for hacker

  26. Impact from CodeRed • No Virus File • -no way for file base AntiVirus scanner • Distributed Deny of Services • Infect when you do nothing

  27. New Generation Viruses 2001/9 NIMDA Unite multiple infective tech • EMAIL : security hole of processing MIME header Content-Type: audio/x-wav; name=“readme.exe” Content-Transfer-Encoding: base64 Content-ID: <EA4DMGBP9p>

  28. IIS Unicode Web Traversal Security Hole • Share Folders • Browse infected Web site • Infect Win32 EXE files • Infect html, ASP files, append < script language="JavaScript" >"readme.eml", null, "resizable=no,top=6000,left=6000")< / script >

  29. New Technology • Behavior Monitor • Old idea, New tech • IFS Hook + socket Hook Pitfall • Can not clean • High False Positive Hard to Identify malicious behavior

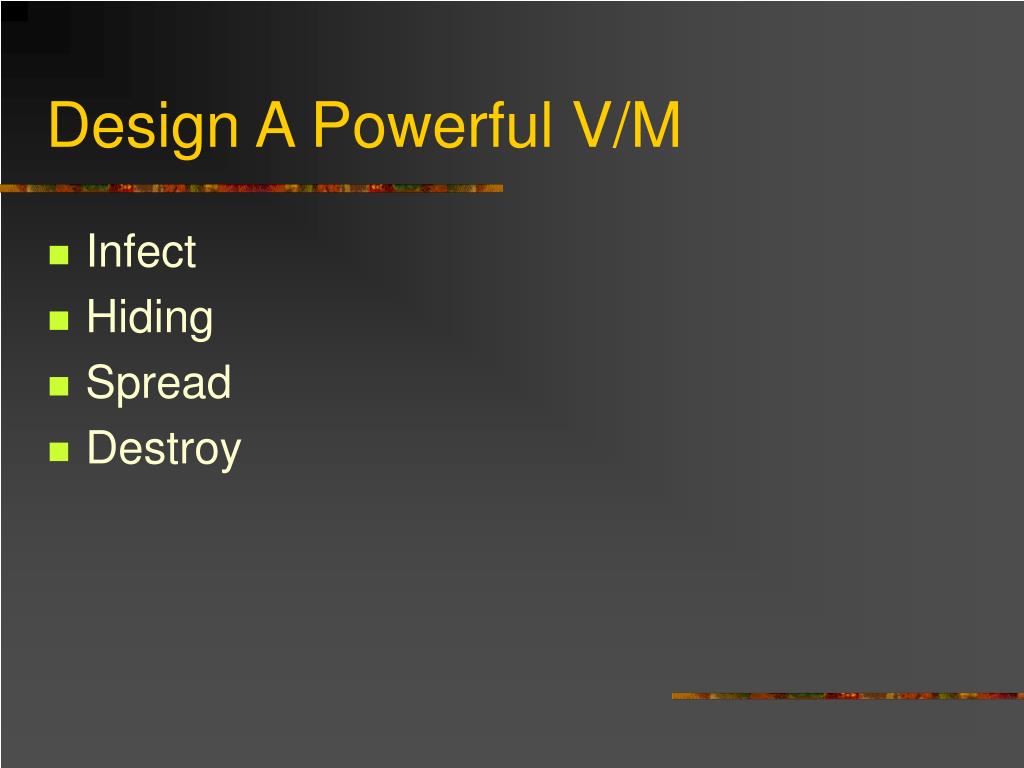

  30. Design A Powerful V/M • Infect • Hiding • Spread • Destroy

  31. Infect • Windows PE(portable execute) file format • Spare space in section (size of exe file not changed) • Modify the entry point in PE header • Use assemble language for infect module • Combine codes in spare space to whole code • Modify the import table to load the main module • Note: this code must be earsed after infected.

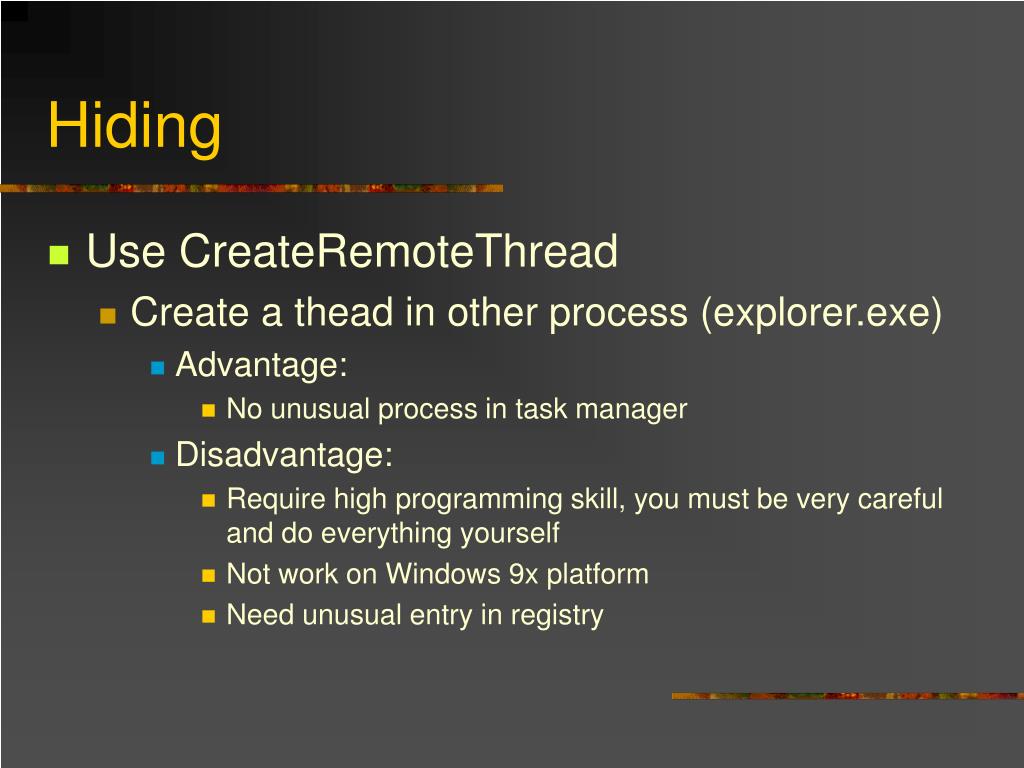

  32. Hiding • Use CreateRemoteThread • Create a thead in other process (explorer.exe) • Advantage: • No unusual process in task manager • Disadvantage: • Require high programming skill, you must be very careful and do everything yourself • Not work on Windows 9x platform • Need unusual entry in registry

  33. Hiding (cont) • Modify the import table • Two ways of load a DLL • API: LoadLibrary(Ex) • Import table • There’s an import table in PE file, when system execute the .exe file, it walks through the import table and loads all .dll file in the import table into memory. • Add an entry in import table • Load the main module of V/M, in DllMain function, hook the DLL_PROCESS_ATTACH message • Advantage • No unusual entry in registry and task manager • Easy to programming • Works on all windows platform

  34. Hiding (cont) • Escape from virus scan engine • Encrypt • Common encrypt algorithm (you only need cheat scan engine ), such as XOR, complex algorithm has unique signature. • difference encrypt keys (HD serial-number, CPU info…) on difference computer, Hard to generate the pattern. • Compress the V/M (zlib is enough, it’s common on windows platform) • Only Decrypt when needed

  35. Spread • Use combined way • Email (Marco: VBS) • Security Hole (IIS) • Share folder • Suggestion: not too aggressive, spread silently. More silent, more spread.

  36. Destroy • Warning: write/distribute V/M is illegal • Destroy: • Meet a condition (time…) • Fill garbage in HD, Destroy the BIOS • In X86 protection mode, need enter Ring 0 mode • Block the network • Send grand garbage to network, DoS attack.

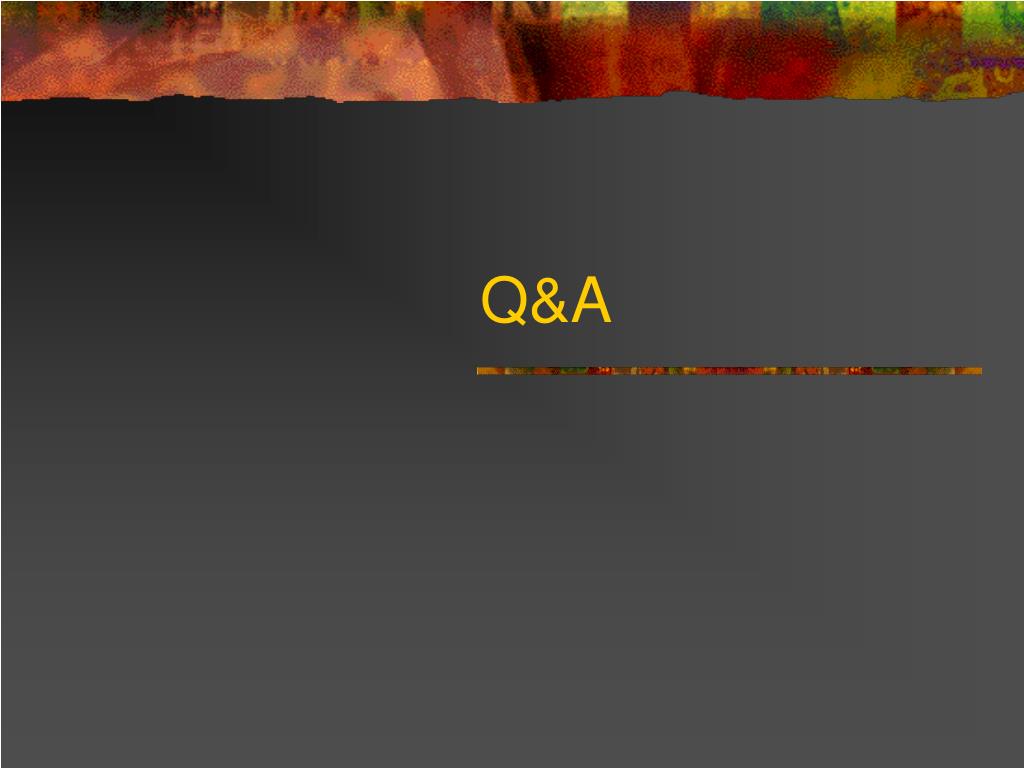

  37. Q&A
