DNA sequencing. Part 1: Chemistry, instrumentation and data analysis Part 2: Large-scale operations, comparative sequencing. Part 3: Sequencing analysis, variation analysis. Abbrev 02/03/05. DNA sequencing: Importance. Basic blueprint for life; Aesthetics. Gene and protein. Function
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation
Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement.Téléchargez la présentation en cliquant sur ce lien.Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.
F I N
Plus de contenu associé
Transcription de la présentation

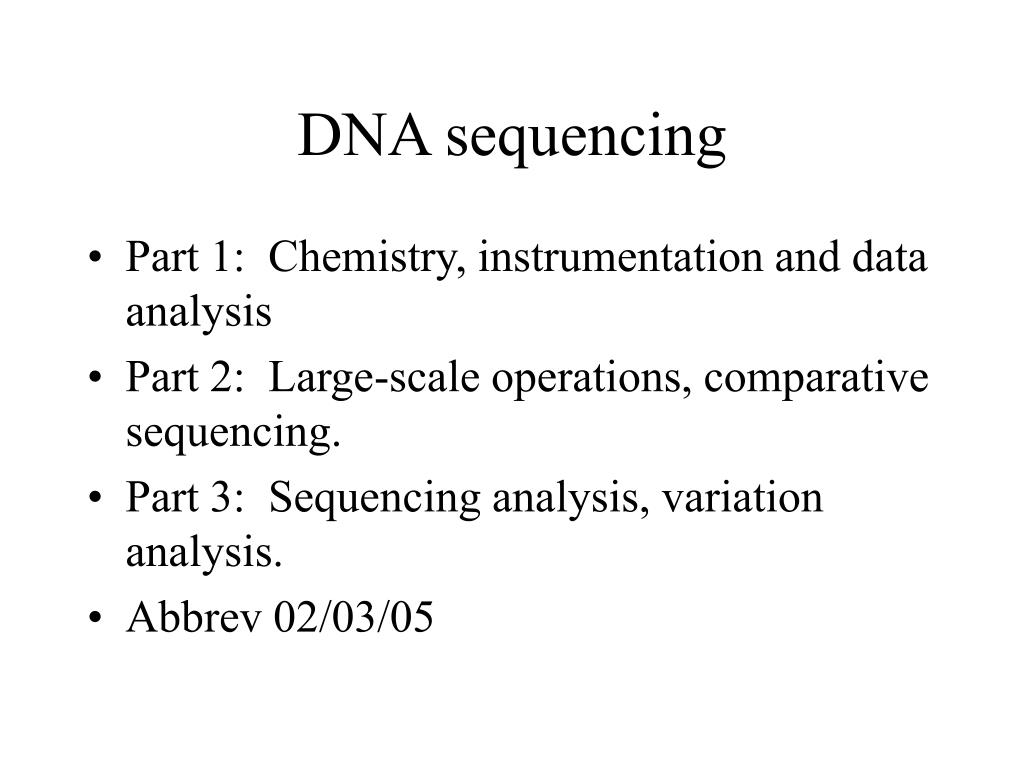

DNA sequencing • Part 1: Chemistry, instrumentation and data analysis • Part 2: Large-scale operations, comparative sequencing. • Part 3: Sequencing analysis, variation analysis. • Abbrev 02/03/05
DNA sequencing: Importance • Basic blueprint for life; Aesthetics. • Gene and protein. • Function • Structure • Evolution • Genome-based diseases- “inborn errors of metabolism.” • Genetic disorders • Genetic predispositions to infection • Diagnostics • Therapies
Maxam-Gilbert base modification by general and specific chemicals. depurination or depyrimidination. single-strand excision. not amenable to automation Sanger DNA replication. substitution of substrate with chain-terminator chemical. more efficient automation?? DNA sequencing methodologies: ca. 1977!
Semi-automated fluorescent DNA sequencing • Fred Sanger et. al., 1977. • Walter Gilbert et. al., 1977. • Leroy Hood et. al. 1986. • Applied Biosystems, Inc. • DuPont Company.
DNA sequencing: upgrade, second iteration, terminator-label • Disadvantages of primer-labels: • four reactions • tedious • limited to certain regions, custom oligos or • limited to cloned inserts behind ‘universal’ priming sites. • Advantages: • Solution: • fluorescent dye terminators
Sequencing strategies Whole genome Also on a smaller scale: 1. “Island walking” and 2. Primer walking.
Rapid re-sequencing of human Ad1: Time trial. Have sequence of Ad 1. In theory, have a minimally tiled set of PCR primers to cover entire 36,001 base genome. In theory, have a minimally tiled set of sequencing primers as well. Want draft sequence in a minimal time, including primer delivery from a vendor. In practice design two parallel sets of minimally tiled PCR primers and amplify two sets. In practice, assume 750 base reads--> 48 primers, one direction. Compare with consensus: Determine accuracy, timing and evaluate operation. 1 36,001 115 7,315 7,300 14,500 14,400 21,600 21,500 28,700 28,600 35,885

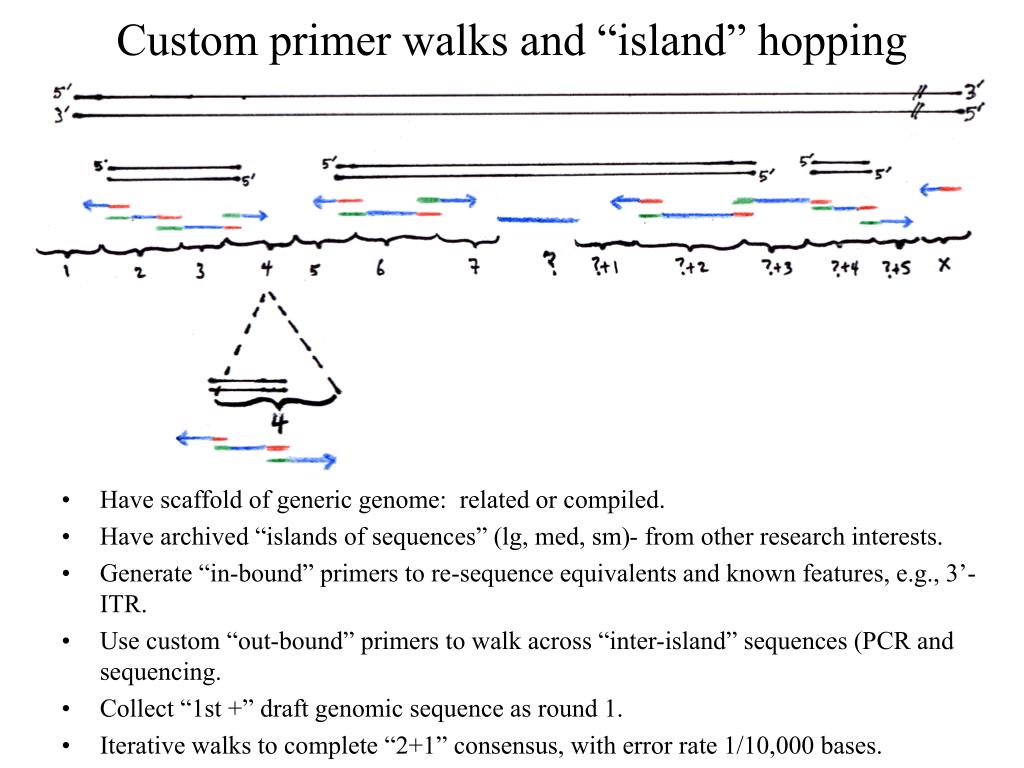

Custom primer walks and “island” hopping • Have scaffold of generic genome: related or compiled. • Have archived “islands of sequences” (lg, med, sm)- from other research interests. • Generate “in-bound” primers to re-sequence equivalents and known features, e.g., 3’-ITR. • Use custom “out-bound” primers to walk across “inter-island” sequences (PCR and sequencing. • Collect “1st +” draft genomic sequence as round 1. • Iterative walks to complete “2+1” consensus, with error rate 1/10,000 bases.
Target: HAdV4 • For 36,000 bases, need 90 primers for 1x coverage (1st draft) and 270 primers for 3x coverage (finished). • Have from GenBank: 10 “islands” @ 30%= 10,883 bases, • calling for 27x2= 54 primers for complementing coverage. • Theory (if continuous sequence): 36,000-10,883= 25,117 bases. • At 400 bases per read, need 63 primers for 1x coverage, or 126 for complementing coverage. • Practice: 10 “islands” @ 30%= 10,883 bases, 80 primers. • Example: “Island 1” is 149 bases. • 1 fragment at 400 bases/read. • 2 primers for 1x coverage. • “Terminal island,” need only 1 “outbound” primer. • Total of (1x2)+1= 3 primers. • Example: “Island 2” is 2042 bases. • 5 fragments at 400 bases/read. • “Internal island,” need 2 “outbound” primers. • Total of (5x2)+2= 12 primers.
Shimadzu, Ltd. • NEW ORLEANS, March 19, 2002. PittCon. • Faster and more economical DNA Sequencer. • 10 times faster and 90 percent cheaper to run than current state-of-the-art. • GenoMEMS, MA spinoff that has developed a microfabrication technology, based on Whitehead Inst. technology. • Microelectromechanical system, or MEMS, technology:microfabricated electrical and mechanical components • Five million bases per day. • Readlengths of 800 bases. • Target 2003.
