Ash Content Tester is a specialized and sophisticated testing unit that determines the remaining ash contents of given samples. The system consists of a muffle furnace, a temperature controller, and an electric heating plate. It is specifically designed for determining ash content in the range of 0.001% to 0.180% by mass in distillate and petroleum products. It is utilized for a wide spectrum of applications, including distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and various petroleum products. This is a critical parameter for a wide range of industrie

Télécharger la présentation

Ash-Content-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

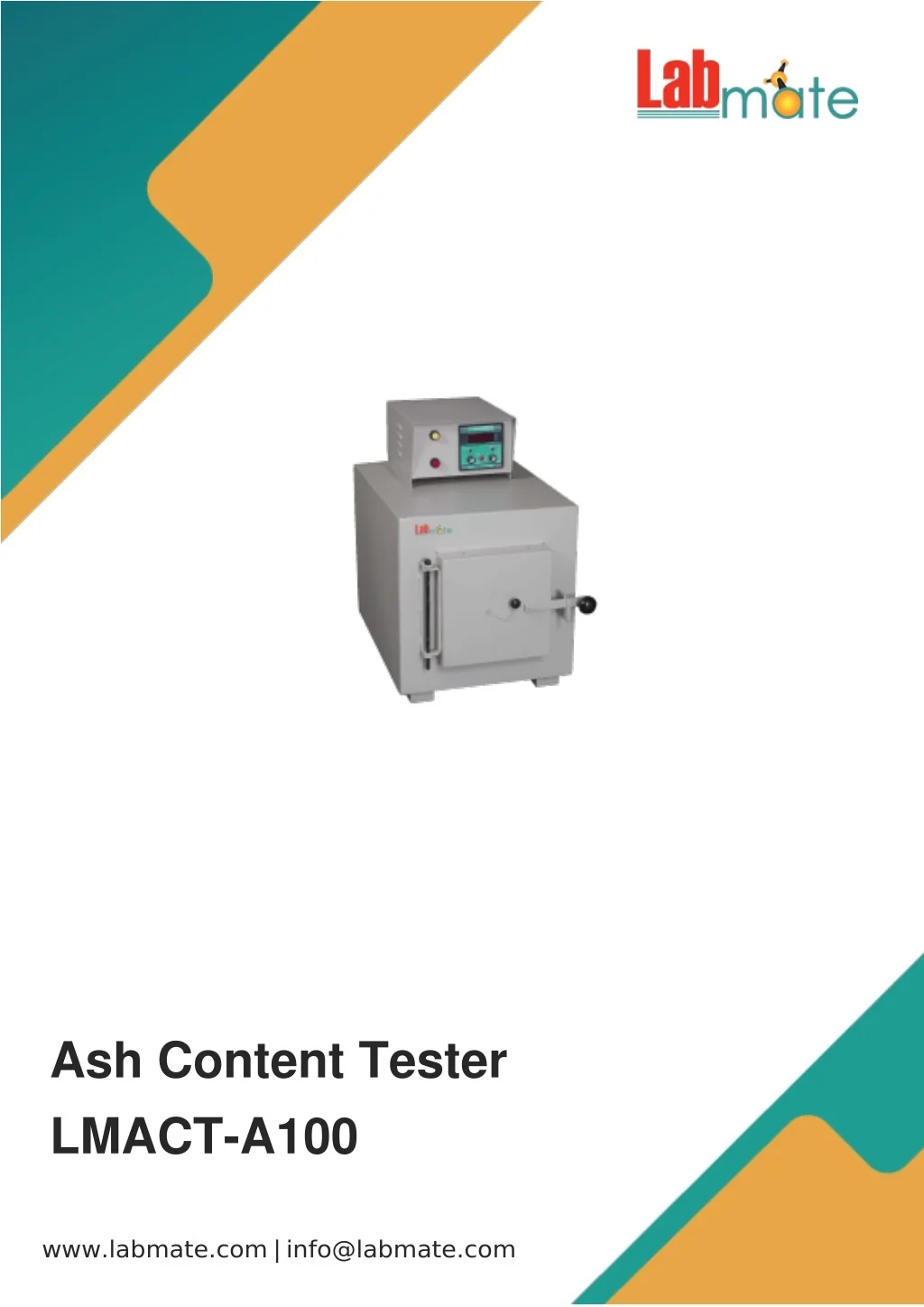

  1. Ash Content Tester LMACT-A100 www.labmate.com info@labmate.com |

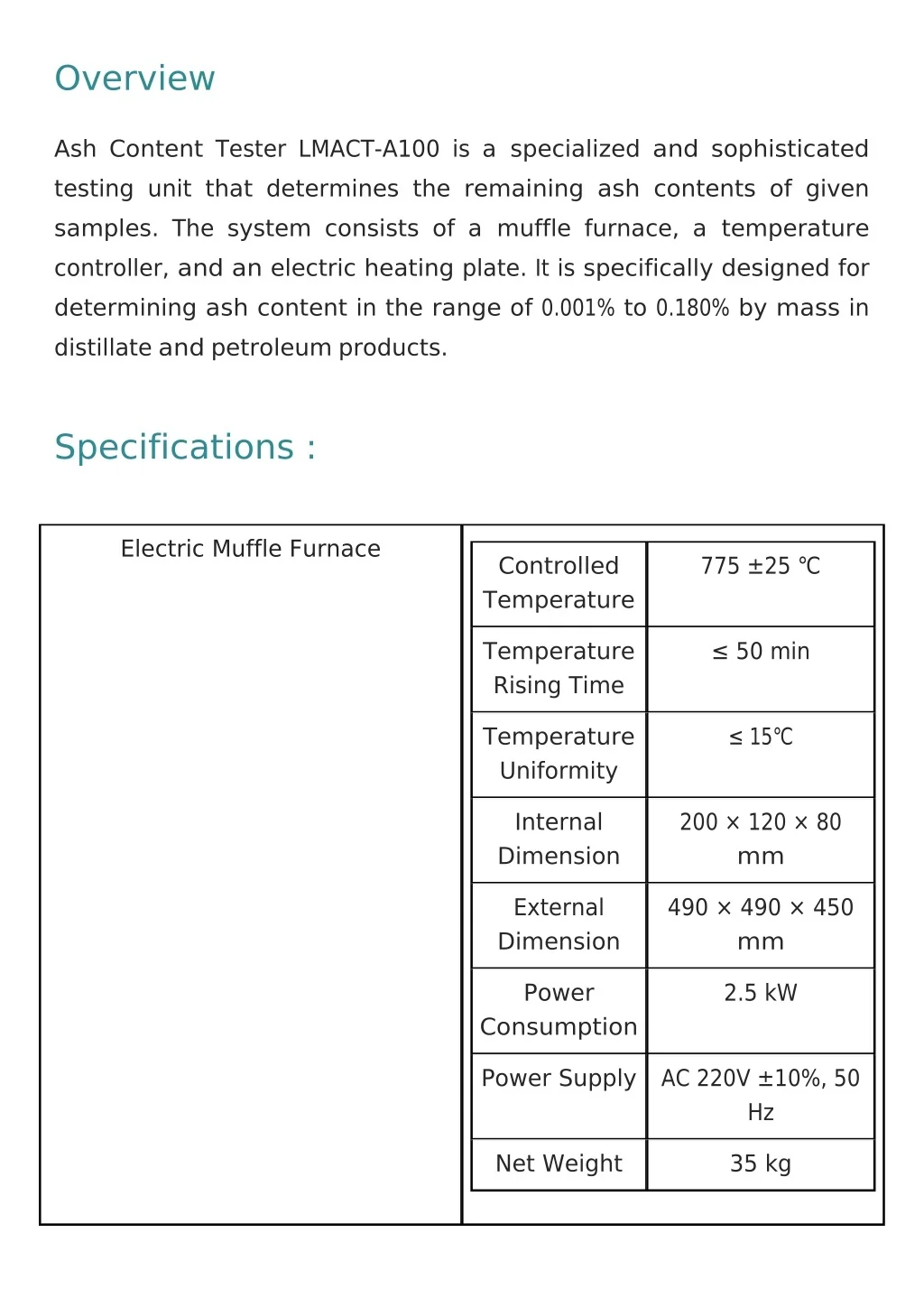

  2. Overview Ash Content Tester LMACT-A100 is a specialized and sophisticated testing unit that determines the remaining ash contents of given samples. The system consists of a muffle furnace, a temperature controller, and an electric heating plate. It is specifically designed for determining ash content in the range of 0.001% to 0.180% by mass in distillate and petroleum products. Specifications : Electric Muffle Furnace Controlled Temperature 775 ±25 ℃ Temperature Rising Time ≤ 50 min Temperature Uniformity ≤ 15℃ Internal Dimension 200 × 120 × 80 mm External Dimension 490 × 490 × 450 mm Power 2.5 kW Consumption Power Supply AC 220V ±10%, 50 Hz Net Weight 35 kg

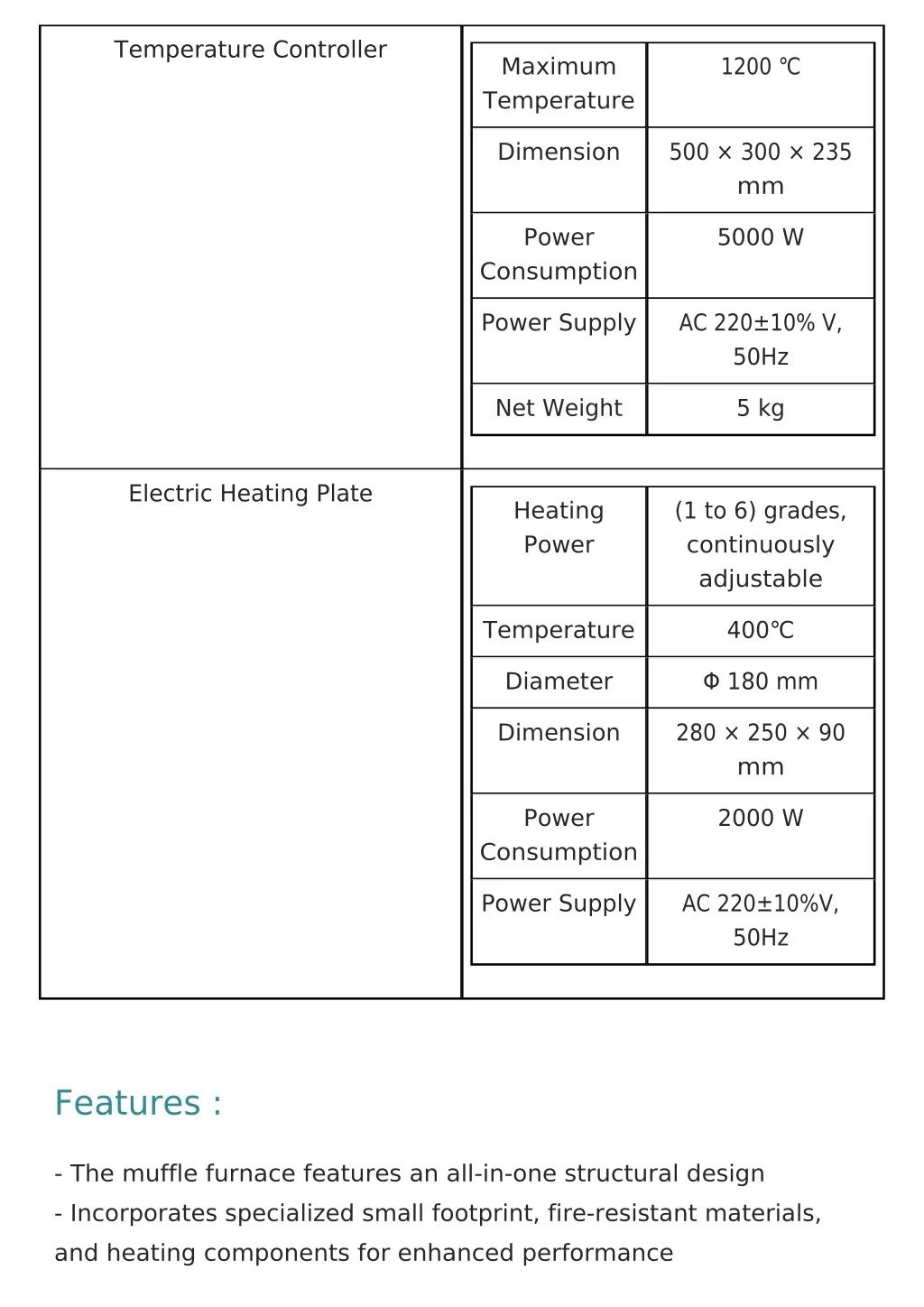

  3. Temperature Controller Maximum Temperature 1200 ℃ Dimension 500 × 300 × 235 mm Power 5000 W Consumption Power Supply AC 220±10% V, 50Hz Net Weight 5 kg Electric Heating Plate Heating Power (1 to 6) grades, continuously adjustable Temperature 400℃ Diameter Φ 180 mm Dimension 280 × 250 × 90 mm Power 2000 W Consumption Power Supply AC 220±10%V, 50Hz Features : - The muffle furnace features an all-in-one structural design - Incorporates specialized small footprint, fire-resistant materials, and heating components for enhanced performance

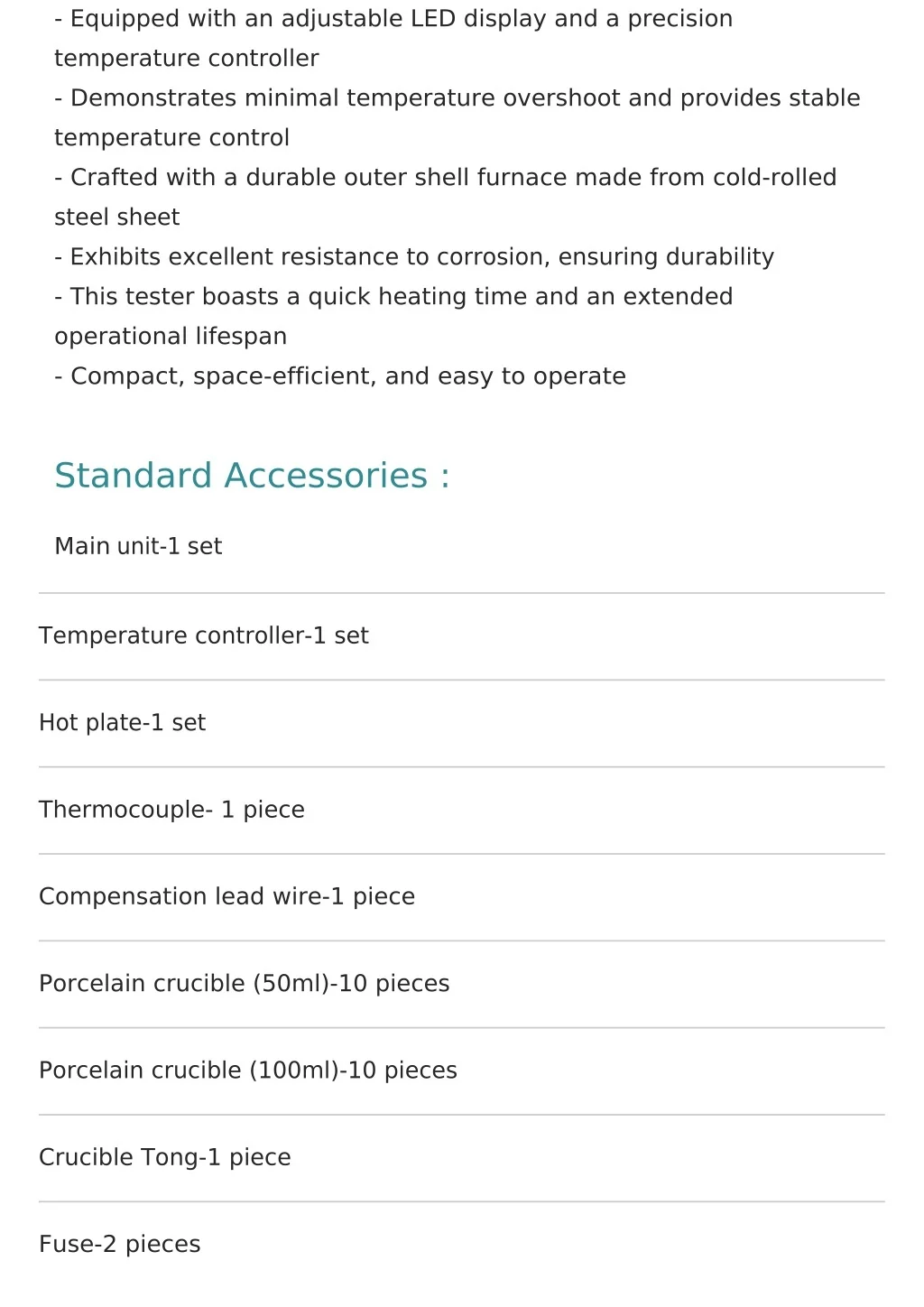

  4. - Equipped with an adjustable LED display and a precision temperature controller - Demonstrates minimal temperature overshoot and provides stable temperature control - Crafted with a durable outer shell furnace made from cold-rolled steel sheet - Exhibits excellent resistance to corrosion, ensuring durability - This tester boasts a quick heating time and an extended operational lifespan - Compact, space-efficient, and easy to operate Standard Accessories : Main unit-1 set Temperature controller-1 set Hot plate-1 set Thermocouple- 1 piece Compensation lead wire-1 piece Porcelain crucible (50ml)-10 pieces Porcelain crucible (100ml)-10 pieces Crucible Tong-1 piece Fuse-2 pieces

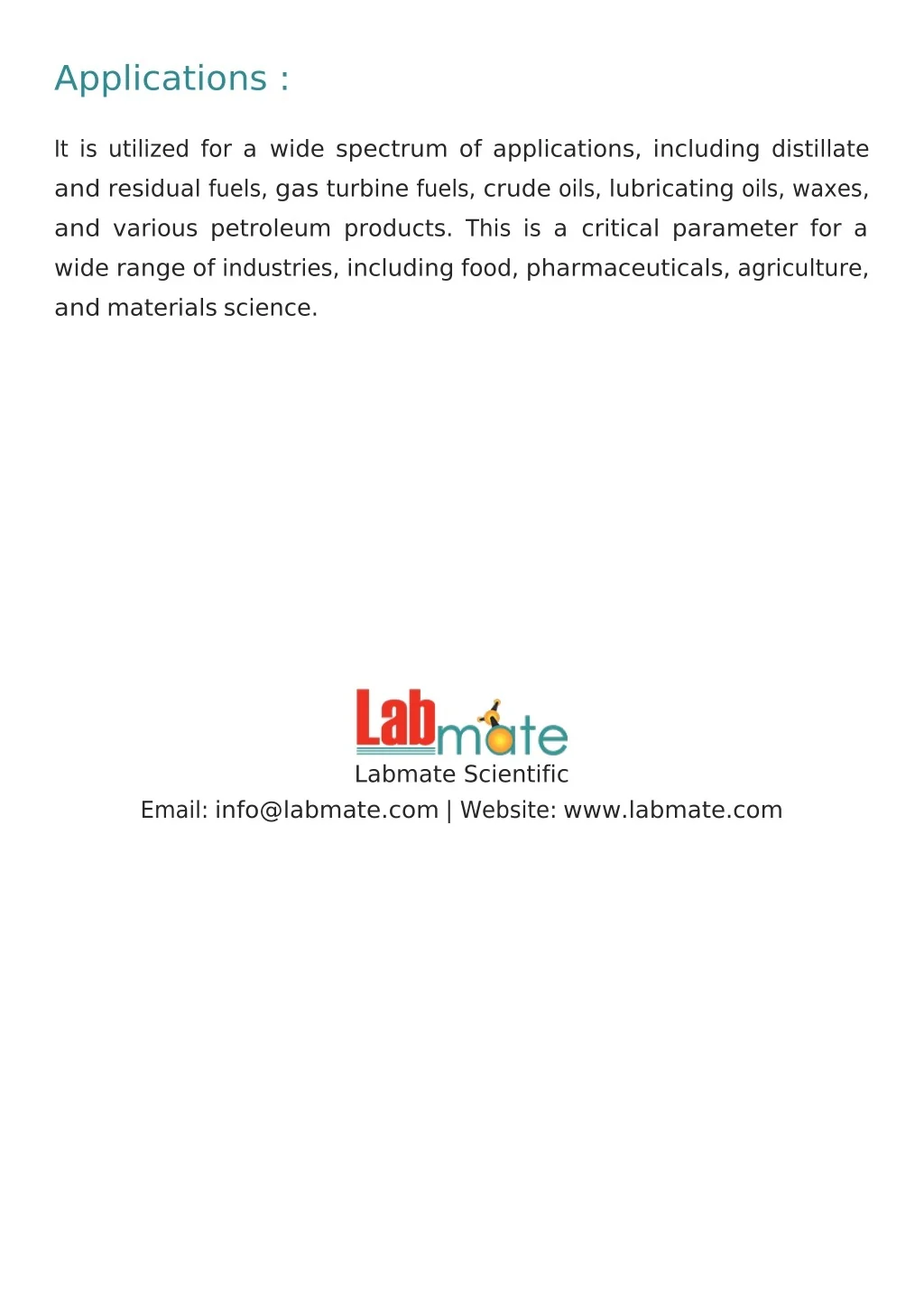

  5. Applications : It is utilized for a wide spectrum of applications, including distillate and residual fuels, gas turbine fuels, crude oils, lubricating oils, waxes, and various petroleum products. This is a critical parameter for a wide range of industries, including food, pharmaceuticals, agriculture, and materials science. Labmate Scientific | Website: Email: info@labmate.com www.labmate.com
