  1. Software Development for Atom based Safe and Sustainable BSN IMPACT LAB Project Report on “Safe, Secure and Sustainable Body Area Networks using Intel Atom” funded by Intel

  2. Impact Lab Research Goal Environmentally Aware (physical), Performance aware (cyber),Criticality Aware, Safe and Secure Cyber-Physical Systems • Body-Area Sensor Networks • Objectives • Minimize energy consumption • Minimize health risks (safety) • Ensure security and privacy • Allow complex applications • Approach • Infuse energy awareness • Introduce high computation • AADL modeling • Taxi Cab Scheduling • Objectives • Compute optimal route with targets • Minimize fuel consumption • Evaluate solutions • Approach • Design proactive, spatio-temporal schedules • AADL modeling • Data Centers • Objectives • Minimize Energy Consumption • Maintain Performance • Approach • Integrated Management • Infuse Proactive Spatio-Temporal Scheduling • AADL Modeling

  3. Project Goal • Body Sensor Networks (BSNs) – network of medical devices on human body are small scale cyber-physical system • Critical infrastructures – used in medical applications • Require to support life saving applications • Involvement of human users require BSNs to be safe (reduce medical hazards) and sustainable (provide seamless operation) • Complex application requirements (especially security protocols) demand powerful processors in BSN nodes • Atom is used as the BSN node processor to provide required computational capabilities • However, higher power dissipation of Atom, hampers the safe and sustainable operation of BSN nodes Software Design of Computationally capable Safe and Sustainable Atom based BSN

  4. Traditional Body Sensor Network • Salient Features • Computationally incapable set of nodes • Heterogeneous hardware and software configuration • Constrained in energy – battery operated • No energy scavenging Present

  5. Application requirements • Monitoring and Feedback • Online detection of freezing of gait [1] in Parkinson’s patients from on-body sensors • Feedback through on-body actuators • Continuous Monitoring • Seamless 24 hrs medical monitoring [2] • Requirements • Response within a small time window • Fast Computation of windowed FFT and associated signal processing • Requirements • Increased lifetime of the sensors • Battery less non-intrusive operation • Requirements • Security • Physiological Value based Security [3] • Combines signal processing with security algorithms Hogs up 80 % of total RAM References 1. M. B¨achlin et al. Online Detection of Freezing of Gait in Parkinson’s Disease Patients: A Performance Characterization. In Proc. of the 4th Intl. Conference on Body Area Networks, Apr. 2009 2. K. Venkatasubramanian et al. Ayushman: A Wireless Sensor Network Based Health Monitoring Infrastructure and Testbed. In Distributed Computing in Sensor Systems, pages 406–407, July 2005 3. K. Venkatasubramanian et al. Plethysmogram-based secure inter-sensor communication in body area networks. Military Communications Conference, 2008. IEEE, pages 1–7, Nov. Figure explains PVS Implementation

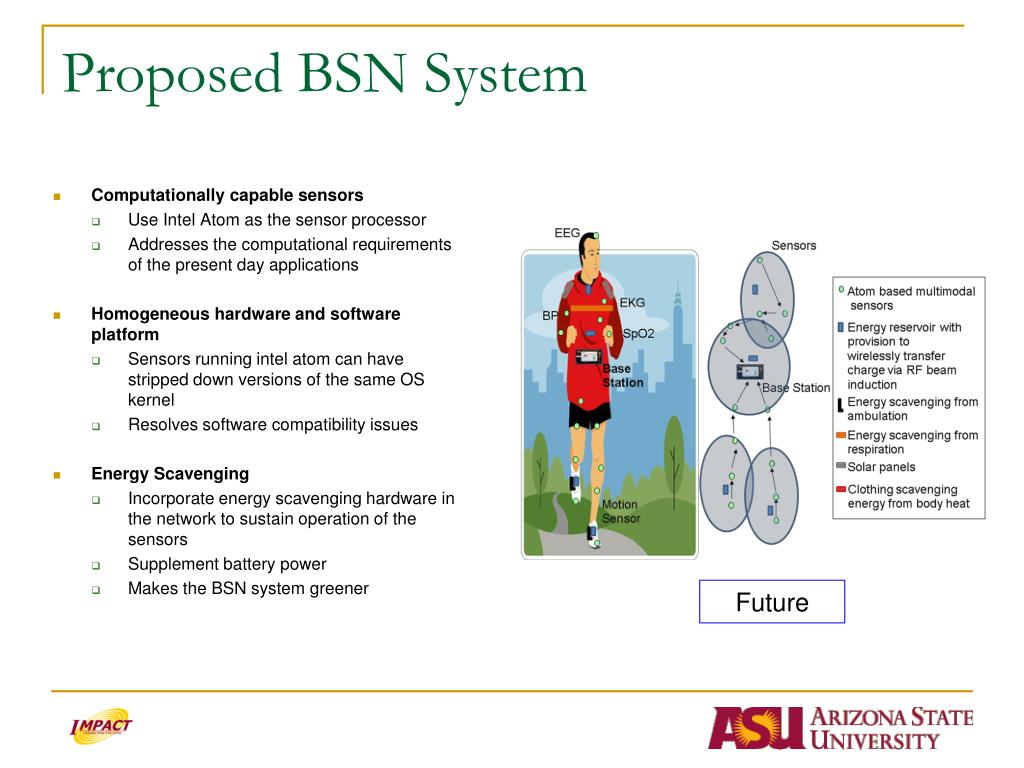

  6. Proposed BSN System • Computationally capable sensors • Use Intel Atom as the sensor processor • Addresses the computational requirements of the present day applications • Homogeneous hardware and software platform • Sensors running intel atom can have stripped down versions of the same OS kernel • Resolves software compatibility issues • Energy Scavenging • Incorporate energy scavenging hardware in the network to sustain operation of the sensors • Supplement battery power • Makes the BSN system greener Future

  7. Challenges of Atom based BSN Atom can provide a uniform platform with highly capable BSN processors Challenges with Atom • Energy Efficiency • Relatively higher power footprint of Atom • Thermal Safety • Possible high thermal footprint of Atom • Sustainability • How long can energy scavenged from human sources sustain Atom operation ?

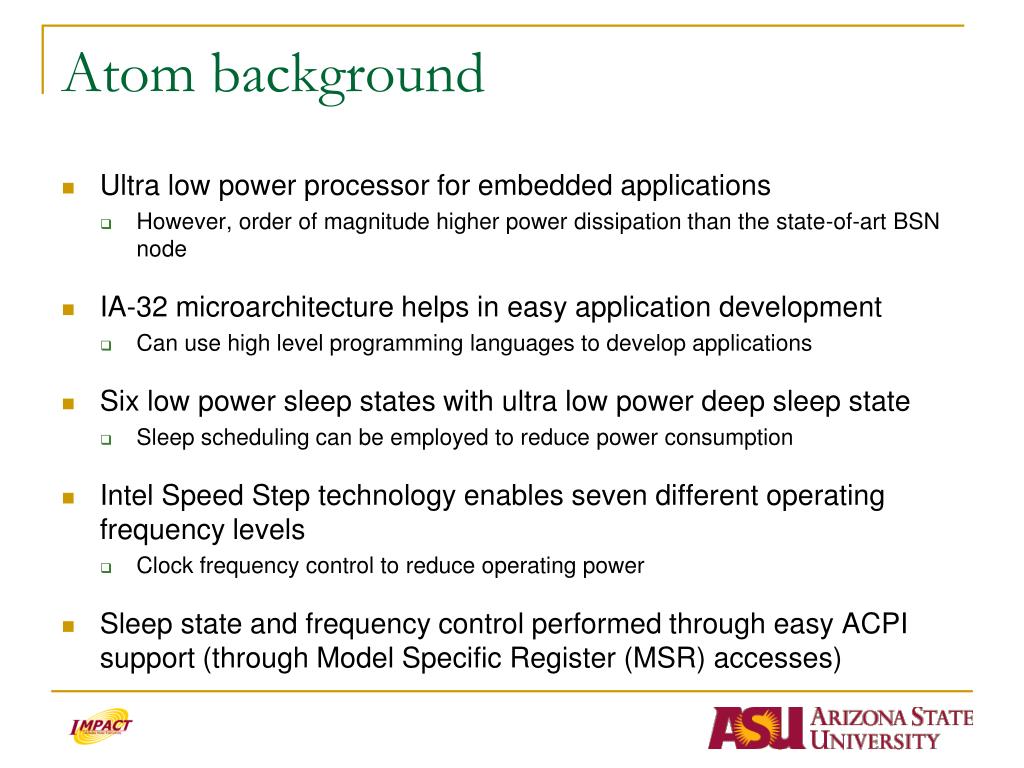

  8. Atom background • Ultra low power processor for embedded applications • However, order of magnitude higher power dissipation than the state-of-art BSN node • IA-32 microarchitecture helps in easy application development • Can use high level programming languages to develop applications • Six low power sleep states with ultra low power deep sleep state • Sleep scheduling can be employed to reduce power consumption • Intel Speed Step technology enables seven different operating frequency levels • Clock frequency control to reduce operating power • Sleep state and frequency control performed through easy ACPI support (through Model Specific Register (MSR) accesses)

  9. Typical BSN Workload • Ayushman [2] health monitoring application is considered as the workload • Ayushman has three phases of operation – • Sensing Phase – Sensing of physiological values (Plethysmogram signals) from the sensors and storing it in the local memory • Transmission Phase – Send the stored data to the base station in a single burst • Security Phase – Perform network wide key agreement for secure inter-sensor communication using Physiological value based Key Agreement Scheme (PKA) [3]. • The Security phase occurs once in a day • The Sensing phase and Transmission phase alternate forming a sleep cycle • (the processor can sleep during sensing phase while it can be active during the transmission phase) Ayushman Workload Frequency Throttling during security phase Sensing Phase Enables Sleep Scheduling Transmission Phase Sleep Cycle Sensor CPU Utilization Security Phase Time

  10. Management Strategies for Safety and Sustainability • Challenge - Atom’s high TDP (2.2 W) with respect to present day sensor nodes (~ 80 mW [4]) • Remedy – Power budgeting through sleep scheduling and clock frequency control • Road Blocks – • In a sleep mode the processor cannot compute • Decrease in clock frequency increases computation time • Challenge - Increase lifetime of operation • Remedy – include scavenging nodes in the BSN that will charge the Atom nodes wirelessly and supplement battery • Road Blocks – • The operation of scavenging sources are intermittent depending on the stochastic behavior of the host • Often the scavenging nodes fail to provide appropriate power levels to the nodes The strategies are closely related to the applications real time requirements. 4. K. Venkatasubramanian et al. Green and sustainable cyber-physical security solutions for body area networks. In BSN ’09: Proc. of the Sixth Intl. Workshop on Wearable and Implantable Body Sensor Networks, pages 240–245, Washington, DC, USA Intelligent design is required to achieve safety and sustainability while respecting the real time requirements of the applications

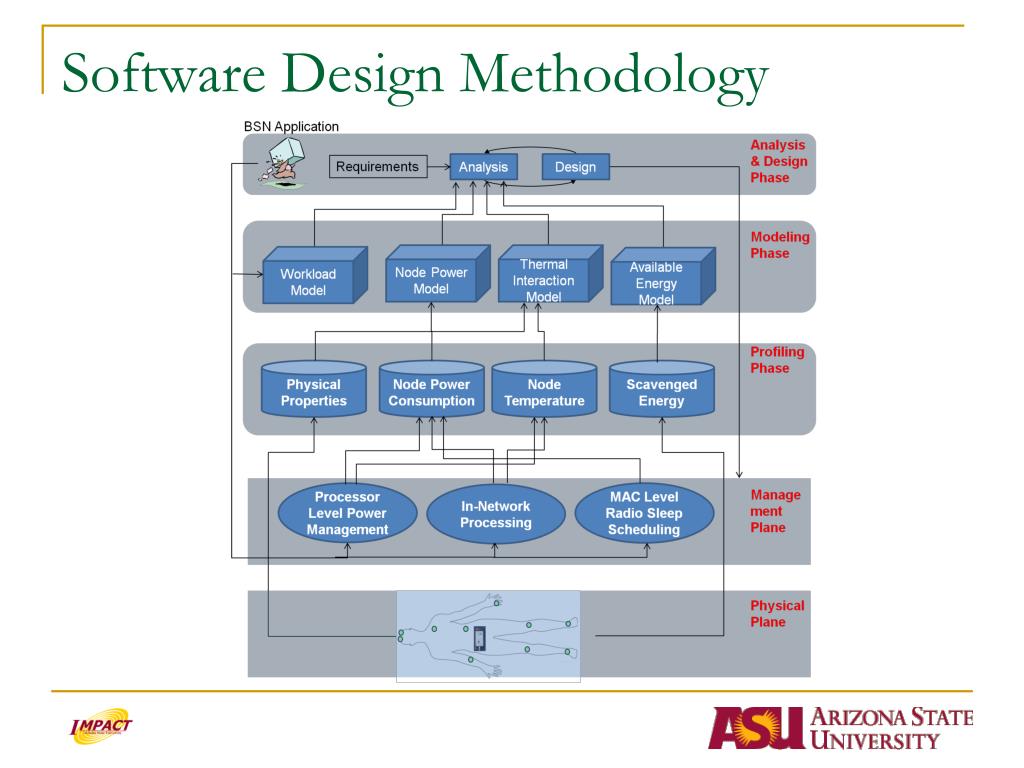

  11. Software Design Methodology

  12. BSN Hardware model • BSN node • Intel N270 single core processor • 1.6 GHz clock frequency, 1 GB RAM • Intel SpeedStep frequency control technology – useful for power management • 6 sleep states including one ultra low power sleep state (C6) – sleep scheduling • Chipcon 2420 radio • 2.45 GHz, 802.15.4 wireless standard • Maximum Power dissipation (58 mW [4]) BSN Node Base Station • Base Station • Atom based mobile phone Wireless Charging • Scavenging Sources • Body Heat, Ambulation, Respiration and Sun Light • Wireless charging of BSN nodes from scavenging sources is assumed • Each source has a specified range upto which it can charge nodes Scavenging Sources

  13. BSN node Software • The power consumption of Atom processor depends on the Operating System used • Mobile Intel 945 GMCH board power consumption • Open Suse Linux = 11.7 W • Moblin OS = 10.4 W • ACPI support required for accessing Intel SpeedStep frequency control and sleep states • Moblin provides ACPI through which one can write to or read appropriate MSR registers to – • Control clock frequency • Sleep States • Measure core temperature • The BSN workload considered is the Ayushman application

  14. Profiling Requirements • Thermal Safety – The maximum temperature of the skin in contact with the node should not exceed 39 ºC for 24 Hrs of operation • Thermal behavior of Atom under the given workload has to be evaluated • Sustainability – The available power from the scavenging sources should be able to meet the power demands of Atom node under the given workload • Power profiling of Atom processors during execution of Ayushman

  15. Thermal Profiling • Requires core temperature measurements for different operating points of the Atom processor • The Mobile Intel 945 GSE development platform (GMCH) provided by Intel has digital thermal sensors • The board thermal sensors were read from Model Specific Registers • The maximum core temperature (43 ºC) was observed during PKA execution Turn On GMCH board Set Operating Frequency Read MSR C6 Sleep State Run Ayushman Log Temperature Data Thermal profiling methodology

  16. Power Profiling Power Meter • PKA is the most power consuming computation in Ayushman [3] • The difference between idle power and power during PKA execution was measured using the GMCH board • Idle power of Atom N270 processor was added to it to obtain PKA power consumption Board Power Lead Intel Atom N270 on Mobile Intel Chipset 945 GSE AC Mains Table showing Atom power consumption for PKA execution at different operating frequencies Power Measurement Set up

  17. Resource Consumption • PKA computation in Ayushman involves signal processing of physiological signals as well as execution of security algorithms • Resource footprint of PKA is evaluated in terms of – • RAM usage, Power Consumption, and Computation Time • Atom compared to TelosB provides very low RAM usage and computation time • However as expected it has around thrice the power consumption Resource Consumption for PKA execution

  18. Modeling Phase • Industry Standard AADL language is used for modeling

  19. Safety Violation for different throttling modes 0.6 Safety Violation vs Percentage Throttle (curve fit) 0.4 0.2 Percentage Safety Violation 0 No Violation Line -0.2 -0.4 0 13 25 37 50 62 75 87 Percentage Throttle Safety Analysis • The temperature rise of human skin due to contact with Atom based BSN node has to be evaluated • The temperature rise occurs due to several physical phenomenon and is modeled using the Penne’s bioheat equation -

  20. Sustainability Analysis • Duty Cycling of Atom operation during Ayushman execution • Sleep mode (C6) during Sensing Phase • Power consumption = Psleep for time ts • Active mode during data transmission phase • Power consumption = Pactive + radio power Pradio for data transmission time ttx • Active mode during PKA execution • Power Consumption = Pactive + PKA execution power PPKA for time tPKA • PKA involves transmission of security related information (vault) between two sensors • The Atom processor must be in active state with the radio on. Power Consumption = Pactive + Pradio for time tvault • Total energy consumption for n BSN nodes • x is the number of sleep cycles required in a day Total Energy Sensing Energy Transmission Energy PKA Computation Energy (Pair wise PKA) PKA communication Energy (Pair wise PKA) Total Sleep Cycle Time Pair wise PKA Execution Time

  21. Sustainability Analysis Results • Four energy scavenging sources were considered • Body Heat, Ambulation, Respiration and Sun Light • PM – Processor and radio sleep scheduling • NPM – Radio sleep sche- ling • NPNM – no sleep schedule

  22. Conclusions • Proper Sleep scheduling and Frequency throttling can be used to bring Atom’s power consumption to safe and sustainable levels • Atom based BSNs with upto 25 nodes can be sustained using scavenged energy from body heat and respiration • A model based engineering tool has also been developed in this process • It uses industry standard AADL to model • Analysis of Model is performed through an eclipse interface by developing java based plug-ins

  23. Problems Faced • Inaccuracies in Thermal Profiling • Presence of heat sink on the Atom processor can cause additional thermal effects which are not accounted for in the analysis • Reliability of thermal sensors not known • Inaccuracies in Power Profiling • Available board was used to determine the power consumption of Atom • The power consumption may include several other components in the board • The sense resistors across which power can be measured were not found due to lack of documentation • Require stripped down version of Atom based development boards • Options to turn off components of the board has to evaluated

  24. Thank You
