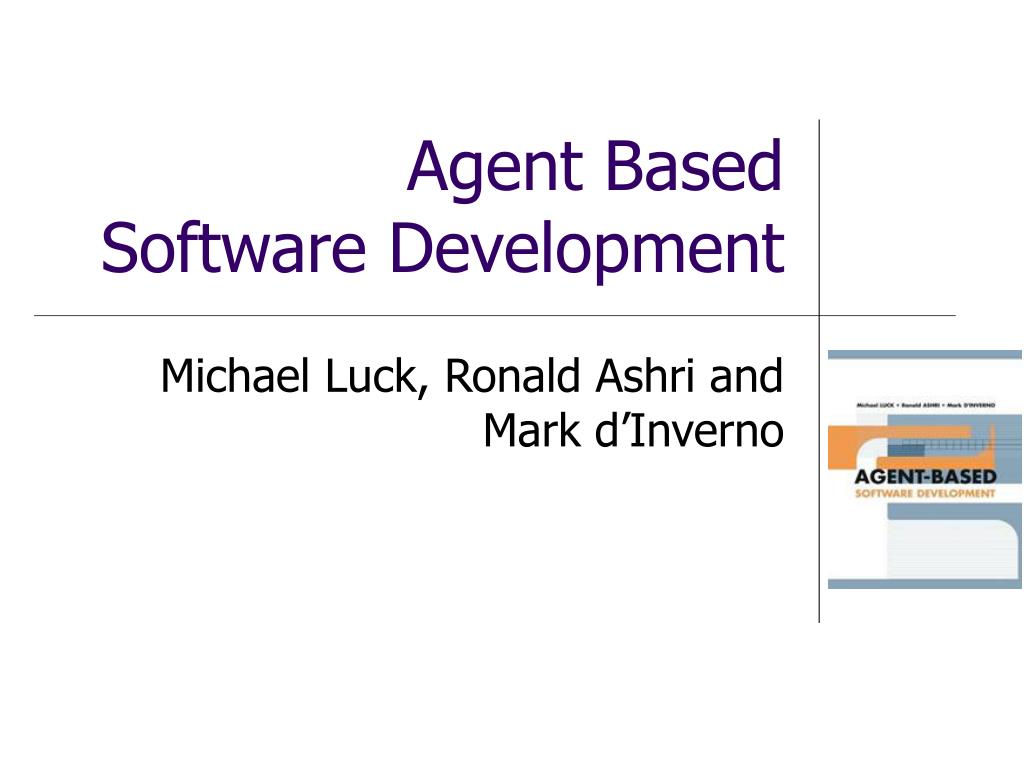

  1. Agent Based Software Development Michael Luck, Ronald Ashri and Mark d’Inverno

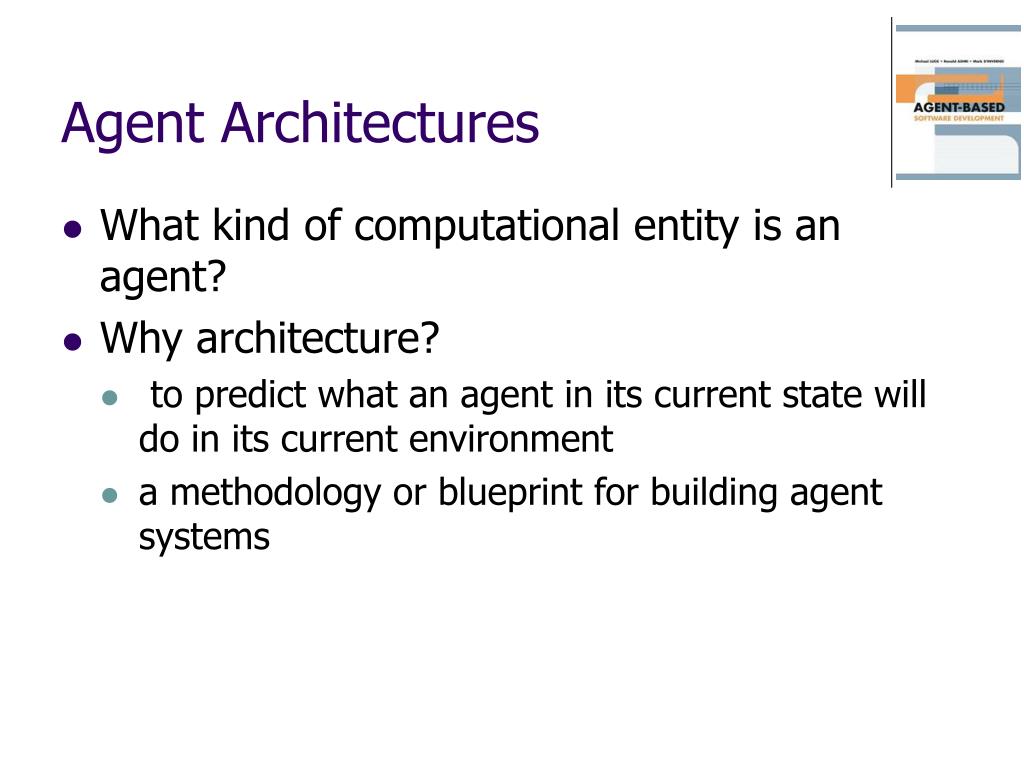

  2. Agent Architectures • What kind of computational entity is an agent? • Why architecture? • to predict what an agent in its current state will do in its current environment • a methodology or blueprint for building agent systems

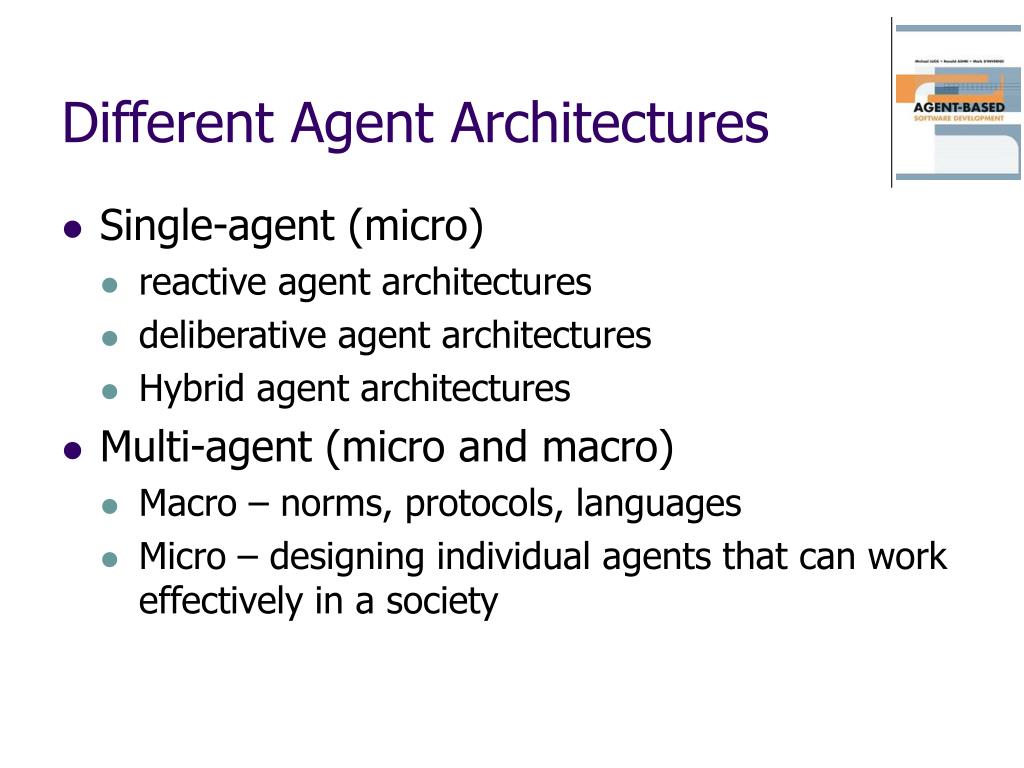

  3. Different Agent Architectures • Single-agent (micro) • reactive agent architectures • deliberative agent architectures • Hybrid agent architectures • Multi-agent (micro and macro) • Macro – norms, protocols, languages • Micro – designing individual agents that can work effectively in a society

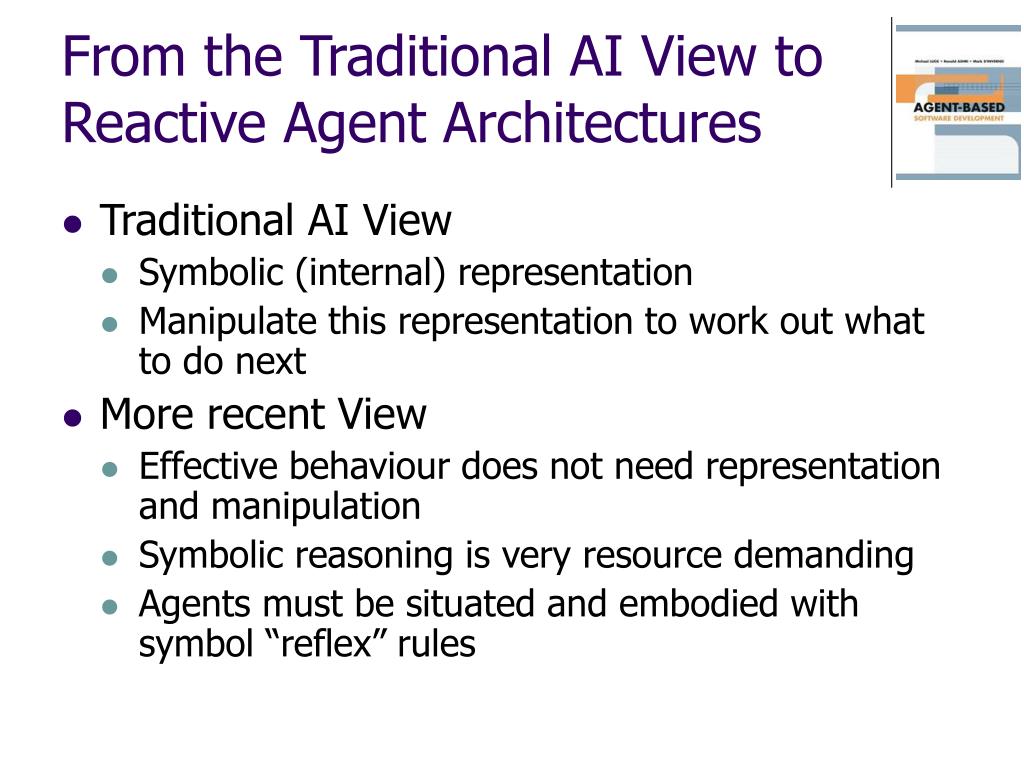

  4. From the Traditional AI View to Reactive Agent Architectures • Traditional AI View • Symbolic (internal) representation • Manipulate this representation to work out what to do next • More recent View • Effective behaviour does not need representation and manipulation • Symbolic reasoning is very resource demanding • Agents must be situated and embodied with symbol “reflex” rules

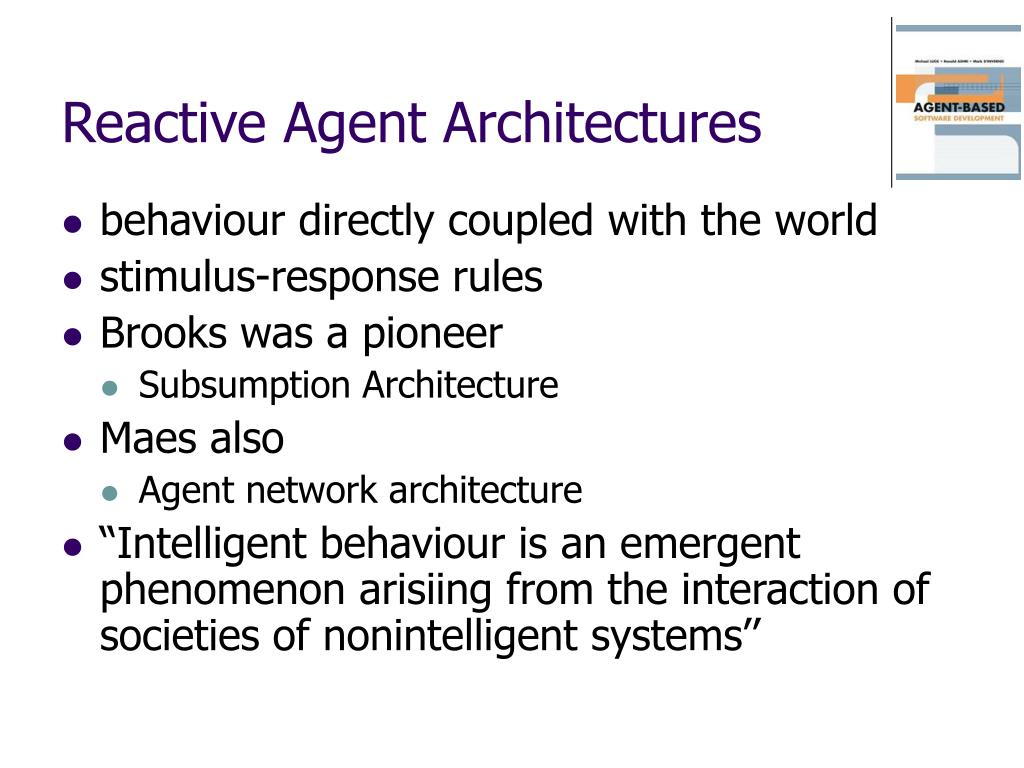

  5. Reactive Agent Architectures • behaviour directly coupled with the world • stimulus-response rules • Brooks was a pioneer • Subsumption Architecture • Maes also • Agent network architecture • “Intelligent behaviour is an emergent phenomenon arisiing from the interaction of societies of nonintelligent systems’’

  6. Subsumption Architectures • A means of controlling behaviour of mobiles robots in real time – 3 basic requirements • Agents that can cope with multiple goals • Agents should have multiple sensors • Agents should be robust • Function when some sensors fail • Function in dynamic uncertain environments

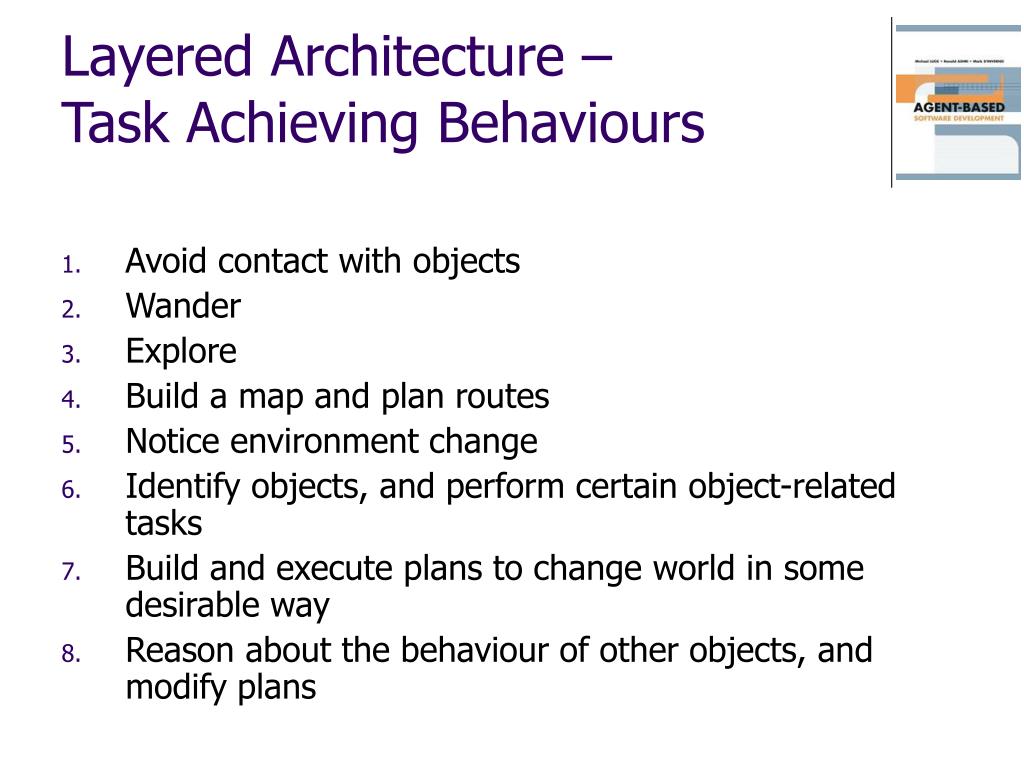

  7. Layered Architecture – Task Achieving Behaviours • Avoid contact with objects • Wander • Explore • Build a map and plan routes • Notice environment change • Identify objects, and perform certain object-related tasks • Build and execute plans to change world in some desirable way • Reason about the behaviour of other objects, and modify plans

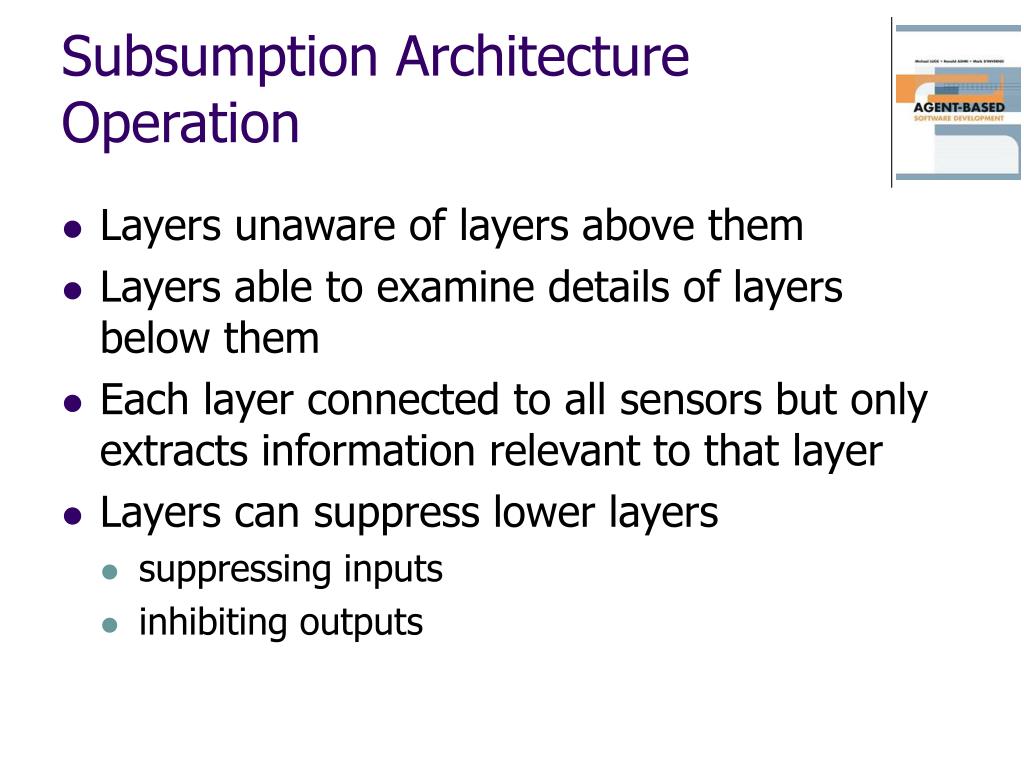

  8. Subsumption Architecture Operation • Layers unaware of layers above them • Layers able to examine details of layers below them • Each layer connected to all sensors but only extracts information relevant to that layer • Layers can suppress lower layers • suppressing inputs • inhibiting outputs

  9. The Subsumption Architecture

  10. Pros and Cons of the Subsumption Architecture • Pros • Showed decomposition by behaviour rather than function was possible • Modular structure and a clear control methdolology • Impact on other architectures • Cons • No explicit reasoning – how would it scale up? • No design methodology – built on intuition rather than a set of guiding principles • Difficult to perform any formal analysis and so predict or explain behaviour

  11. Agent Network Architecture • Based on the notion that intelligent systems consist of societies of mindless interacting systems • Consists of competence modules • compete for behaviour using activation • Activation based on • whether a module is currently executable • perception of the environment • current goals

  12. Agent Network Architecture Operation • Modules are linked • activated modules increase the activation of their successors • Non executable models activate their predecessors • All modules decrease activation of their conflictors • Architecture is distributed, modular and robust. • Has not been extended for designing multi-agent systems in general

  13. Deliberative Agent Architectures • Maintain and manipulate representations of the world • To model rational or intentional agency use mental attitudes • Eg. Beliefs, goals, desires, knowledge, plans, motivations, intentions • 3 Basic categories • Informative (about the world) • Motivational (what drives the agent) • Deliberative (directs agent behaviour)

  14. Why Mental Attidues? • First, if an agent can be described in terms of what it knows, what it wants, and what it intends, then,since it is modeled on familiar concepts, it becomes possible for users to understand and predict its behavior. • Second, understanding the relationship between these different attitudes and how they affect behavior can provide the control mechanism for intelligent action in general. • Third, computational agents designed in this way may be able to interpret the behavior of others independently from any implementation.

  15. BDI Theory and Architecture • Supports many deliberative architectures • Belief, desire and intention (theory) • Represented as data structures (beliefs, goals and intentions) which determine the operation of an agent • Cannot commit to all its goals as resource bounded so selects some which are the agents’ intentions

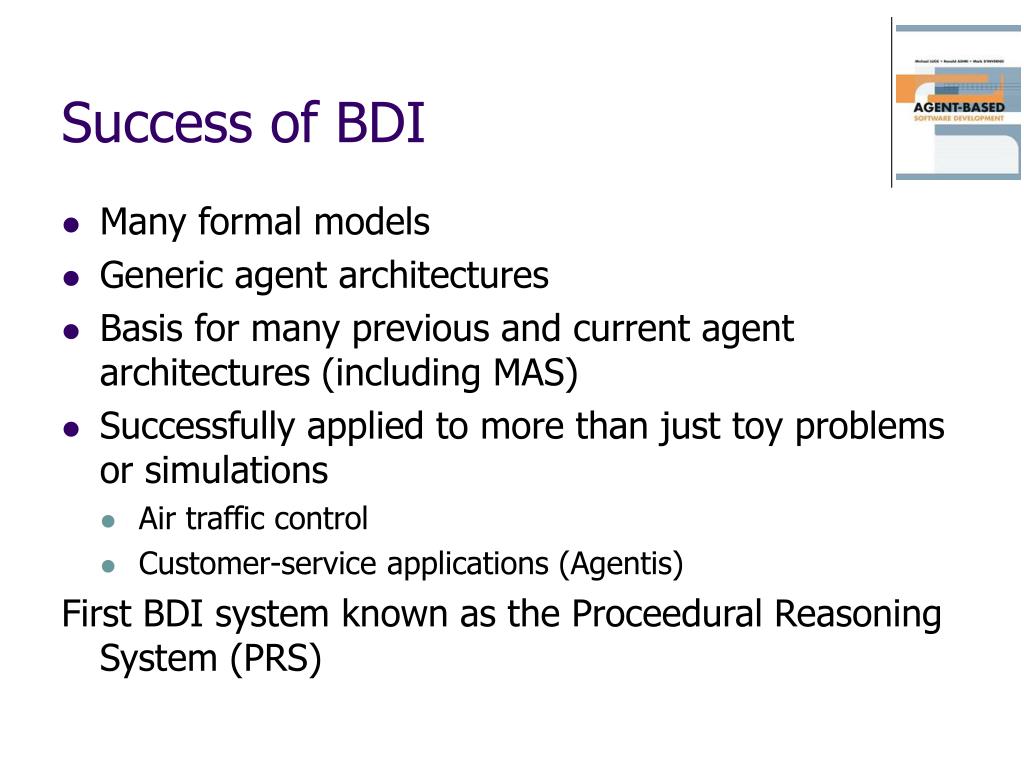

  16. Success of BDI • Many formal models • Generic agent architectures • Basis for many previous and current agent architectures (including MAS) • Successfully applied to more than just toy problems or simulations • Air traffic control • Customer-service applications (Agentis) First BDI system known as the Proceedural Reasoning System (PRS)

  17. The PRS Architecture

  18. PRS • Beliefs, goals, intentions and plan library • Agent perceive the world through external events • Plans – proceedural knowledge • Recipes for action (tree labeled with actions and formulas which evaluate to a boolean) • Trigger (what an agent must perceive) • Context (what an agent must believe) • If plans cannot proceed they post internal events

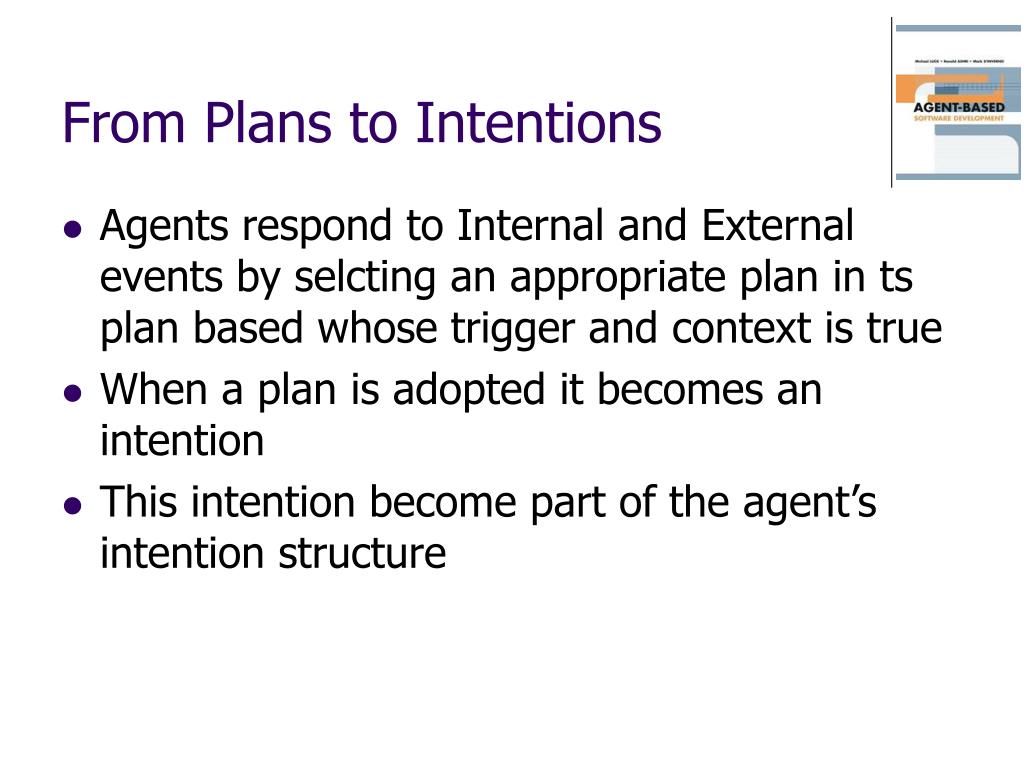

  19. From Plans to Intentions • Agents respond to Internal and External events by selcting an appropriate plan in ts plan based whose trigger and context is true • When a plan is adopted it becomes an intention • This intention become part of the agent’s intention structure

  20. PRS Operation 1. Perceive the world, and update the set of events. 2. For each event, generate the set of plans whose trigger condition matches the event. These are known as the relevant plans of an event. 3. For each event, select the subset of relevant plans whose context condition is satisfied by the agent’s current beliefs. These plans are known as active plans. 4. From the set of active plans, select one for execution so that it is now an intention. 5. Include this new intention in the current intention structure either by creating a new intention stack or by placing it on the top of an existing stack. 6. Select an intention stack, take the topmost intention, and execute the next formula in it.

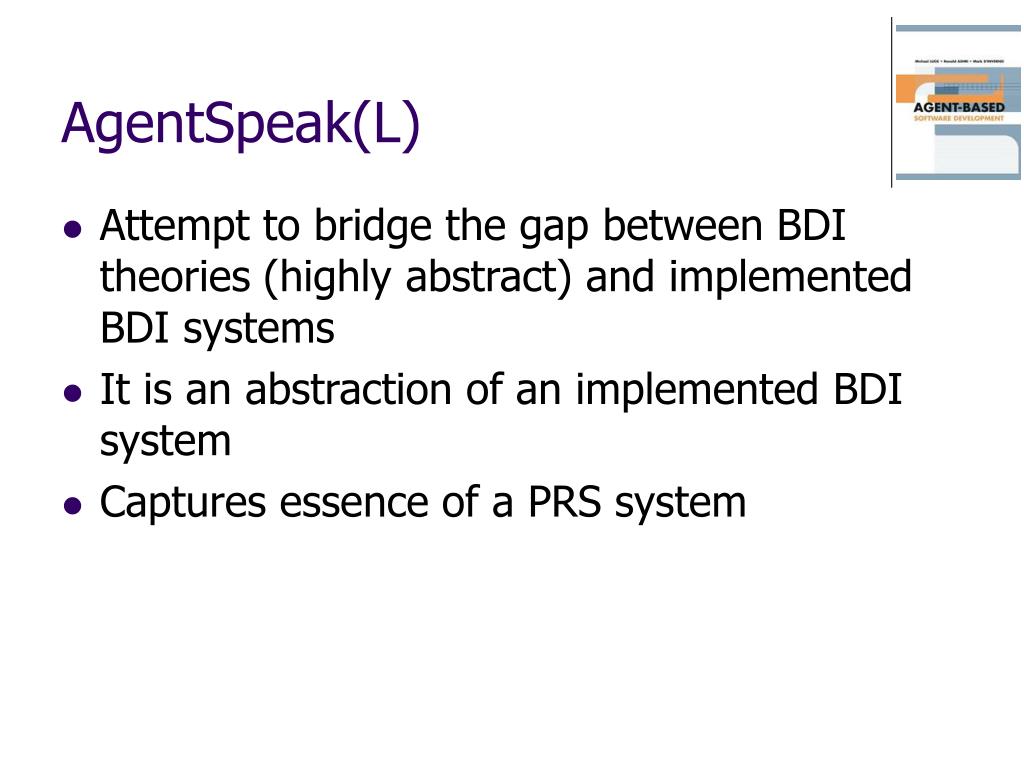

  21. AgentSpeak(L) • Attempt to bridge the gap between BDI theories (highly abstract) and implemented BDI systems • It is an abstraction of an implemented BDI system • Captures essence of a PRS system

  22. AgentSpeak(L) Data Structures and Operation • Beliefs • Intentions (sequences of plans) • Plans have a trigger, context and a sequence of actions and goals • Agents instantiate plans in response to internal events (goals of executing plans) and external events (which effect a belief change) • Agent execute the intentions

  23. Hybrid Agent Architectures • Solely Reactive Systems • Cannot reason about their actions • Will never be able to achieve sophisticated behaviour • Solely Deliberative Systems • Will never be able to act “in time” • If agents are going to be able to survive in complex dynamic environments and achieve complex goals they will need to be If agents are goingto be able to survive in complex dynamic environments and achieve complex goals they will need to be both reactive and deliberative

  24. Touring Machines • Based on the following observations: • Agents need the ability to deal with unexpected events in the real (physical or electronic) world, and do so at different levels of granularity. • Agents need to deal with the dynamism in the environment created by the actions of other agents. • Agents must pay attention to environmental change. • Agents need to reason about temporal constraints in the knowledge that computation is necessarily resource-bounded. • Agents must reason about the impact the short-term actions may have on long-term goals.

  25. TouringMachines Architectural Layers • Reactive layer • Responds to events not explicitly programmed in other layers such as obstacle avoidance • Planning Layer • Generating, executing and modifying plans • Modelling Layer • Builds and maintains models of other agents in the environment

  26. TouringMachine Architecture

  27. TouringMachines • Each layer models world at different level of abstraction • Each directly connected to perception and action • Any two layers can communicate • Global rules used when conflicts between layers arise and can surpress perception or action • Important for showing how to build an agent which exhibited a range of behaviours from deliberative to reactive

  28. InterRRaP • Another layered architecture • Based on BDI • It is vertically layered in constrast to TouringMachines which are horizontally layered • Horizontally layered – each layer can interact with every other layer and with perceptions and actions • Vertically layered – communication only possible between adjacent layers • InterRRaP has four such layers • The essential operation of the agent; in response to events in the environment, control spreads upwards until the appropriate level is reached.

  29. InteRRaP Architecture

  30. Distributed Agent Architectures • Agents described previously may have architecture that enables them to interact effectively with others at run time • Here the design is concerned with individual agents and the dimensions required – micro-level view • Macro-level view – considers a multiagent system from a holistic view, where interaction, coordination and cooperation between agents are designed in advance of run time

  31. Contract Net Protocol Overview • Most commonly employed coordination mechanism for controlling the problem solving behavior of a collection of distributed agents • concerned with the dynamic configuration and coordination of agents to form hierarchies that can achieve complex, distributed tasks. • provides a mechanism by which nodes (or agents) can dynamically create relationships in response to the current processing requirements of the system as a whole, thereby enabling opportunistic task allocation.

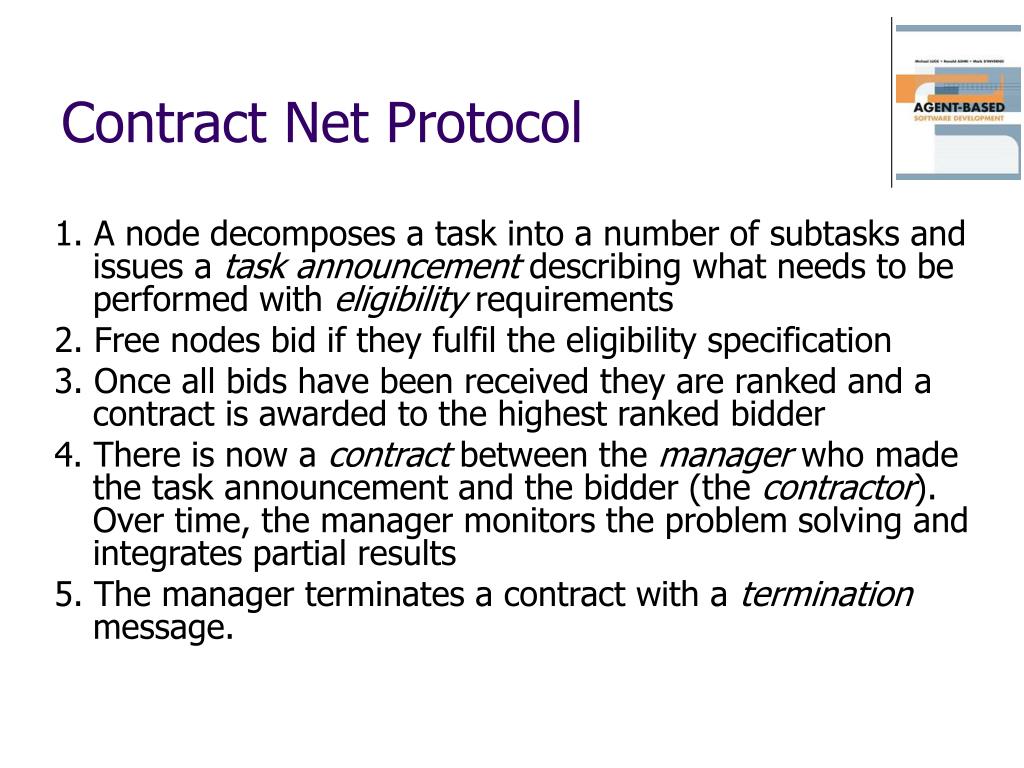

  32. Contract Net Protocol 1. A node decomposes a task into a number of subtasks and issues a task announcement describing what needs to be performed with eligibility requirements 2. Free nodes bid if they fulfil the eligibility specification 3. Once all bids have been received they are ranked and a contract is awarded to the highest ranked bidder 4. There is now a contract between the manager who made the task announcement and the bidder (the contractor). Over time, the manager monitors the problem solving and integrates partial results 5. The manager terminates a contract with a termination message.

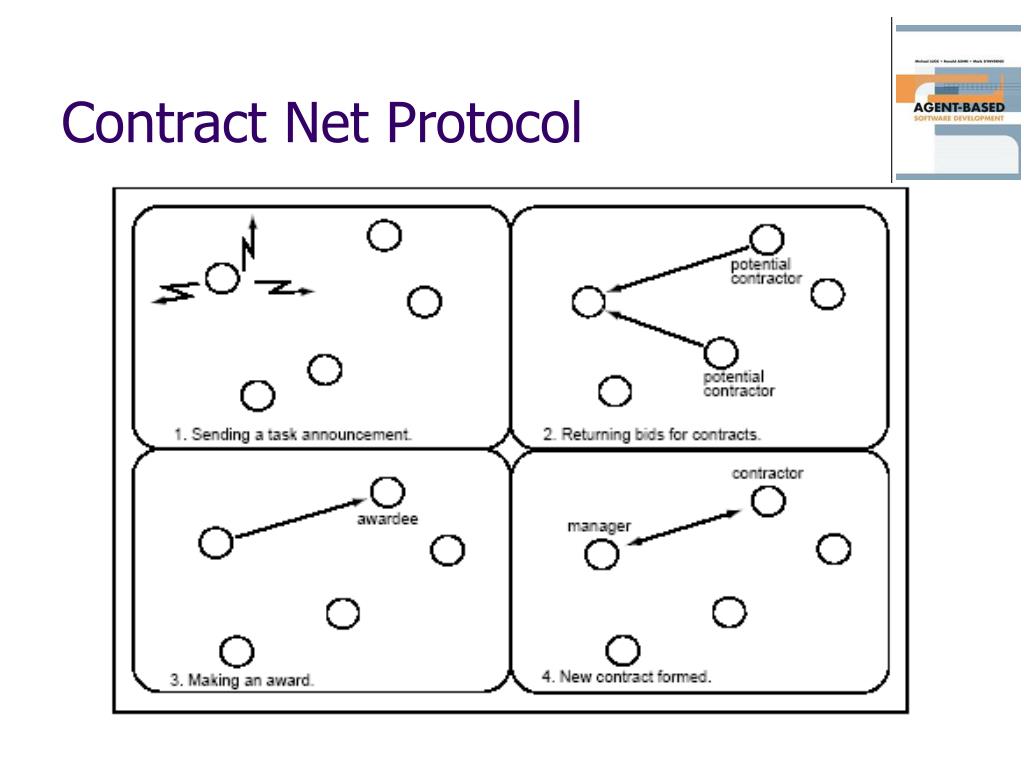

  33. Contract Net Protocol

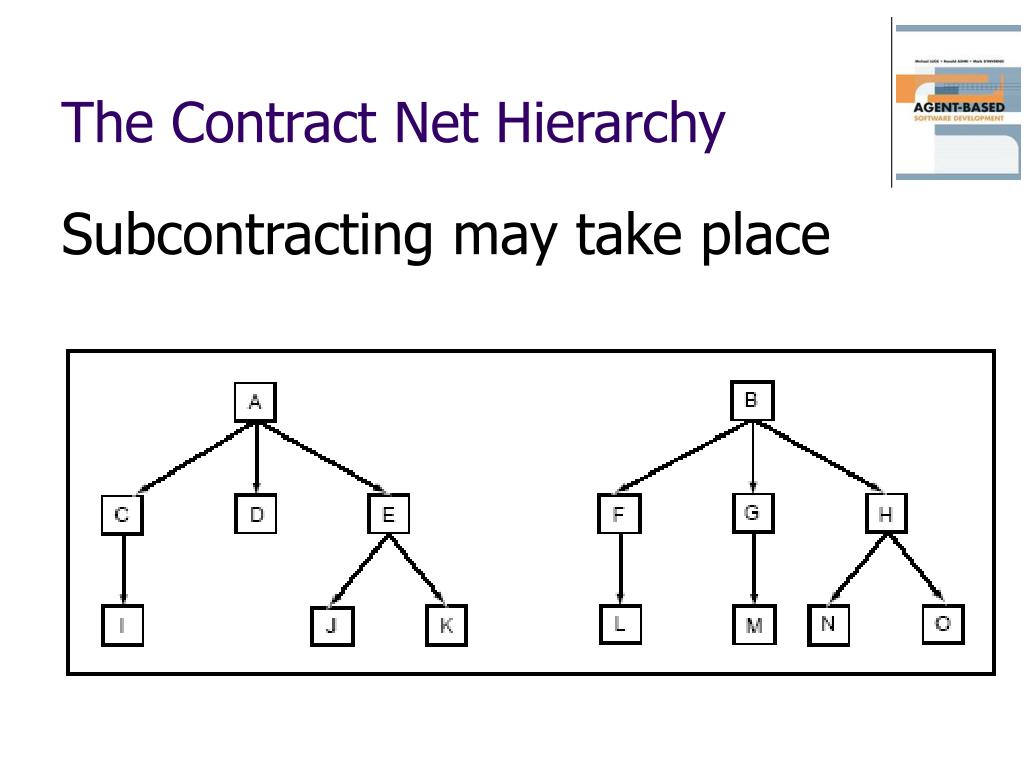

  34. The Contract Net Hierarchy Subcontracting may take place

  35. Contract Net Summary • The contract net protocol was a novel means for dynamically allocating tasks in distributed systems • Still commonly found in many agent systems. • However, it offers a very simple coordination mechanism • does not provide any strategies for global coherence • only suited to situations in which the tasks are easily decomposable into • only suitable if agents are not in conflict • does not support mechanisms for bargaining or negotiating • We use it to illustrate general principles involved when considering the design of systems from the macrolevel perspective.

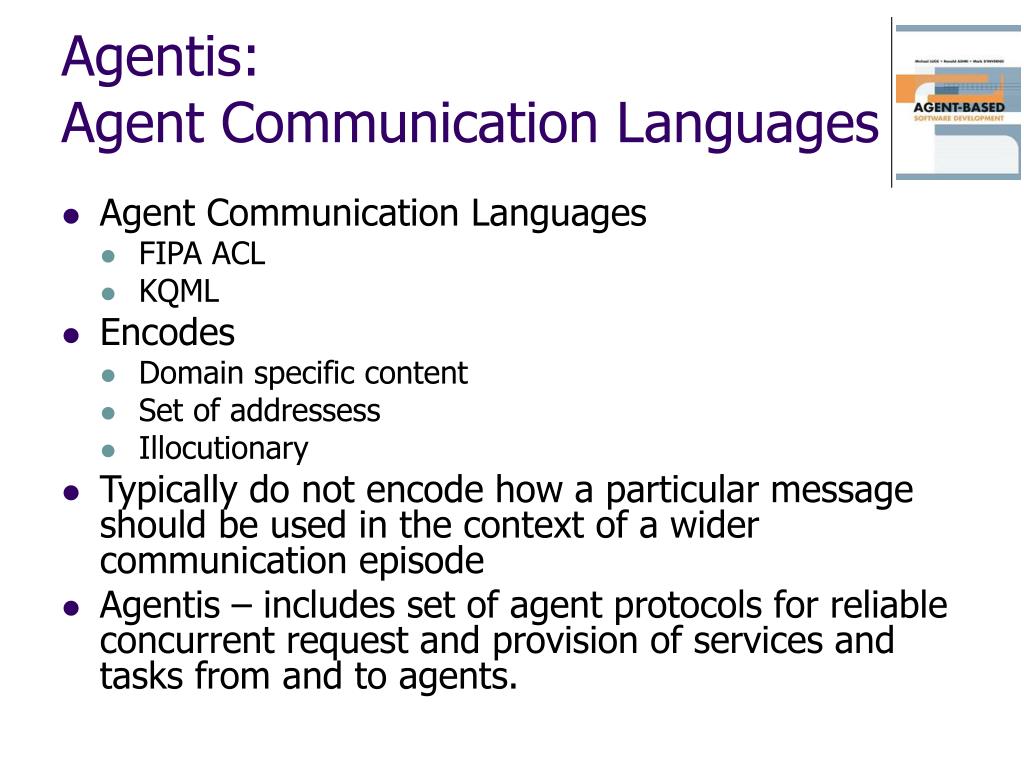

  36. Agentis: Agent Communication Languages • Agent Communication Languages • FIPA ACL • KQML • Encodes • Domain specific content • Set of addressess • Illocutionary • Typically do not encode how a particular message should be used in the context of a wider communication episode • Agentis – includes set of agent protocols for reliable concurrent request and provision of services and tasks from and to agents.

  37. Agentis • Agent Interaction Model • Includes the notions of Services and Tasks • Services are requested by human users • Services may call upon a series of tasks as part of a service contract

  38. Other Approaches to MacroLevel Organisation • DECAF • Rapid design and execution of agents • Focus on defining generic behaviours that can be re-used • RETSINA • a multiagent infrastructure that comprises a set of services, conventions, and knowledge that enable complex social interactions such as negotiation to take place • TeamCore based on principle that an agent integration infrastructure (a set of services and conventions) based on theoretical principles of coordination can automate robust coordination among heterogeneous agents in distributed systems

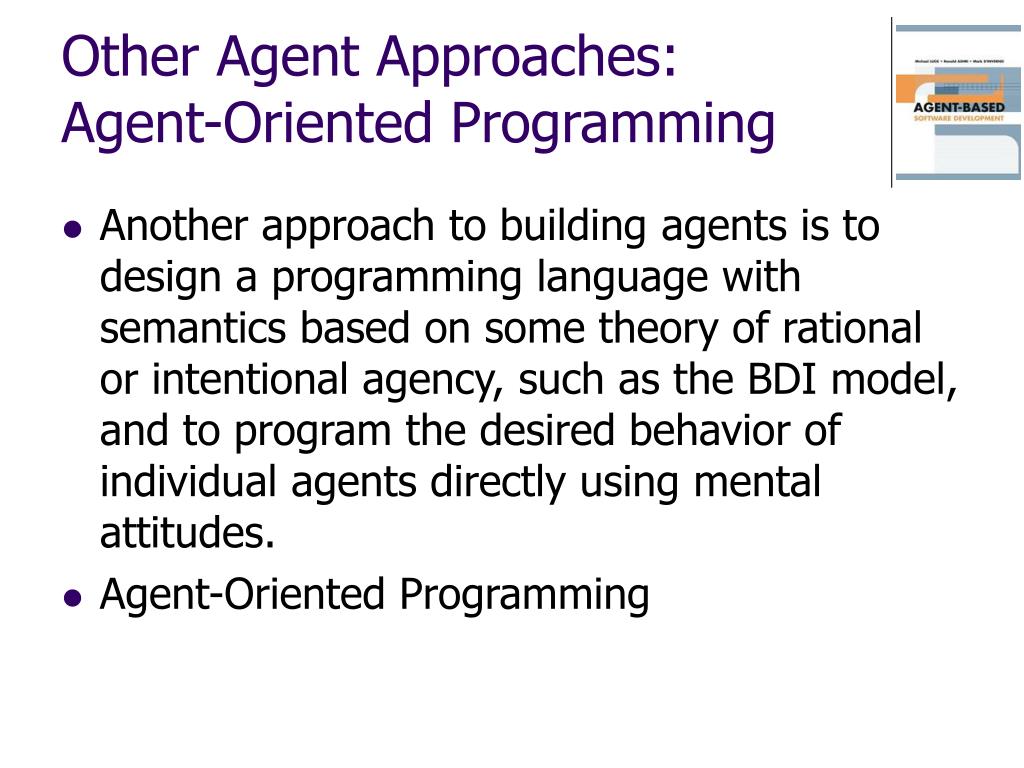

  39. Other Agent Approaches: Agent-Oriented Programming • Another approach to building agents is to design a programming language with semantics based on some theory of rational or intentional agency, such as the BDI model, and to program the desired behavior of individual agents directly using mental attitudes. • Agent-Oriented Programming

  40. Agent-Oriented Programming • program comprises a set of transition rules that specify how an agent in a given mental state will respond to an input, which may be a set of messages from other agents, by defining its new mental state and any outputs. • One example is PLACA based on AGENT0 which takes a societal view (agents interact with each other to achieve their own goals)

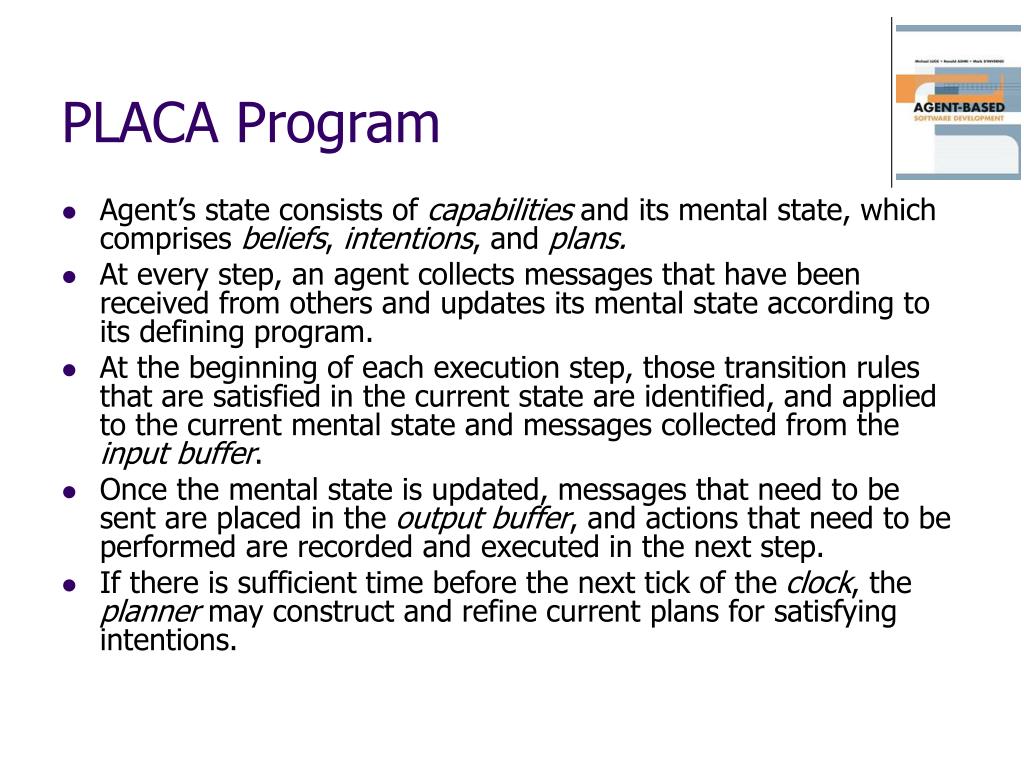

  41. PLACA Program • Agent’s state consists of capabilities and its mental state, which comprises beliefs, intentions, and plans. • At every step, an agent collects messages that have been received from others and updates its mental state according to its defining program. • At the beginning of each execution step, those transition rules that are satisfied in the current state are identified, and applied to the current mental state and messages collected from the input buffer. • Once the mental state is updated, messages that need to be sent are placed in the output buffer, and actions that need to be performed are recorded and executed in the next step. • If there is sufficient time before the next tick of the clock, the planner may construct and refine current plans for satisfying intentions.

  42. PLACA Interpreter

  43. Concurrent MeTaTeM • Also takes a societal view • Agents specified using a temporal logic that is directly executable • Agents specified using temporal logic formula • An interpreter attempts to construct a model in which the formula is true • Dynamically changing environment also alters the model so responses must be made to what has just been made true or untrue in the model

  44. Specification of a Controller agent in Concurrent MetaTeM 1. If an agent asks, then eventually give the resource to that agent; 2. Do not give to anyone unless they have asked since you last gave to them; 3. If you give to two people, then they must be the same person.

  45. Summary • Deliberative vs Reactive • design for decisions at run time - design occurs before run time • Micro vs Macro • design for decisions at run time - design occurs before run time
