Multiple Kernel Learning

Mercy avatar
Mercy
85 diapositives · 1.5K Views · Mar 07, 2012

Multiple Kernel Learning. Manik Varma Microsoft Research India. A Quick Re view of SVMs. Margin = 2 /  w t w.  > 1. Misclassified point.  < 1. b. Support Vector.  = 0. Support Vector. w. w t x + b = -1.  = 0. w t x + b = 0. w t x + b = +1.

Multiple Kernel Learning - slide 1
01 / 85Multiple Kernel Learning
1 / 17

Télécharger la présentation

Multiple Kernel Learning
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Multiple Kernel Learning Manik Varma Microsoft Research India

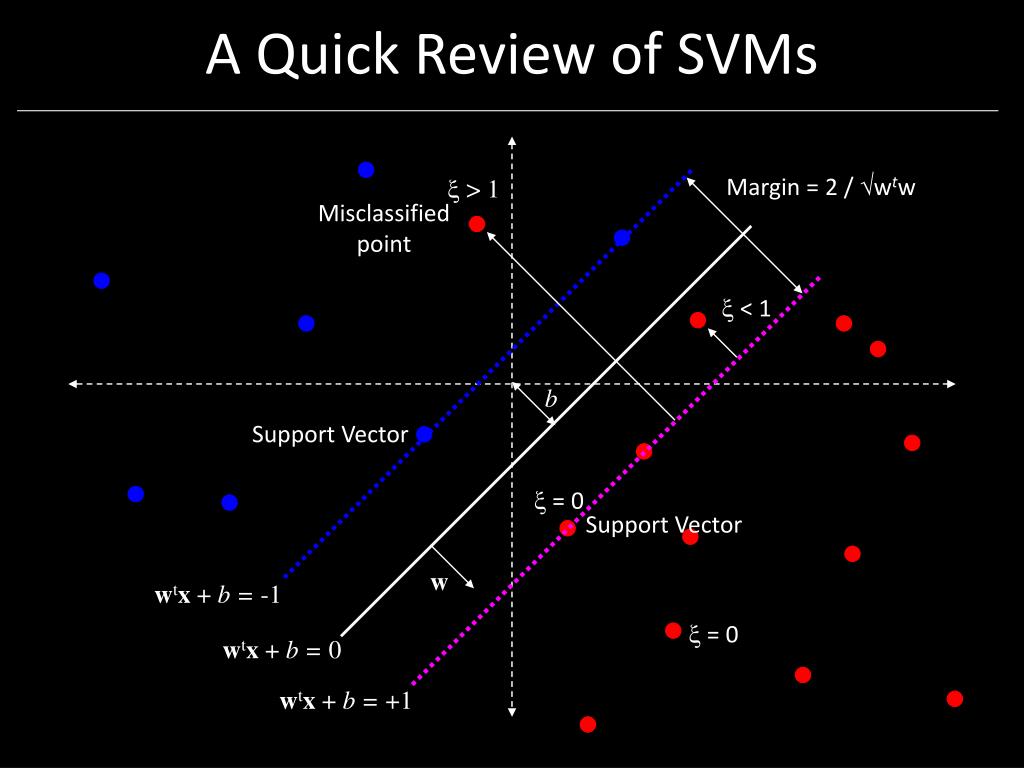

  2. A Quick Review of SVMs Margin = 2 /wtw  > 1 • Misclassified point  < 1 b • Support Vector  = 0 • Support Vector w wtx + b = -1  = 0 wtx + b = 0 wtx + b = +1

  3. Primal P = Minw,,b½wtw + Ct • s. t. Y(Xtw + b1) 1 –  • 0 • Dual D = Max 1t – ½tYKY • s. t. 1tY = 0 • 0    C The C SVM Primal and Dual

  4. Primal P = Minxf0(x) • s. t. fi(x) 0 1  i  N • hi(x)= 0 1  i  M • Lagrangian L(x,,) = f0(x) + i ifi(x) + i ihi(x) • Dual D = Max,Minx L(x,,) • s. t.  0 Duality

  5. The Lagrange dual is always concave (even if the primal is not convex) and might be an easier problem to optimize • Weak duality : P  D • Always holds • Strong duality : P = D • Does not always hold • Usually holds for convex problems • Holds for the SVM QP Duality

  6. If strong duality holds, then for x*, * and * to be optimal the following KKT conditions must necessarily hold • Primal feasibility : fi(x*) 0 & hi(x*)= 0 for 1  i • Dual feasibility : *  0 • Stationarity : xL(x*, *,*) = 0 • Complimentary slackness : i*fi(x*)= 0 • If x+, + and + satisfy the KKT conditions for a convex problem then they are optimal Karush-Kuhn-Tucker (KKT) Conditions

  7. Linear : K(xi,xj) = xit-1xj • Polynomial : K(xi,xj) = (xit-1xj + c)d • Gaussian (RBF) : K(xi,xj) = exp( –kk(xik – xjk)2) • Chi-Squared : K(xi,xj) = exp( –2(xi, xj) ) • Sigmoid : K(xi,xj) = tanh(xitxj – c) •  should be positive definite, c  0,   0 and d should be a natural number Some Popular Kernels

  8. Improve accuracy and generalization • Learn an RBF Kernel : K(xi,xj) = exp( – k (xik – xjk)2) Advantages of Learning the Kernel

  9. Kernel Parameter Setting - Underfitting

  10. Kernel Parameter Setting

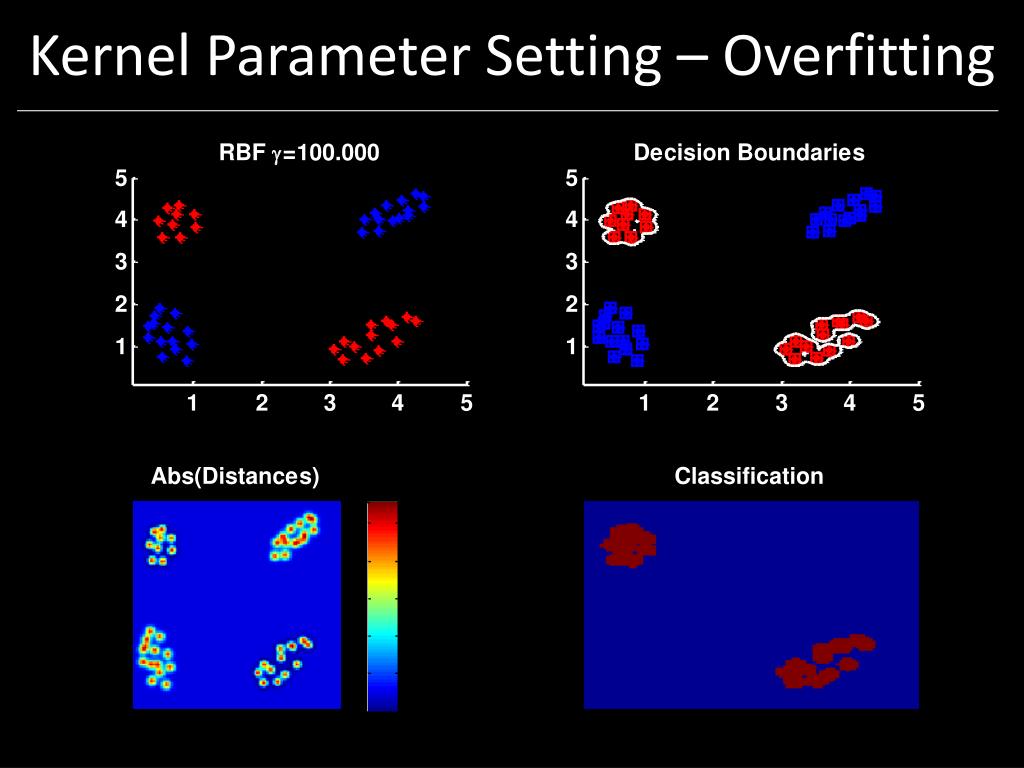

  11. Kernel Parameter Setting – Overfitting

  12. Improve accuracy and generalization • Learn an RBF Kernel : K(xi,xj) = exp( – k (xik – xjk)2) • Test error as a function of  Advantages of Learning the Kernel

  13. Perform non-linear feature selection • Learn an RBF Kernel : K(xi,xj) = exp(–kk(xik – xjk)2) • Perform non-linear dimensionality reduction • Learn K(Pxi, Pxj) where P is a low dimensional projection matrix parameterized by  • These are optimized for the task at hand such as classification, regression, ranking, etc. Advantages of Learning the Kernel

  14. Multiple Kernel Learning • Learn a linear combination of given base kernels • K(xi,xj) = kdkKk(xi,xj) • Can be used to combine heterogeneous sources of data • Can be used for descriptor (feature) selection Advantages of Learning the Kernel

  15. MKL learns a linear combination of base kernels • K(xi,xj) = kdkKk(xi,xj) MKL – Geometric Interpretation d11 d22  = d33

  16. Suppose we’re given a simplistic 1D shape feature for a binary classification problem • Define a linear shape kernel : Ks(si,sj) = sisj • The classification accuracy is 100% but the margin is very small MKL – Toy Example s

  17. Suppose we’re now given addition 1D colour feature • Define a linear colour kernel : Kc(ci,cj) = cicj • The classification accuracy is also 100% but the margin remains very small MKL – Toy Example c

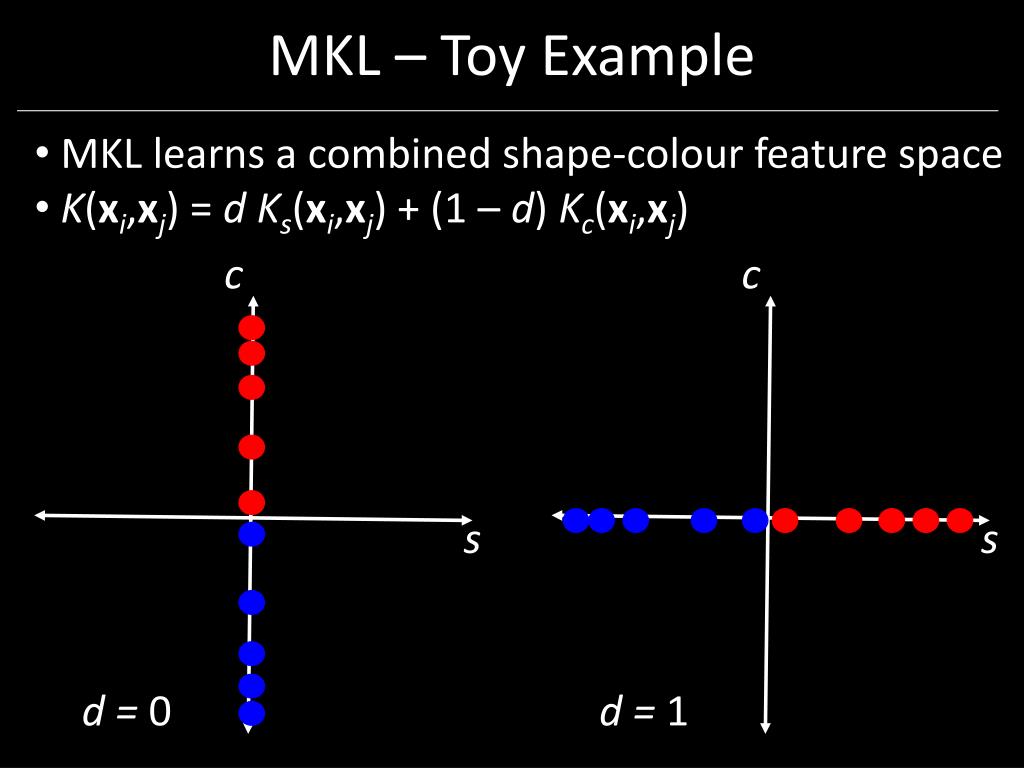

  18. MKL learns a combined shape-colour feature space • K(xi,xj) = dKs(xi,xj) + (1 – d) Kc(xi,xj) MKL – Toy Example c c s s d = 0 d = 1

  19. MKL – Toy Example

  20. MKL learns a combined shape-colour feature space • K(xi,xj) = dKs(xi,xj) + (1 – d) Kc(xi,xj) MKL – Another Toy Example c c s s d = 0 d = 1

  21. MKL – Another Toy Example

  22. Chair Object Categorization Schooner ? Ketch Taj Panda

  23. Database collected by Fei-Fei et al. [PAMI 2006] The Caltech 101 Database

  24. The Caltech 101 Database – Chairs

  25. The Caltech 101 Database – Bikes

  26. Features • Geometric Blur [Berg and Malik, CVPR 01] • PHOW Gray & Colour [Lazebnik et al., CVPR 06] • Self Similarity [Shechtman and Irani, CVPR 07] • Kernels • RBF for Geometric Blur • K(xi,xj) = exp( – 2(xi,xj)) for the rest Caltech 101 – Features and Kernels

  27. Experimental Setup • 102 categories including Background_Google and Faces_easy • 15 training and 15 test images per category • 30 training and up to 15 test images per category • Results summarized over 3 random train/test splits Caltech 101 – Experimental Setup

  28. Caltech 101 – MKL Results

  29. Caltech 101 – Comparisons

  30. Caltech 101 – Over Fitting?

  31. Caltech 101 – Over Fitting?

  32. Caltech 101 – Over Fitting?

  33. Caltech 101 – Over Fitting?

  34. Caltech 101 – Over Fitting?

  35. Experimental Setup • 33 topics chosen each with more than 60 images • Ntrain = [10, 15, 20, 25, 30] • The remaining images are used for testing • Features • PHOG 180 & 360 • Self Similarity • PHOW Gray & Colour • Gabor filters • Kernels • Pyramid Match Kernel & Spatial Pyramid Kernel Wikipedia MM Subset

  36. LMKL [Gonen and Alpaydin, ICML 08] • GS-MKL [Yang et al., ICCV 09] Wikipedia MM Subset

  37. FERET faces [Moghaddam and Yang, PAMI 2002] Feature Selection for Gender Identification Males Females

  38. Experimental setup • 1053 training and 702 testing images • We define an RBF kernel per pixel (252 kernels) • Results summarized over 3 random train/test splits Feature Selection for Gender Identification

  39. Feature Selection Results Uniform MKL = 92.6  0.9 Uniform GMKL = 94.3  0.1

  40. Localize a specified object of interest if it exists in a given image Object Detection

  41. The PASCAL VOC Challenge Database

  42. PASCAL VOC Database – Cars

  43. PASCAL VOC Database – Dogs

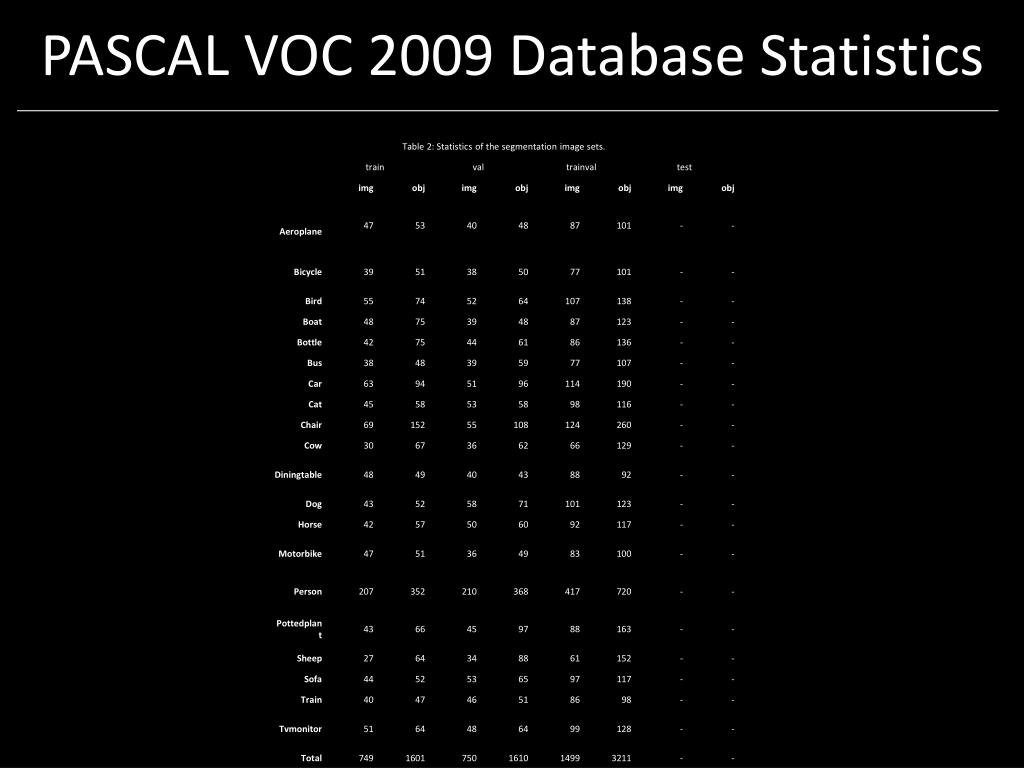

  44. PASCAL VOC 2009 Database Statistics

  45. Detect by classifying every image window at every position, orientation and scale • The number of windows in an image runs into the hundred millions • Even if we classify a window in a second it will take us many days to detect a single object in an image Bird Detection By Classification No Bird

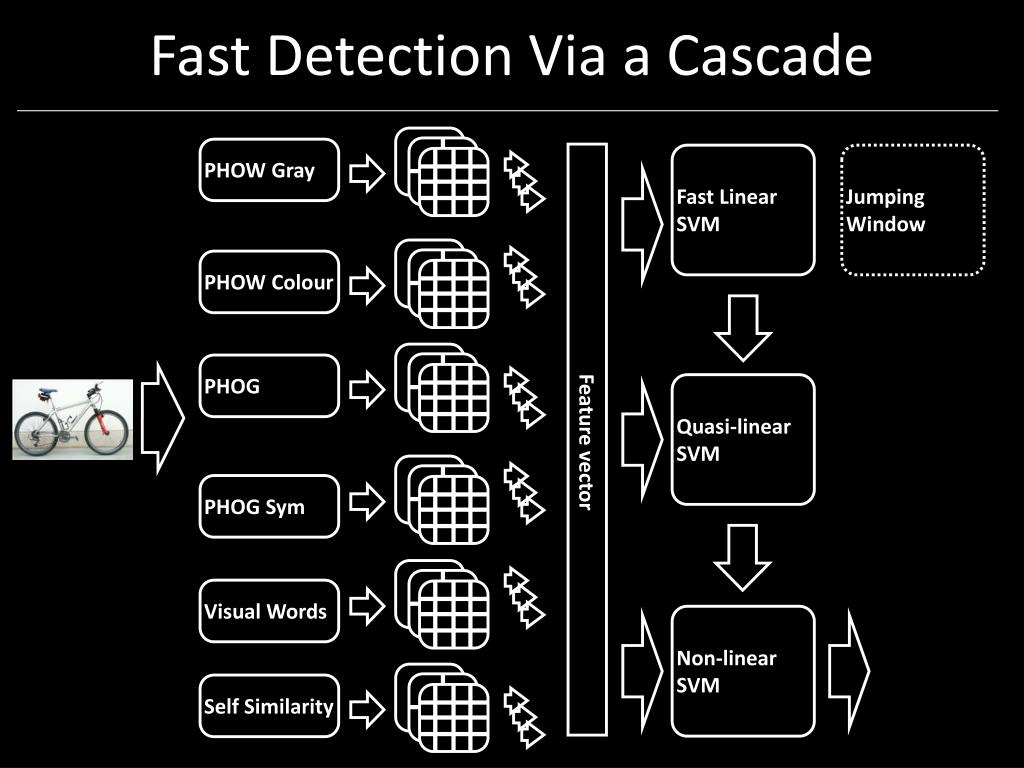

  46. Fast Linear SVM Jumping Window Quasi-linear SVM Feature vector Non-linear SVM PHOW Gray Fast Detection Via a Cascade PHOW Colour PHOG PHOG Sym Visual Words Self Similarity

  47. First stage • Linear SVM • Jumping windows/Branch and Bound • Time = O(#Windows) • Second stage • Quasi-linear SVM • 2 kernel • Time = O(#Windows * #Dims) • Third stage • Non-linear SVM • Exponential 2 kernel • Time = O(#Windows * #Dims * #SVs) • Th MKL Detection Overview

  48. Predictions are evaluated using precision-recall curves based on bounding box overlap • Area Overlap = BgtBp / BgtBp • Valid prediction if Area Overlap > ½ PASCAL VOC Evaluation Ground truth Bgt BgtBp Predicted Bp

  49. Some Examples of MKL Detections

  50. Some Examples of MKL Detections
