  1. Molecular Electronics Jason Chiesa May 3, 2006

  2. Overview • What is Molecular Electronics? • Advantages of Molecular Electronics • Molecular Switch • Issues

  3. What is Molecular Electronics? • Sometimes called moletronics • Molecular electronics is a branch of applied physics which aims at using molecules as passive or active electronic components. • These molecules will perform the functions currently performed by semiconductors.

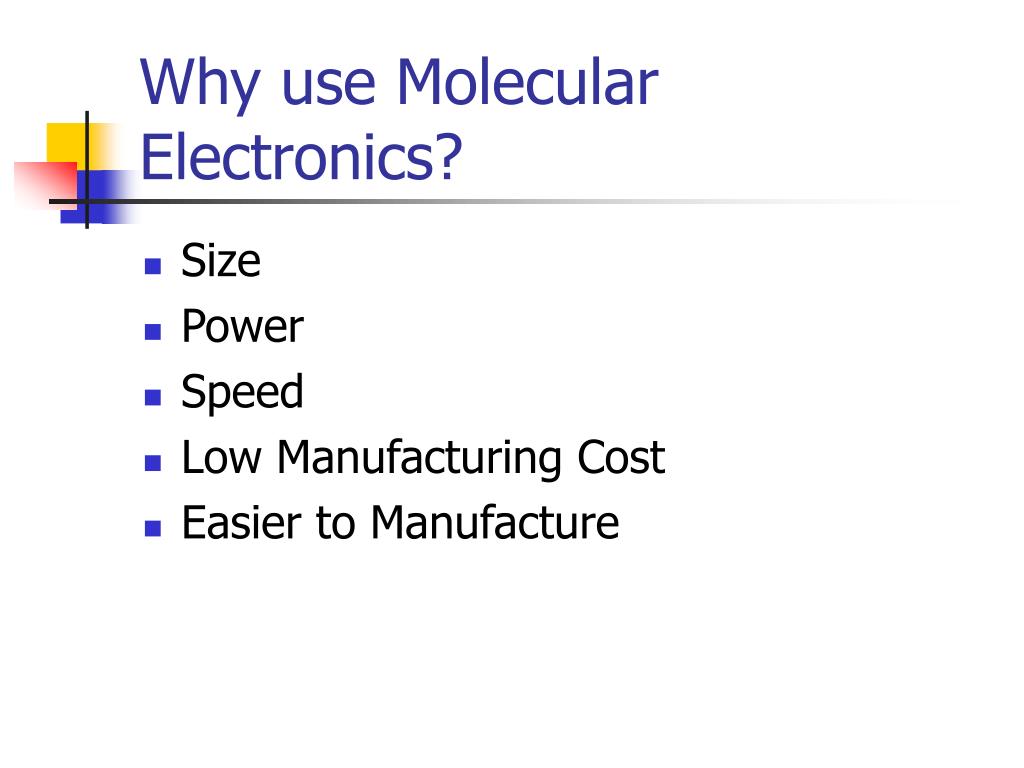

  4. Why use Molecular Electronics? • Size • Power • Speed • Low Manufacturing Cost • Easier to Manufacture

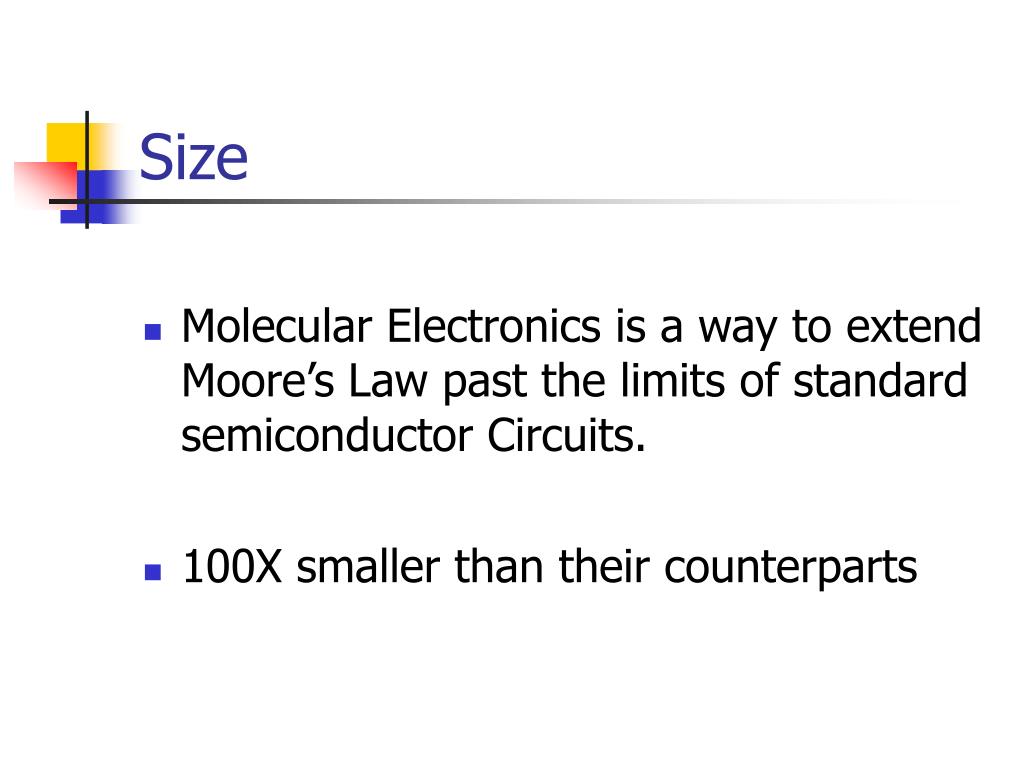

  5. Size • Molecular Electronics is a way to extend Moore’s Law past the limits of standard semiconductor Circuits. • 100X smaller than their counterparts

  6. Power / Speed • Currently Transistors cannot be stacked, which makes them quite ineffecient! • Molecular technology will be able to add a 3rd dimension. • Femtoseconds switching times.

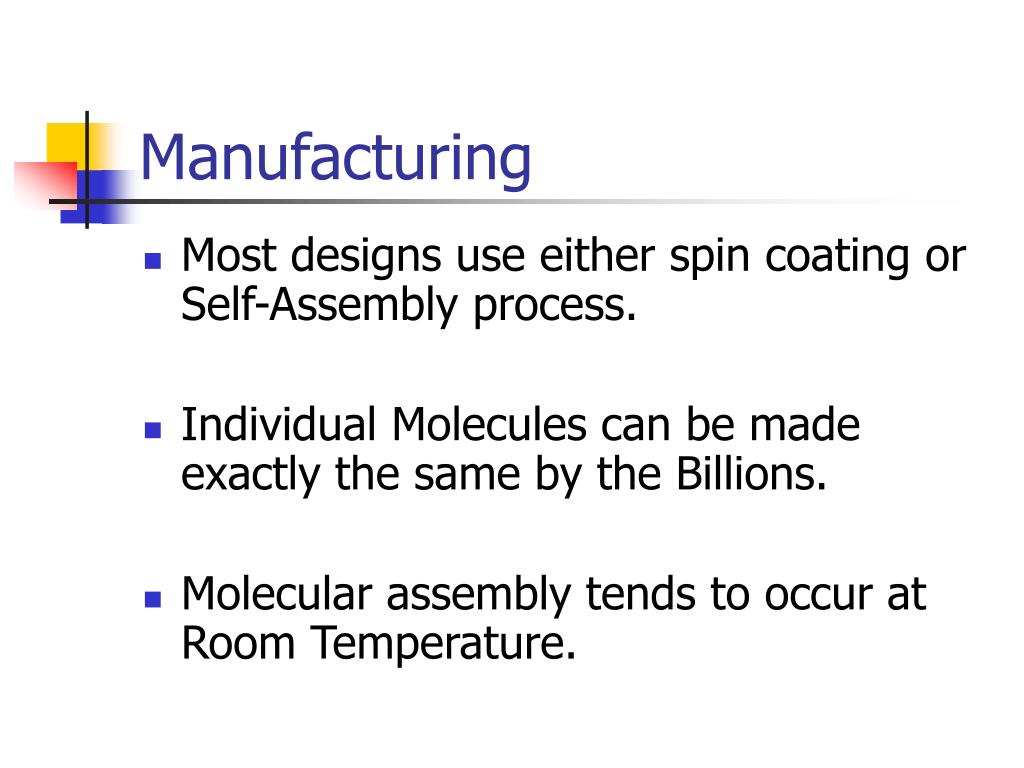

  7. Manufacturing • Most designs use either spin coating or Self-Assembly process. • Individual Molecules can be made exactly the same by the Billions. • Molecular assembly tends to occur at Room Temperature.

  8. Molecular Switch • Semiconductor switches can be made on a very small scale. • Perform computational functions when placed in the right combination. • Molecular switch is orders of magnitude smaller.

  9. Molecular Chiropticene Switch • One molecule in size. • Switch has two distinct states • Spatial Mirror images of one another. • Electronically and Optically distinct • Distinct but Equal • Chiral property

  10. Symmetric Amine Molecule Rapid thermal oscillation between two forms of an Amine Molecule.

  11. “Assymetrical Narcisstic Reactions”

  12. Operation • In practice, the switch is triggered by light and controlled with an electric field. • Both of these actions can change the direction of the molecule’s dipole by 180 degrees.

  13. Operation cont’d

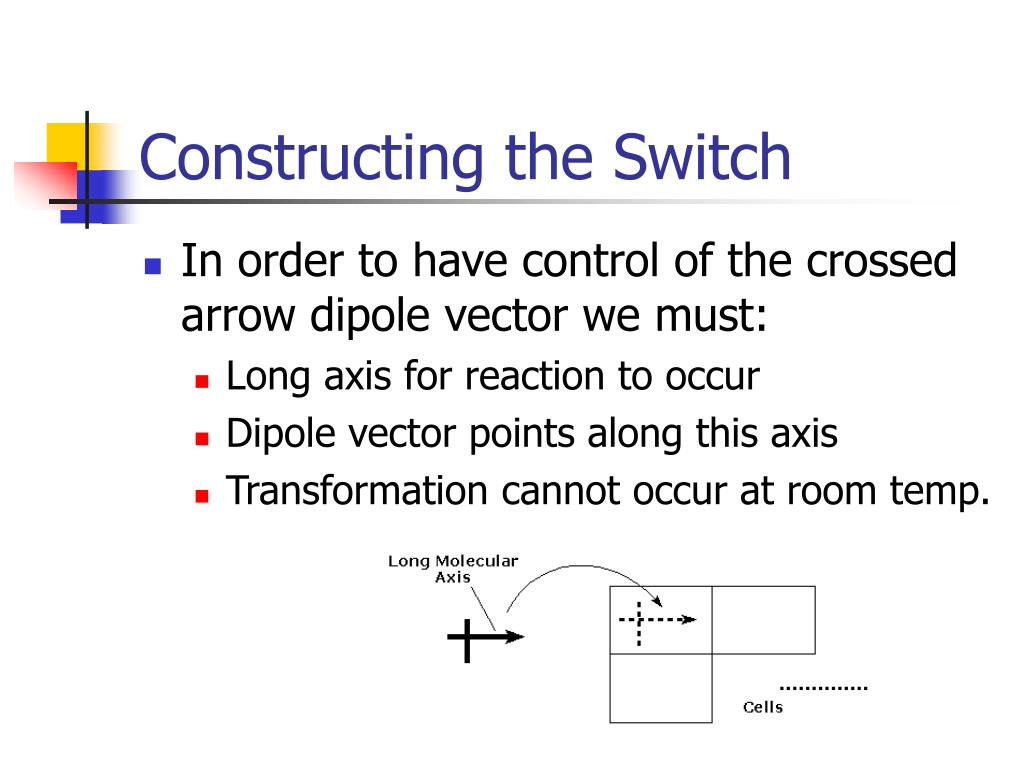

  14. Constructing the Switch • In order to have control of the crossed arrow dipole vector we must: • Long axis for reaction to occur • Dipole vector points along this axis • Transformation cannot occur at room temp.

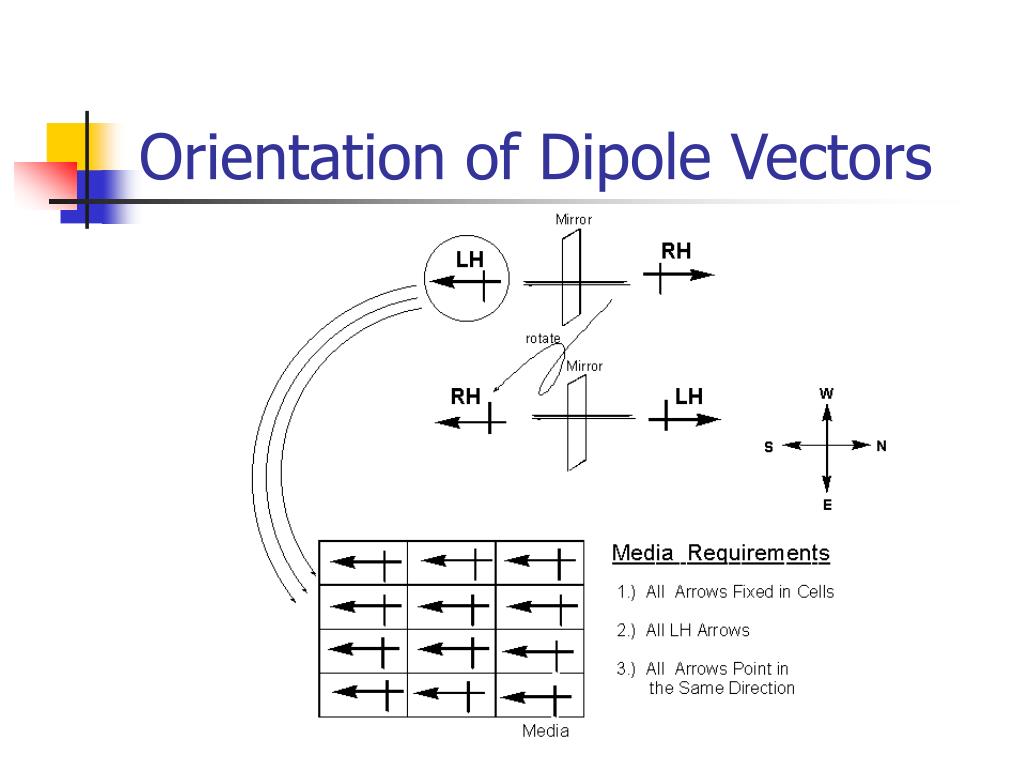

  15. Orientation of Dipole Vectors

  16. Potential Energy Profile

  17. Prochiral Form

  18. Photo Reaction

  19. Finally…….

  20. Switch Properties • Stability- Two equal but opposite energy states in these molecules affords stablility as well as reversibility. • Speed- Femtosecond switching speeds

  21. Problems facing Moletronics • Molecular electronics must still be integrated with Silicon. • Among the important issues is the determination of the resistance of a single molecule (both theoritical and experimental). • It is difficult to perform direct characterization since imaging at the molecular scale is often impossible in many experimental devices.
