Presentation Transcript

  1. Thermal Analysis

  2. Thermal Analysis

  3. Thermal AnalysisFEA Model Schematic

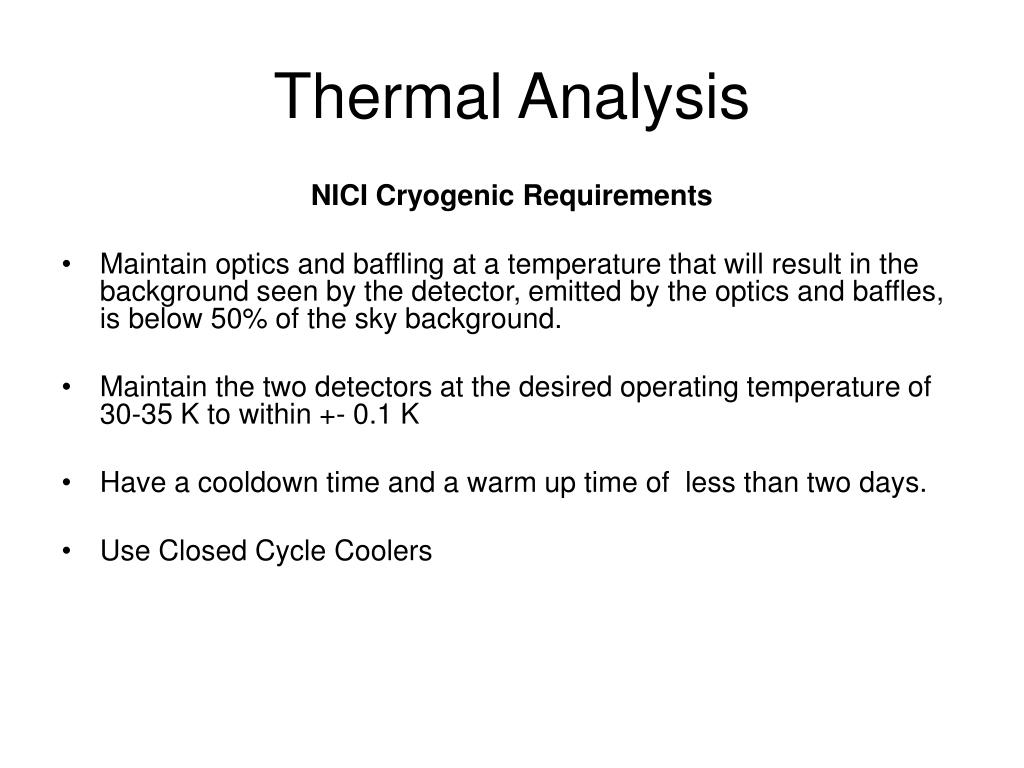

  4. Thermal Analysis NICI Cryogenic Requirements • Maintain optics and baffling at a temperature that will result in the background seen by the detector, emitted by the optics and baffles, is below 50% of the sky background. • Maintain the two detectors at the desired operating temperature of 30-35 K to within +- 0.1 K • Have a cooldown time and a warm up time of less than two days. • Use Closed Cycle Coolers

  5. Thermal Analysis Temperature goals • Cold Structure warmest temperature 75 K • Detector operating temperature 30 K • Radiation Shield warmest 150 K

  6. Thermal Analysis Calculated Thermal Loads • Radiation shield 64 watts • Cold Structure 11 watts • Array1 0.518 watts • Array2 0.767 watts

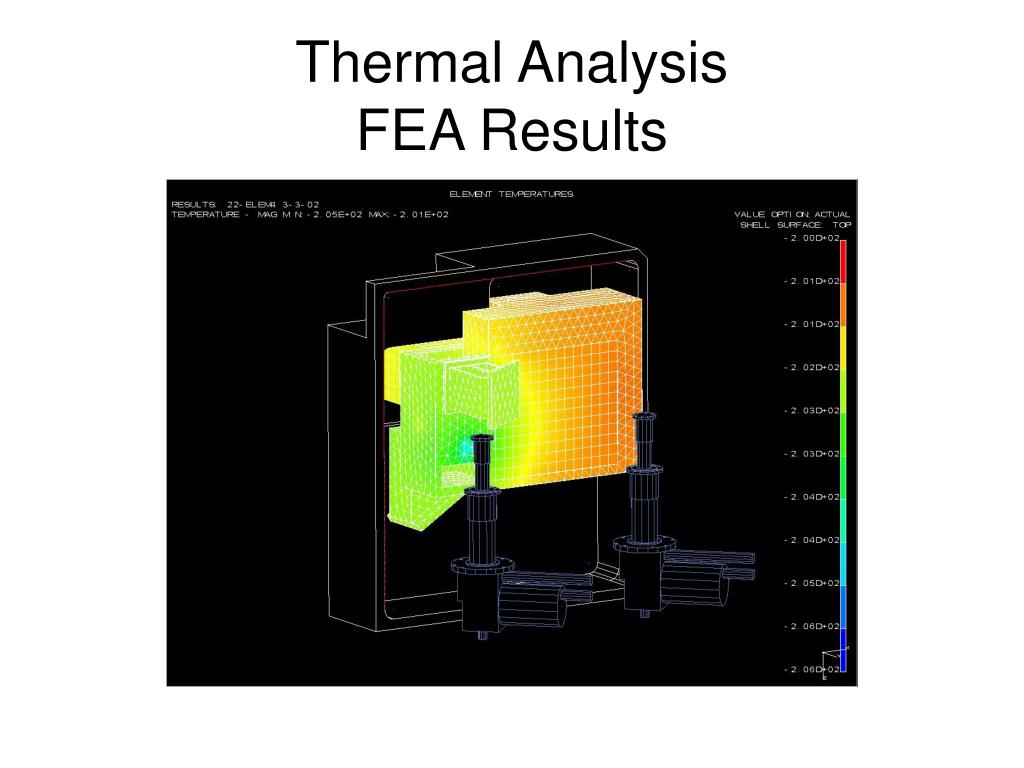

  7. Thermal AnalysisFEA Results

  8. Thermal AnalysisFEA Results

  9. Thermal AnalysisFEA Results • Cold Mass • T min = 67 K • T max = 73 K • Cold Shield • T min = 69 K • T max = 105 K

  10. Thermal AnalysisDetector Cold Straps

  11. Thermal AnalysisDetector Cold Straps

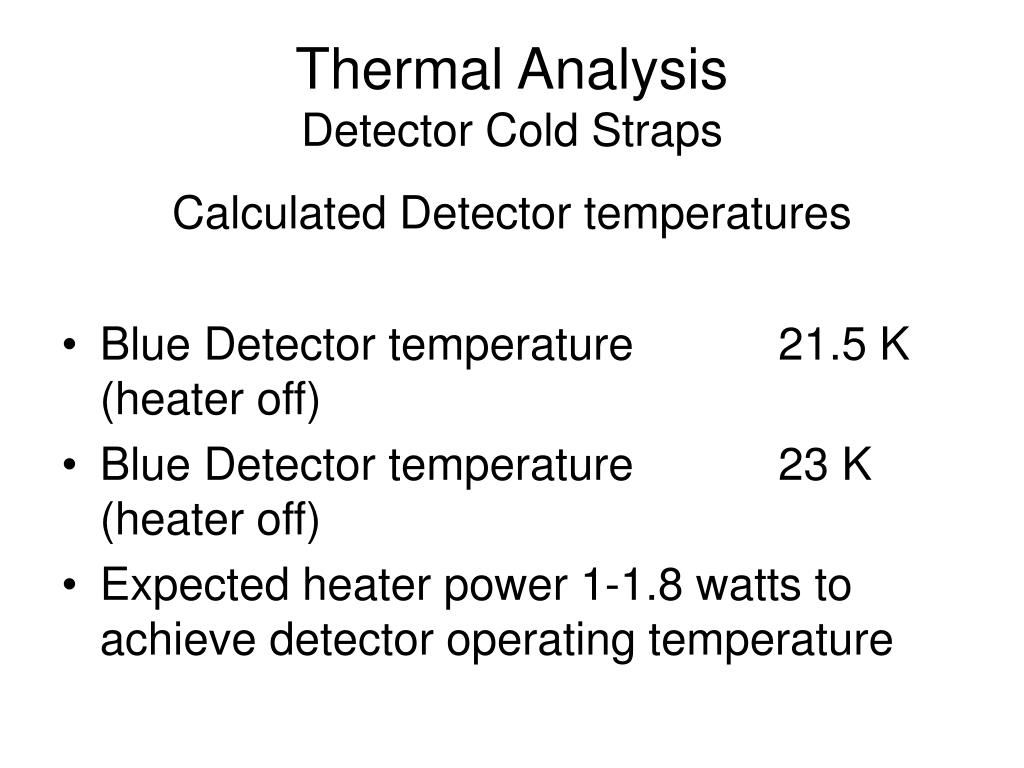

  12. Thermal AnalysisDetector Cold Straps Calculated Detector temperatures • Blue Detector temperature 21.5 K (heater off) • Blue Detector temperature 23 K (heater off) • Expected heater power 1-1.8 watts to achieve detector operating temperature

  13. Thermal Analysis Cooldown Time • Estimated Radiation Shield cooldown time 36 hours • Estimated Filter wheel cooldown 30 hours
