  1. Multi-vessel disease… Le Mans implications Oxford The John Radcliffe Hospital Dr Adrian Banning

  2. Multi-vessel disease…Le Mans - implications ? • Lemans trial J Am Coll Cardiol 2008 • Small randomised trial of CABG vs PCI for patients with left main disease • Syntax Lemans • Subset of the Syntax trial • patients with left main disease • follow up angios at 15 months (both surgical and PCI) • To be reported at PCR 09

  3. Why is the Left Main important? It supplies at least 2/3 of the blood to the heart!!!

  4. Why is the left main special? • Large vessel • Prone to calcification • Large volume of plaque required to cause stenosis • Intubated by the diagnostic catheter –ostium? • By definition terminates in a bifurcation – at least • Untreated LMS stenosis > 20% mortality at 1yr

  5. Results of initial intervention on the LMS- the early years • 1980s Hartzler using POBA • 10% procedural mortality in hospital • 64% 3yr mortality • Early 1993-8 ULTIMA • 279 pts unprotected LMS • 14% procedural mortality in hospital • 25% mortality at one year • NB if 46% inoperable are excluded – • 97% 1yr survival in these low risk pts

  6. Can we predict risk when stenting the LMS?

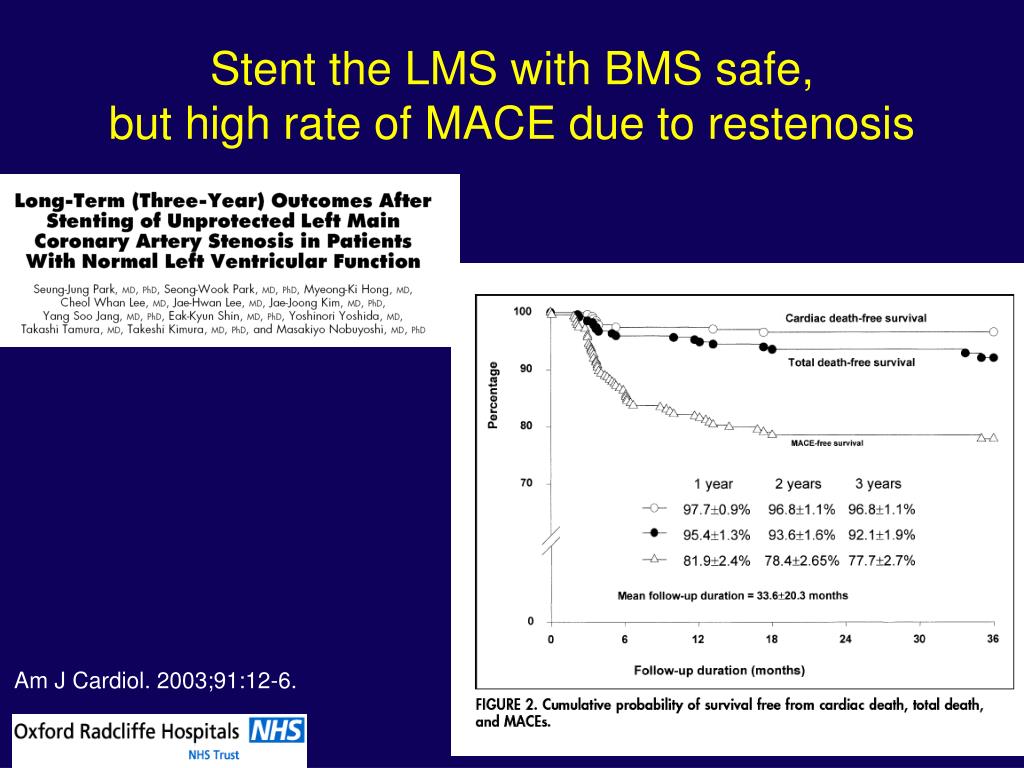

  7. Stent the LMS with BMS safe, but high rate of MACE due to restenosis Am J Cardiol. 2003;91:12-6.

  8. A Randomized Comparison of Paclitaxel-ElutingStents Versus Bare-Metal Stents for Treatmentof Unprotected Left Main Coronary Artery Stenosis • 103 patients • BMS (n 50) or PES (n 53). • All IVUS guidance and Cutting balloon pretreatment x 3 to cover entire lesion • Ostium and body were treated with a single stent Single stent 49/50 and 52/53 Final kissing balloon dilation was performed only in cases with suboptimal result at the LCX ostium (6% and 19%) • Follow-up: 6 months angio and IVUS • No “late” stent thrombosis in either group Erglis et al JACC 2007

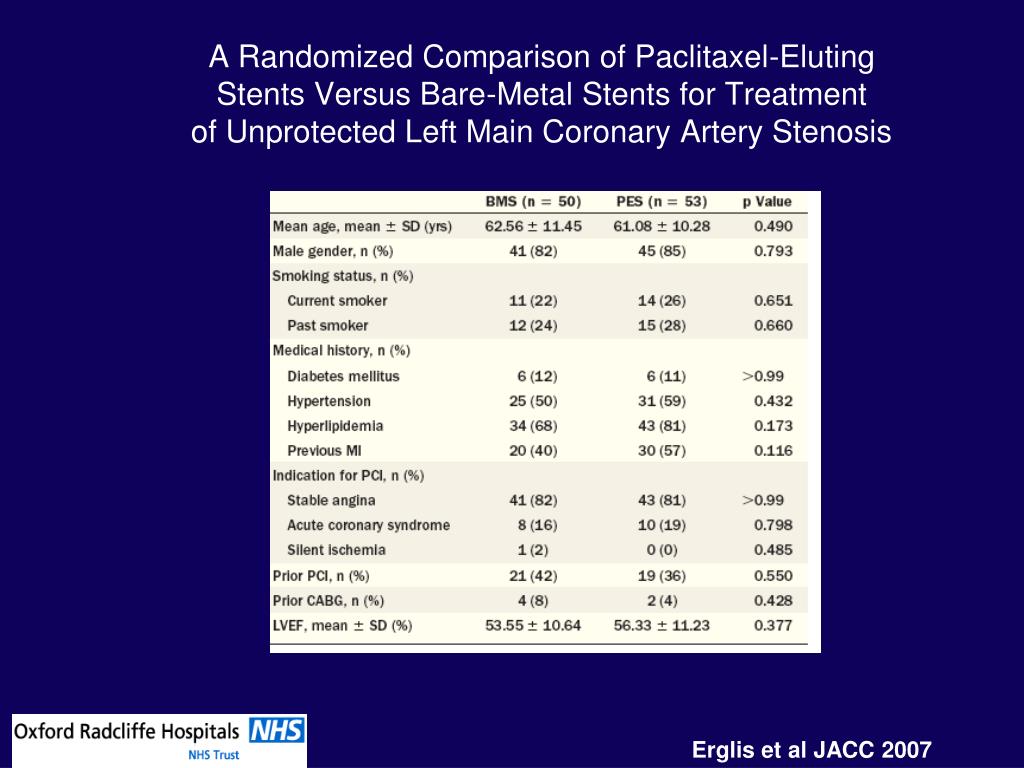

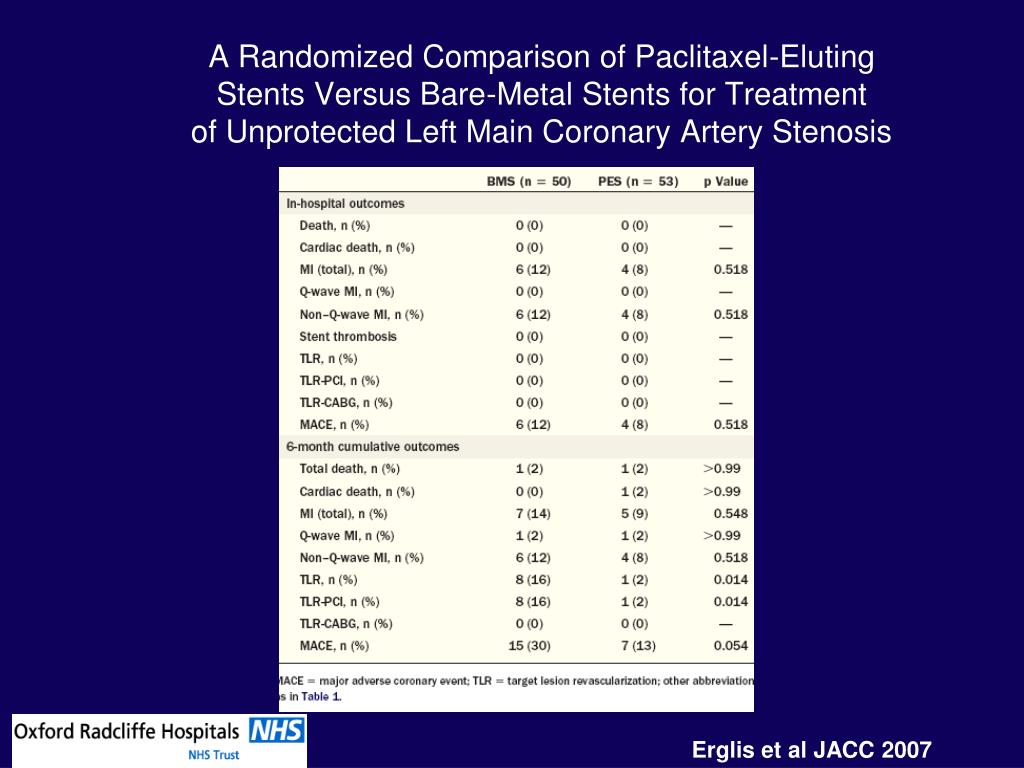

  9. A Randomized Comparison of Paclitaxel-ElutingStents Versus Bare-Metal Stents for Treatmentof Unprotected Left Main Coronary Artery Stenosis Erglis et al JACC 2007

  10. A Randomized Comparison of Paclitaxel-ElutingStents Versus Bare-Metal Stents for Treatmentof Unprotected Left Main Coronary Artery Stenosis Erglis et al JACC 2007

  11. A Randomized Comparison of Paclitaxel-ElutingStents Versus Bare-Metal Stents for Treatmentof Unprotected Left Main Coronary Artery Stenosis Erglis et al JACC 2007

  12. A Randomized Comparison of Paclitaxel-ElutingStents Versus Bare-Metal Stents for Treatmentof Unprotected Left Main Coronary Artery Stenosis Erglis et al JACC 2007

  13. Location matters Ostium Distal- bifurcation Shaft

  14. What makes the left main special? • Anatomy matters • Ostial Needs 1 stent • Body Needs 1 stent • Bifurcation Usually >1 stent, 2 wires, >6F

  15. Preliminary DES in LMS disease?

  16. Long-Term Outcome After DES in Nonbifurcation Lesions that involve Unprotected LMS • Population: 147 pts • elective (only) consecutive pts SES or PES in 5 centers • - stenosis in the ostium and/or the mid-shaft of an unprotected LMCA • PCI instead of surgery was considered either (1) suitable anatomy for stenting and preference patient and physician (2) suitable anatomy for stenting and EuroSCORE 6 and/or Parsonnet score 13 and/or prior bypass surgery with failure of all conduits (n=2). Chieffo et al Circulation 2007

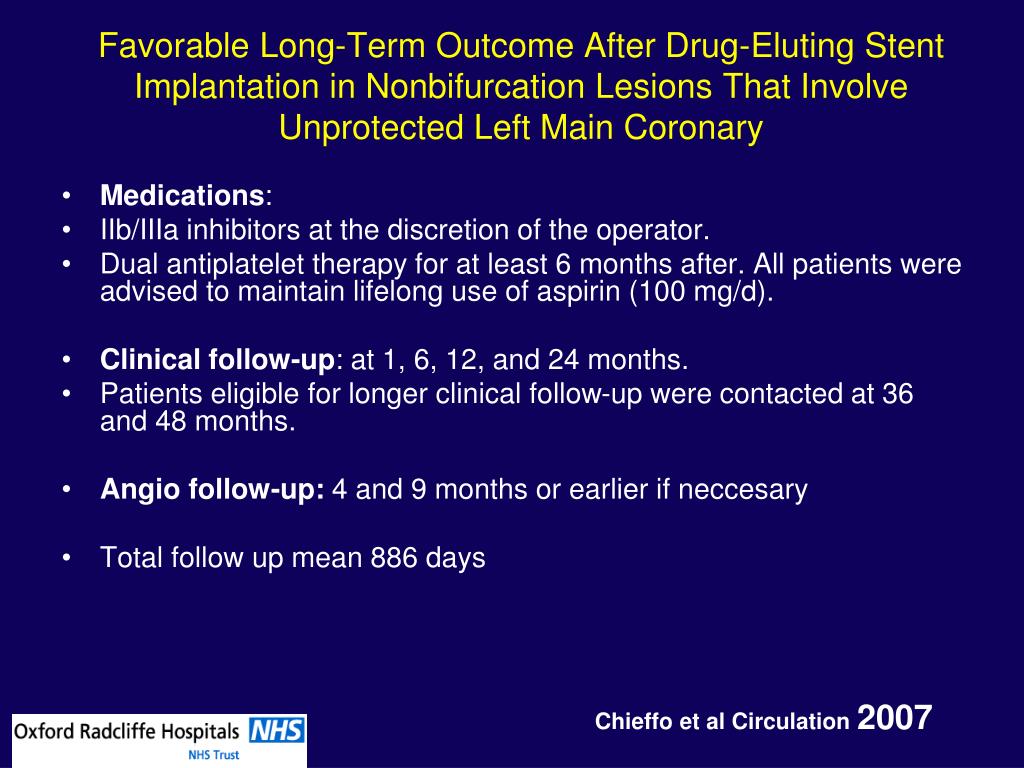

  17. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary • Medications: • IIb/IIIa inhibitors at the discretion of the operator. • Dual antiplatelet therapy for at least 6 months after. All patients were advised to maintain lifelong use of aspirin (100 mg/d). • Clinicalfollow-up: at 1, 6, 12, and 24 months. • Patients eligible for longer clinical follow-up were contacted at 36 and 48 months. • Angiofollow-up: 4 and 9 months or earlier if neccesary • Total follow up mean 886 days Chieffo et al Circulation 2007

  18. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary Chieffo et al Circulation 2007

  19. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary Chieffo et al Circulation 2007

  20. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary Chieffo et al Circulation 2007

  21. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary Chieffo et al Circulation 2007

  22. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary No proven late stent thrombosis 4 unexpected deaths Chieffo et al Circulation 2007

  23. Favorable Long-Term Outcome After Drug-Eluting Stent Implantation in Nonbifurcation Lesions That Involve Unprotected Left Main Coronary Chieffo et al Circulation 2007

  24. What about late stent thrombosis in LMS disease? • Specific worries • Late thrombosis for all DES >BMS • Late thrombosis higher off label • Higher risk of incomplete expansion? • Left main occlusion will be fatal • Reassurances • Big vessel

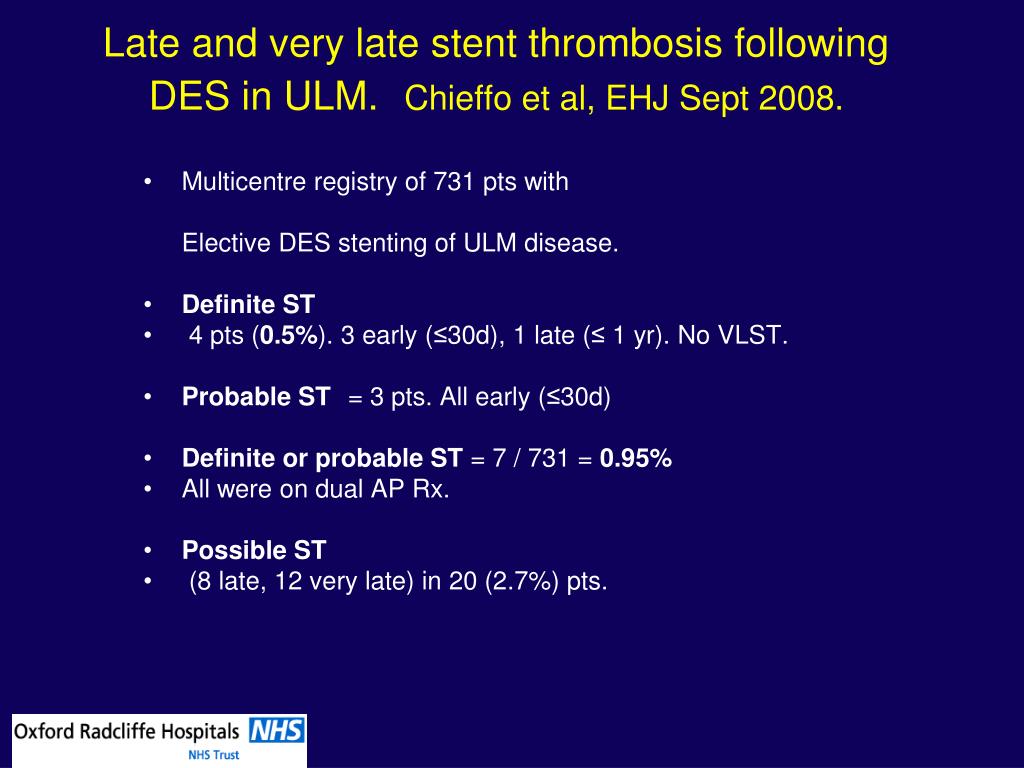

  25. Late and very late stent thrombosis following DES in ULM.Chieffo et al, EHJ Sept 2008. • Multicentre registry of 731 pts with Elective DES stenting of ULM disease. • Definite ST • 4 pts (0.5%). 3 early (≤30d), 1 late (≤ 1 yr). No VLST. • Probable ST = 3 pts. All early (≤30d) • Definite or probable ST = 7 / 731 = 0.95% • All were on dual AP Rx. • Possible ST • (8 late, 12 very late) in 20 (2.7%) pts.

  26. Late and very late stent thrombosis following DES in ULM.Chieffo et al, EHJ Sept 2008. • Outcomes after 29.5±13.7 months follow up: • Death: 6.2% (n=45). • Cardiac death: 4.2% (n=31) • TVR: 12.9% (n=95) • TLR: 10.9% (n=76) • Restenosis rate: 14.1% on angiographic follow-up of 548 pts. (NB: 76% of lesions involved the distal LM.) • Predictors of ST at logistic analysis: • Euroscore • LVEF • Consistent with general PCI population. • No unique ST predictor among ULM pts identified in this analysis. • Conclusion: Elective DES stenting of ULM is safe - low rates of ST.

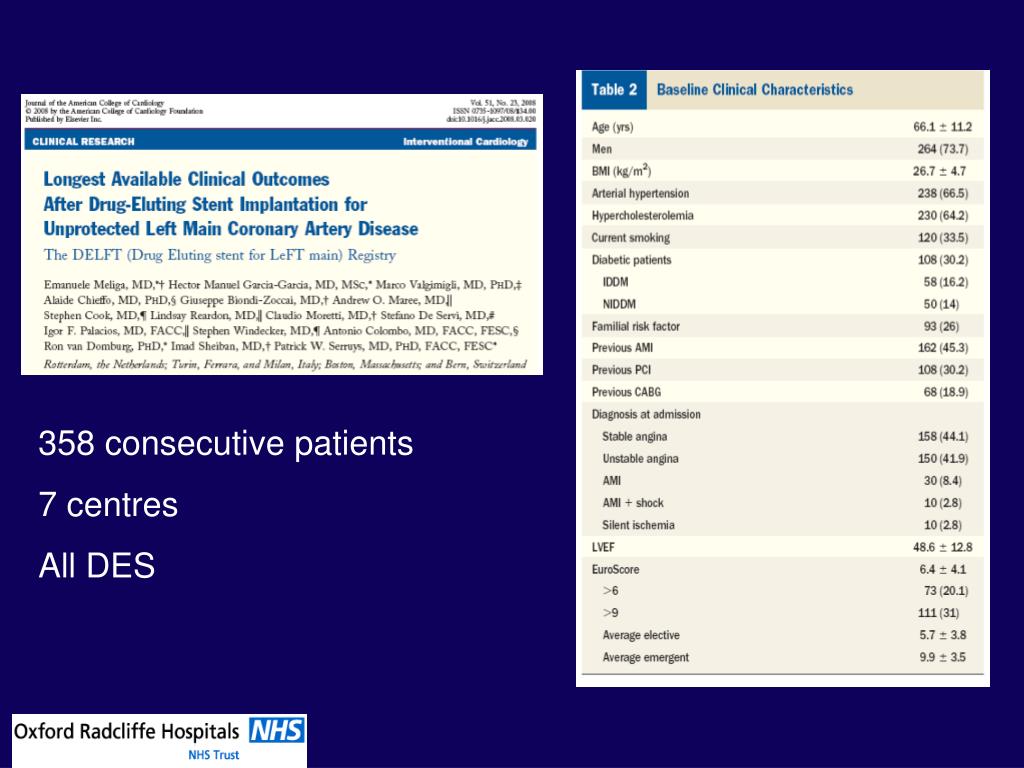

  27. 358 consecutive patients 7 centres All DES

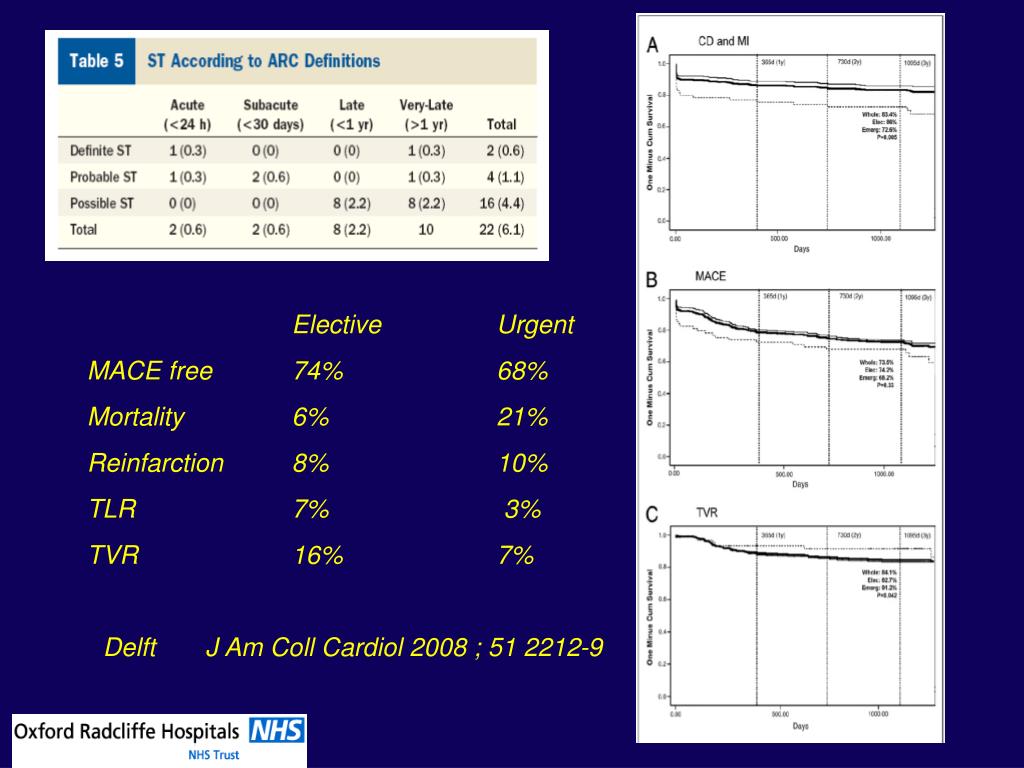

  28. Elective Urgent MACE free 74% 68% Mortality 6% 21% Reinfarction 8% 10% TLR 7% 3% TVR 16% 7% Delft J Am Coll Cardiol 2008 ; 51 2212-9

  29. So can stents replace surgeryin left main disease?

  30. Unprotected left main stenting vs CABGSeung et al, NEJM April 2008. • Long term follow up of 1102 patients stenting for ULM disease, • vs propensity-matched cohort of CABG patients • No significant difference in the risk of death and the composite outcome of death, Q-wave MI, or stroke between the two groups. • TVR higher in the stents group, even with DES. Seung KB et al. N Engl J Med 2008;358:1781-1792

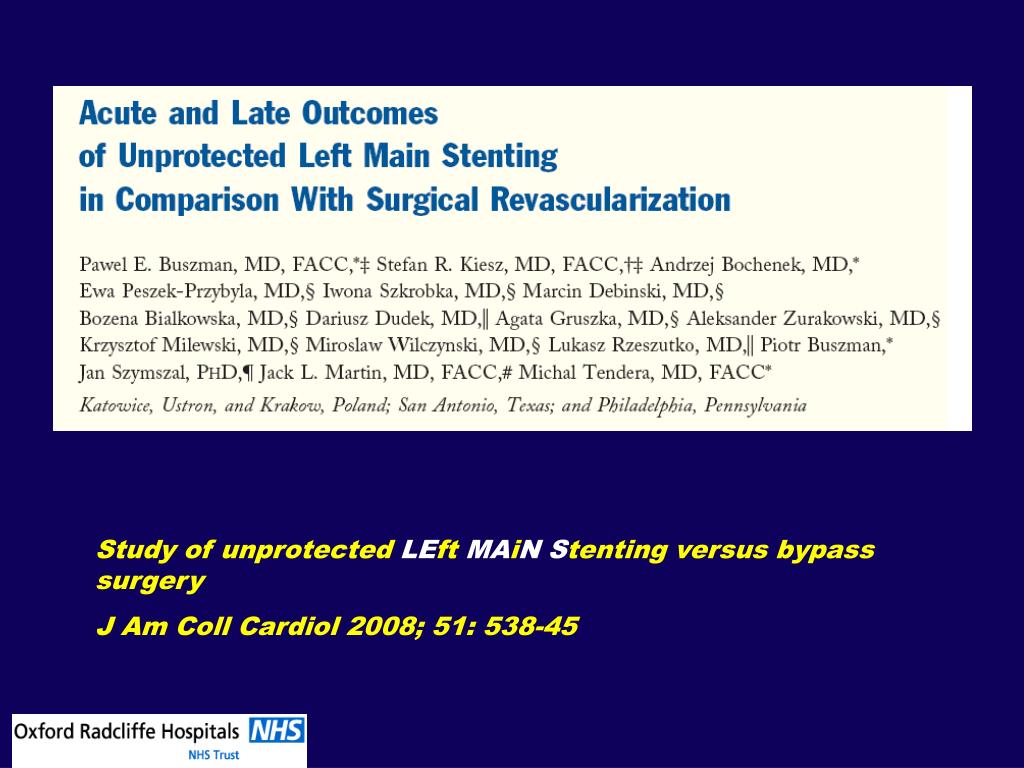

  31. Study of unprotected LEft MAiNStenting versus bypass surgery J Am Coll Cardiol 2008; 51: 538-45

  32. Lemans study design

  33. PCI technique Direct stenting preferred if not poss predil with 2 or 2.5 Bifurcation technique Initial stent to LAD then Cullotte or Prov T if necessary No crush stenting IVUS advised DES if diameter < 3.8mm (35%) LeMans study 2008

  34. Improved EF with PCIETT similar by 12 months more angina PCI initially Lemans trial 2008

  35. LeMans survival

  36. SYNTAX Eligible Patients De novo disease • Limited Exclusion Criteria • Previous interventions • Acute MI with CPK>2x • Concomitant cardiac surgery Left Main Disease (isolated, +1, +2 or +3 vessels) 3 Vessel Disease (revasc all 3 vascular territories)

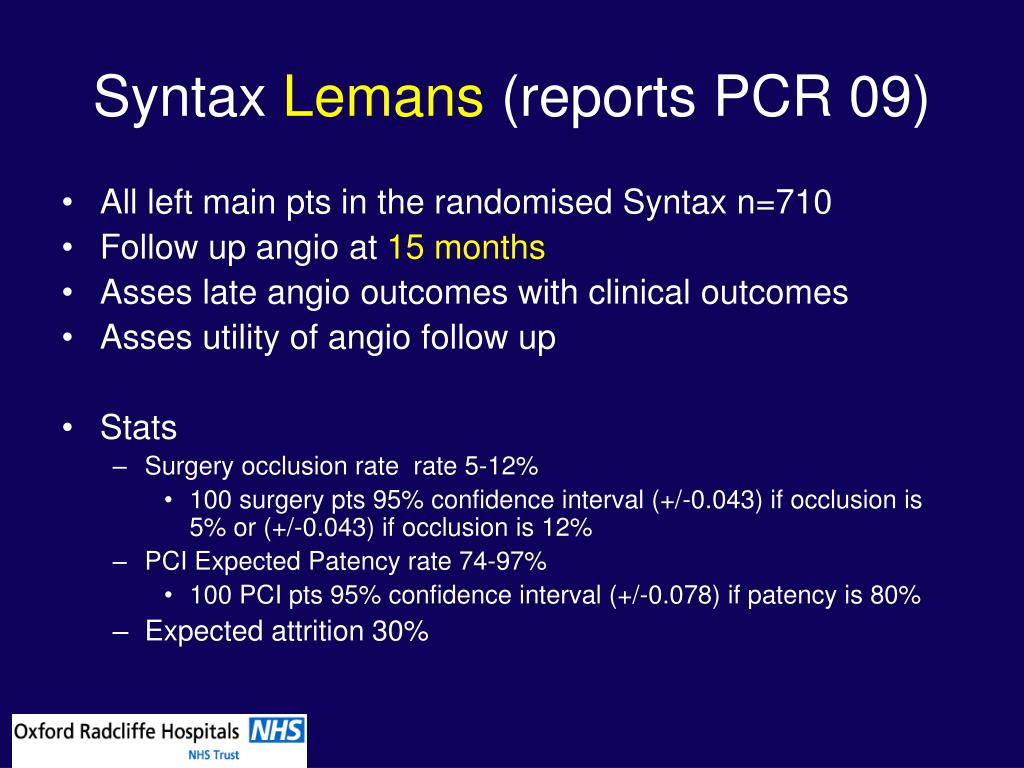

  37. Syntax Lemans (reports PCR 09) • All left main pts in the randomised Syntax n=710 • Follow up angio at 15 months • Asses late angio outcomes with clinical outcomes • Asses utility of angio follow up • Stats • Surgery occlusion rate rate 5-12% • 100 surgery pts 95% confidence interval (+/-0.043) if occlusion is 5% or (+/-0.043) if occlusion is 12% • PCI Expected Patency rate 74-97% • 100 PCI pts 95% confidence interval (+/-0.078) if patency is 80% • Expected attrition 30%

  38. CABG TAXUS Left Main Isolated Left Main + 3VD N=91 (13%) Left Main + 1VD N=258 (37%) N=138 (20%) Left Main + 2VD N=218 (31%) 12 Month LM Subgroup MACCE Rates Patients (%) All LMN=705

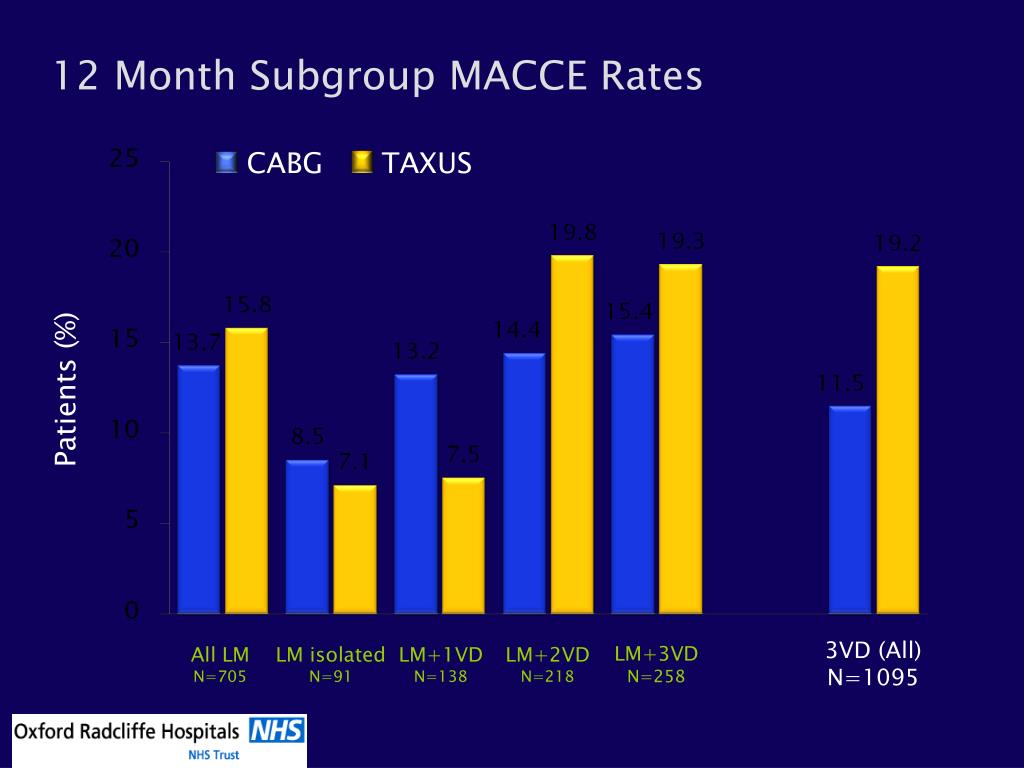

  39. CABG TAXUS 12 Month Subgroup MACCE Rates Patients (%) 3VD (All) N=1095 LM+3VD N=258 All LMN=705 LM isolatedN=91 LM+1VDN=138 LM+2VDN=218

  40. So why is the left main special? • The left main is unforgiving during PCI • Because large volumes of myocardium are at risk • Large volumes of plaque may move • Calcification is restrictive to stent expansion • loss of “branches” will have immediate and profound haemodynamic consequences • The left main is unforgiving in the long term • All ostial disease has a very high restenosis rate (particularly if the stent is incompletely expanded).

  41. What do we know about left main PCI? • Procedural risk fallen from 10-20% to <1% (in all but shock cases) • Ostial and shaft disease is different to terminal disease of the main • Left main PCI should be definitely considered in all emergency cases and many urgent cases

  42. What do we know about left main PCI in 2008? • DES are almost certainly better than BMS • Risks of treating left main disease with PCI or surgery are probably the same • Long term results of DES in elective ostial and shaft disease are very encouraging • Those cases treatable with one properly expanded stent

  43. What do we know about left main PCI in 2008? • However • How do we treat distal bifurcation disease best? • Perhaps the cullotte? Not the crush for me • LMS + 2VD / 3VD • surgery still has lower rates of TVR particularly in diabetics

  44. Isolated left main stenting in 2008…
