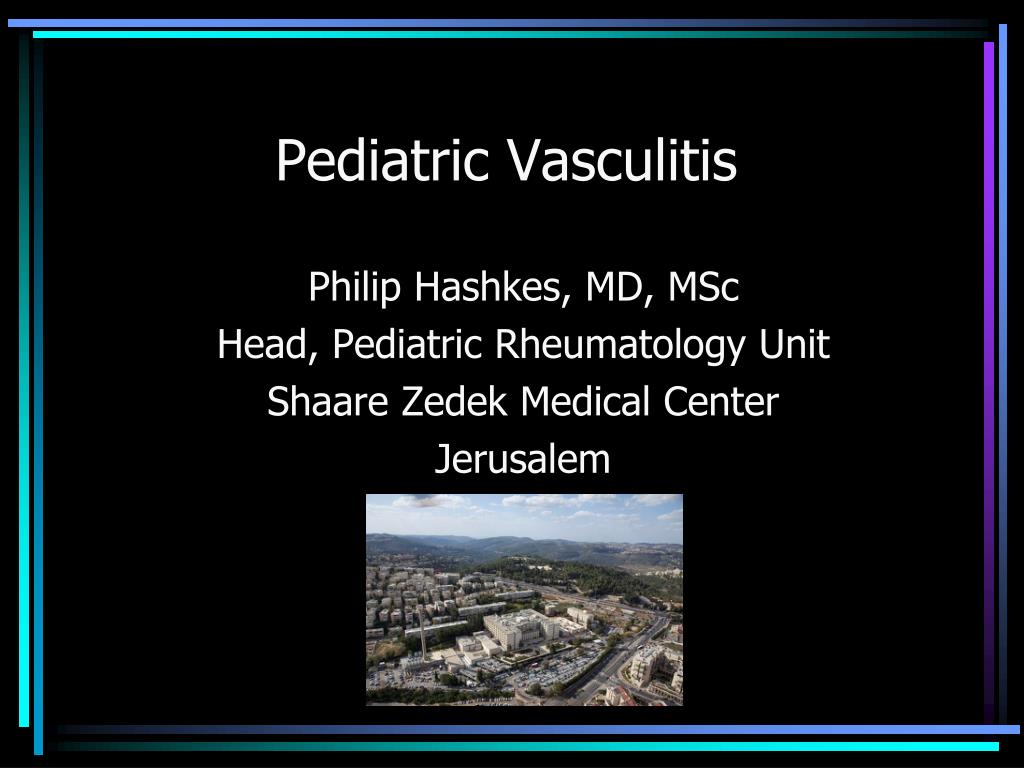

  1. Pediatric Vasculitis Philip Hashkes, MD, MSc Head, Pediatric Rheumatology Unit Shaare Zedek Medical Center Jerusalem

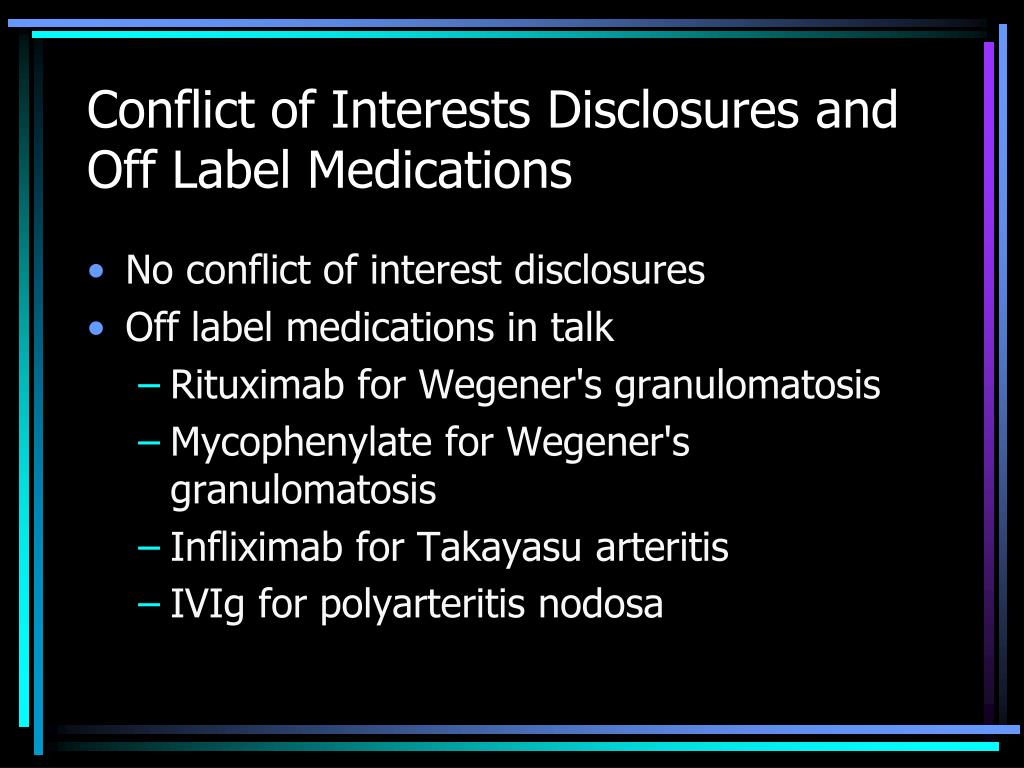

  2. Conflict of Interests Disclosures and Off Label Medications • No conflict of interest disclosures • Off label medications in talk • Rituximab for Wegener's granulomatosis • Mycophenylate for Wegener's granulomatosis • Infliximab for Takayasuarteritis • IVIg for polyarteritisnodosa

  3. Objectives • When to suspect and how to investigate vasculitis in children • To describe the new classification of childhood vasculitis • To expound on several specific vasculitis entities in children highlighting recent developments

  4. Definition • Inflammatory and destructive process of blood vessels; inflammation must be present in wall of blood vessel

  5. When to Suspect Vasculitis • Unexplained multisystem features • Especially FUO, weight loss, rashes, hypertension, edema, arthritis, neurologic symptoms • Unexplained tests indicative of inflammation • Elevated ESR, CRP • Anemia, leukocytosis, eosinophilia, thrombocytosis • Low or high complements, low albumin, elevated globulin • Hematuria, proteinuria

  6. Systems Most Affected • Skin - purpuric rash, nodules, livedo reticularis • Gastrointestinal - pain, hemorrhage, infarct • Renal - glomerulonephritis, hypertension • Lung – pneumonitis, hemorrhage • Musculoskeletal - arthritis, myositis • Cardiovascular - ischemic heart disease • ENT – obstruction, chronic OM, sinusitis, nose bleed • Systemic features - fever, weight loss

  7. Nervous system • Central nervous system • Headaches, stroke, TIA, seizures, movement disorder • Peripheral nervous system • Palsy – especially drop foot/hand • Sensory • Polyneuropathy, mononeuritis multiplex

  8. Vasculitis - Investigations • Signs of inflammation • ESR, CRP, CBC, immunoglobulins, complements, albumin, Von Willebrand Antigen • System involvement • Liver, renal, urinalysis, muscle, pulmonary functions, ENT, GI, eye, brain • Autoimmunity - autoantibodies • Antinuclear antibodies, rheumatoid factor, ANCA, cryoglobulins

  9. Red Blood Cell Cast, Fresh first AM urine

  10. Antineutrophil Cytoplasmic Antibodies (ANCA) • C-ANCA (cytoplasmic) • P- ANCA (perinuclear) • Possibly pathogenic - activation of PMN

  11. C-ANCA • Antigen (by ELISA): neutral serine proteinase 3 (PR3) • Specific for Wegener’s granulomatosis • Sensitivity and specificity > 90%

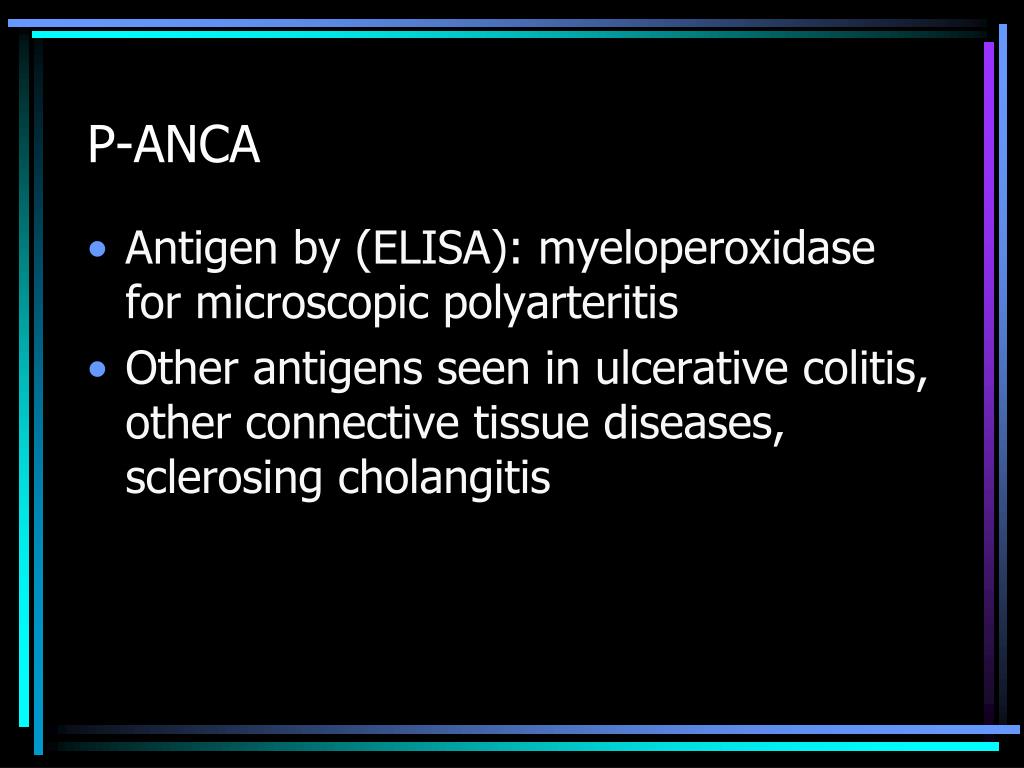

  12. P-ANCA • Antigen by (ELISA): myeloperoxidase for microscopic polyarteritis • Other antigens seen in ulcerative colitis, other connective tissue diseases, sclerosing cholangitis

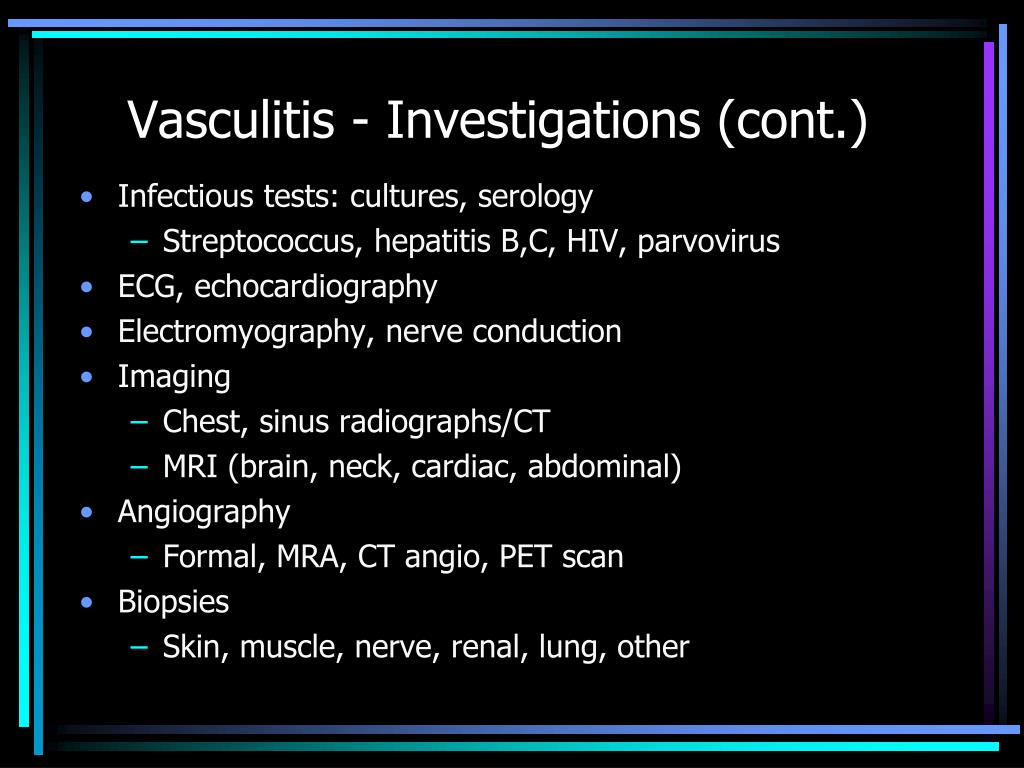

  13. Vasculitis - Investigations (cont.) • Infectious tests: cultures, serology • Streptococcus, hepatitis B,C, HIV, parvovirus • ECG, echocardiography • Electromyography, nerve conduction • Imaging • Chest, sinus radiographs/CT • MRI (brain, neck, cardiac, abdominal) • Angiography • Formal, MRA, CT angio, PET scan • Biopsies • Skin, muscle, nerve, renal, lung, other

  14. New Pediatric Classification by Size of Vessel • Large arteries (predominately) • Takayasu arteritis • Medium arteries (predominately) • Kawasaki disease • Classic polyarteritis nodosa • Cutaneous polyarteritis Ozen S, et al. Ann Rheum Dis 2006;65:936–41

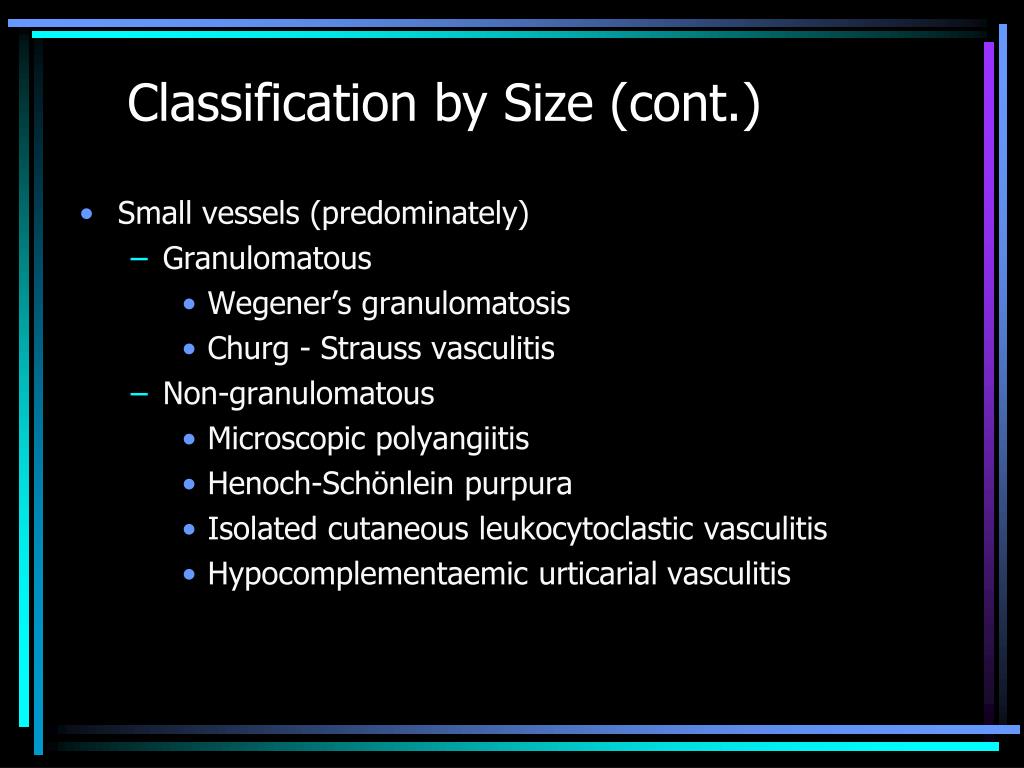

  15. Classification by Size (cont.) • Small vessels (predominately) • Granulomatous • Wegener’s granulomatosis • Churg - Strauss vasculitis • Non-granulomatous • Microscopic polyangiitis • Henoch-Schönleinpurpura • Isolated cutaneousleukocytoclastic vasculitis • Hypocomplementaemicurticarial vasculitis

  16. Other Primary Pediatric Vasculitidies • Behçet’s disease • Isolated vasculitis of the CNS • Cogan’s syndrome • Unclassified

  17. Secondary Vasculitis • Connective tissue disease - SLE, RA, sarcoidosis • Infection - SBE, hepatitis B, C, rickettsia, HIV, sepsis, TB, syphilis, gonorrhea, meningococcal, parvovirus • Drugs - penicillin, cefaclor, sulfa • Malignancy - lymphoma • Genetic autoinflammatory syndromes

  18. Pseudovasculitis • Myxoma, cholesterol emboli • Blood vessel, thrombotic disease • Antiphospholipid antibody syndrome • Congenital conditions • Mid-Aortic syndrome • Ehlers-Danlos syndrome • Other rare syndromes

  19. Other Methods of Classification • Pathology • Necrotizing/leukocytoclastic vasculitis • Polymorphonuclear cells • Polyarteritis nodosa, Henoch-Schonlein purpura • Granulomatous • Wegener’s granulomatosis, Takayasu’s arteritis, Churg -Strauss • Systemic vs. isolated (skin, CNS, organ)

  20. Case Description • 16 year old female with recurrent otitis with effusion for 1.5 yrs – tubes placed • 1 month of arthritis, low grade fever, tingling in leg • Chest x-ray, nodule in LLL • ESR of 98 • C-ANCA positive

  21. Wegener’s Granulomatosis (WG) • Necrotizing granulomata of upper and lower respiratory tracts, kidneys • Small to medium size vessels • Rare in childhood (1/106/yr); mode in young adults • Male 2: female 1 • Systemic disease vs. limited to upper respiratory tract

  22. WG - Clinical Manifestations • Systemic features 90-95% • Fever, malaise, weight loss • Arthritis (55-65%) - large joints • Skin - nodules, ulceration, purpura (23-50%) From 4 series of 130 patients Largest from the ARChiVe registry (n=65) Cabral D, et al, Arthritis Rheum 2010;60:3413-24

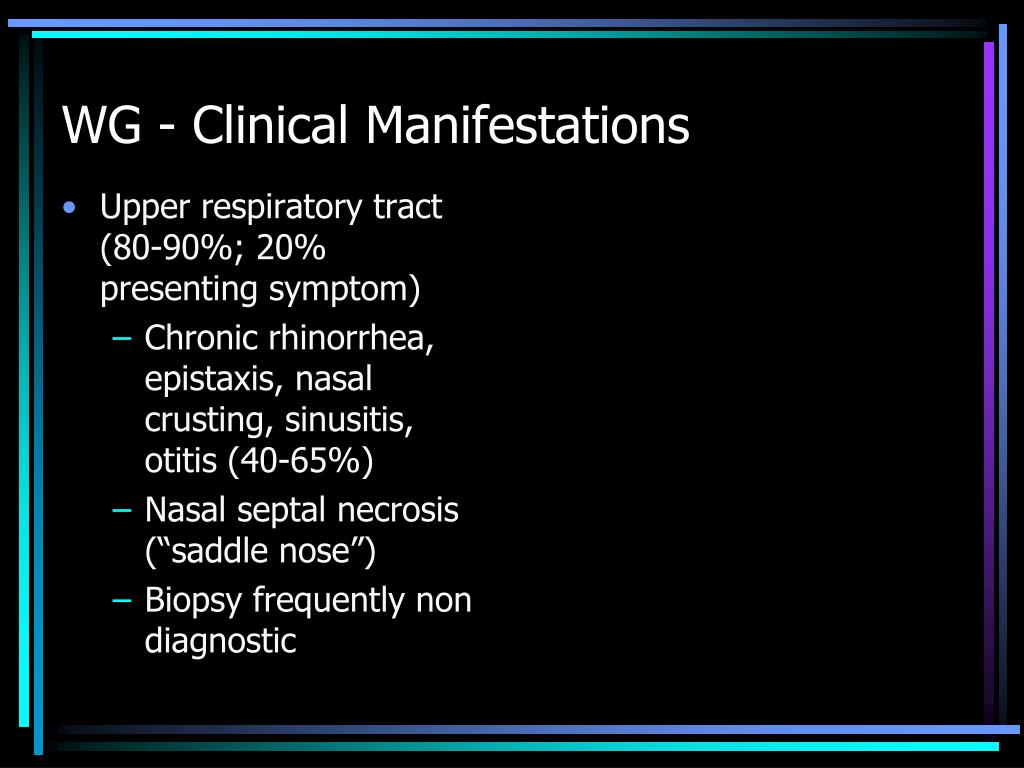

  23. WG - Clinical Manifestations • Upper respiratory tract (80-90%; 20% presenting symptom) • Chronic rhinorrhea, epistaxis, nasal crusting, sinusitis, otitis (40-65%) • Nasal septal necrosis (“saddle nose”) • Biopsy frequently non diagnostic

  24. WG - Clinical Manifestations • Subglottic stenosis (14-41% in children) • More common with clinical significance than in adults • Stridor, hoarseness, respiratory distress

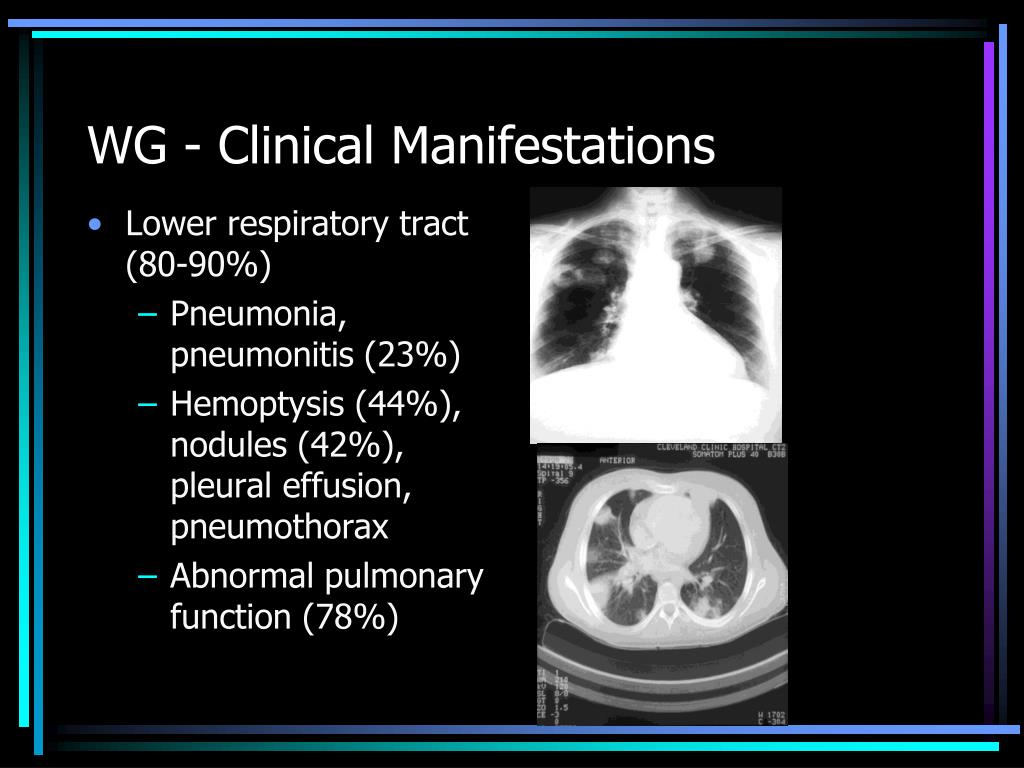

  25. WG - Clinical Manifestations • Lower respiratory tract (80-90%) • Pneumonia, pneumonitis (23%) • Hemoptysis (44%), nodules (42%), pleural effusion, pneumothorax • Abnormal pulmonary function (78%)

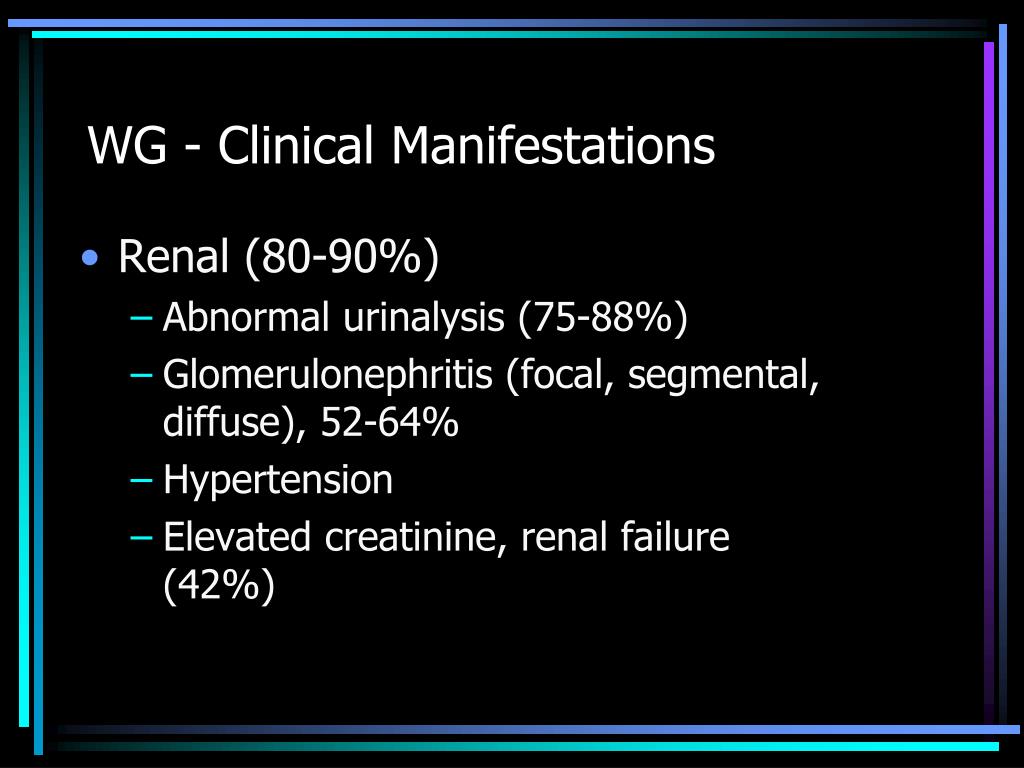

  26. WG - Clinical Manifestations • Renal (80-90%) • Abnormal urinalysis (75-88%) • Glomerulonephritis (focal, segmental, diffuse), 52-64% • Hypertension • Elevated creatinine, renal failure (42%)

  27. WG - Clinical Manifestations • Uveitis, scleritis, episcleritis, proptosis - psuedotumor (37-53%) • Nervous system (25%) • Peripheral neuropathy

  28. WG - Investigations • Signs of inflammation • Urinalysis, renal function, collection • Radiographs/CT • Pulmonary function tests • C-ANCA (positive >90%) • Debate if can use ANCA to monitor disease activity

  29. WG - Investigations • Biopsies - skin, nasal, sinus, lung, renal • Upper respiratory frequently nondiagnostic • Vasculitis, capillaritis, granulomas

  30. WG - Differential Diagnosis • Infectious - TB, fungal, syphilis, leprosy • Inflammatory – microscopic polyangitis, sarcoidosis, Goodpaster’s, Loeffler’s syndrome, other vasculitis • Lymphoma

  31. WG: Pediatric Classification Criteria • Histopathology – granulomatous vasculitis/perivasculitis • Upper airway involvement • Laryngo-tracheo-bronchial stenoses • Pulmonary involvement by chest x-ray/CT • ANCA positivity • Renal involvement – proteinuria/hematuria/biopsy Need 3 of 6: 93.3% sensitivity, 99% specificity Ozen S, et al. Ann Rheum Dis 2010 69: 798-806

  32. WG - Treatment • 100% mortality within months without treatment • Induction: Corticosteroids, oral cyclophosphamide vs. rituximab • Cyclophophamide many side effects - infections, neutropenia, hemorrhagic cystitis, bladder carcinoma • Corticosteroids alone doesn’t prevent death • Methotrexate induction in milder cases

  33. WG - Rituximab • Anti mature B-cell (CD20) antibody • Recent trial (RAVE) of 197 patients including adolescents from age 15 years • Equal efficacy in inducing remission, less relapse rate than cyclophosphamide. Equal adverse effects (followed only for 6 months). Stone JH, et al, NEJM 2010;363:221-32.

  34. WG - Treatment (cont.) • Maintenance – methotrexate, azathioprine, mycophenalate • For at least 2 years • Trimethoprim-sulfamethasone in limited disease • May prevent flares in nasal staphylococcus carriers • Prophylaxis for PCP • Other therapies • Anti–TNF: etanercept not effective, less safe – malignancies, vascular thrombosis • Topical steroid injection, dilations for subglottic disease

  35. WG - Prognosis • Remission obtained in > 90% • >50% will relapse • >80% 5 year survival • Disease related deaths • Respiratory, renal failure • Treatment related • Infections, malignancies • Children more severe upper respiratory then adults; less renal disease

  36. Microscopic Polyangitis • Small vessel vasculitis • Glomerulonephritis • Pulmonary manifestations • P-ANCA positive in 80% • Myeloperoxidase • Treatment and prognosis similar to WG

  37. Churg Strauss Granulomatosis • Medium size arteritis with granulomas • Eosinophilia, P-ANCA (40%) • “Asthma - like” attacks • Pulmonary infiltrates - non fixed • Frequent allergic history • Mononeuritis multiplex common • Less renal involvement than WG • Very rare in childhood

  38. Case Description • 15 year-old female (Asian ancestry) with 2 month history of low-grade fever, weight loss, malaise, headaches, exertion right leg pain, 2 episodes of syncope • Examination – severe hypertension, decreased pulses in neck, left hand, right leg pulses • ESR – 90, Hb – 9.9, ANA and ANCA negative • Abdominal Doppler US – renal artery stenosis

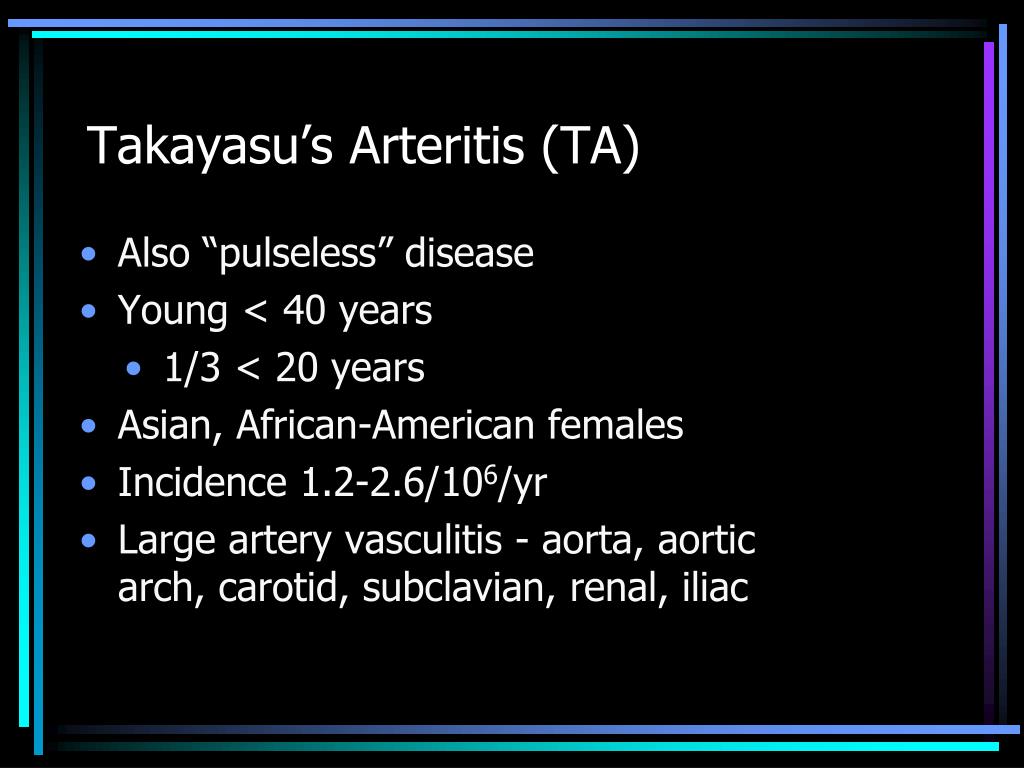

  39. Takayasu’s Arteritis (TA) • Also “pulseless” disease • Young < 40 years • 1/3 < 20 years • Asian, African-American females • Incidence 1.2-2.6/106/yr • Large artery vasculitis - aorta, aortic arch, carotid, subclavian, renal, iliac

  40. TA - Clinical Manifestations • Systemic (65%) - fever, weight loss • Hypertension (85%) • Palpitations, dyspnea, syncope • Headache (50%), visual disturbances (30%), dizziness, syncope • Arthritis, arthralgia, myalgia (65%) • Gastrointestinal symptoms (50%) • Claudication - walking, upper extremities

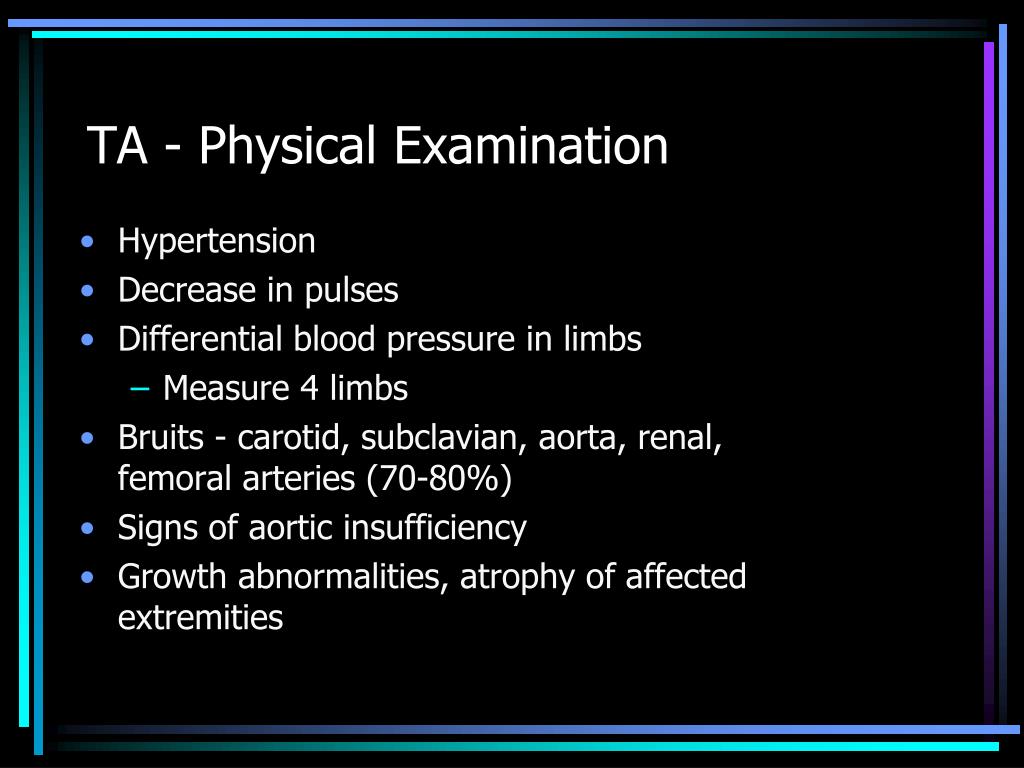

  41. TA - Physical Examination • Hypertension • Decrease in pulses • Differential blood pressure in limbs • Measure 4 limbs • Bruits - carotid, subclavian, aorta, renal, femoral arteries (70-80%) • Signs of aortic insufficiency • Growth abnormalities, atrophy of affected extremities

  42. TA: Children vs. Adults • Children usually have the “triad” • Systemic features, hypertension, elevated ESR • More systemic features, renal artery involvement, less claudication than adults

  43. TA: Pediatric Classification Criteria • Angiographic abnormalities of the aorta or its main branches and pulmonary arteries showing aneurysm/dilatation, narrowing or occlusion not related to fibromuscular dysplasia (mandatory criterion) Plus one of the five following criteria: • Pulse deficit or claudication • Four limbs BP discrepancy • Bruits • Hypertension • Acute phase reactant 100% sensitivity, 99.9% specificity Ozen S, et al. Ann Rheum Dis 2010 69: 798-806

  44. TA: Classification by Location, Type of Lesion • Type I - aortic arch • Type II - thoracic and abdominal aorta • Type III - diffuse aortic involvement • Type IV - Aortic and other arteries • Obstructive lesions (US, Japan) • Aneurysms (India, Africa)

  45. TA – Other Clinical Associations • Autoimmune • Chron’s, immunodeficiency • Infectious – TB in developing countries • Many patients with positive TST

  46. TA – Investigations • Signs of inflammation • ESR important in following course • Elevated factor VIII - related antigen • Rheumatoid factor (25%) • Hypergammaglobulinemia

  47. Imaging Modalities Used • Ultrasound – Doppler • Echocardiography • Formal angiography • MRI/A • CT angio • PET scan

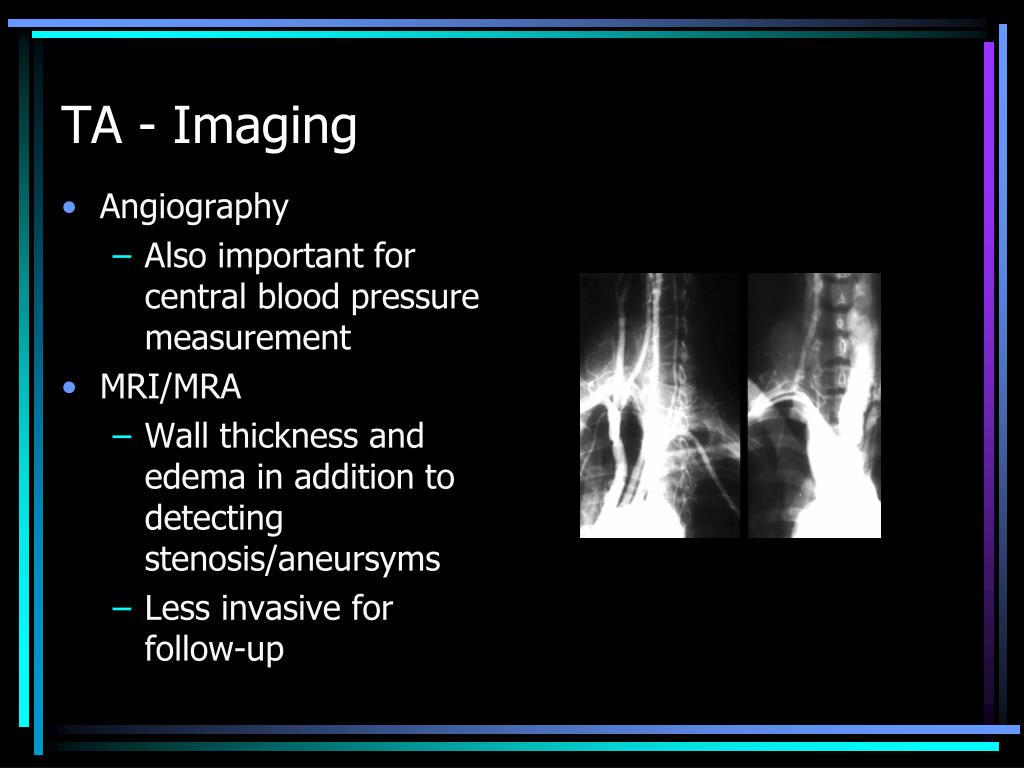

  48. TA - Imaging • Angiography • Also important for central blood pressure measurement • MRI/MRA • Wall thickness and edema in addition to detecting stenosis/aneursyms • Less invasive for follow-up

  49. Imaging Findings • Stenosis (85-98%) • Occlusion • Dilatation, aneurysms (2-27%) • Mixed • Collateral formation • Wall thickening, edema

  50. TA – Pathology – Rarely obtained • Panarteritis, focal, segmental lesions • Including vasa vasorum • Loss of muscular, elastic tissue, giant cells, granulomata, intima and media hyperplasia and fibrosis
