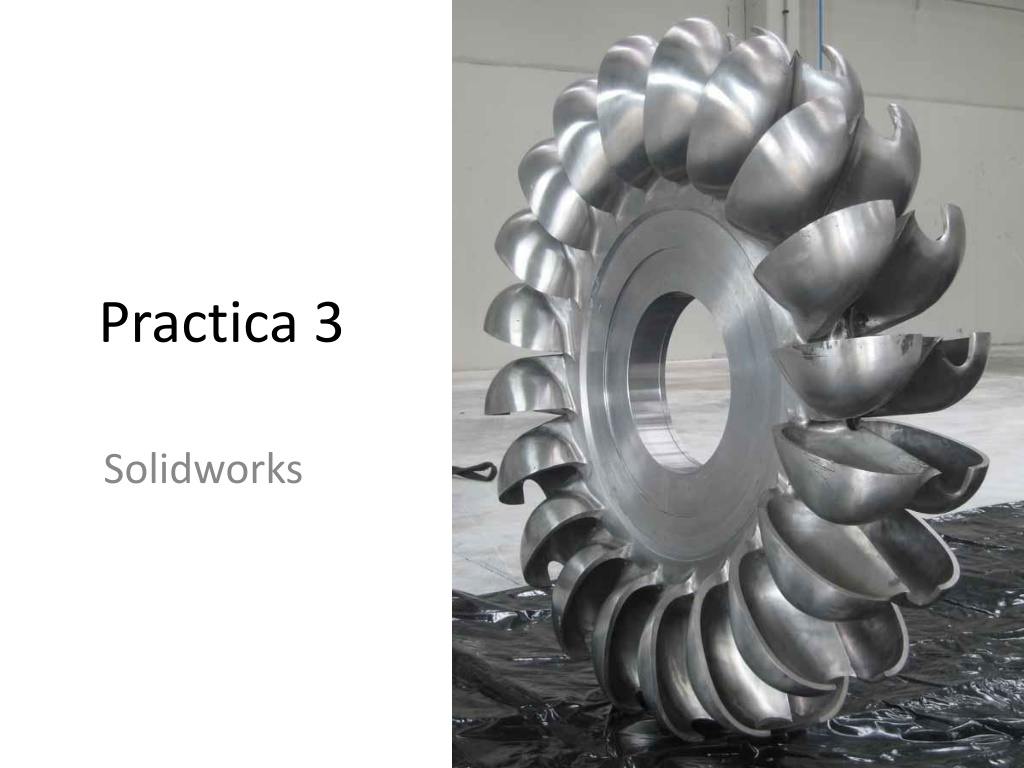

Practica 3 Solidworks

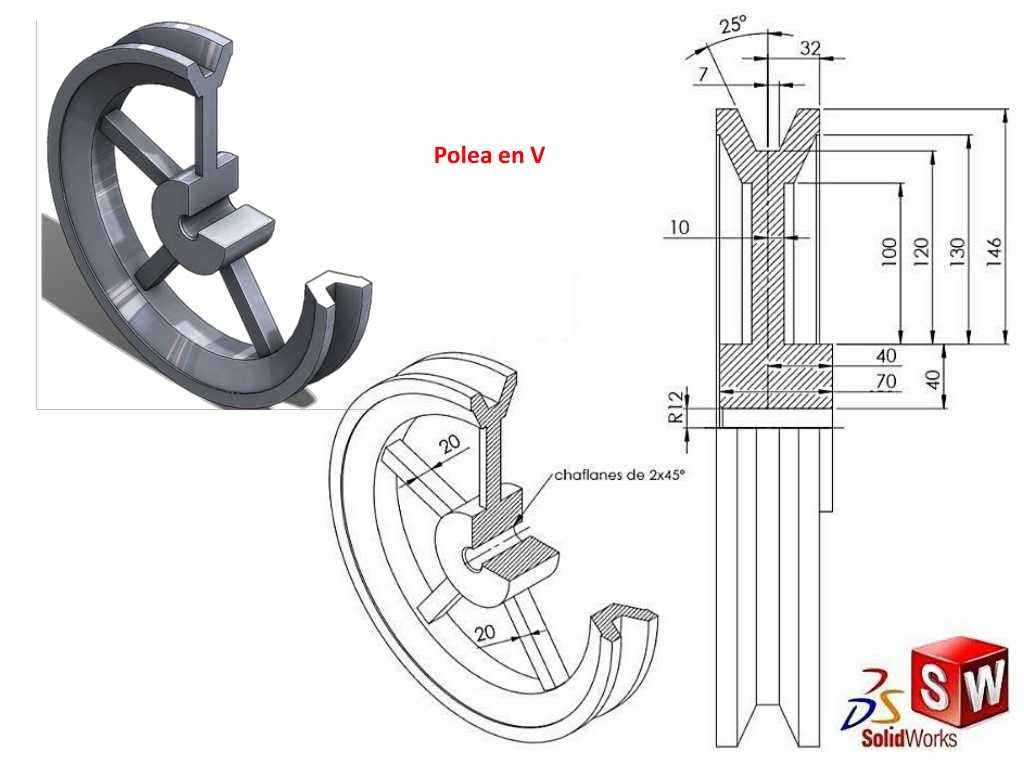

Polea en V

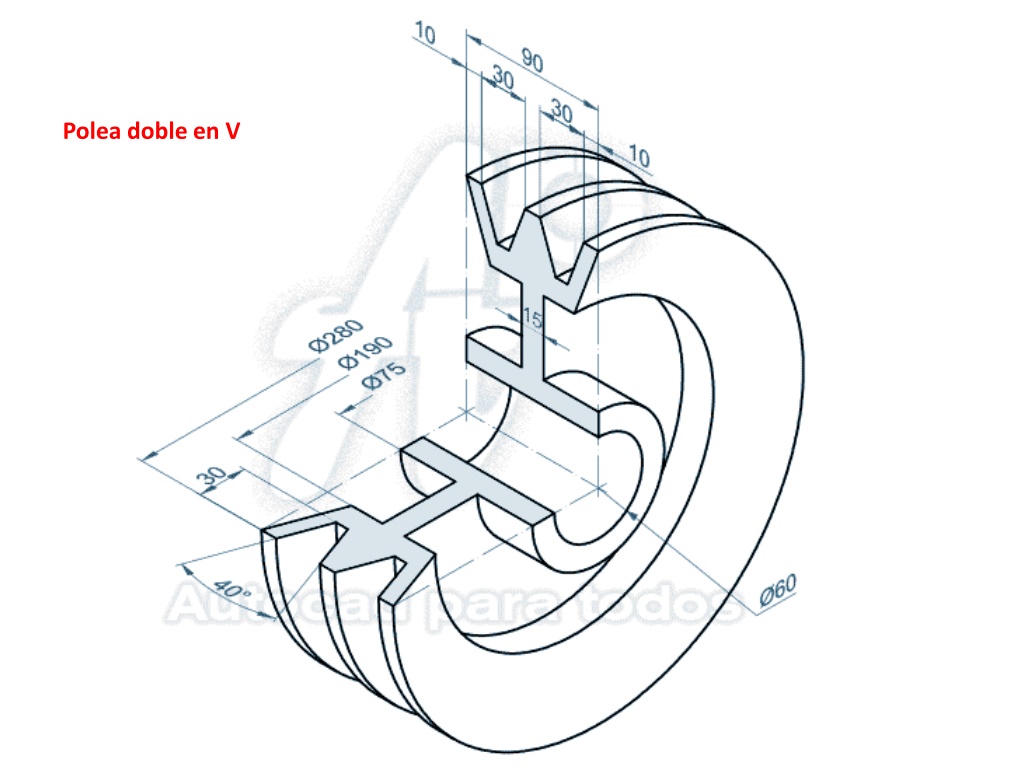

Polea doble en V

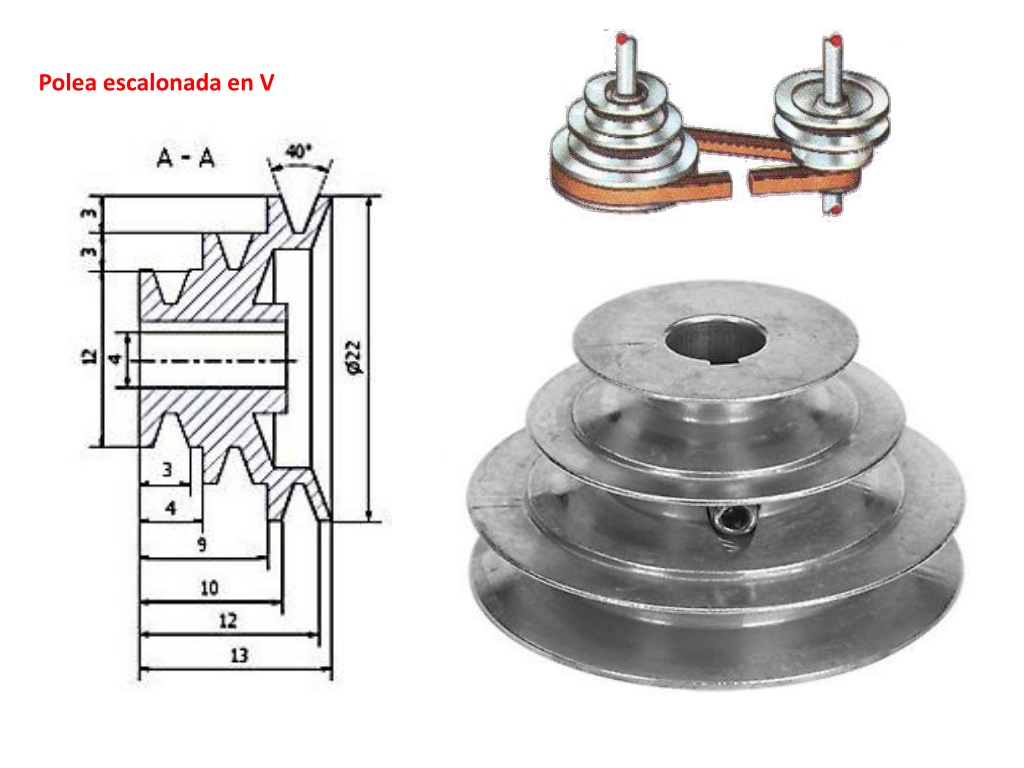

Polea escalonada en V

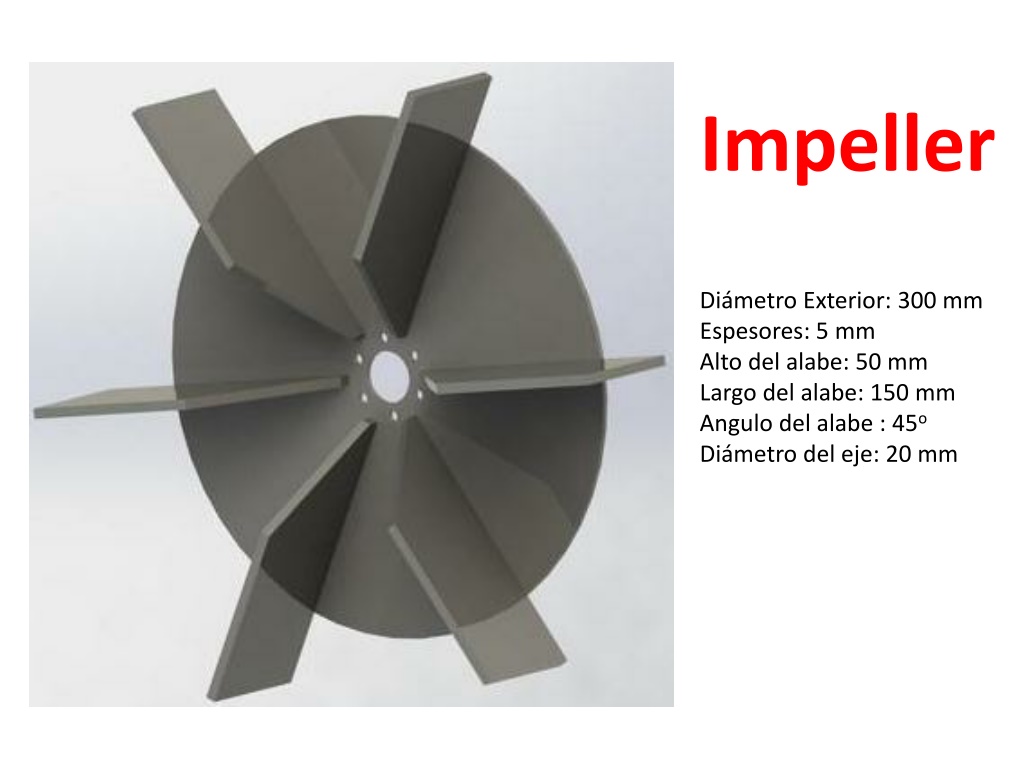

Impeller Diámetro Exterior: 300 mm Espesores: 5 mm Alto del alabe: 50 mm Largo del alabe: 150 mm Angulo del alabe : 45o Diámetro del eje: 20 mm
