1. F I B E R Experience The New Generation Of Laser Cutting L A S E R

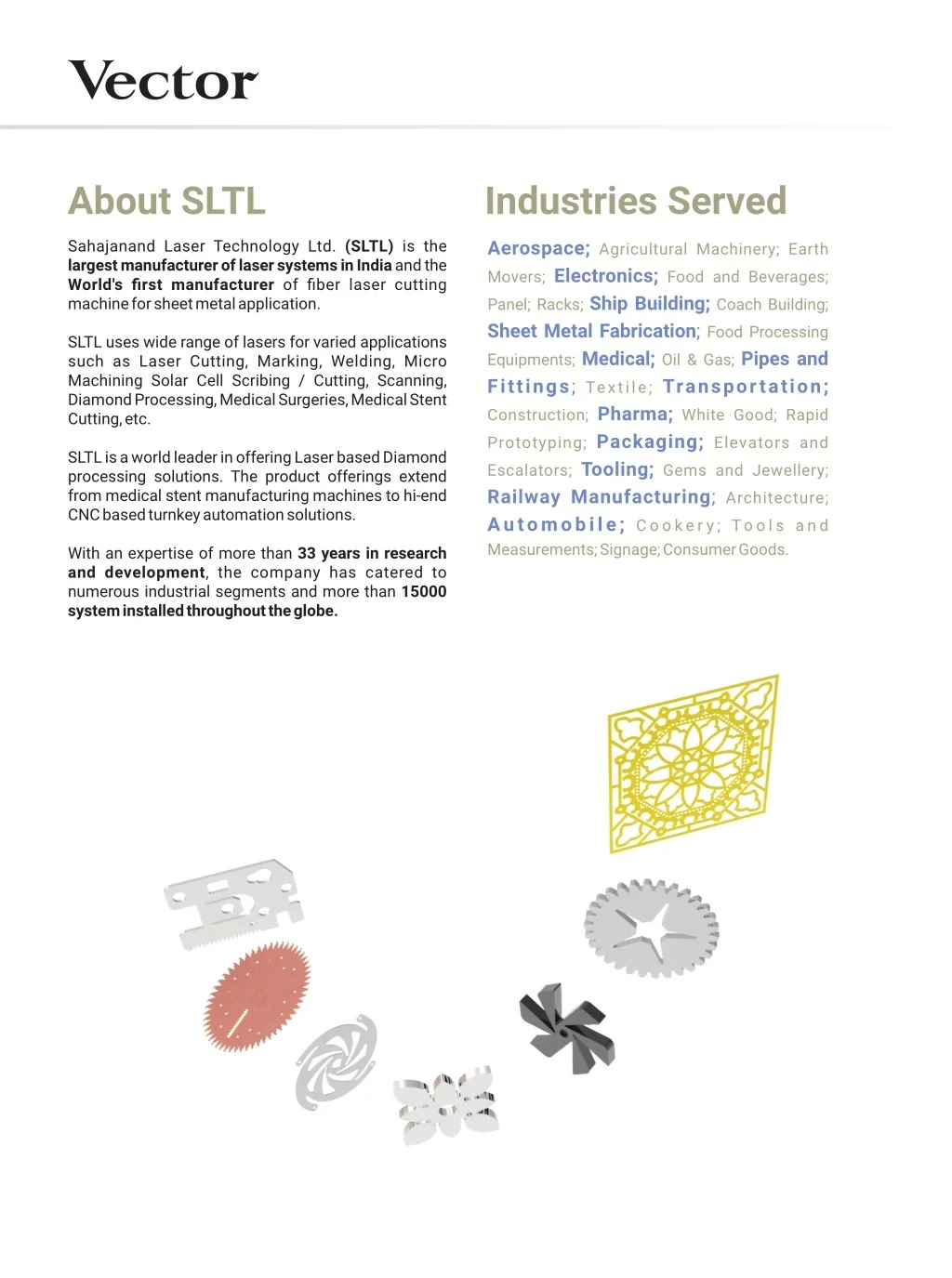

2. About SLTL Industries Served Aerospace; Agricultural Machinery; Earth Movers; Food and Beverages; Electronics; Panel; Racks; Ship Building; Sheet Metal Fabrication; Food Processing Equipments; Oil & Gas; Medical; Fittings; Textile; Construction; Pharma; Prototyping; Packaging; Escalators; Gems and Jewellery; Tooling; Railway Manufacturing; Architecture; Automobile; C o o ke r y ; To o l s a n d Measurements; Signage; Consumer Goods. Sahajanand Laser Technology Ltd. (SLTL) is the largest manufacturer of laser systems in India and the World's first manufacturer of fiber laser cutting machine for sheet metal application. Coach Building; SLTL uses wide range of lasers for varied applications such as Laser Cutting, Marking, Welding, Micro Machining Solar Cell Scribing / Cutting, Scanning, Diamond Processing, Medical Surgeries, Medical Stent Cutting, etc. Pipes and Transportation; White Good; Rapid Elevators and SLTL is a world leader in offering Laser based Diamond processing solutions. The product offerings extend from medical stent manufacturing machines to hi-end CNC based turnkey automation solutions. With an expertise of more than 33 years in research and development, the company has catered to numerous industrial segments and more than 15000 system installed throughout the globe.

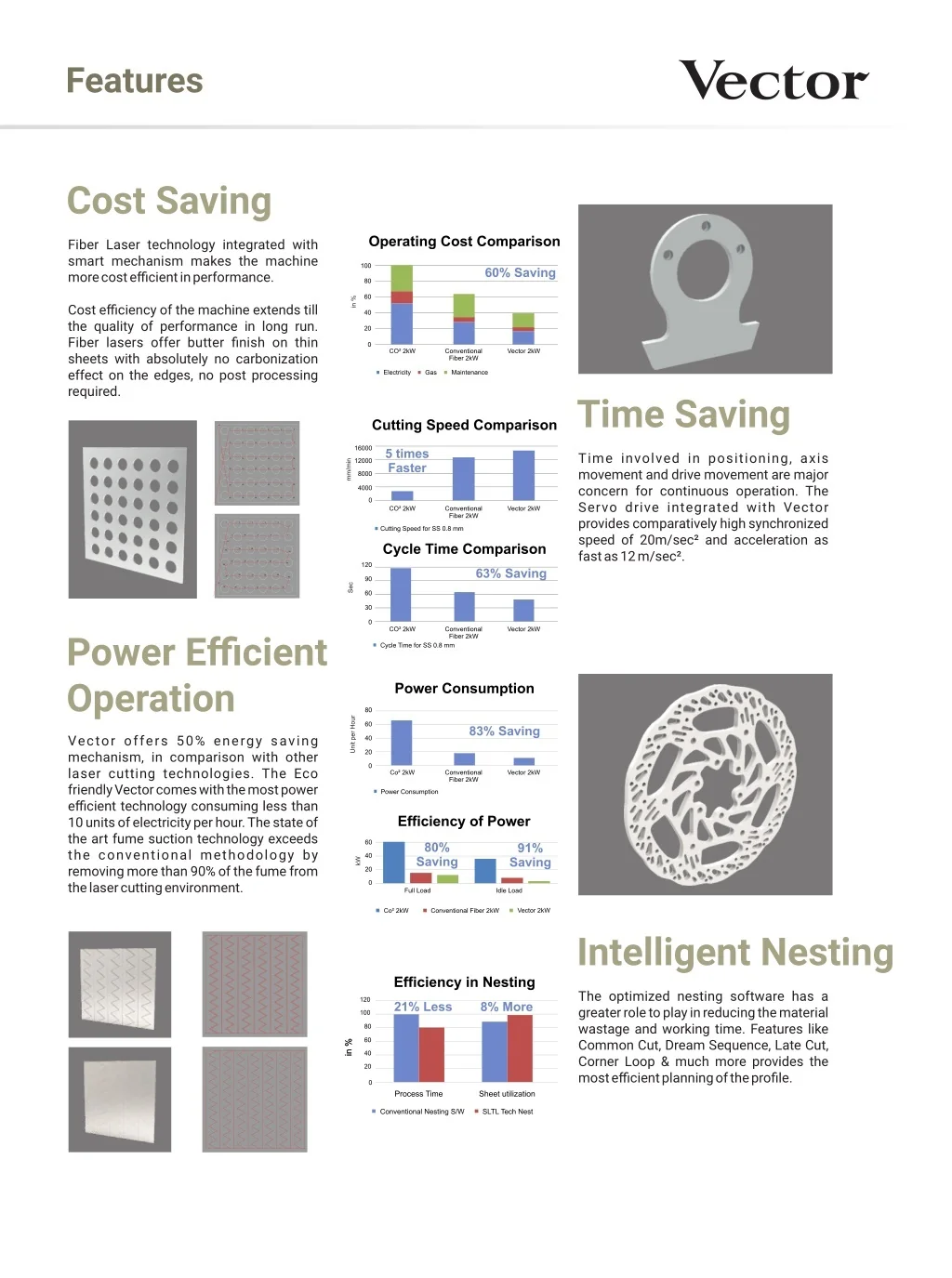

3. Features Cost Saving Fiber Laser technology integrated with smart mechanism makes the machine more cost efficient in performance. Cost efficiency of the machine extends till the quality of performance in long run. Fiber lasers offer butter finish on thin sheets with absolutely no carbonization effect on the edges, no post processing required. CO² 2kW Conventional Fiber 2kW Vector 2kW Time Saving Time involved in positioning, axis movement and drive movement are major concern for continuous operation. The Servo drive integrated with Vector provides comparatively high synchronized speed of 20m/sec² and acceleration as fast as 12 m/sec². CO² 2kW Conventional Fiber 2kW Vector 2kW CO² 2kW Conventional Fiber 2kW Vector 2kW Power Efficient Operation Vector offers 50% energy saving mechanism, in comparison with other laser cutting technologies. The Eco friendly Vector comes with the most power efficient technology consuming less than 10 units of electricity per hour. The state of the art fume suction technology exceeds the conventional methodology by removing more than 90% of the fume from the laser cutting environment. Co² 2kW Conventional Fiber 2kW Vector 2kW Vector 2kW Co² 2kW Conventional Fiber 2kW Intelligent Nesting The optimized nesting software has a greater role to play in reducing the material wastage and working time. Features like Common Cut, Dream Sequence, Late Cut, Corner Loop & much more provides the most efficient planning of the profile.

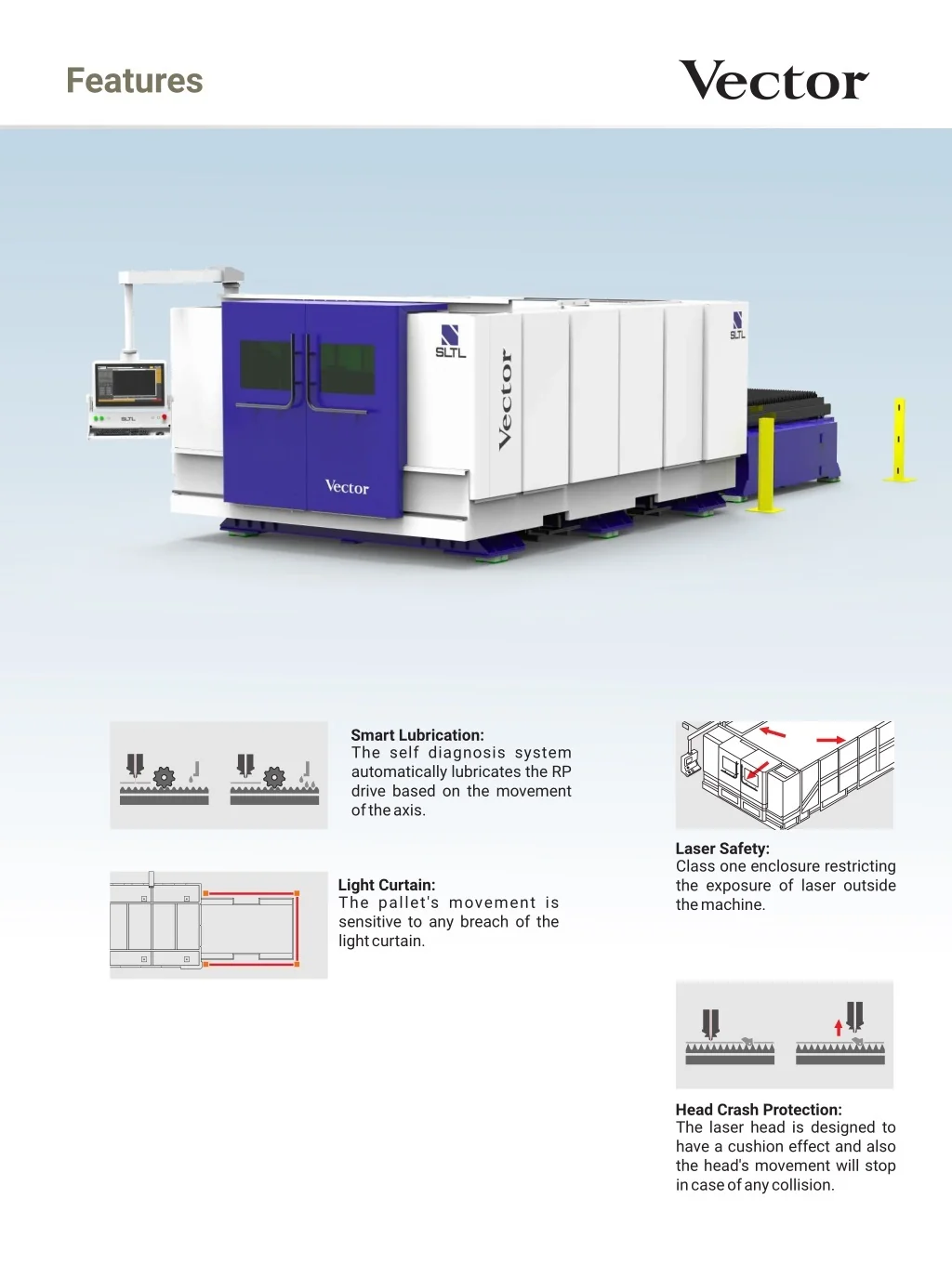

4. Features Smart Lubrication: The self diagnosis system automatically lubricates the RP drive based on the movement of the axis. Laser Safety: Class one enclosure restricting the exposure of laser outside the machine. Light Curtain: The pallet's movement is sensitive to any breach of the light curtain. Head Crash Protection: The laser head is designed to have a cushion effect and also the head's movement will stop in case of any collision.

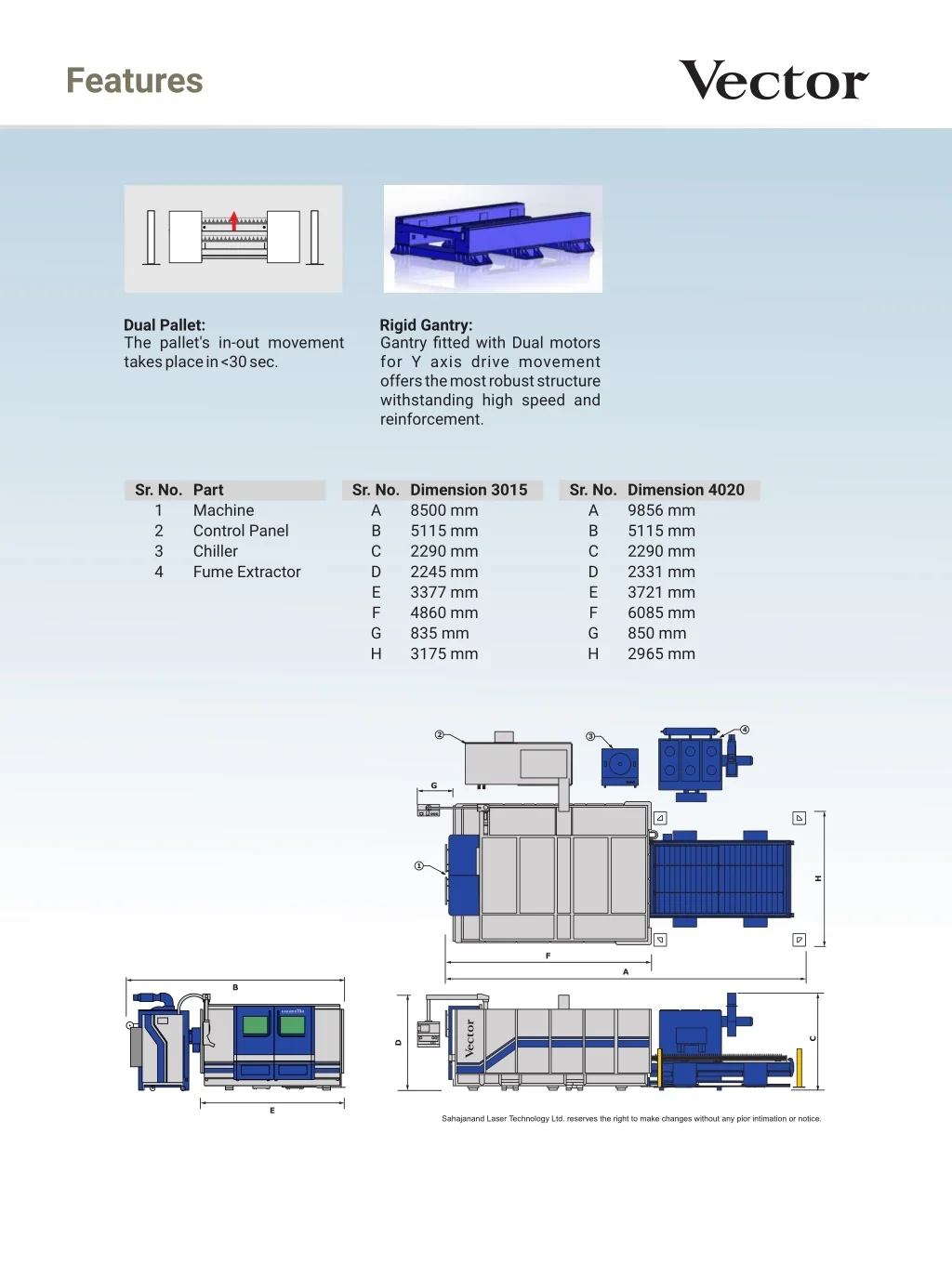

5. Features Dual Pallet: The pallet's in-out movement takes place in <30 sec. Rigid Gantry: Gantry fitted with Dual motors for Y axis drive movement offers the most robust structure withstanding high speed and reinforcement. Sr. No. Part 1 2 3 4 Sr. No. Dimension 3015 A 8500 mm B 5115 mm C 2290 mm D 2245 mm E 3377 mm F 4860 mm G 835 mm H 3175 mm Sr. No. Dimension 4020 A 9856 mm B 5115 mm C 2290 mm D 2331 mm E 3721 mm F 6085 mm G 850 mm H 2965 mm Machine Control Panel Chiller Fume Extractor Sahajanand Laser Technology Ltd. reserves the right to make changes without any pior intimation or notice.

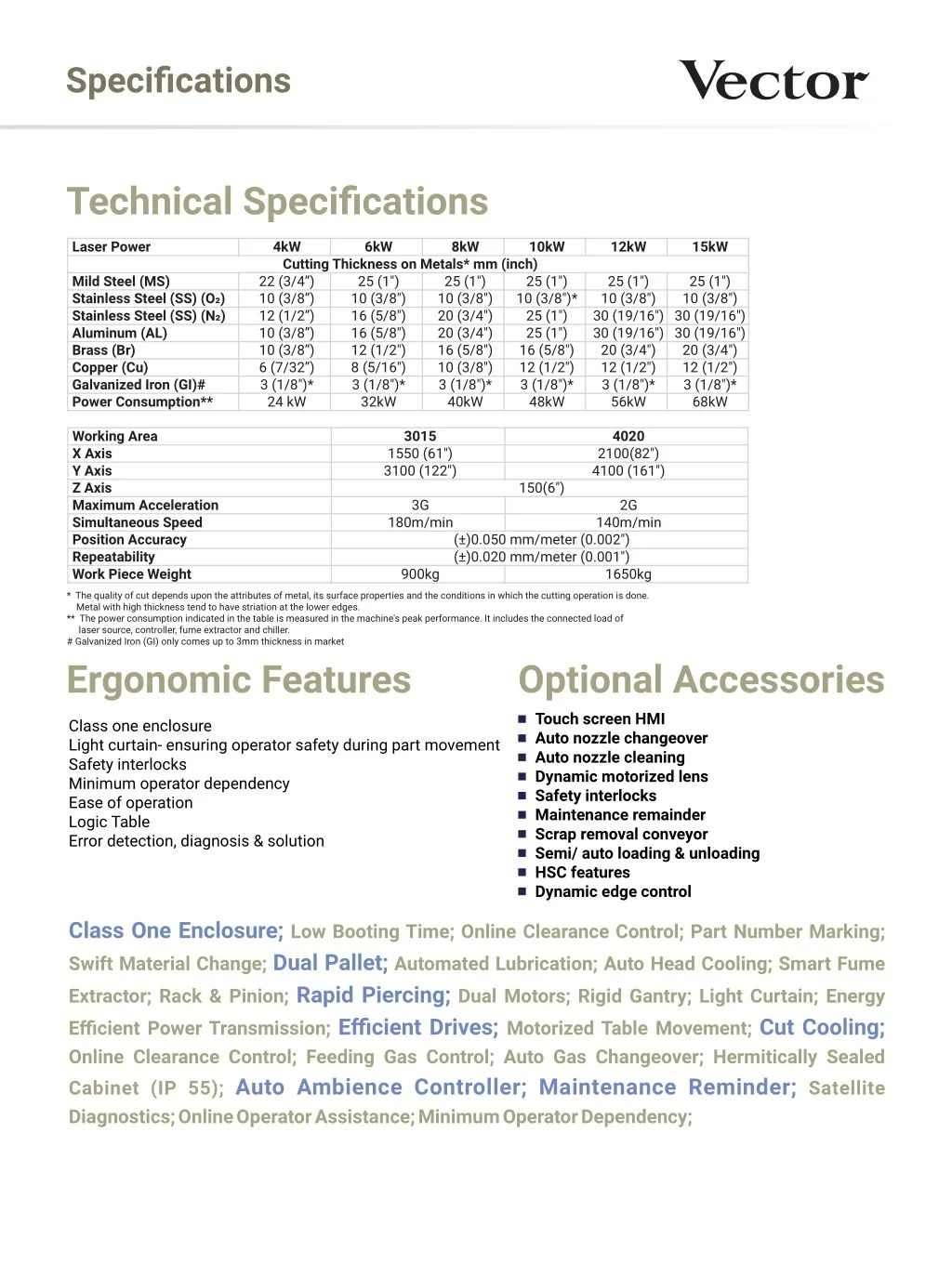

6. Specifications Technical Specifications Laser Power 4kW Cutting Thickness on Metals* mm (inch) 22 (3/4”) 25 (1") 10 (3/8”) 10 (3/8") 12 (1/2”) 16 (5/8") 10 (3/8”) 16 (5/8") 10 (3/8”) 12 (1/2") 6 (7/32”) 8 (5/16") 3 (1/8")* 3 (1/8")* 24 kW 32kW 6kW 8kW 10kW 12kW 15kW Mild Steel (MS) Stainless Steel (SS) (O?) Stainless Steel (SS) (N?) Aluminum (AL) Brass (Br) Copper (Cu) Galvanized Iron (GI)# Power Consumption** 25 (1") 10 (3/8") 20 (3/4") 20 (3/4") 16 (5/8") 10 (3/8") 3 (1/8")* 40kW 25 (1") 10 (3/8")* 25 (1") 25 (1") 16 (5/8") 12 (1/2") 3 (1/8")* 48kW 25 (1") 10 (3/8") 30 (19/16") 30 (19/16") 30 (19/16") 30 (19/16") 20 (3/4") 12 (1/2") 3 (1/8")* 56kW 25 (1") 10 (3/8") 20 (3/4") 12 (1/2") 3 (1/8")* 68kW Working Area X Axis Y Axis Z Axis Maximum Acceleration Simultaneous Speed Position Accuracy Repeatability Work Piece Weight 3015 4020 2100(82") 4100 (161") 1550 (61") 3100 (122") 150(6") 3G 2G 180m/min 140m/min (±)0.050 mm/meter (0.002") (±)0.020 mm/meter (0.001") 900kg 1650kg * The quality of cut depends upon the attributes of metal, its surface properties and the conditions in which the cutting operation is done. Metal with high thickness tend to have striation at the lower edges. ** The power consumption indicated in the table is measured in the machine's peak performance. It includes the connected load of laser source, controller, fume extractor and chiller. # Galvanized Iron (GI) only comes up to 3mm thickness in market Ergonomic Features Optional Accessories Touch screen HMI Auto nozzle changeover Auto nozzle cleaning Dynamic motorized lens Safety interlocks Maintenance remainder Scrap removal conveyor Semi/ auto loading & unloading HSC features Dynamic edge control Class one enclosure Light curtain- ensuring operator safety during part movement Safety interlocks Minimum operator dependency Ease of operation Logic Table Error detection, diagnosis & solution Class One Enclosure; Low Booting Time; Online Clearance Control; Part Number Marking; Swift Material Change; Automated Lubrication; Auto Head Cooling; Smart Fume Dual Pallet; Extractor; Rack & Pinion; Dual Motors; Rigid Gantry; Light Curtain; Energy Rapid Piercing; Efficient Power Transmission; Efficient Drives; Online Clearance Control; Feeding Gas Control; Auto Gas Changeover; Hermitically Sealed Cabinet (IP 55); Auto Ambience Controller; Maintenance Reminder; Diagnostics; Online Operator Assistance; Minimum Operator Dependency; Cut Cooling; Motorized Table Movement; Satellite

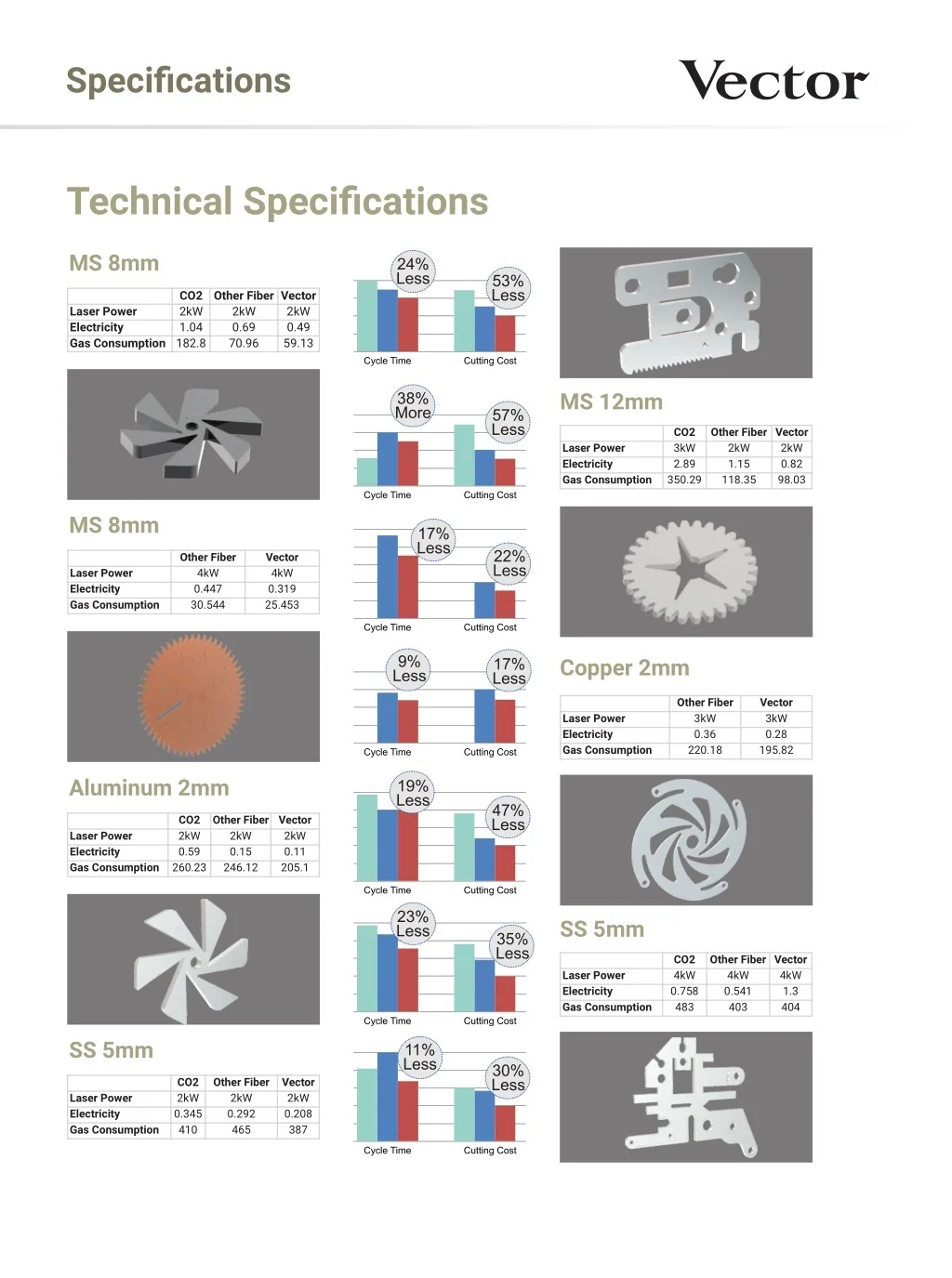

7. Specifications Technical Specifications MS 8mm CO2 2kW 1.04 Other Fiber Vector 2kW 0.69 70.96 Laser Power Electricity Gas Consumption 182.8 2kW 0.49 59.13 MS 12mm CO2 3kW 2.89 350.29 Other Fiber Vector 2kW 1.15 118.35 Laser Power Electricity Gas Consumption 2kW 0.82 98.03 MS 8mm Other Fiber 4kW 0.447 30.544 Vector 4kW 0.319 25.453 Laser Power Electricity Gas Consumption Copper 2mm Other Fiber 3kW 0.36 220.18 Vector 3kW 0.28 195.82 Laser Power Electricity Gas Consumption Aluminum 2mm CO2 2kW 0.59 260.23 Other Fiber Vector 2kW 0.15 246.12 Laser Power Electricity Gas Consumption 2kW 0.11 205.1 SS 5mm CO2 4kW 0.758 483 Other Fiber Vector 4kW 0.541 403 Laser Power Electricity Gas Consumption 4kW 1.3 404 SS 5mm CO2 2kW 0.345 410 Other Fiber Vector 2kW 0.292 465 Laser Power Electricity Gas Consumption 2kW 0.208 387

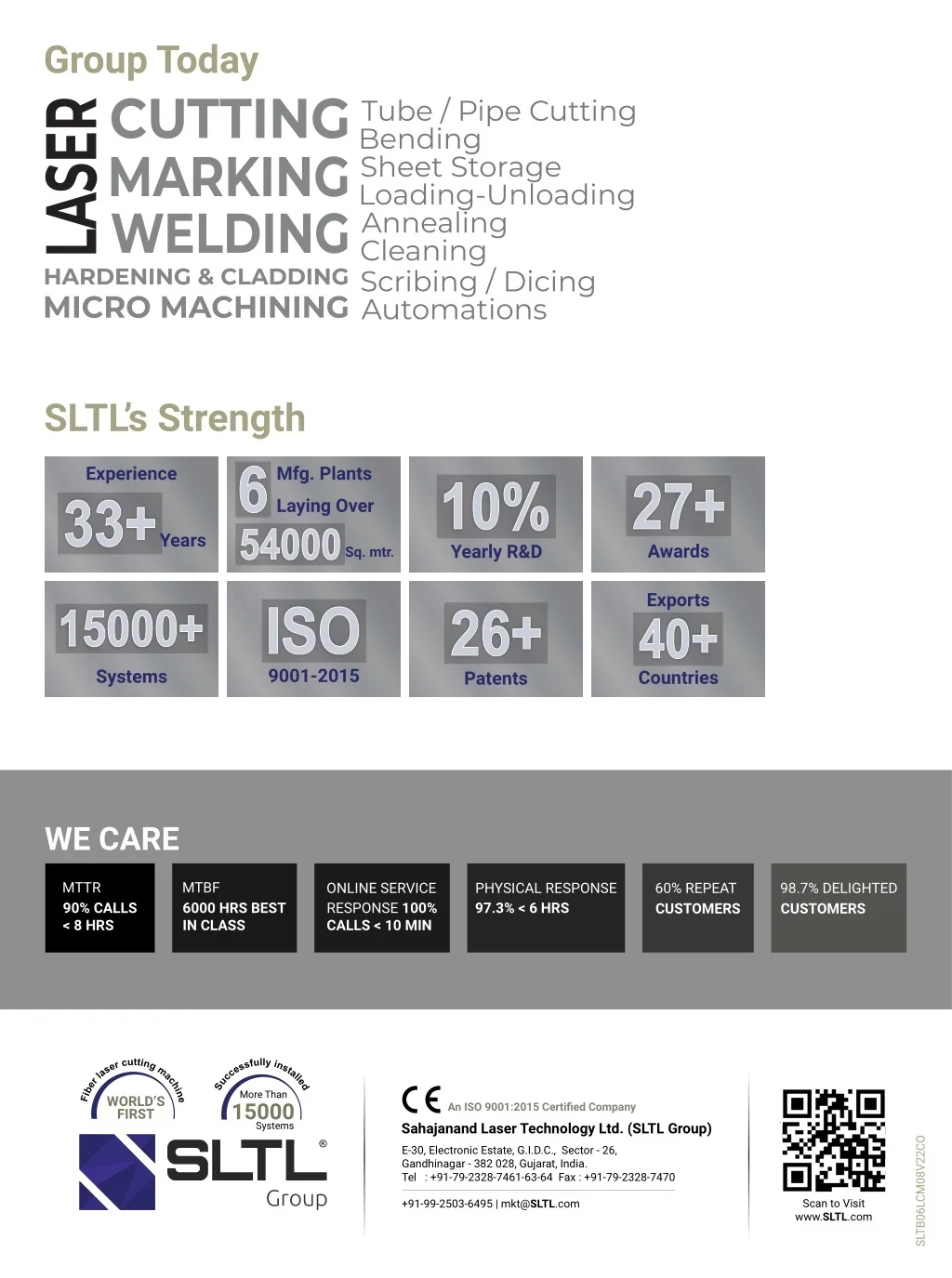

8. Group Today SLTL’s Strength 6 54000 ISO 9001-2015 Experience Mfg. Plants Laying Over 10% Yearly R&D 26+ Patents 27+ Awards Years Sq. mtr. Exports 15000+ Systems 40+ Countries WE CARE MTTR MTBF ONLINE SERVICE RESPONSE 100% CALLS < 10 MIN PHYSICAL RESPONSE 60% REPEAT 98.7% DELIGHTED 90% CALLS < 8 HRS 6000 HRS BEST IN CLASS 97.3% < 6 HRS CUSTOMERS CUSTOMERS More Than 15000 Systems WORLD’S FIRST An ISO 9001:2015 Certified Company Sahajanand Laser Technology Ltd. (SLTL Group) E-30, Electronic Estate, G.I.D.C., Sector - 26, Gandhinagar - 382 028, Gujarat, India. Tel : +91-79-2328-7461-63-64 Fax : +91-79-2328-7470 SLTB06LCM08V22CO Scan to Visit www.SLTL.com +91-99-2503-6495 | mkt@SLTL.com
