Green Laser Processing System HALLMARK GREEN EDGE

DESCRIPTION

Introducing SLTLu2019s Hallmark Green Edge, the ultimate diamond slicing solution that exceeds all expectations. With a focus on mechanical stability, this cutting-edge machine delivers exceptional results while providing user-friendly software for enhanced productivity. <br>https://www.sltl.com/products/hallmark-green-edge/<br>

Télécharger la présentation

Green Laser Processing System HALLMARK GREEN EDGE

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

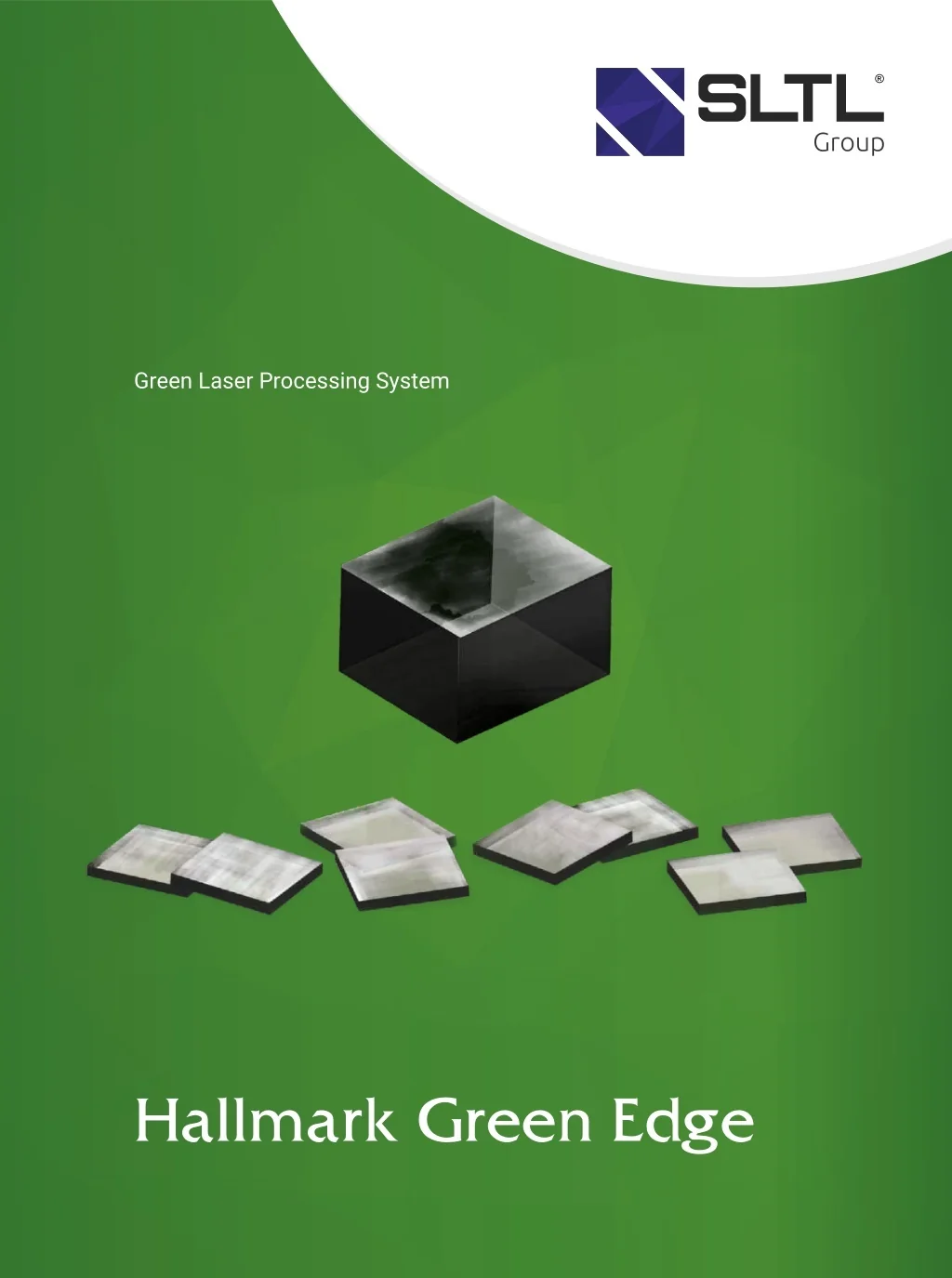

  1. Green Laser Processing System Hallmark Green Edge

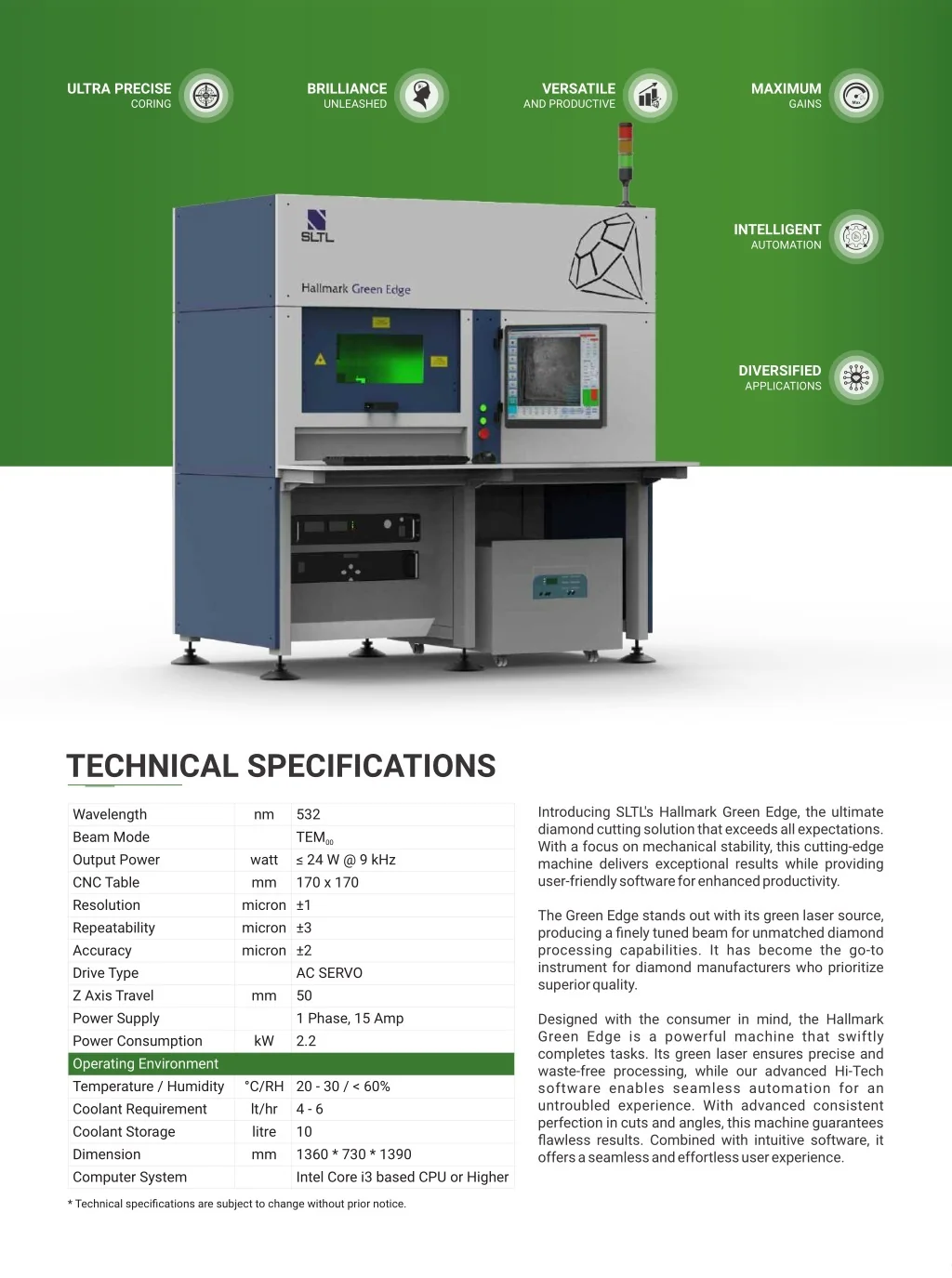

  2. ULTRA PRECISE BRILLIANCE UNLEASHED VERSATILE AND PRODUCTIVE MAXIMUM CORING GAINS INTELLIGENT AUTOMATION DIVERSIFIED APPLICATIONS TECHNICAL SPECIFICATIONS Introducing SLTL's Hallmark Green Edge, the ultimate diamond cutting solution that exceeds all expectations. With a focus on mechanical stability, this cutting-edge machine delivers exceptional results while providing user-friendly software for enhanced productivity. Wavelength Beam Mode Output Power CNC Table Resolution Repeatability Accuracy Drive Type Z Axis Travel Power Supply Power Consumption Operating Environment Temperature / Humidity Coolant Requirement Coolant Storage Dimension Computer System nm 532 TEM00 ≤ 24 W @ 9 kHz 170 x 170 watt mm micron ±1 micron ±3 micron ±2 The Green Edge stands out with its green laser source, producing a finely tuned beam for unmatched diamond processing capabilities. It has become the go-to instrument for diamond manufacturers who prioritize superior quality. AC SERVO 50 1 Phase, 15 Amp 2.2 mm Designed with the consumer in mind, the Hallmark Green Edge is a powerful machine that swiftly completes tasks. Its green laser ensures precise and waste-free processing, while our advanced Hi-Tech software enables seamless automation for an untroubled experience. With advanced consistent perfection in cuts and angles, this machine guarantees flawless results. Combined with intuitive software, it offers a seamless and effortless user experience. kW °C/RH 20 - 30 / < 60% lt/hr 4 - 6 litre 10 mm 1360 * 730 * 1390 Intel Core i3 based CPU or Higher * Technical specifications are subject to change without prior notice.

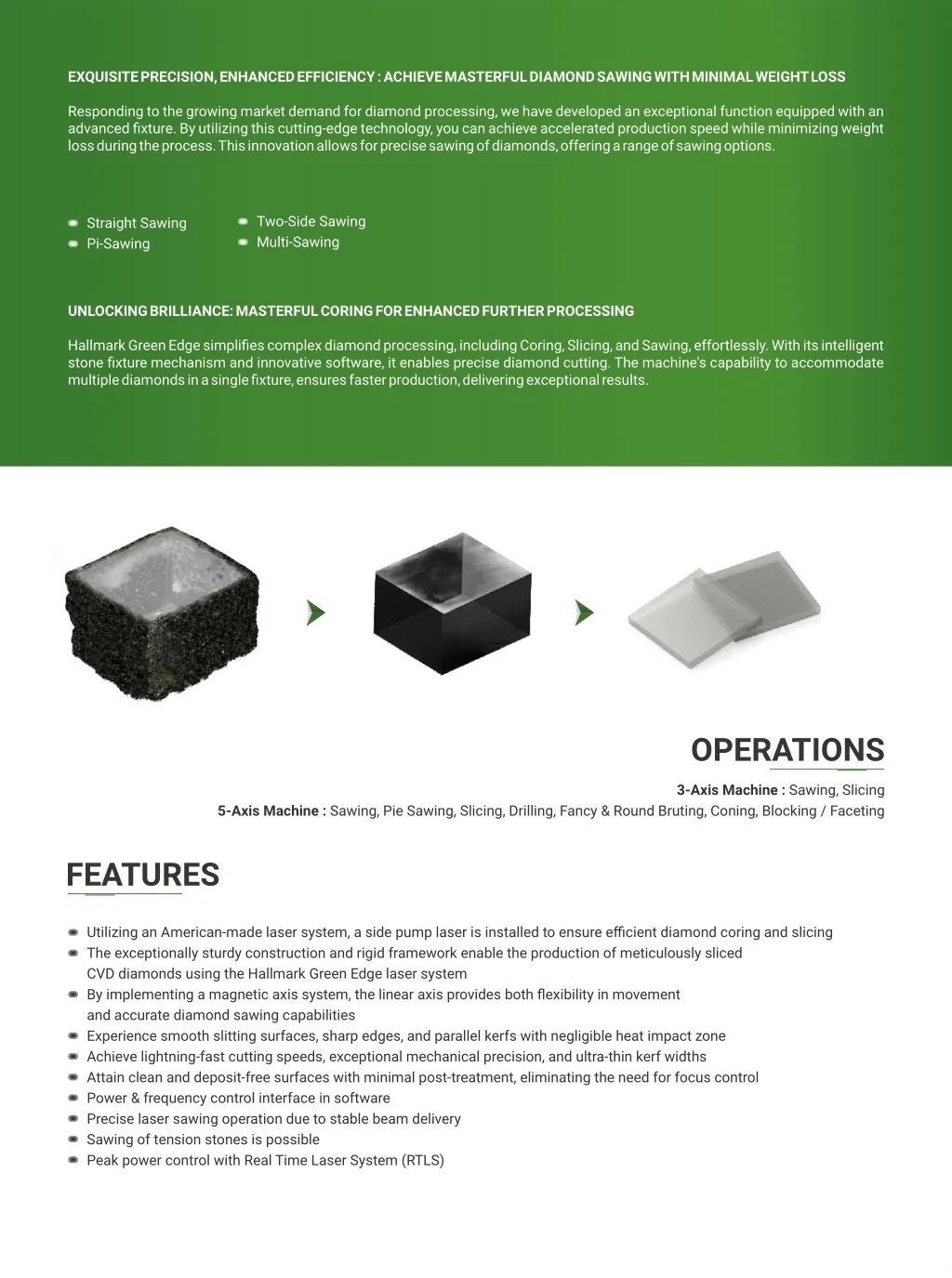

  3. EXQUISITE PRECISION, ENHANCED EFFICIENCY : ACHIEVE MASTERFUL DIAMOND SAWING WITH MINIMAL WEIGHT LOSS Responding to the growing market demand for diamond processing, we have developed an exceptional function equipped with an advanced fixture. By utilizing this cutting-edge technology, you can achieve accelerated production speed while minimizing weight loss during the process. This innovation allows for precise sawing of diamonds, offering a range of sawing options. Two-Side Sawing Multi-Sawing Straight Sawing Pi-Sawing UNLOCKING BRILLIANCE: MASTERFUL CORING FOR ENHANCED FURTHER PROCESSING Hallmark Green Edge simplifies complex diamond processing, including Coring, Slicing, and Sawing, effortlessly. With its intelligent stone fixture mechanism and innovative software, it enables precise diamond cutting. The machine's capability to accommodate multiple diamonds in a single fixture, ensures faster production, delivering exceptional results. OPERATIONS 3-Axis Machine : Sawing, Slicing 5-Axis Machine : Sawing, Pie Sawing, Slicing, Drilling, Fancy & Round Bruting, Coning, Blocking / Faceting FEATURES Utilizing an American-made laser system, a side pump laser is installed to ensure efficient diamond coring and slicing The exceptionally sturdy construction and rigid framework enable the production of meticulously sliced CVD diamonds using the Hallmark Green Edge laser system By implementing a magnetic axis system, the linear axis provides both flexibility in movement and accurate diamond sawing capabilities Experience smooth slitting surfaces, sharp edges, and parallel kerfs with negligible heat impact zone Achieve lightning-fast cutting speeds, exceptional mechanical precision, and ultra-thin kerf widths Attain clean and deposit-free surfaces with minimal post-treatment, eliminating the need for focus control Power & frequency control interface in software Precise laser sawing operation due to stable beam delivery Sawing of tension stones is possible Peak power control with Real Time Laser System (RTLS)

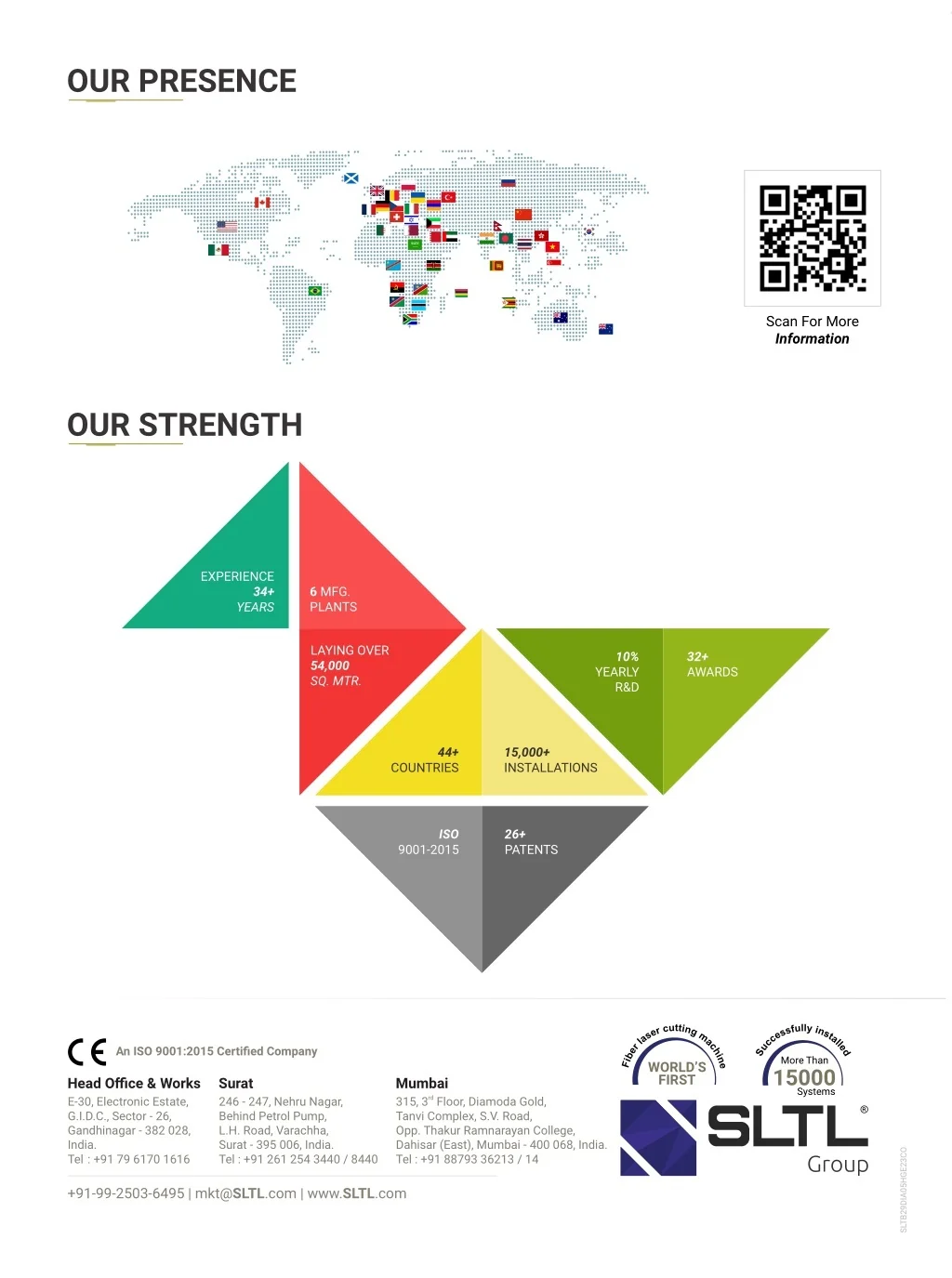

  4. OUR PRESENCE Scan For More Information OUR STRENGTH EXPERIENCE 6 MFG. PLANTS 34+ YEARS LAYING OVER 54,000 SQ. MTR. 10% 32+ AWARDS YEARLY R&D 44+ 15,000+ INSTALLATIONS COUNTRIES ISO 26+ PATENTS 9001-2015 An ISO 9001:2015 Certified Company More Than 15000 Systems WORLD’S FIRST Head Office & Works E-30, Electronic Estate, G.I.D.C., Sector - 26, Gandhinagar - 382 028, India. Tel : +91 79 6170 1616 Surat 246 - 247, Nehru Nagar, Behind Petrol Pump, L.H. Road, Varachha, Surat - 395 006, India. Tel : +91 261 254 3440 / 8440 Mumbai 315, 3 Floor, Diamoda Gold, Tanvi Complex, S.V. Road, Opp. Thakur Ramnarayan College, Dahisar (East), Mumbai - 400 068, India. Tel : +91 88793 36213 / 14 rd SLTB29DIA05HGE23CO +91-99-2503-6495 | mkt@SLTL.com | www.SLTL.com
